New baofeng uv 5r two way radio uv-5r dual band walkie talkie vhf/uhf transceiver FM radio SOS bright flashlight + accessories
Description
New baofeng uv 5r two way radio uv-5r dual band walkie talkie vhf/uhf transceiver FM radio SOS bright flashlight + accessories (charger earphone battery)

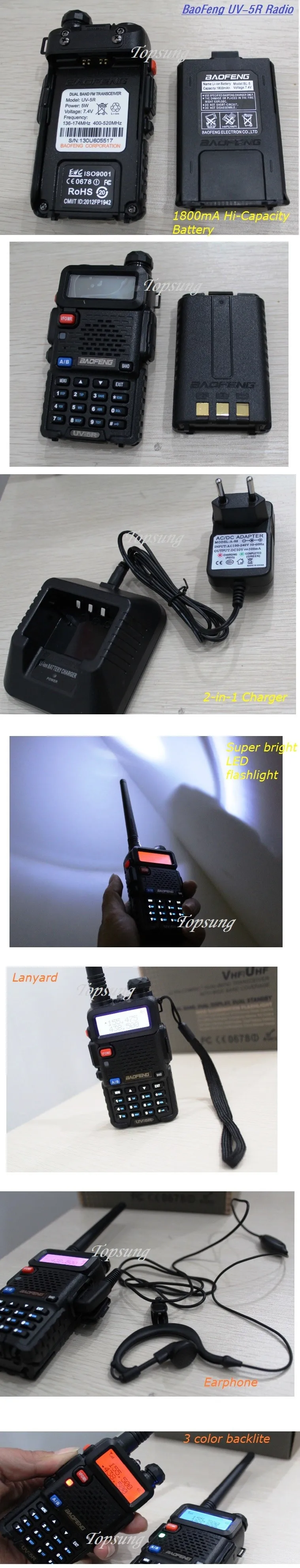

Package includes
1 x UV-5RE (VHF136174 UHF 400-480Mhz)
1 x Free PTT Earpiece
1 x 7.4V 1800mah Li-ion Battery Pack
1 x Dual Band Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V ) -
(EU standard 2 round pins and US 2 flat pins adapter, please choose)
Specification:
| Main Functions |
|
| Dual band, dual display |
A/B band independent operation |
| 128 groups channels storage |
Shortcut menu operation mode |
| VFO & Memory channels scan |
Emergency Alarm |
| Tri-color background light selectable |
0-9 grades VOX selectable |
| PTT & ANI ID |
FM radio and 25 stations storage |
| 1750Hz Brust Tone |
Time-out Timer |
| Channel Monitor |
Battery Saver |
| Keypad Lock |
Channel Step: 2.5/5/6.25/10/12.5/25KHz |
| Low Battery Alert |
ROGER SET |
| Emergency Alert |
25KHz/12.5KHz Switchable |
| FM Radio (65.0MHz-108.0MHz) |
Large LCD Display |
| LED Flashlight |
Hight /Low RF Power Switchable |
| Voice companding |
50 CTCSS/ 104DCS coder & tone searching |
| dual standby |
PC programmable |
| Wide/Narrow Band(25kHz/12.5kHz) |
Transmitter time-out timer(TOT) |
| High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
|
|
| Specifications |
|
| Frequency Range |
65-108MHz(FM Receive only) |
| 136-174MHZ and 400-480HZ (TX/RX) |
|
| Channel No. |
128 |
| Frequency Stability |
+/-2.5ppm |
| Antenna |
High gain DualBand antenna |
| Antenna Impedance |
50Ω |
| Operating Voltage |
DC 7.4V |
| Mode of operation |
Simple or semi-duplex |
| Dimension(W x H x D) |
100 x 52 x 32 mm |
| Weight |
250g(including battery, antenna) |
| Antenna : |
SMA -Female |
| Earpiece / mic type : |
Kenwood Plug type |
|
|
|
| Transmitter |
|
| Output power |
4W / 1W (Max 5W) |
| Modulation Mode |
16kΦF3E / 11kΦF3E |
| Maximum deviation |
5kHz(Wide) / 2.5kHz(Narrow) |
| Spurious Radiation |
7μW |
| Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics |
6dB |
| Current |
≤1.6A(5W) |
| CTCSS/DCS deviation |
0.5+/-0.1kHz(Wide) / 0.3+/-0.1kHz(Narrow) |
| Intermediation sensitivity |
8-12mv |
| Intermediation distortion |
≤10% |
