NDI 4K 20X PTZ Camera Church Studio Webcam Live Streaming Broadcast Camera USB HDMI SDI IPC Tiktok Spotify Podcaster Camera PTZ
Description
Connectivity, creativity, and control of your video are easier than ever using your existing network infrastructure when you implement NDI. Software, computers, and networks are changing the way video is produced, making NDI the most widely adopted and used IP standard in the world. Today, you have compelling new opportunities to engage in visual storytelling within practically any environment.. with Avineer NDI PTZ Camera.
Avineer NDI Camera built-in NewTek NDI license streaming capable of low latency video streaming and PTZ control over NDI|HX Protocol. Simultaneous stream 3G-SDI, HDMI, IP, USB, and NDI outputs complete the camera as a comprehensive solution, you can control it via your NDI workflow, IP web control, or integrate RS-485 and RS-232 serial control.
Apply SONY 1/2.8” Progressive CMOS sensor, 8.50 Megapixels, can reach 4K (3840×2160) high resolution with frame rate up to 4K 30fps. Great focus capture in the largest 20X Optical zoom and better than other brands in the market. The camera has multiple interfaces to support connection and expandability with various devices used in the field of video production and broadcasting, well compatible with Blackmagic ATEM MINI/PRO, IP Switcher(POE+Hub), IP/Vmix Controller, Monitor, and more. PoE 802.3AF enabled(48V), supports 12-15 watts.
The NDI Camera POE PTZ Camera offers perfect functions, superior performance, and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less-than-ideal bandwidth conditions. The NDI camera for Church, education, Live Streaming, Broadcast, and houses of worship.
NDI Camera with HDMI. Compatible with Blackmagic and PTZ IP controller, Compatible with vMix/OBS and other Live Video Streaming Software, Multi-cameras video production for live streaming to YouTube and Facebook. It also with USB 3.0, is compatible with Zoom, Webex, Skype, Hangout, etc. software and hardware, Plug and Play, it's very convenient to use.
4K Ultra HD Resolution
Apply SONY 1/2.8” Progressive CMOS sensor, 8.50 Megapixels, can reach 4K (3840×2160) high resolution with frame rate up to 4K 30fps.
58.7° Wide Angle+16x Digital Zoom
Apply high quality 8.50 megapixels 4K ultra wide-angle lens, 20x optical zoom, support 16x digital zoom.
Intelligent Algorithm Humanoid Tracking +Smart Gesture Recognition
Supports the next-generation intelligent humanoid tracking algorithm + intelligent gesture recognition, allowing for 3 types of gestures to initiate intelligent tracking, intelligent framing, and deactivating the intelligent functions.
* Auto Framing is limited to non-4K resolution.
Abundant Outputs
Support HDMI, 3G-SDI, USB3.0, LAN output in sync, LAN supports POE.
Default version: Supports HDMI+LAN 4K synchronous output, USB3.0+SDI HD 1080 output.
Optional version: Supports HDMI+USB3.0 4K synchronous output, LAN+SDI HD 1080 output.
Low Light
Brand new CMOS image sensor with ultra-high S/N Ratio can effectively reduce image noise in low light conditions. Applying 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra-low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 55dB.
Multiple video compression standards
Different interfaces support YUY2, H265, MJPG, and H264 multiple video compression formats.
Multiple network protocols
Supports ONVIF, SRT, RTSP, RTMP, RTMPS and NDI|HX2 protocols.
Multiple Control Protocols
Support VISCA ( VISCA Over IP ), Pelco P/D, NDI protocol, support automatic identification protocol.
Front tally display
Support tally status display and broadcast-level application scenarios.
Multi-installation Methods
Wall mounting, desktop, or ceiling mounting.
Camera | |
Lens | 20X optical zoom, f=5.2mm(w)~104mm(f) |
Image Sensor | SONY Progressive 4K CMOS |
Effective Pixels | 8.50 Megapixels |
Digital Zoom | 16X digital zoom |
Scan Mode | Line by line |
Horizontal View Angle | 58.7°(W)~3.2°(T） |
Vertical View Angle | 33°~1.8° |
Iris | F1.6～F2.8 |
Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
Shutter Speed | 1/25s~1/10000s |
Focus System | Auto/Manual |
S/N Ratio | ≥55dB |
Exposure | Auto, Manual, Iris Priority, Shutter Priority |
White Balance | Auto, Indoor, Outdoor, Manual, ATW |
Backlight Compensation | Support |
Digital Noise Reduction | 2D&3D Digital noise reduction |
Wide Dynamic Range | Support |
Special Effect | Normal, black and white |
Image Freeze | Support |
Mirror | Support |
Electronic Flip | Support |
Automatic Upright/Flip Recognition | Support |
Audio and video interface | |
Digital Output | HDMI1.4 HDMI color mode: RGB, YCbCr422, YCbCr444 Video Resolution: 4K/30，4K/25，1080p/60，1080p/59.94，1080p/50，1080p/30，1080p/29.97，1080p/25，720p/60，720p/50 3G-SDI: 1080p/60，1080p/59.94，1080p/50，1080p/30，1080p/29.97，1080p/25，720p/60，720p/50 |
LAN | Supports Multiple Code Streams; Encoding Format: H.264, H.265, MJPEG Profile: Main, High, Baseline(H.264) Streaming Protocol: RTMP, RTSP, ONVIF, SRT, NDI|HX2 Main Code Stream Resolution:1080 p30/25/20/15/10 Auxiliary Code Stream Resolution:480, 360, 288, 240, 144（p30/25/20/15/10） MJPEG Resolution:1080, 720 |
USB | Protocol: UVC1.1, UAC1.0 Operating System: Window7 and above, MacOS10.10 and above, Ubuntu16.04 and above or systems compatible with V4L2-driven UVC Video Coding Format: YUY2, MJPEG MJPEG: 3840×2160, 2560×1440, 1920×1080, 1280×720, 800×600, 720×576, 640×480, 480*272, 352*288, 320×240, 320×180 YUY2: 320×180, 320×240, 352*288, 480*272, 640×480, 720×576, 800×600, 1280×720, 1920×1080 UVC Video Frame Rate: Max.60 UAC Audio Coding Format: PCM |
Audio In | Unbalanced analog input (Line In) 3.5mm Sampling rate: 44.1K, 48K Encoding format: AAC |

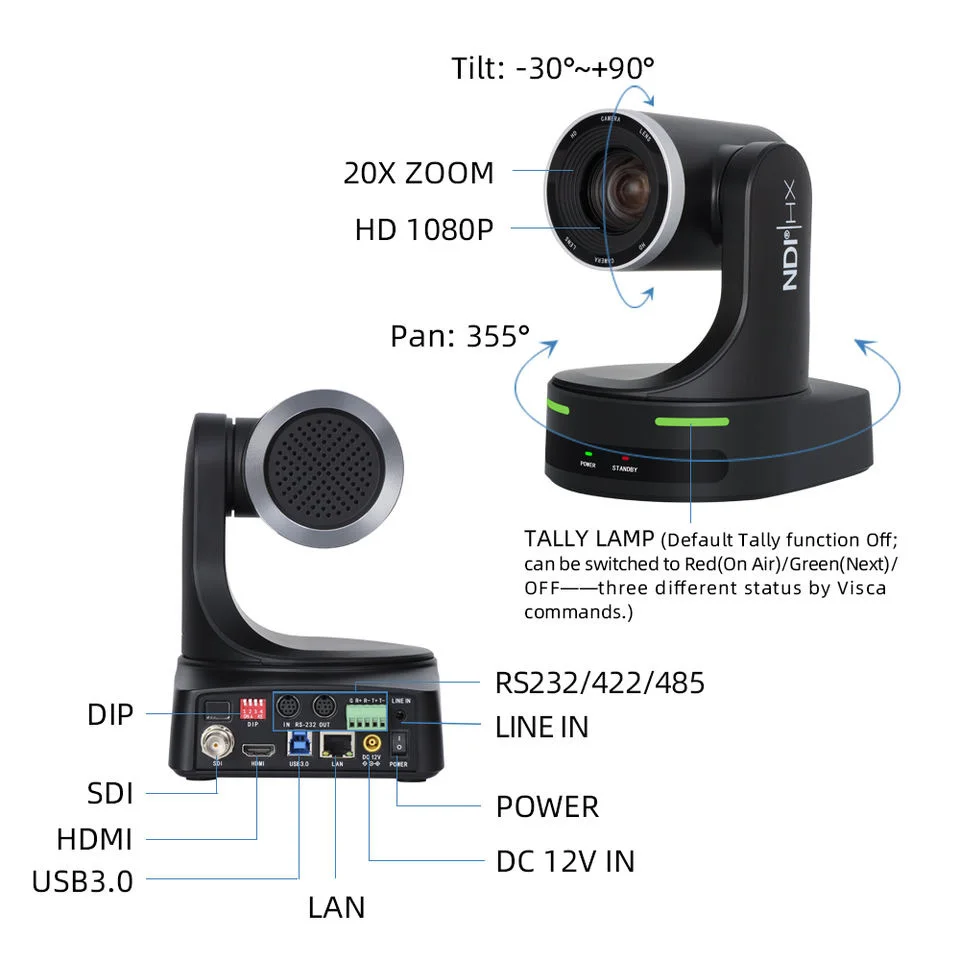

Pan/Tilt | |
Pan Range | 355°(max.speed:80°/s) |
Tilt Range | -30°~+90° |
Pan Speed | 0.1°/S~80°/S |
Tilt Speed | 0.1°/S~60°/S |
Pan Positioning Accuracy | 0.1°±10% |
Tilt Positioning Accuracy | 0.1°±10% |
Preset Speed | 7 Levels |
Preset Position Numbers | 255 |
Control | |
Control Mode | IP, RS-232（RJ45）, RS-422/485 In（RJ45）, IR Remote, 2.4G Wireless(Optional) |
Network Control Protocol | ONVIF, VISCA Over IP, NDI|HX2(Optional) |
Serial Control Protocol | VISCA, Pelco D, Pelco P |
Power Supply | |
Input Voltage | DC 12V IEC60130-10（JEITA Standard RC-5320A）TYPE4 |
Input Current | Max.1.0A |
POE | 802.3af |
Power Consumption | Max.12W |
Others | |
Tally | Support serial port VISCA protocol trigger and NDI protocol connection trigger |
Operational Environment | Indoor |
Operational Temperature | -10-40℃ |
Storage Temperature | -20-60℃ |
Camera Dimensions | (L)161×(W)133×(H)181mm |
Color | Black |
Weight | 1200g |
Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI Cable, USB Cable, Ceiling bracket (Wall bracket optional) |
