NanoVNA-F V2 4.3 Inch

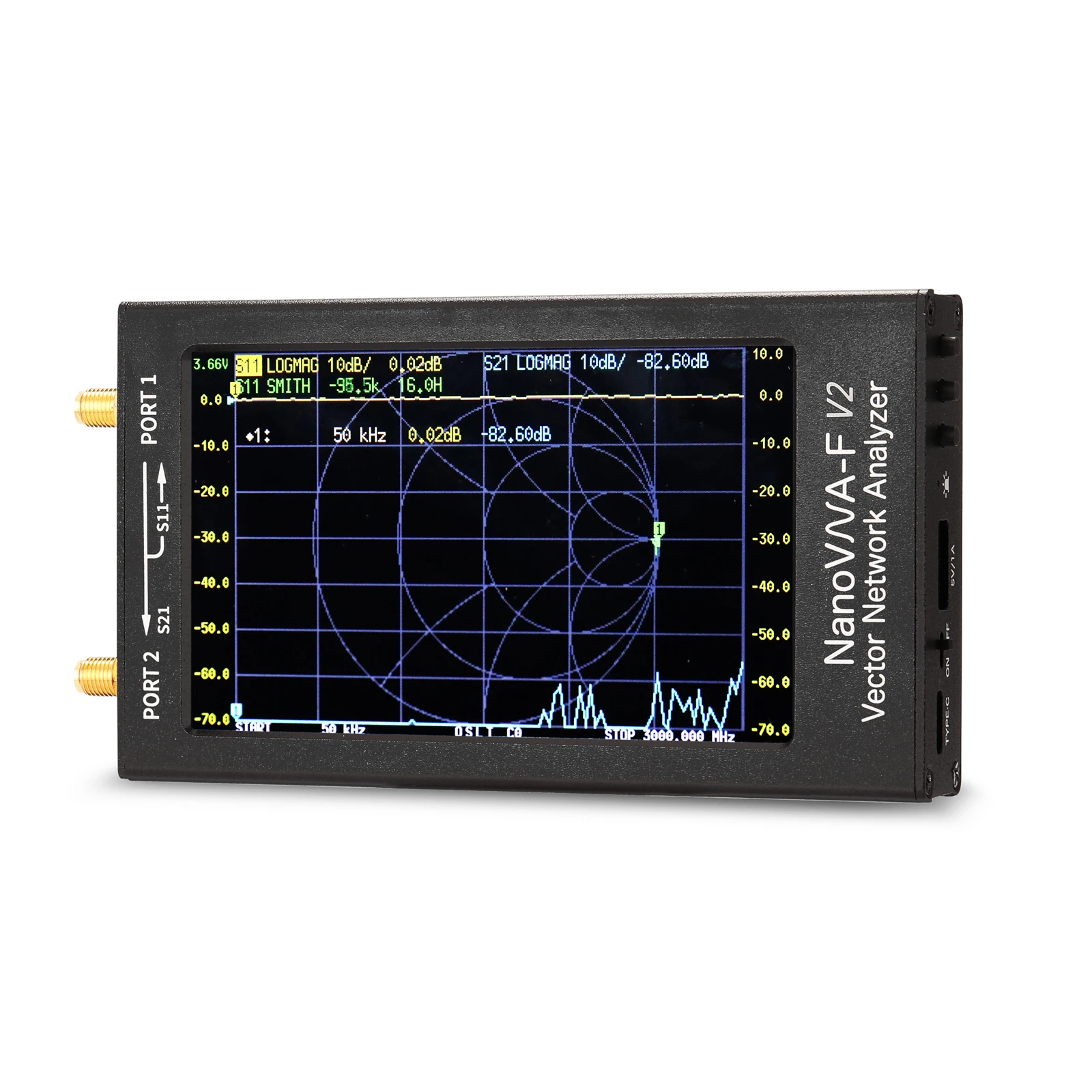

NanoVNA-F V2 portable vector network analyzer is a new product developed on the basis of NanoVNA-F. It uses a 4.3-inch IPS LCD display and an aluminum alloy case. It is equipped with a 5000mAh large-capacity lithium battery as standard. Support touching screen and side button operation, support Chinese and English interface. The design of this product is based on edy555's NanoVNA and OwOcomm's S-A-A V2, and deep optimization of the software is made on the basis of the previous product NanoVNA-F. The operation interface is compatible with NanoVNA-F, the measurement ranges is extended to 3GHz, and the dynamic ranges is larger. The measurement is more accurate and the operation is more convenient.

Features:
4.3-inch IPS LCD display, resolution 800*480, ultra-wide viewing angle, long-term use does not hurt your eyes.
All aluminum alloy case, sturdy and durable, effectively shielding electromagnetic interference to ensure measurement accuracy.
The radio frequency interface is SMA, which is convenient for connecting various tested parts.
Full touching screen design, with 3 side buttons at the same time, flexible and convenient operation.
Support Chinese and English interface.
Optimized UI design, convenient for users to perform measurement operations.
Support screen brightness adjustment.
The firmware can be upgraded through a virtual U disk, no programmer is needed, and the firmware can be upgraded through the included USB type-c data cable.
Standard fine quality calibration parts and RG405 phase-stable cable to ensure calibration accuracy.
Designed with USB power output interface, which can support 5V/1A power output.
Using 2A high current recharging IC, the recharging time is shorter.
Supporting host computer software, the host computer supports Chinese and English interfaces.
The screen images of the device can be obtained by taking a screenshot of the host computer.
Function: can measure S parameters, voltage standing waves ratio, Smith chart, phase, group delay, etc.

Specifications:
Material: aluminum alloy(case)
Main color: black
Battery: 1 * lithium battery, 5000mAh
Frequency: 50kHz-3GHz
RF output power: -9dBm (error within 1GHz: ±1dB)
Frequency accuracy: <0.5ppm
S21 dynamic ranges: 70dB (1.5GHz), 60dB (3GHz)
S11 dynamic ranges: 50dB (1.5GHz), 40dB (3GHz)
2-port return loss: 20dB typ (1.5GHz), 13dB min (3GHz)
Number of calibration points: 101 points
Number of scanning points: 101 points
Number of traces: 4
Number of mark points: 4 (the mark point bar can be moved up and down on the screen)
USB interface: USB Type-C communication mode: CDC (serial)
Setting save: 5 groups (after saving, it can be directly recalled when it is used again, no need to recalibrate, and the saved parameters before the last shutdown will be automatically recalled when it is turned on again)
Support calibration result interpolation, can measure without recalibration after adjusting the measurement frequency band
Scan time: about 1.9s/1 time (50kHz~3000MHz full frequency band)
Item size: 140 * 73 * 20mm / 5.5 * 2.9 * 0.8in
Item weight: 270g / 9.5ounce
Packing size: 250 * 150 * 50mm / 9.8 * 5.9 * 2.0in
Packing weight: 500g / 1.1lb

Packing List:

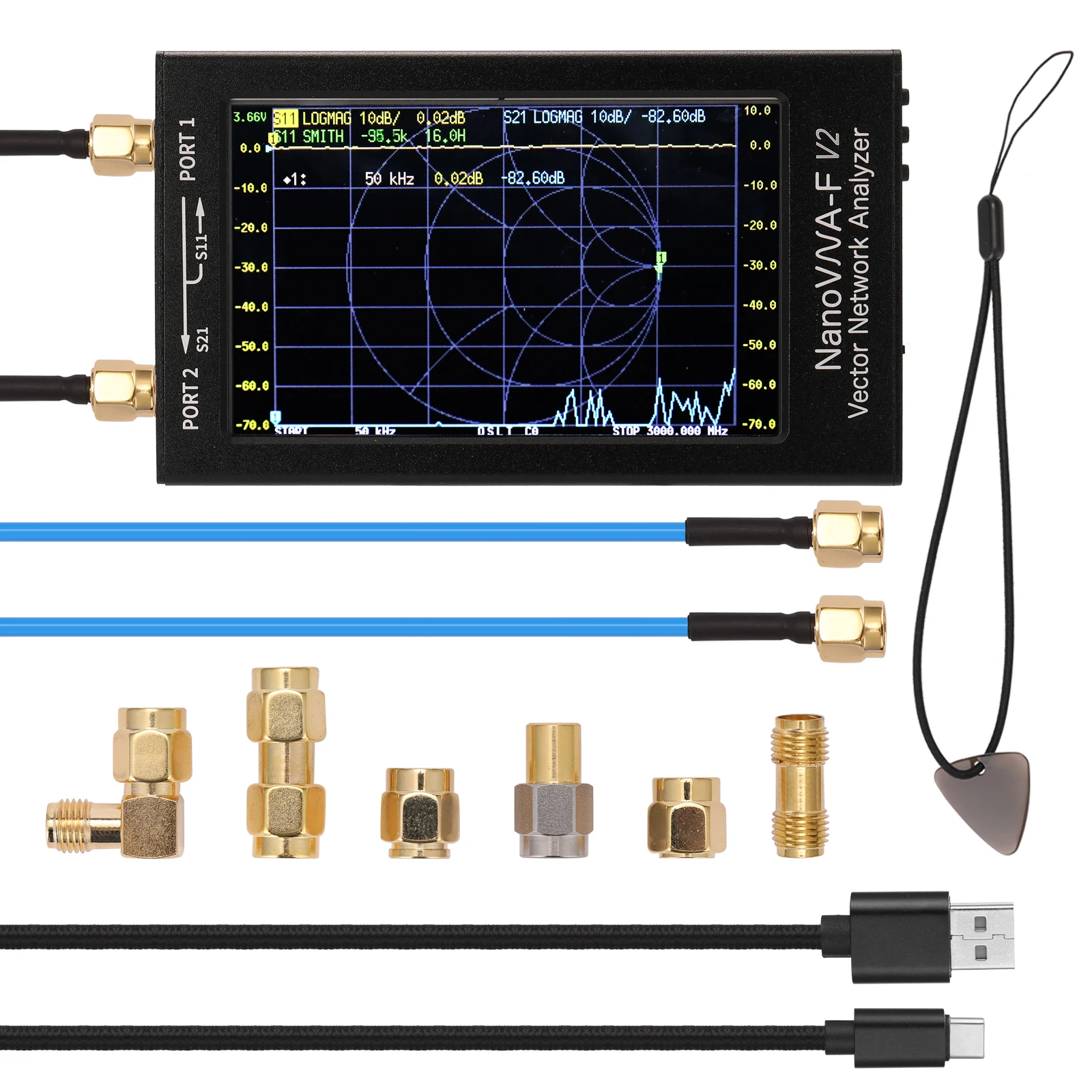

1 * Host
1 * SMA Open Calibration Kit
1 * SMA Short-circuit Calibration Kit
1 * SMA 50Ω Load Calibration Kit
1 * SMA-KK Double-Head Female Hole Adapter
1 * SMA-JJ Double-Head Male Pin Adapter
1 * SMA-JKW Elbow Outer Screw Inner Hole To Inner Screw Inner Needles Adapter
2 * 200mm SMA-JJ RG405 RF Cable
1 * USB Type-C Data Cable
1 * Stylus

Made of fine quality material, practical, easy to operate and use, has a long service life.

Features:
Made of fine quality material, practical, has a long service life.
Portable and compact, easy to operate and carry.
With housing, 2.8 inch LCD touching screen display.
Measurement frequency range is 50KHz~3GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.

Specifications:
Material: PCB+acrylic
Color: black
Frequency range: 50KHz-3GHz
System dynamic range (calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Sweep rate: 100 points / s
Display: 2.8", 320*240
USB interface: Micro USB
Power: USB, Maximum charge current 1A
Battery: 1 * lithium battery, 1950mAh (included)
Battery connector: JST-XH 2.54mm
Maximum sweep points (on device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB min
Package size: 170 * 100 * 35mm / 6.7 * 3.9 * 1.4in
Package weight: 225g / 7.9ounce

Note:
1. VNA-QT software download: https://github.com/nanovna/NanoVNA-QT/releases
2. nanovna-saver: https://github.com/zarath/nanovna-saver/tree/feature/nanovna-v2
3. User guide: https://github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf

Packing List:
1 * S-A-A-2 Host (with 1950mAh battery)
1 * Micro USB Data Cable
2 * 300mm SMA Male to Male SS405 RF Cable
1 * SMA Male Calibration Kit-OPEN
1 * SMA Male Calibration Kit-SHORT
1 * SMA Male Calibration Kit-LOAD
1 * SMA Female to Female Connector
1 * Set of Accessories

NanoVNA-2.8 Inch
