[Motherboard]：MOUGOL X99 P4 motherboard

[CPU]：1*Intel Xeon E5 2680 V4 CPU

[RAM]：16G=2*DDR4 ECC 8G 2133MHz

CPU：

Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping
The CPU is used , please don't buy it if you mind

Specification:

Ethernet: 1 Realtek Gigabit Ethernet card
Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN)
USB Port: 4 USB ports 2 0 interface; 2 USB 3 0 interface

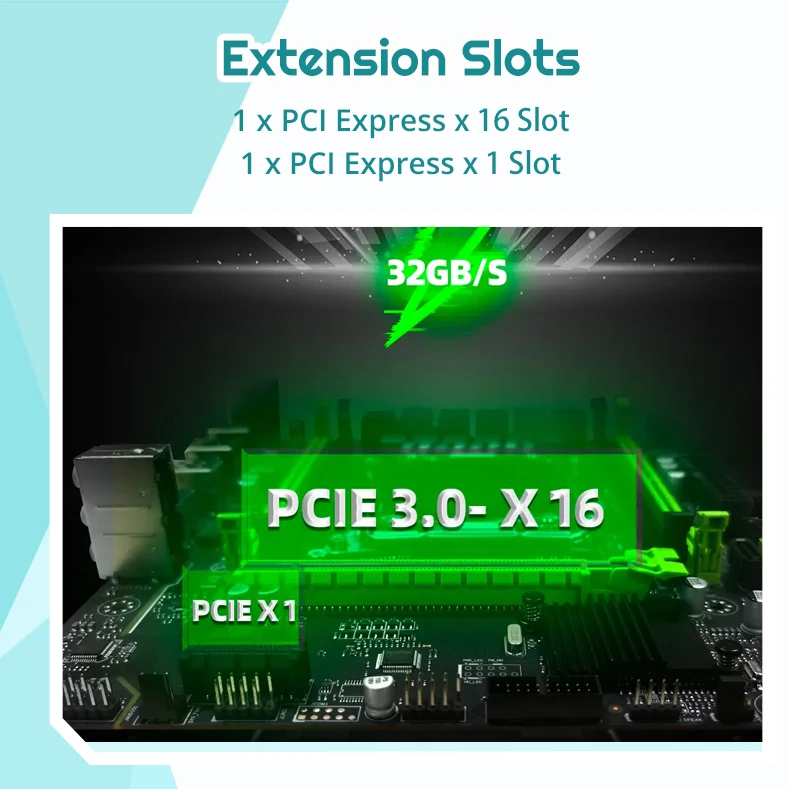

PCIE: 2 (1 PCIE X16, 1 PCIE X1)
USB ports: 4 (one USB port can be connected to two USB 2.0 ports)

Internal connectors
SATA interface: 3 SATA interfaces (1 SATA3 0.2 SATA2.0)
ATXPWR interface: 1 standard 1X8PIN power socket: 1 standard 1X24PIN power socket
Audio: 1 2x5PIN pin
Jlpc: 1 2x5pin battery
M. 2 interfaces: 1 M.2 interface (supporting PCIE M. 2/SATAM. 2)
:M-ATX【215 x 190】mm

Note:
(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.

(2) Please allow 1-3mm differs due to manual measurement.

(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

(4) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.

# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!

Supports up to 2400MHz and 128GB of memory. (The specific frequency depends on the CPU)

Memory usage instructions tutorial:
If only one memory module is inserted,please insert it into
the slot marked 1
If you want to play in two memory modules,please insert them
into the slots labeled 1 and 2 in chronological order.
*Please be sure to follow the instructions above to pldy into the memory moduleLGA 2011-3 Series

Support E5 2678 V3/E5 2629 V3/E5 2649 V3
/E5 2630 V3/E5 2640 V3/E5 2650 V4/E5 2670 V3/E5 2680 V4
Core:i7 5820K/i7 5930K/i7 5960X/i7 6800K/
i7 6850K/i7 6900K/i7 6950XPCIE 3.0 Interface

PCIE 3.0 X16 and PCIE X1 PEIE 3.0 transfer speed up to 32GB/S
