12V Electric Heating Handle Kit 3 Gear Electric Heating Insert Handlebar Pad Waterproof Electric Heated Grip Cover Hot Handlebar

Feature:
1. Fast and Even Heating: The motorcycle heated handle grips are made from good material, ensuring rapid and uniform heating. Tested and proven successful, they provide quick warmth to your hands, enhancing comfort during cold rides.
2. Intelligent Temperature Control Chip: Equipped with a built-in intelligent temperature control chip, the snowmobile ATV handlebar heater offers three adjustable temperature settings. This smart temperature control feature allows for convenient customization according to your preference and riding conditions.
3. Quick 10-Second Heating: Experience fast heat-up times with the electric heating handle kit. They warm up in just 10 seconds, providing you with immediate comfort on chilly days. The larger heating surface area ensures thorough warmth distribution.
4. Convenient Attachment: The heating elements are securely fixed onto the electric heating insert handlebar pads using sticker, allowing for easy and quick installation. This ensures a snug fit and eliminates any potential discomfort caused by loose or shifting grips.

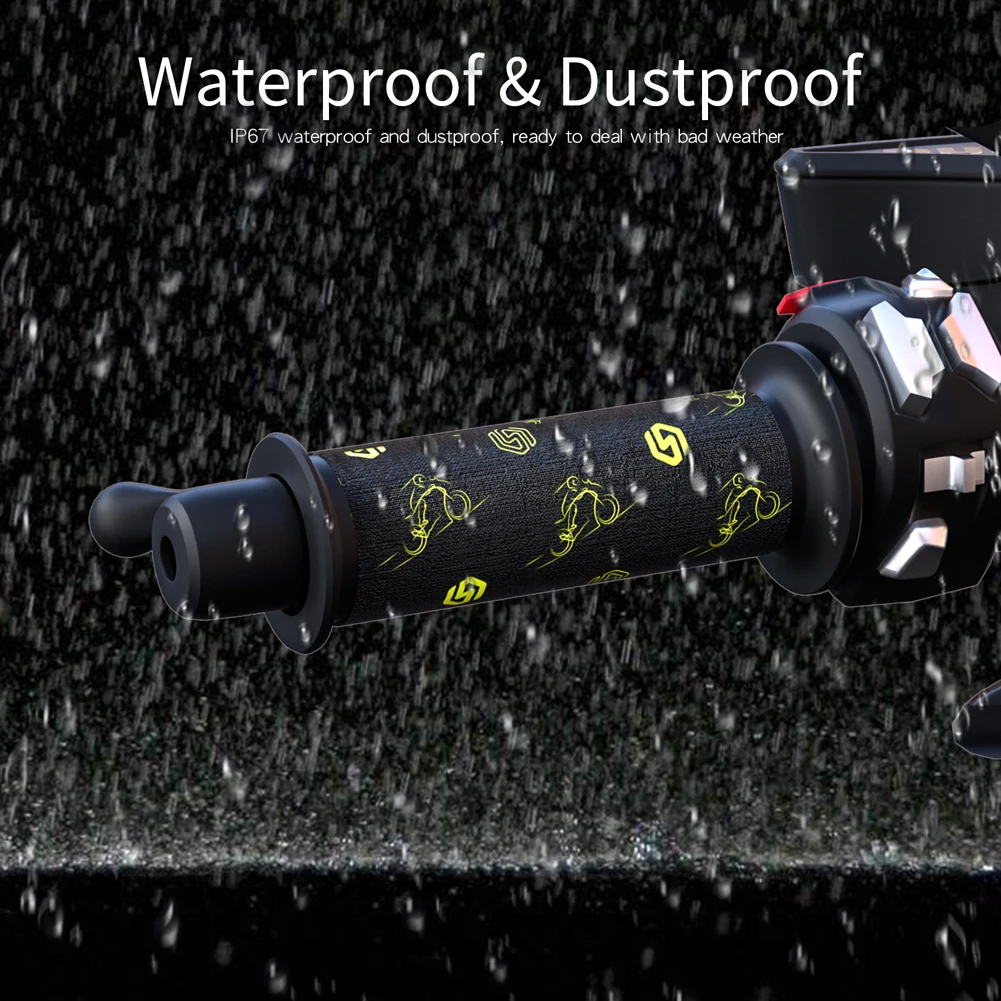

5. IP67 Waterproof Rating: With an IP67 waterproof rating, the warmer kit can withstand water immersion. Whether submerged or exposed to rain, the switch and handlebar covers continue to function normally. When cleaning is needed, simply unplug the connectors and rinse them off, making maintenance exceptionally convenient.

Specification:
Origin: Mainland China
Product material: composite fibre heating wire + wear-resistant cloth, (L bracket) stainless steel
Input voltage: DC12V
Product line length: 105CM (heating piece to switch) 142CM (switch to electric door lock)
Operating temperature: -30°C - +100°C
Product power: High-grade 25W Medium-grade 20W Low-grade 15W
Package size: 12.1*3.6*16.1cm
Installation: 3M adhesive fixed, L bracket mirror base fixed
Wiring method: red to the positive pole, black to the negative pole (connected to the reverse light does not light, only heat)
Operating instructions: power: red light, blue light, green light flashes once and then extinguished
Standby: red light breathing flashing state, the temperature reaches the relative temperature automatically becomes blue light
Work status: indicator light is always on (high grade: red light is always on, medium grade: blue light is always on, low grade, green light is always on)
Click the switch key: switch gear
Reminder: positive and negative poles are connected to the reverse, the switch can not be used, the electric heating pad directly heat

Special attention:
1. Please select the appropriate gear according to the ambient temperature, low temperature conditions, due to the stiffness of the hand can not accurately perceive the temperature of the electric heated handgrip set in a timely manner, please use the first low or medium gear to prevent high temperature burns!
2. This product is only suitable for 12V battery motorbike, please read the installation diagram carefully before installation, the wrong wiring will lead to damage to the components
3. This product can only be installed on the motorbike handlebar to power on the use of the product, you can use the battery to measure whether the product is correctly powered before installation.
4. Strictly prohibited in the non-riding power work (empty burning), to prevent the electric handlebar set temperature is too high and damage to the original handlebar
5. Wiring is recommended to connect the door lock wire, most models are black positive, green negative, specific conditions are recommended to use a multimeter measurement

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 x Motorcycle Electric Handlebar Cover
1 x Stainless Steel L Bracket
5pcs x Ties
1 x Double Sided Tape
