1.CPU: Intel Core i3 10110U(Dual core,4 threads,2.1GHz,Max.Turbo 4.1GHz)
Intel Core i5 10210U(Quad core,8 threads,1.6GHz,Max.Turbo 4.2GHz)
2. 6*intel i225-v 2.5G Lans, LAN3-6 can be 802.3af standard POE lan(option);
3.2*DDR4 2666MHz SOIMM RAM slot,Max. 64GB;
4.1*M.2,1*2.5’’SSD/HDD,support RAID 0/1
5.1*HDMI+1xDP+3*USB3.0+3USB2.0+6*intel i225-v 2.5G Lans+1*RJ45 COM(support console)+1*Power switch;
5. 3*M.2 slots（Support WIFI and 4G or 5G）
6.DC-IN 12V power supply and AC power adapter;
7. Applied in Firewall, Network Server, NetworkSecurity, VPN Router etc.
Free Operating System: Default installed our activated OEM cracked version(not genuine, works good)Windows English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.

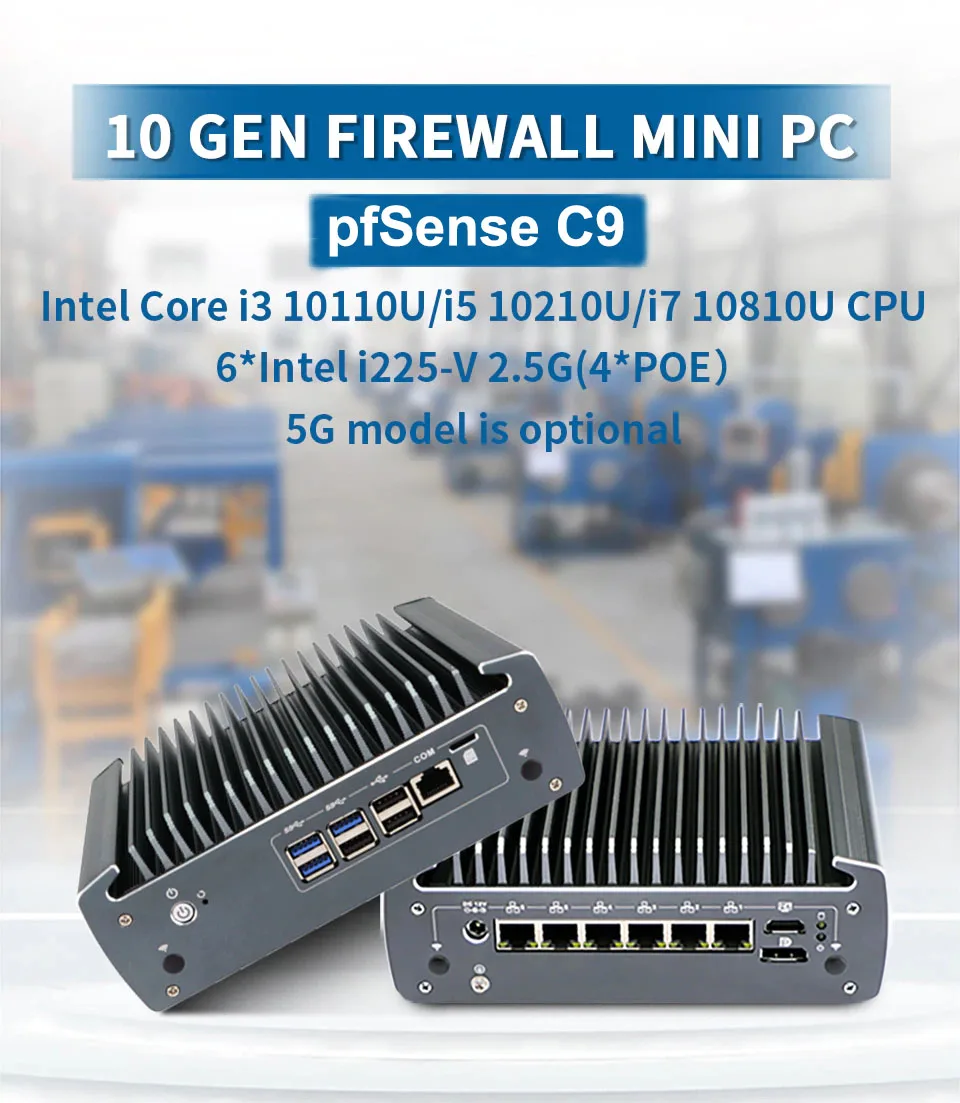

Model | Partaker C9 Mini Firewall Appliance |
CPU | Intel Core i3 10110U(Dual core,4 threads,2.1GHz,Max.Turbo 4.1GHz) |
Intel Core i5 10210U(Quad core,8 threads,1.6GHz,Max.Turbo 4.2GHz) |
Intel Core i7 10810U(Six core,12 threads,1.1GHz,Max.Turbo 4.9GHz) |
Chipset | Integrated Intel UHD Graphics 620 |
Material of case | High-quality all aluminum,Surface anodic oxidation |
Memory | 2*DDR4 2666MHz SOIMM RAM slot,Max. 64GB |
Storage | 1*M.2,1*2.5’’SSD/HDD,support RAID 0/1 |
Network | 6*intel i225-v 2.5G Lans,LAN3-6 can be 802.3af standard POE lan(option) |
Graphic Card | Intel UHD Graphics |
I/O | 3*USB3.0,3*USB2.0 |
1*RJ45 COM(support console) |
6*RJ45 Lan |
1*DP,1*HD |
1*DC-IN 12V |
1*Power Switch |
Expansion slot | 1*M.1 2280 M-Key slot(Support SATA protocol and NVME protocol) |
1*M.2 3052 B-Key slot(Support USB3.0 protocol,support 4G/5G) ,1* Nano-SIM slot on the plate |
1*SATA port |
1*M.2 2230 E-Key slot(Support WIFI/BT) |
BIOS | AMI EFI BIOS |

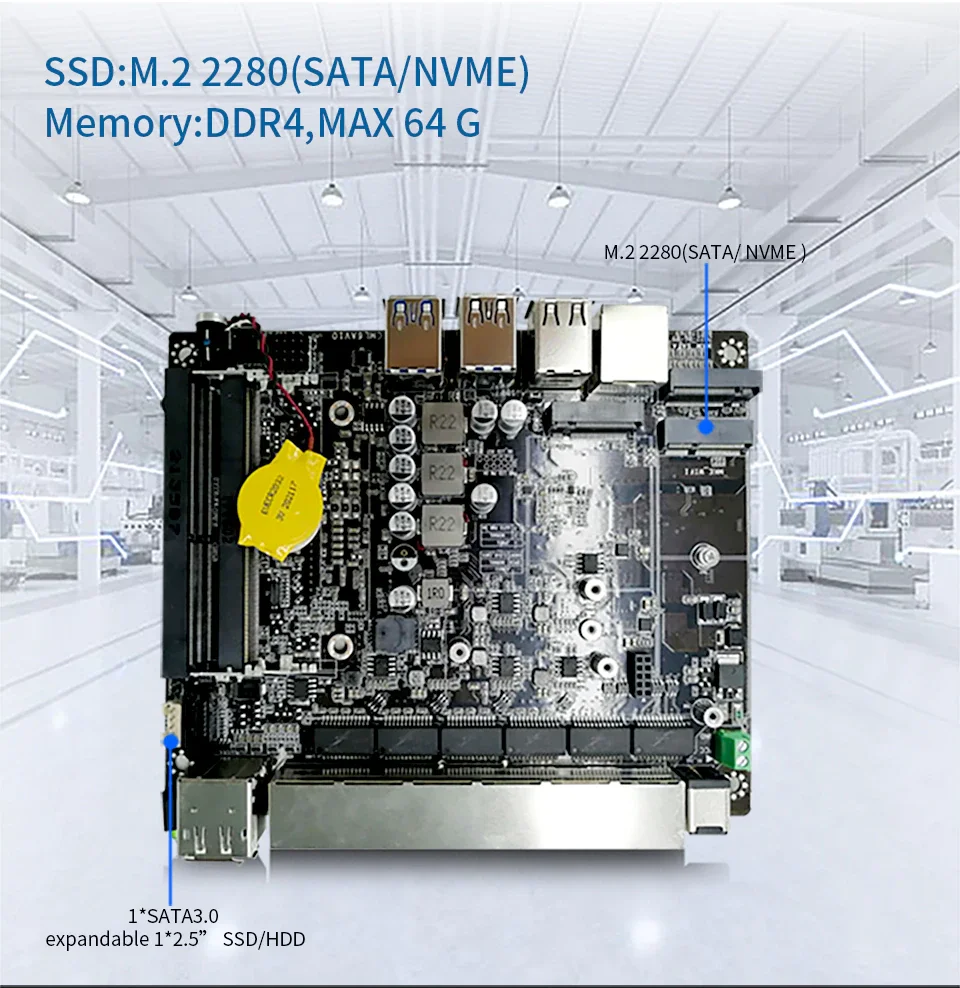

Mainboard | 120*120mm Nano ITX mainboard |
Support OS | Windows10, Windows 11, Linux,Pfsense |
Power Supply | DC-IN 12V power supply and AC power adapter |
Operation Temp | 0℃ ～ +50℃(Commercial HDD),-20℃ ～ +50℃（(Industrial SSD),Surface air flow |
Work Humidity | 0%~95% non-condensing |
Dimension | 186*126.5*66 mm |
