4G MV730G Network

4G LTE CAT1: 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66/34/38/39/40/41
2G GSM/GPRS: 850/900/1800/1900MHz

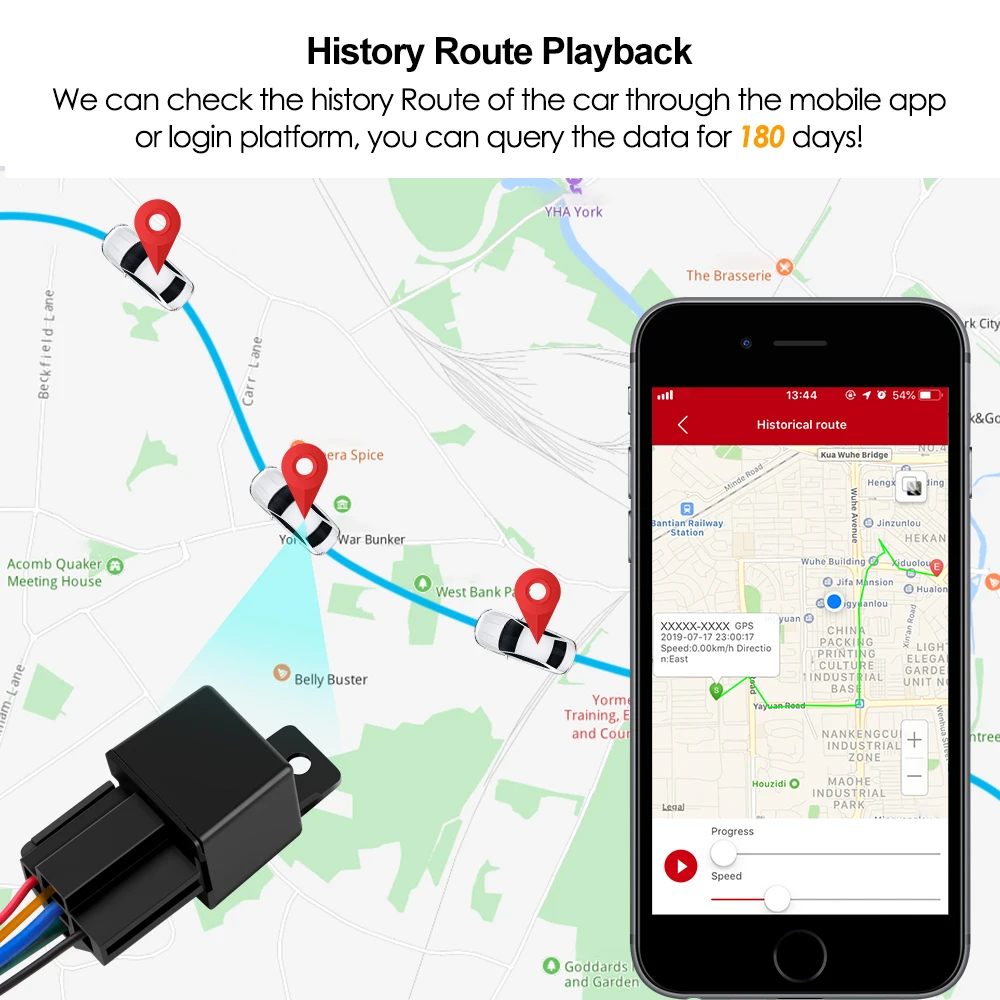

History Route Playback

We can check the history Route of the car through the mobile app or login platform, you can query the data for 180 days!

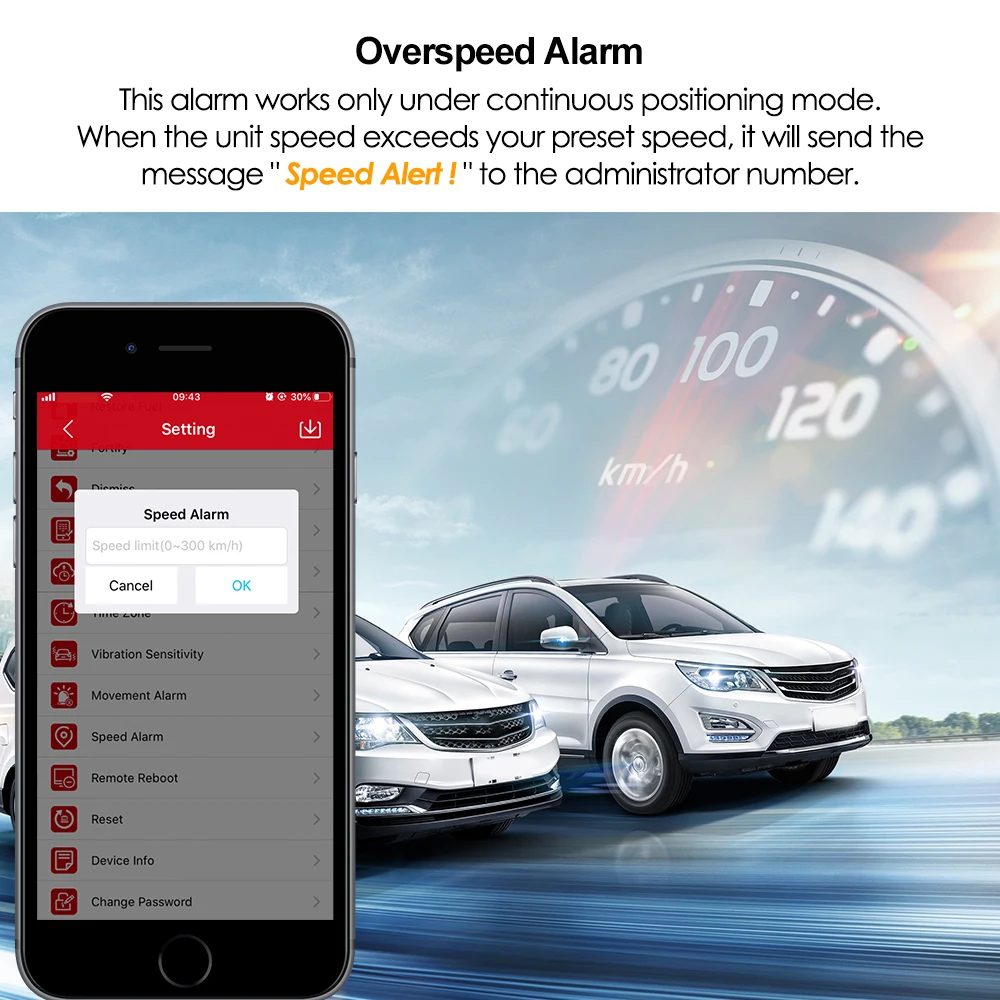

Overspeed Alarm

This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message "speed alarm!" to the admin number

Vibration alarm

Mainly used for anti-theft of cars,

When we receive the alarm message, we need to check the car in time.

Cut wire alarm

When someone else wants to cut the device line, we can immediately receive an alarm message to prevent theft.

Sleep Mode

Turning on this function, the device can go into sleep mode and then save the car's battery.

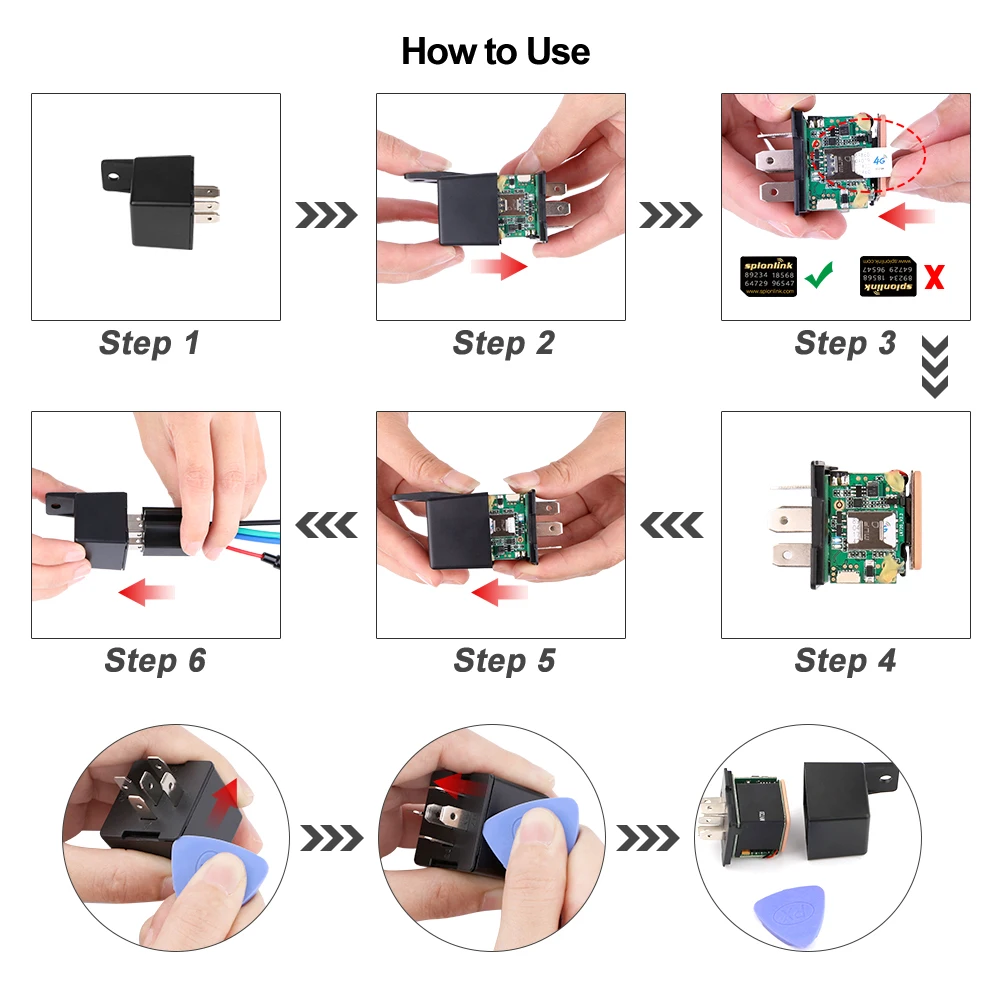

How to use

(I) opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up

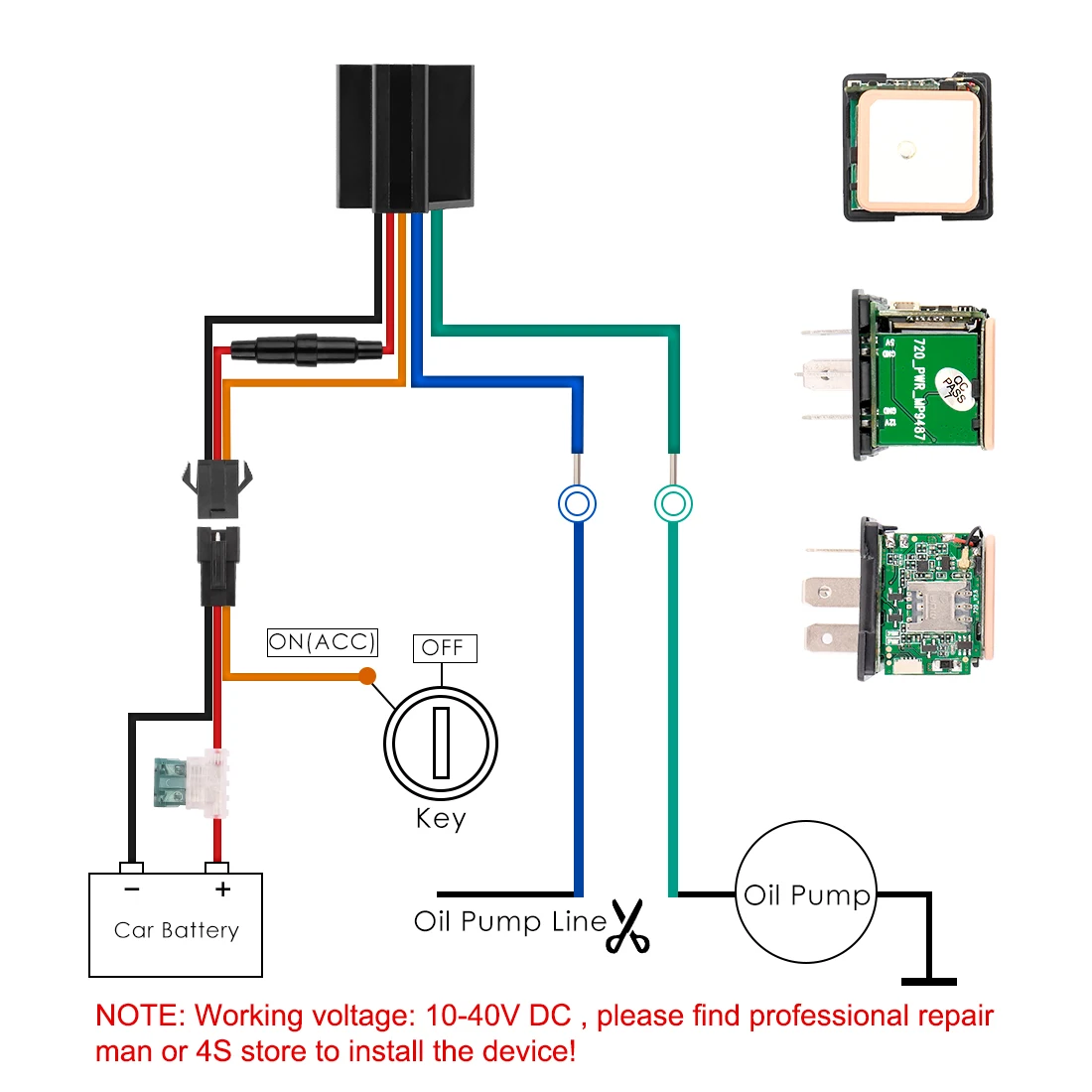

(II)Connect cable follow the picture

(III) Set admin number by sending a SMS command to the SIM card inside device

For example: admin123456+86186******(+86186*****should be youe phone number)

(IV)Set APN: APN123456 CMNET（please use your local APN instead of CMNET，if you do not know the APN content,you should contact your SIM card supplier）

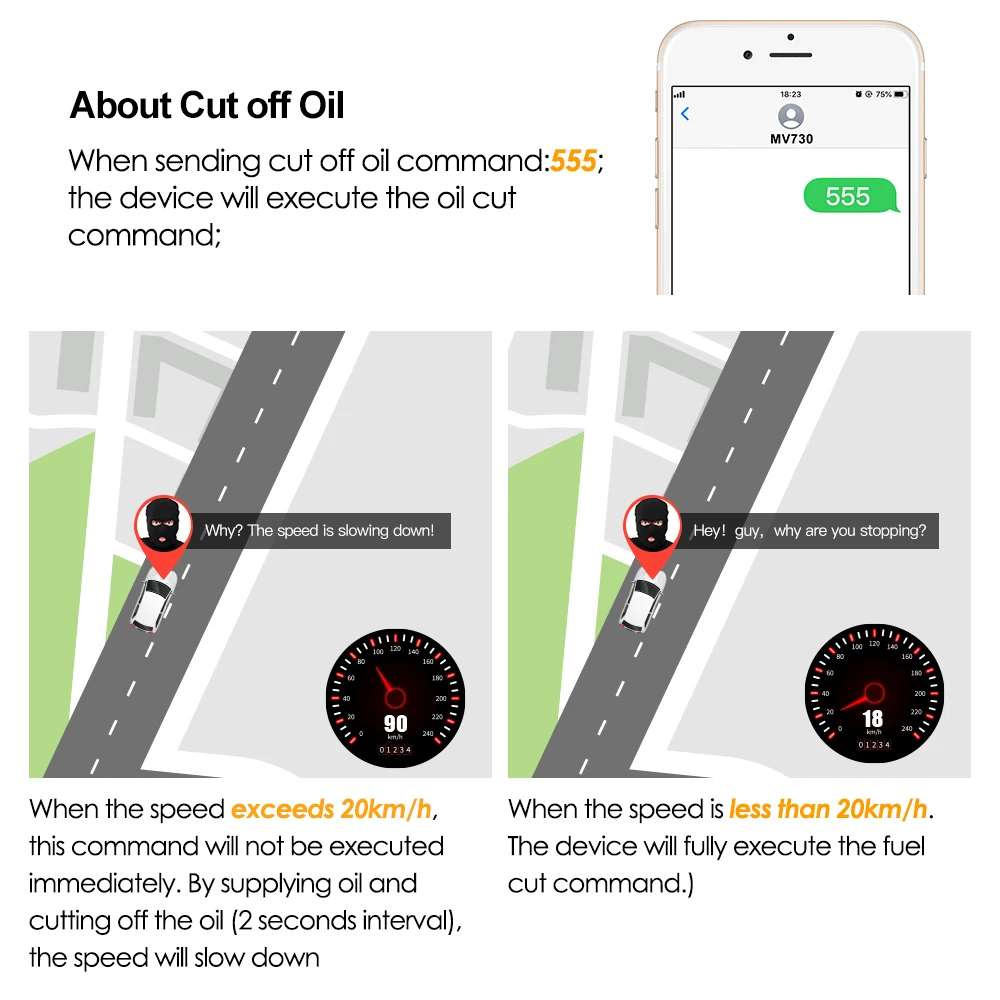

About cut off oil function:

Regarding the connection of the line, it is necessary to find a professional person to install, otherwise the oil cut function may not work.
1. The standard power supply of this device is 10V-50VDC, the red line is the positive pole of the power supply, and the black is the negative pole of the power supply; when installing a negative power pole, please select grounding or grounding separately, And do not share with other wires;

2.The oil shutoff control line (green / blue line) is connected to the oil pump line.

Overview

This product MV730 is the latest hidden design Relay Car GPS Tracker which is designed specially for vehicle, such as car, motorcycle, motorbike and truck! It has wide operating voltage 10-40V DC , compatible with most vehicles on the market!
Besides, it adopts the most advanced technology of GPS and LBS Triple positioning, can locate very fast and send you very accurate position information. Under GPS locating mode, the accuracy can be less than 5 meters!
What's more, it can be connected directly with the battery of the vehicle, can get continuous power without recharging action! It supports GSM Quad Band Frequency( 850/900/1800/1900Mhz ), can work perfectly around the worldwide!
At the last, the tracking software for this device is free for using LIFETIME, you needn't pay any monthly or yearly fee for the tracking service!
Applications: Used widely for vehicle and other moving objects tracking.

Main Functions

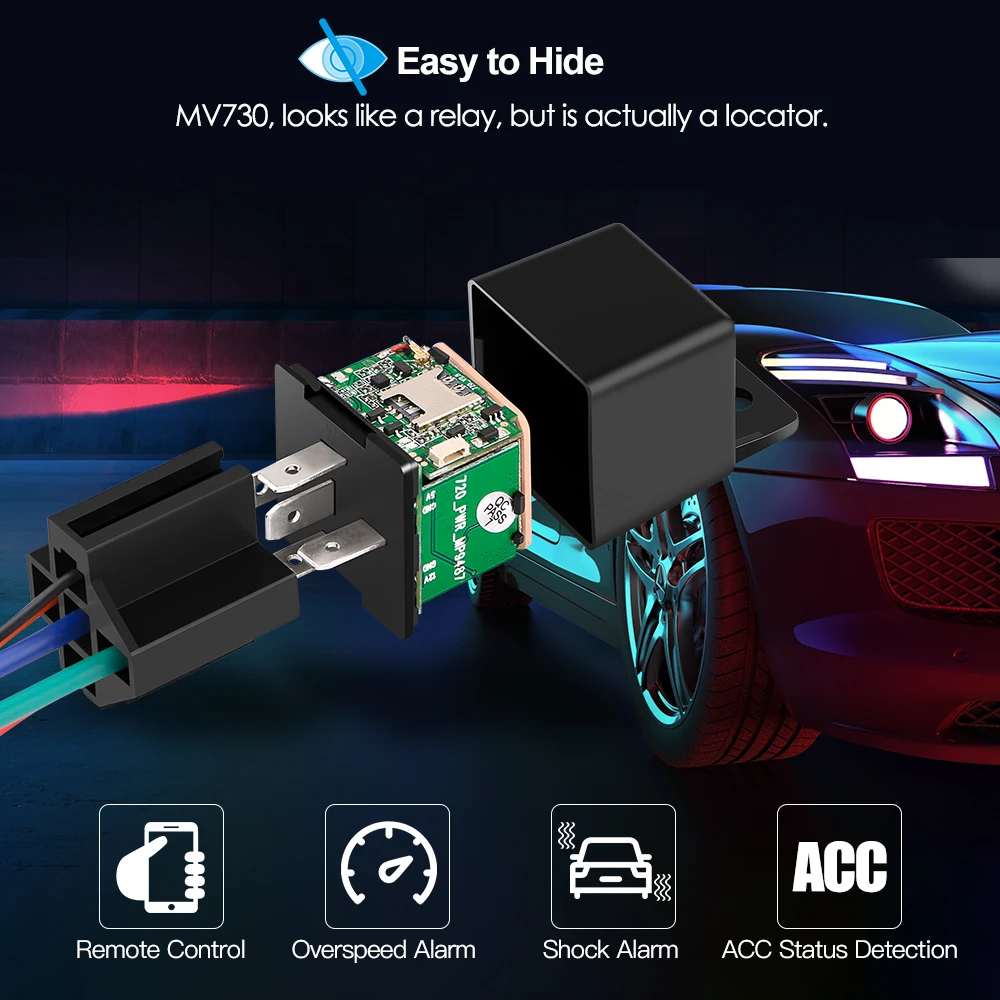

1. Hidden Design and Easy Installation
relay outlook design makes the device very convenient for hide and install

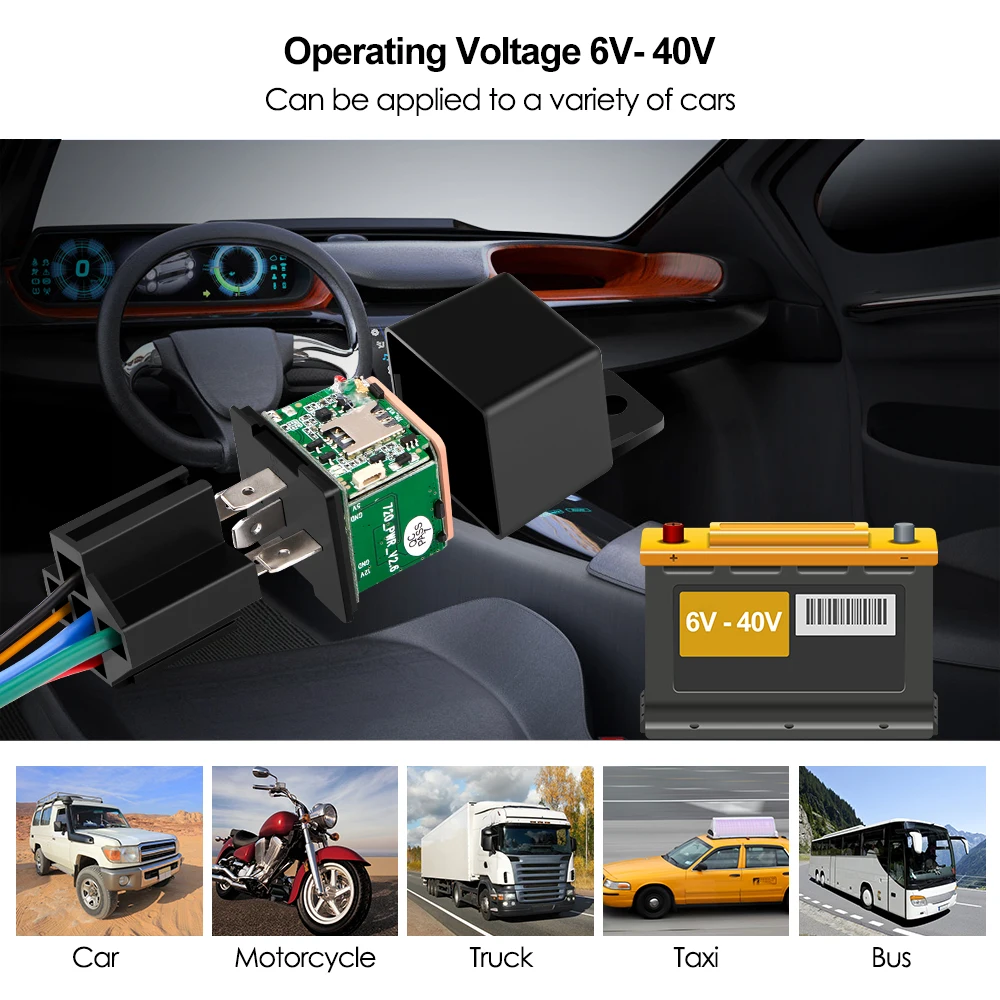

2. Wide Operating Voltage 10-40V DC, compatible with vehicles on the market!
3. Remotely Cut Off & Resume Fuel
Once your vehicle was stolen or meet any emergency, you will can remotely cut off the fuel via SMS command or APP to stop the vehicle, of course you also can resume the fuel remotely.
4. GPS+LBS Double Positioning Ways
If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!

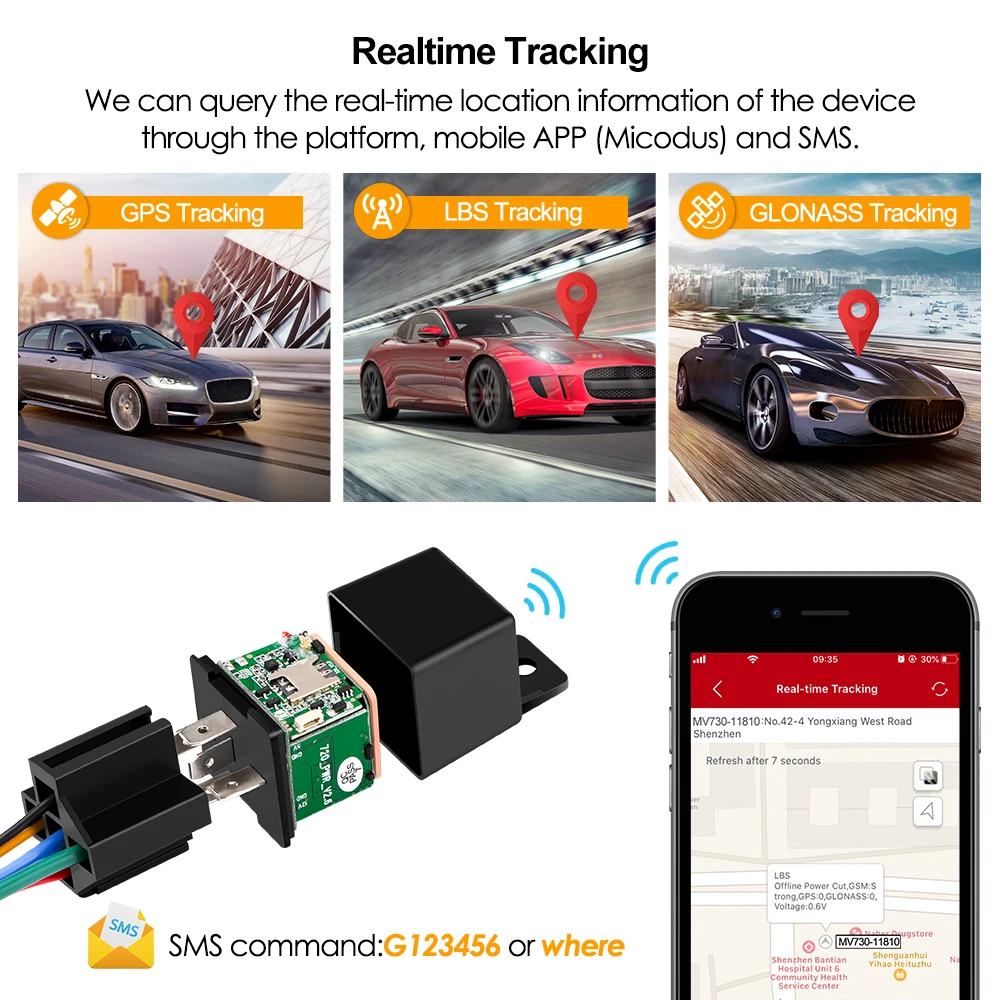

5. Realtime Tracking
You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!
6. History Route Playback
The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!
7. Power Saving Mode
The device will go into standby mode automatically when there isn't vibration for 3 minutes , it will go into working mode when it detect vibration again
8. Overspeed Alarm
This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message ldquospeed alarm!rdquo to the admin number every 5 minutes.
9. Shake Alarm
After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS ldquosensor alarm!rdquo to the admin number when the unit get shocked.

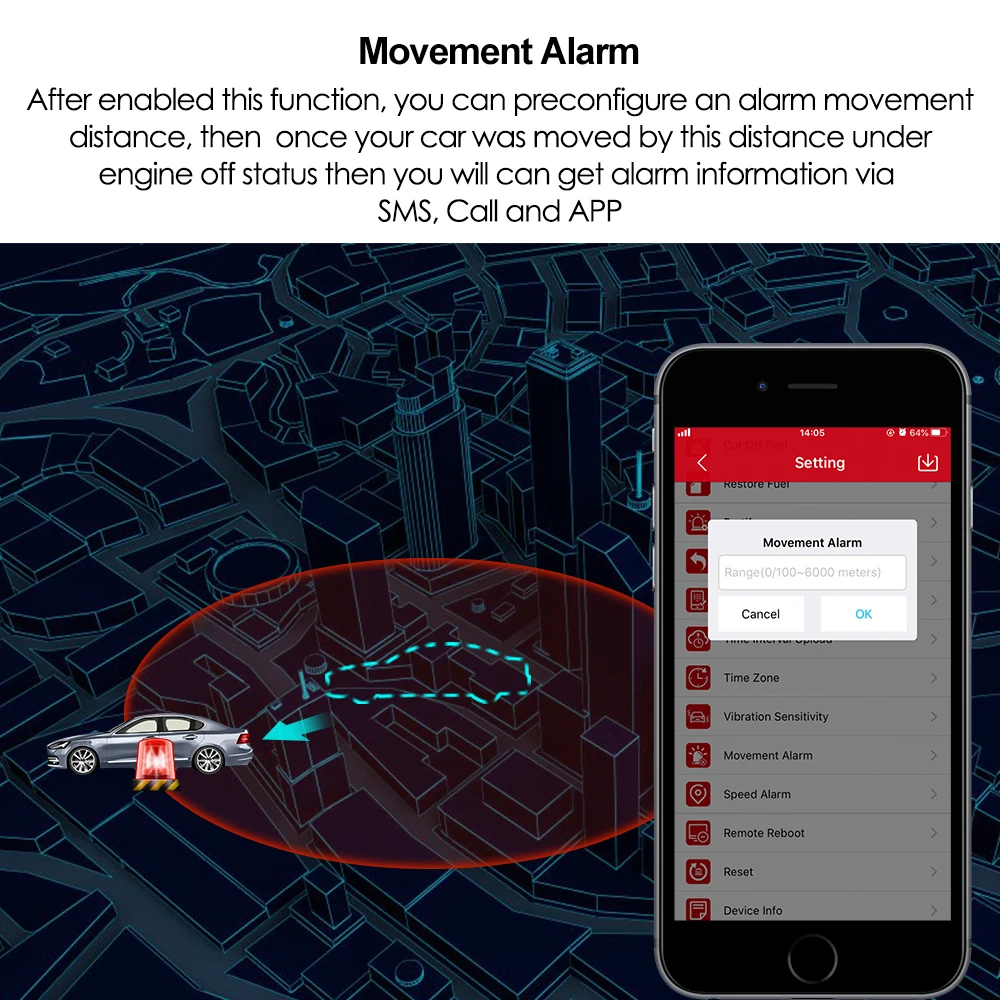

10. Movement Alarm
When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command "move+passord", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.

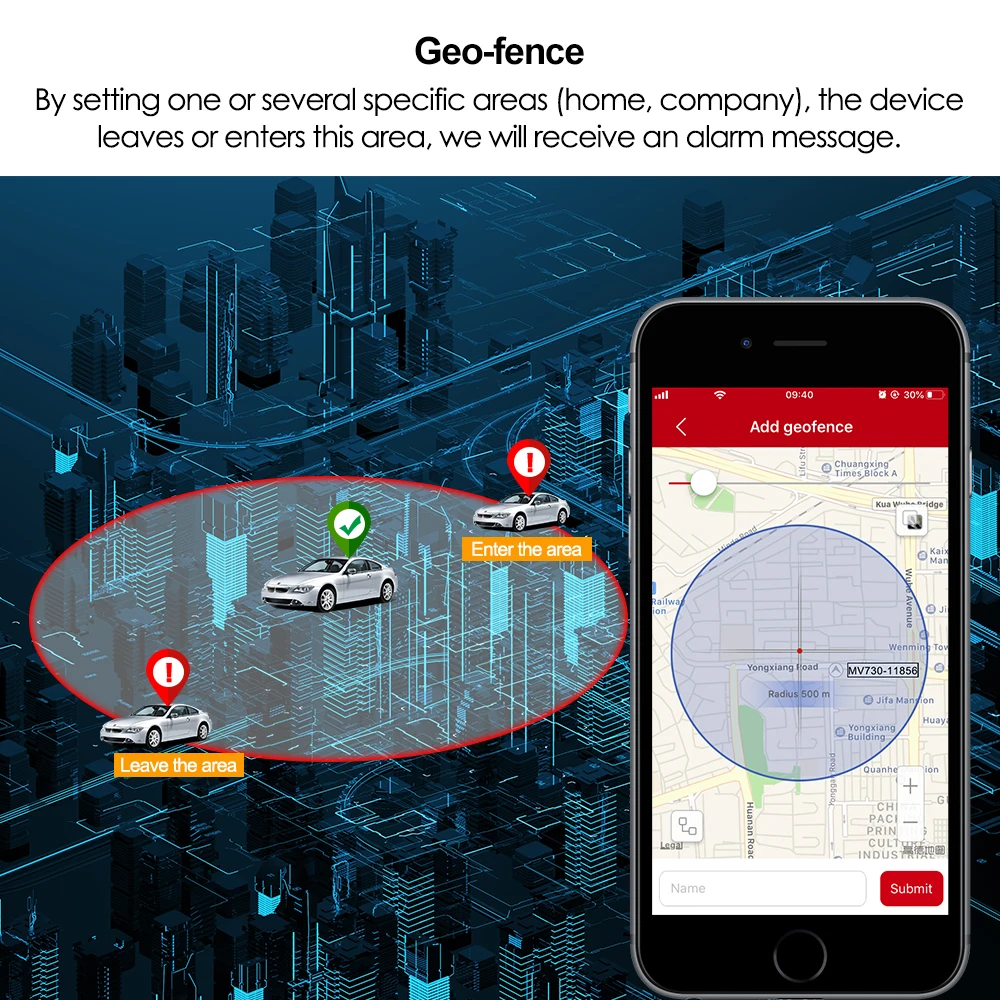

11. Virtual Fence
Set up a virtual fence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.
12. Sleep Mode
* Sleep by time mode
After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker.
* Sleep by shock sensor mode
After did this setting, if no shock for 5 minutes, the tracker will work under "sleep by shock" mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.
13. Illegal Cutting Line Alarm Under arm mode, if someone cut the wires of the device, you will can get alarm information from the device
14. LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP !
