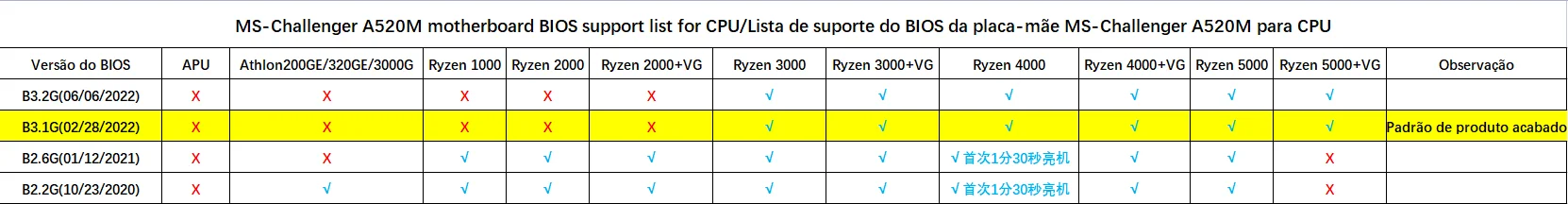

MAXSUN New AMD Challenger A520M motherboard will upgrade the BIOS that supports Ryzen 3000/3700X/4000/5000 series（3600/3700X/4600/4650G/5500/5600/5600/5600X CPU processors） before the package is sent from the warehouse

The CR2032 battery in the motherboard photo will be taken out before shipping, as the battery is prohibited at CN Post and Custom

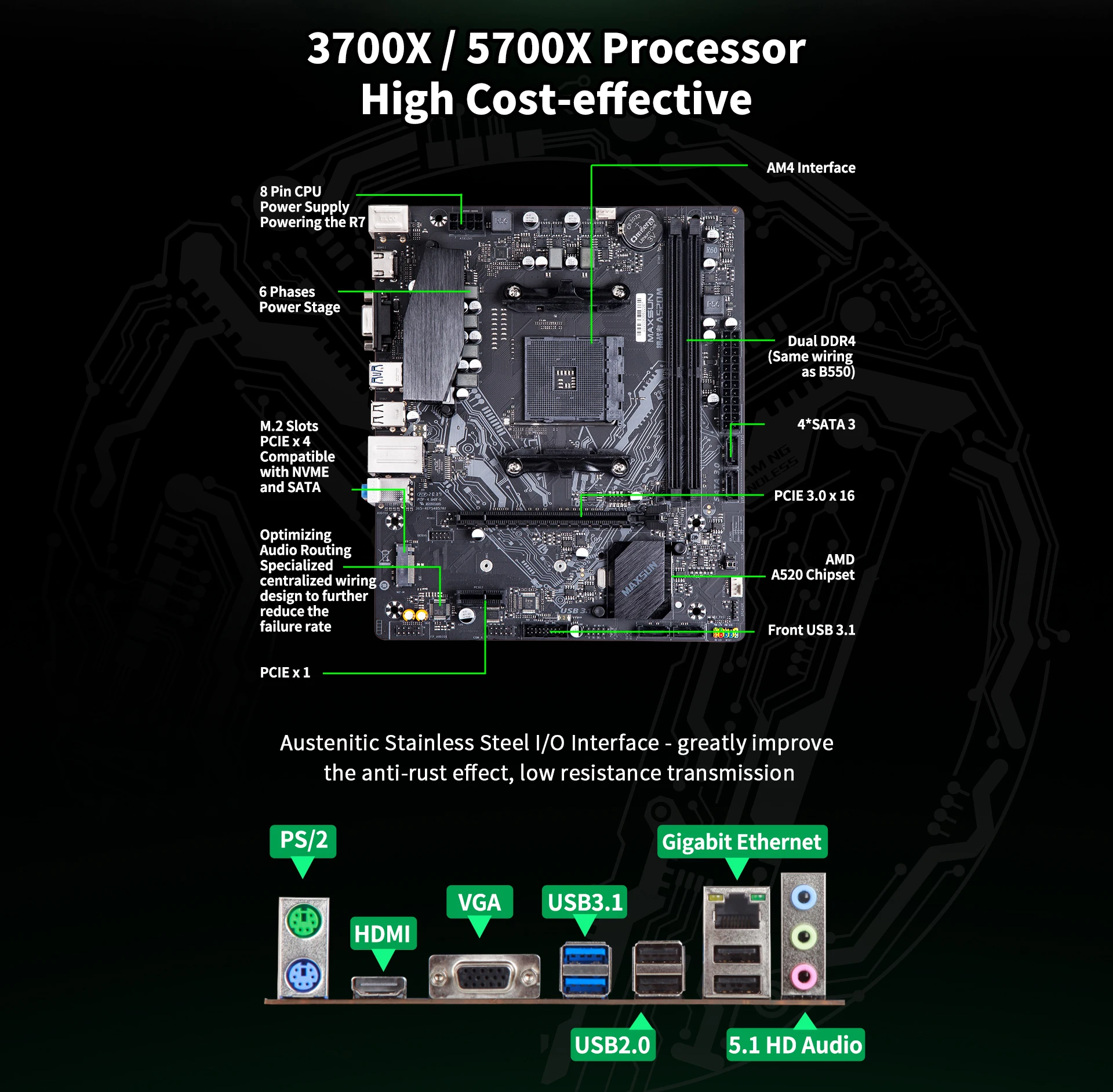

MS-Terminator A520M Parameters

Model: MS-Terminator A520M
CPU socket: AM4
Chipset: AMD A520 chip
Support CPU: Support AMD Ryzen 3000~5000 series processors
Size: M-ATX (22.5x19cm)

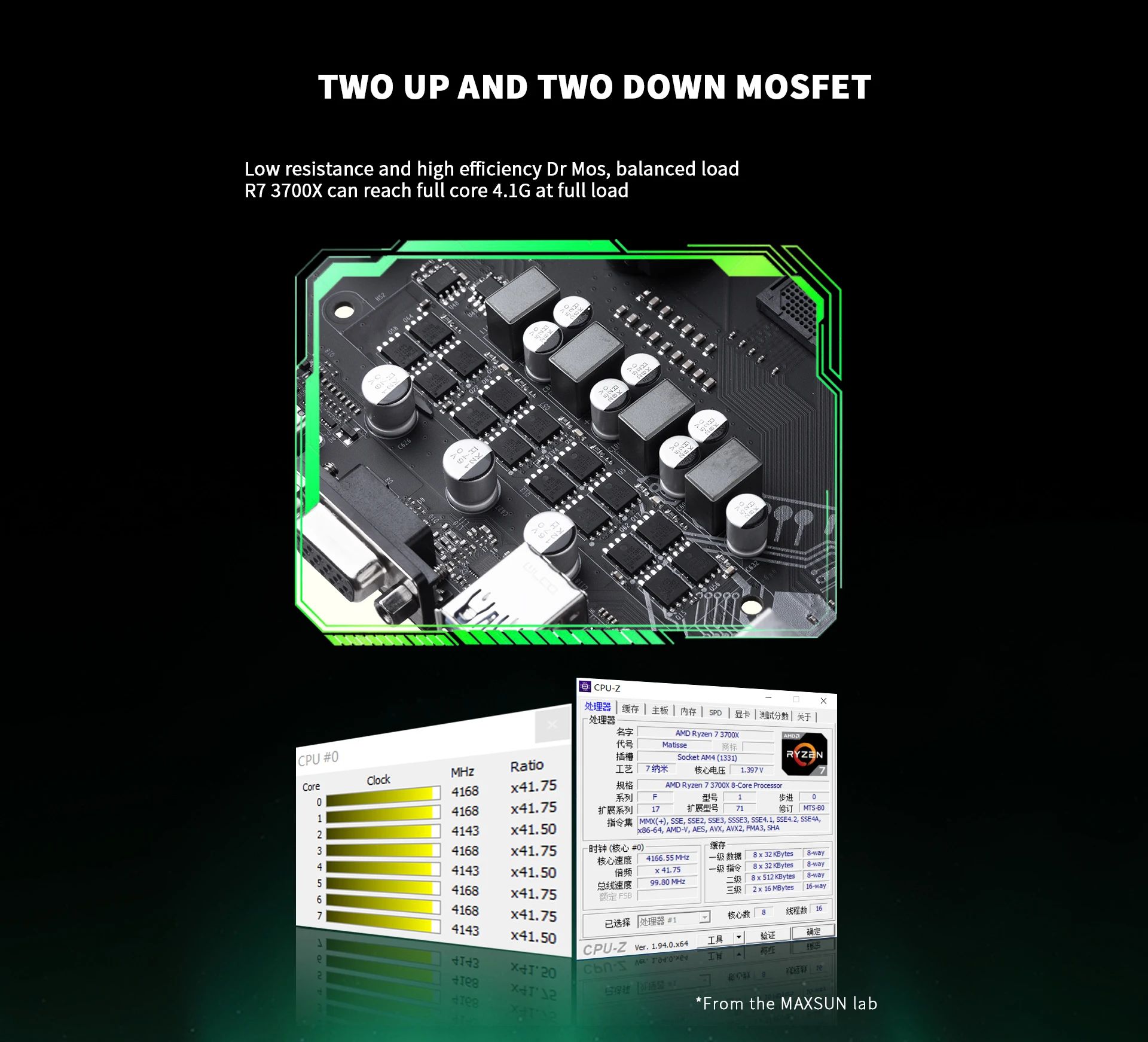

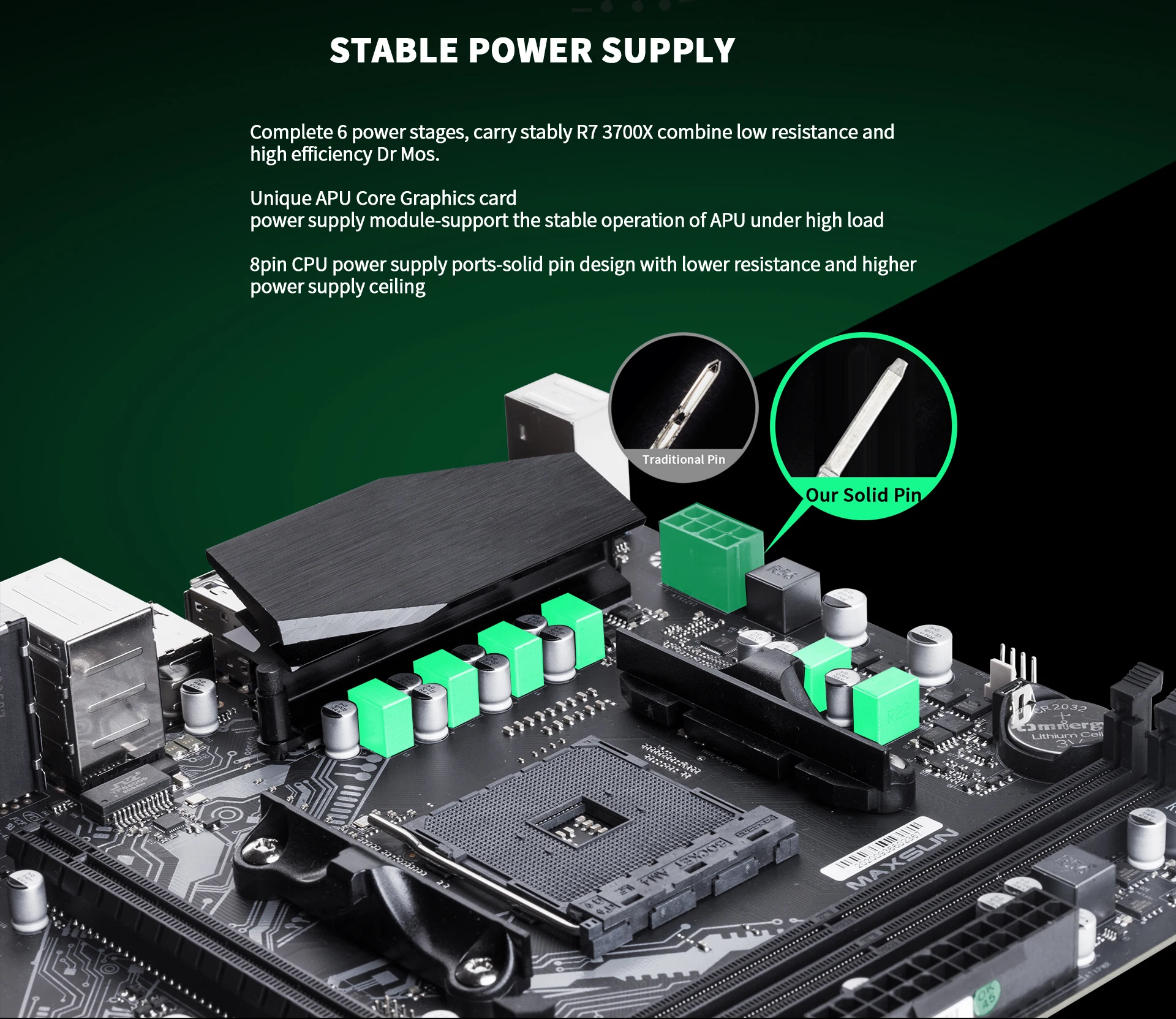

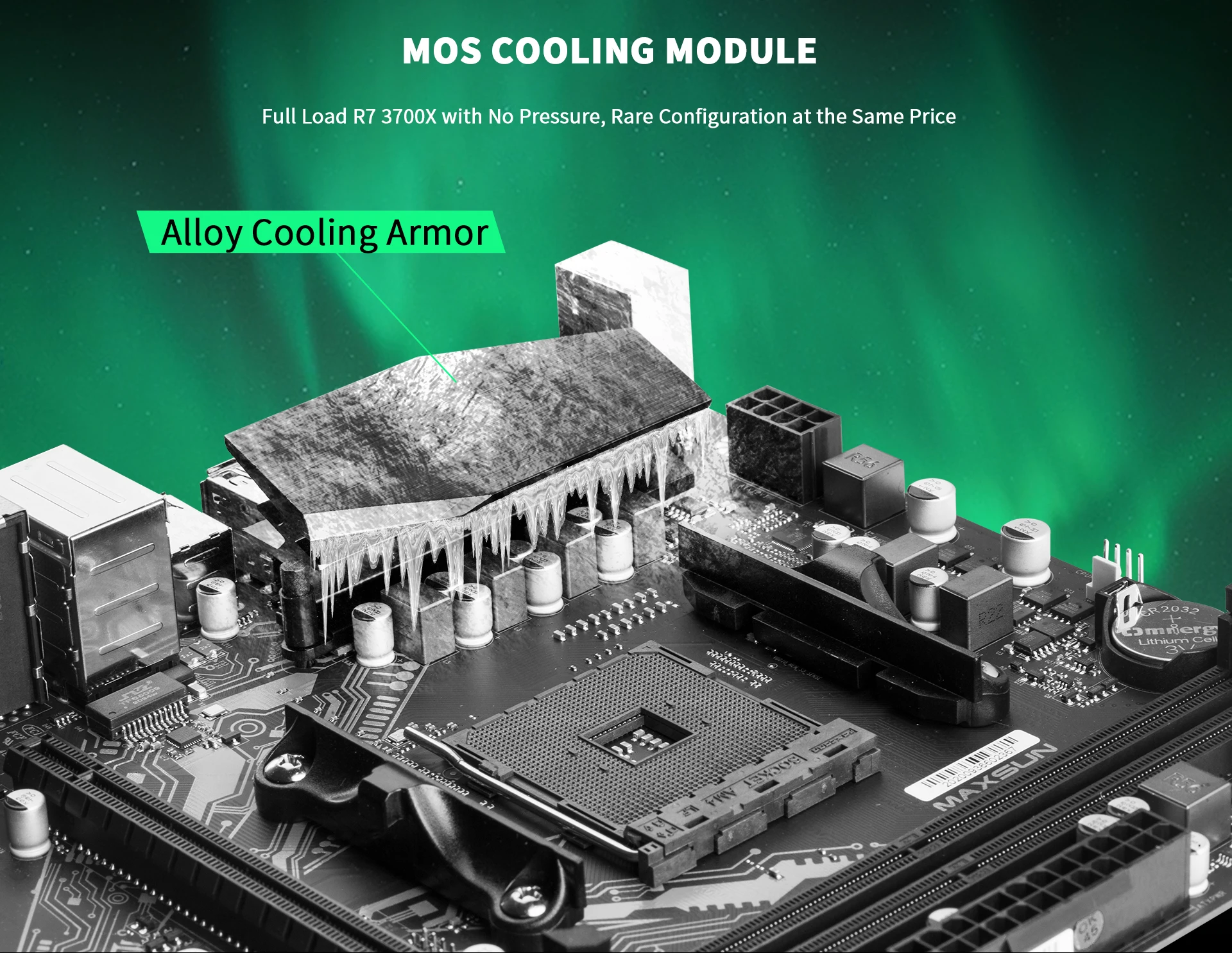

Power supply design: 6-phase enhanced power supply, low internal resistance MOS, nickel-zinc body alloy magnetic core inductance

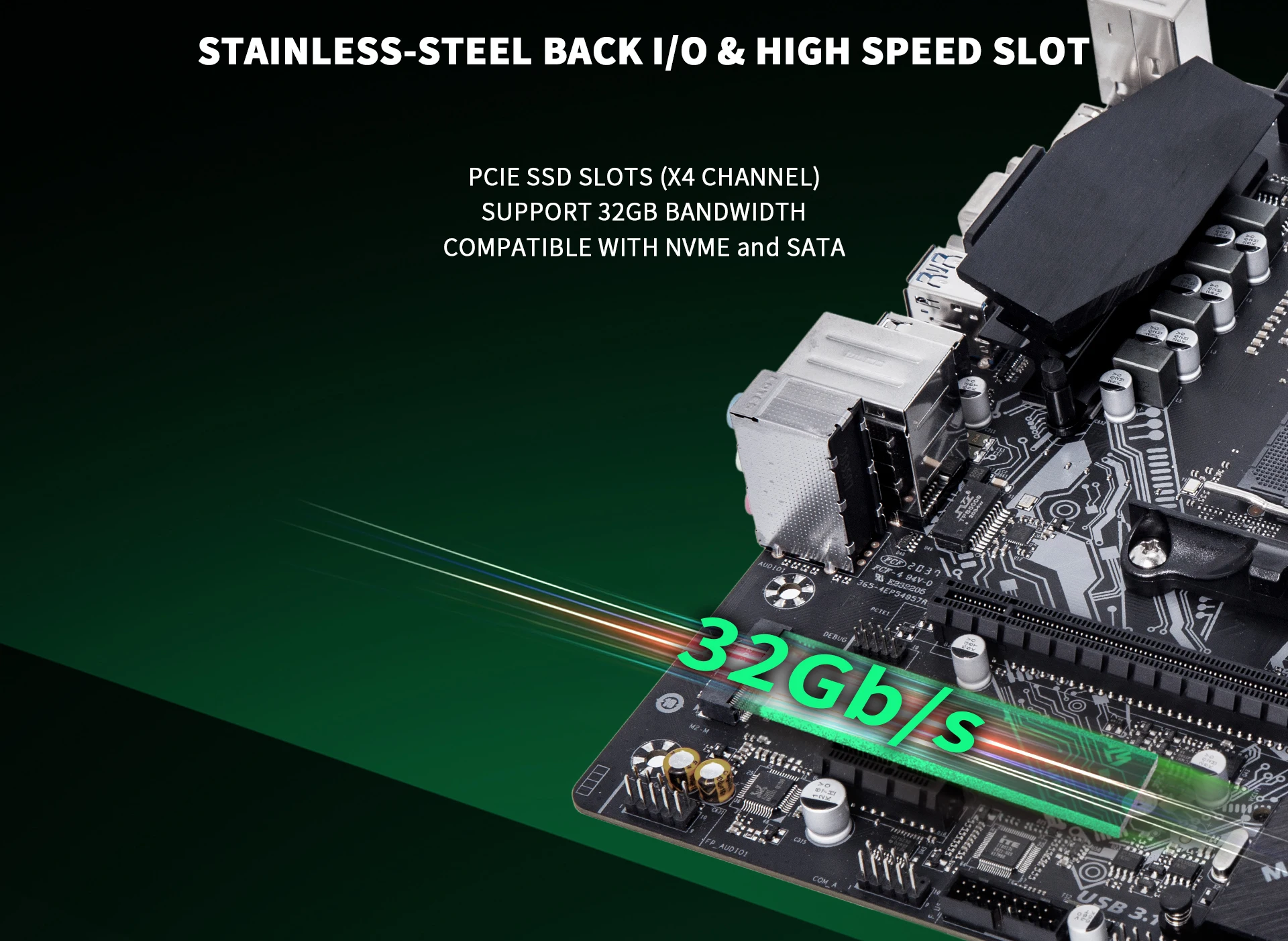

Expansion slot: 1 PC1-E3.0×16, 1 PC1-E3.0×1, 1 M.2 slot (NVME/SATA)

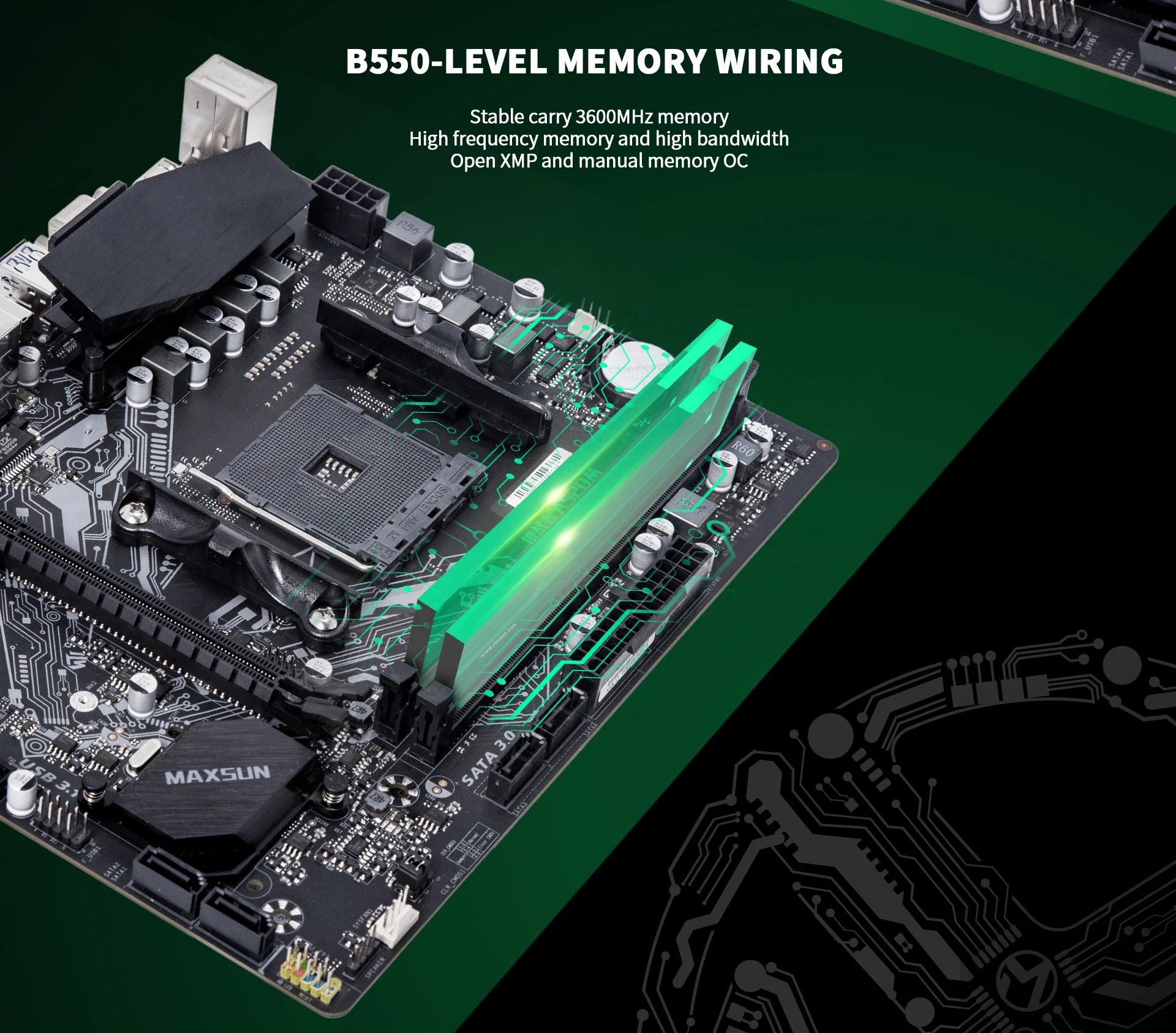

Memory specification: support DDR4 memory, 2*DIMM
Storage interface: 4 SATA3.0 interfaces
USB interface: 1 front high-speed USB3.1 socket, 2 rear USB3.1
1 set of front USB2.0 pins, 4 rear USB2.0 ports
Video interface: VGA+HDMI
Sound card: HD high-definition ALC662 audio chip 6 channels

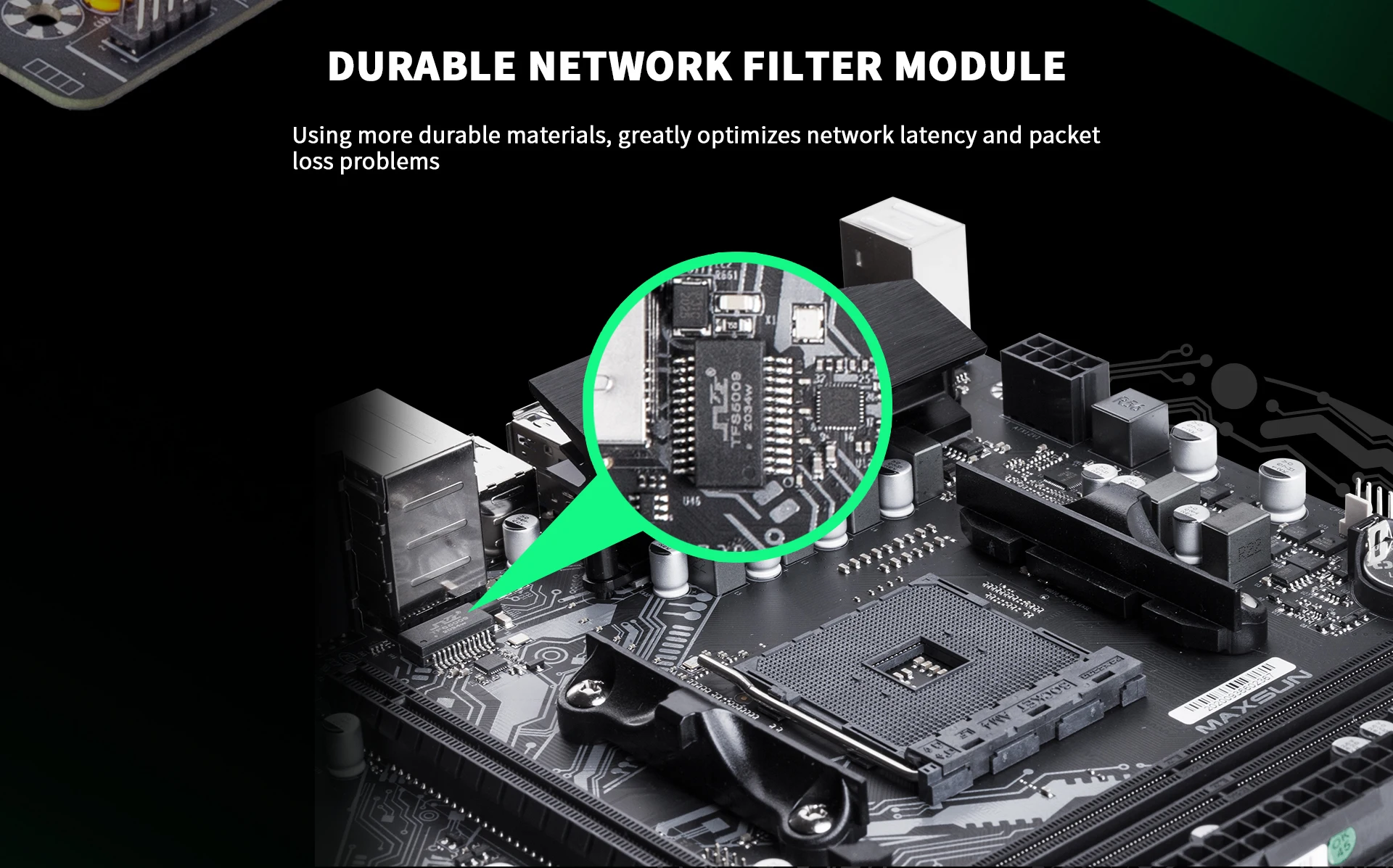

NIC Gigabit: NIC (RTL8111)

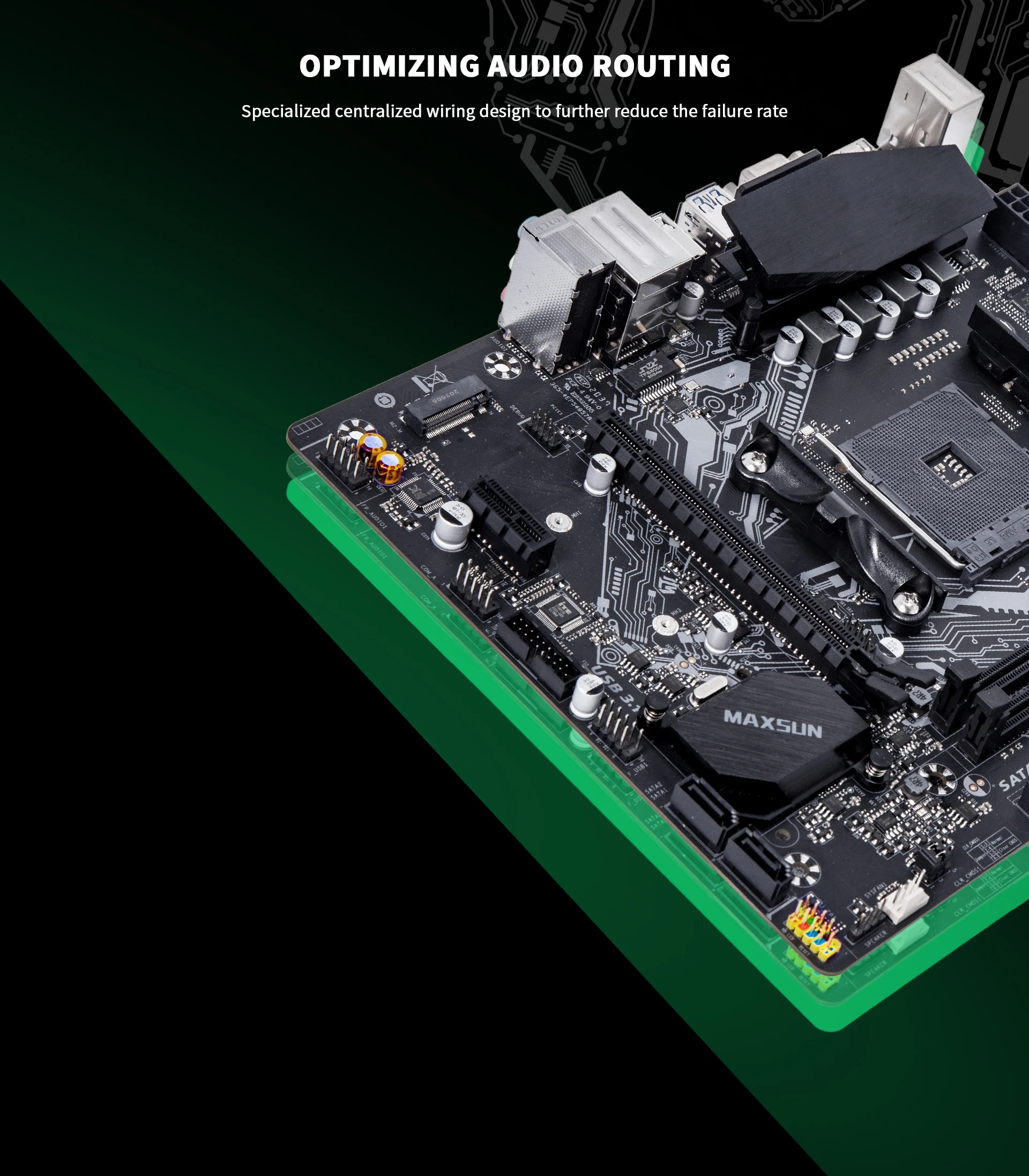

Featured Feature: Custom Audio
