MACHINIST Official Store Statement

>>For the tariff problem, please make sure you can solve the customs clearance problem by yourself, if you can't solve it, we do not recommend you to buy goods in our store. We are not responsible for customs duties. Thanks for your understanding.

>>What's in the package?
#Main products: MACHINIST E5 MR9A V1.0 motherboard *1PCS ；
##Gift accessories: i/o shield, CPU cooling bracket, sata cable (all are hand-tested and packaged, there may be omissions, please forgive me!);

MACHINIST Product Details

Brand: MACHINIST.
CPU socket: LGA 2011-3.

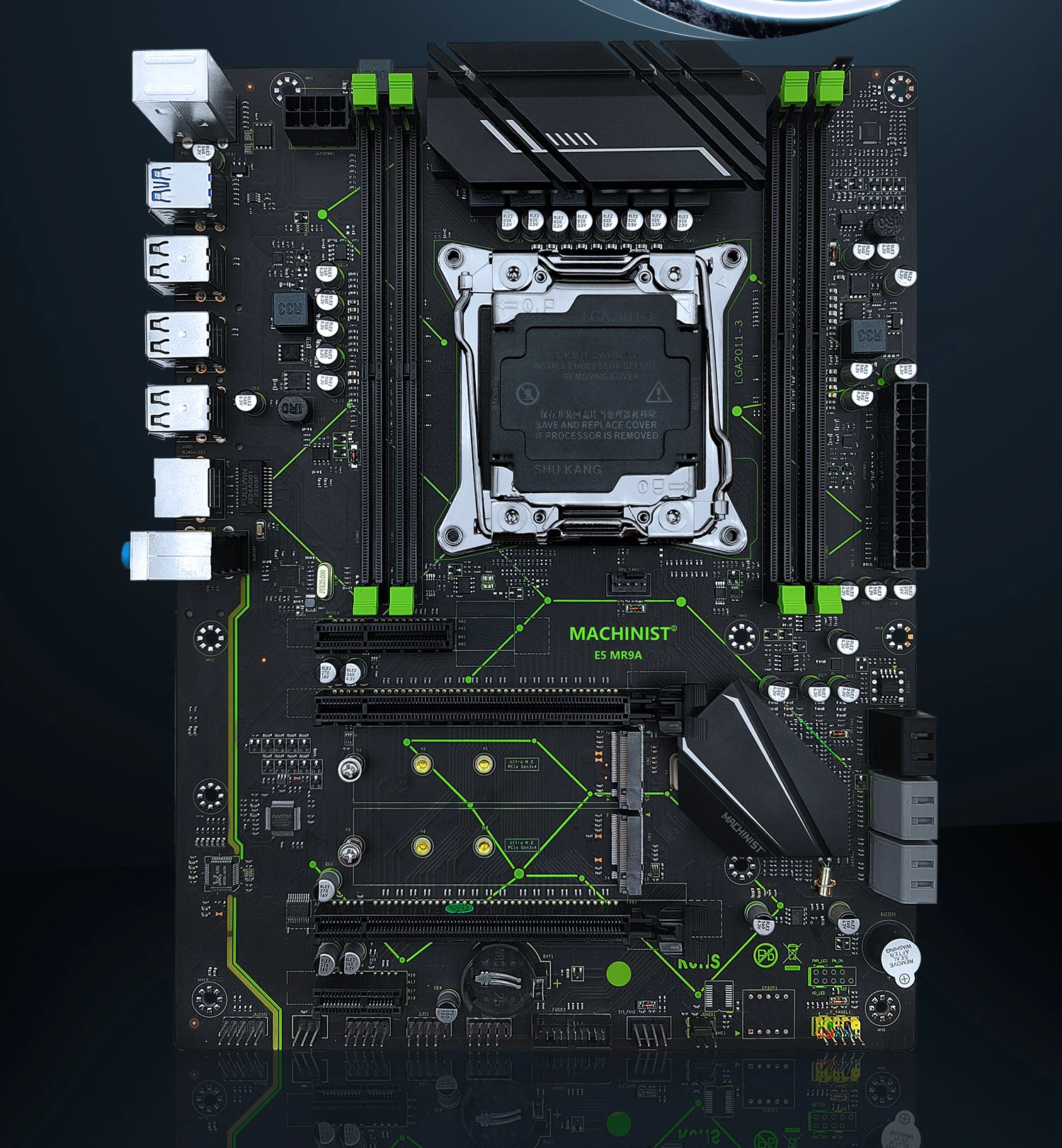

Motherboard model: E5 MR9A V1.0.
Structure: ATX.
Chipset:Intel B85(C226).

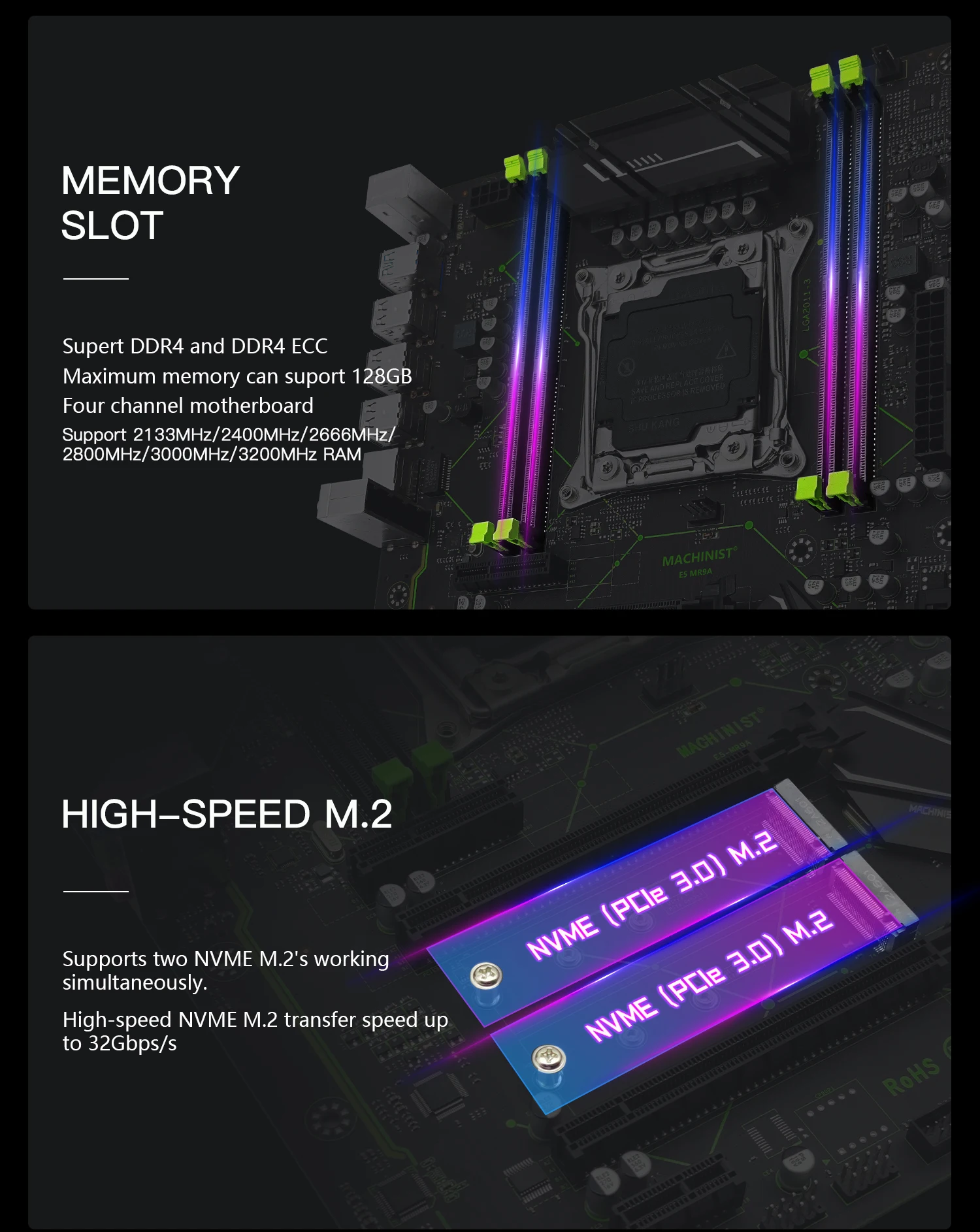

Memory slot: 4*DDR4 (four memory channels)
Maximum memory supported: 4*32GB DDR4
Supported memory types: The memory types support DDR4 desktop and server memory. (Please use Samsung, Kingston, SanDisk, Micron, Hynix and other international brands, other brands are incompatible).
LAN port: 10/100/1000Mbps/s.
Video output port: requires graphics card .

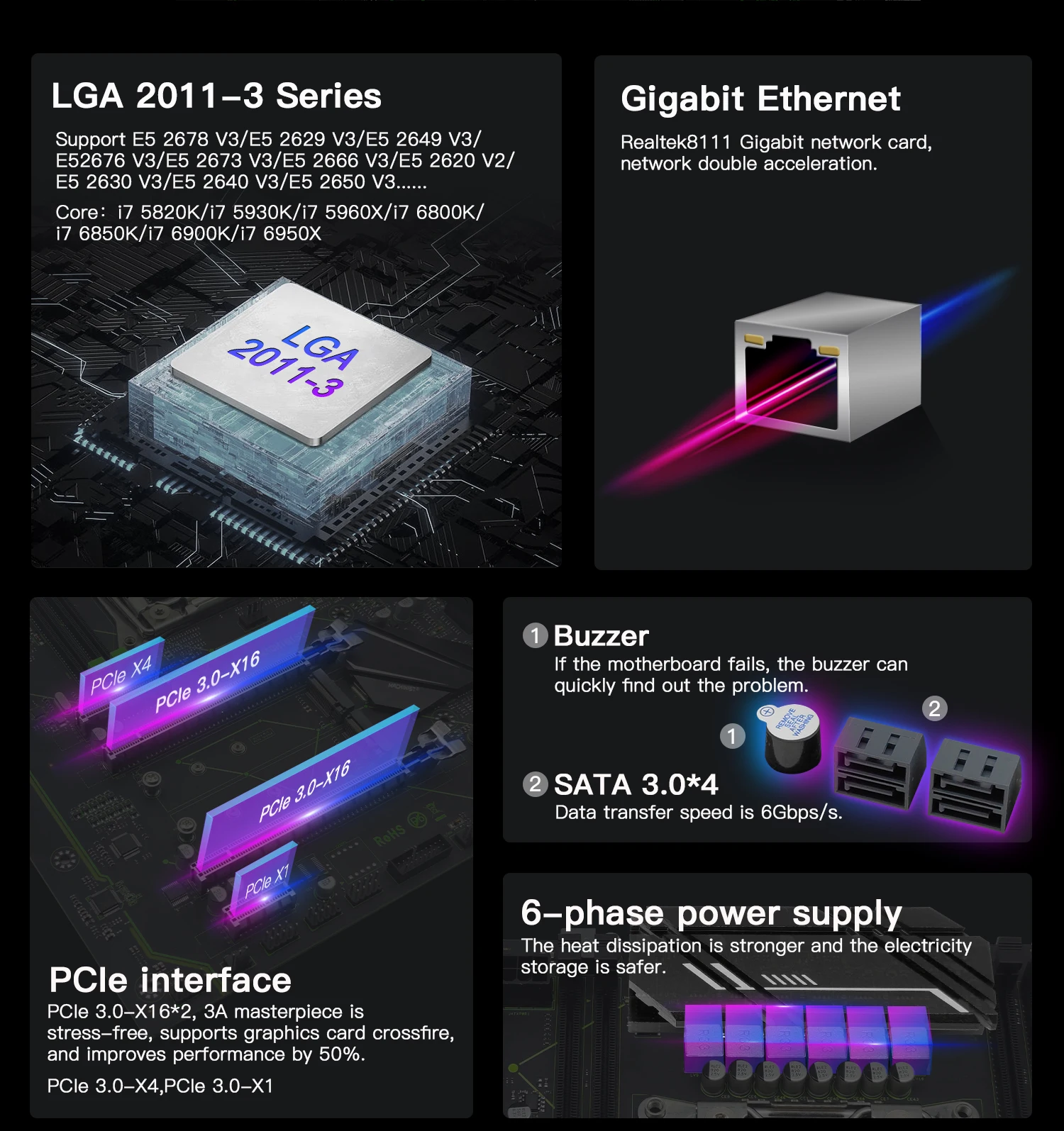

support Interface: 1*RJ45/1*PS2/4*SATA2.0/2 *SATA3.0/6*USB2.0/2*USB3.0/2*PCI-E x16/1*PCI-E x1/1*PCI-E x4/1*NVME M.2 interface *2.
Motherboard size: 216MM*283MM.
Motherboard weight (including packaging): about 1.3kg.

Note:

(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Please allow 1-3mm differs due to manual measurement.
(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
