MACHINIST Official Store Statement

>>What's in the package?
#Main products: MACHINIST E5 MR9A PRO MAX motherboard *1PCS; Used CPU E5 2690 V3 *1PCS ; DDR4 16GB 2133MHz RAM *2PCS ;
#Gift accessories（Not grounds for refund）: i/o shield, CPU cooling bracket, sata cable (all are hand-tested and packaged, there may be omissions, please forgive me!);

>>For the tariff problem, please make sure you can solve the customs clearance problem by yourself, if you can't solve it, we do not recommend you to buy goods in our store. We are not responsible for customs duties. Thanks for your understanding.

>>Please note: Some processors only support up to DDR4 1866Mhz or 2133MHz memory. This means that when 3200Mhz or 2666Mhz is installed it will only show 1866Mhz and 2133MHz. If you mind, please don't place an order. You can read 3200mhz and 2133MHz on CPU-Z.

MACHINIST Product Detai

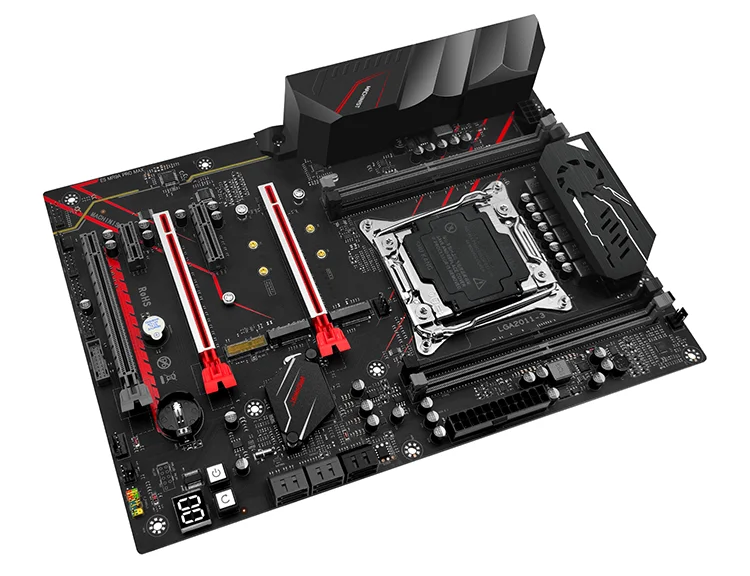

>>Specifications:

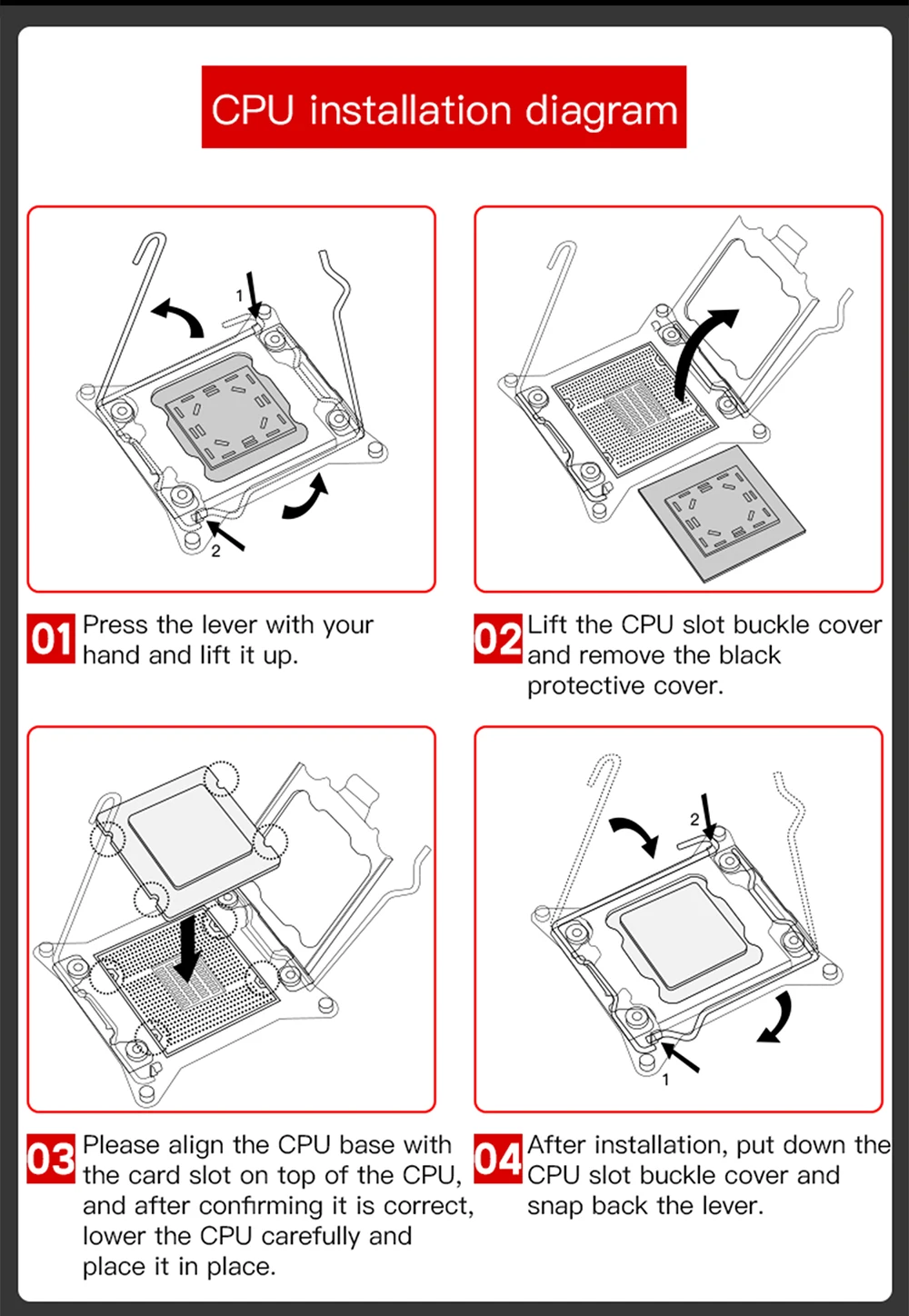

Processor: Support Intel LGA2011-3 pin series processors;
South Bridge: Q87/Z87 Chipset series;
>>memory

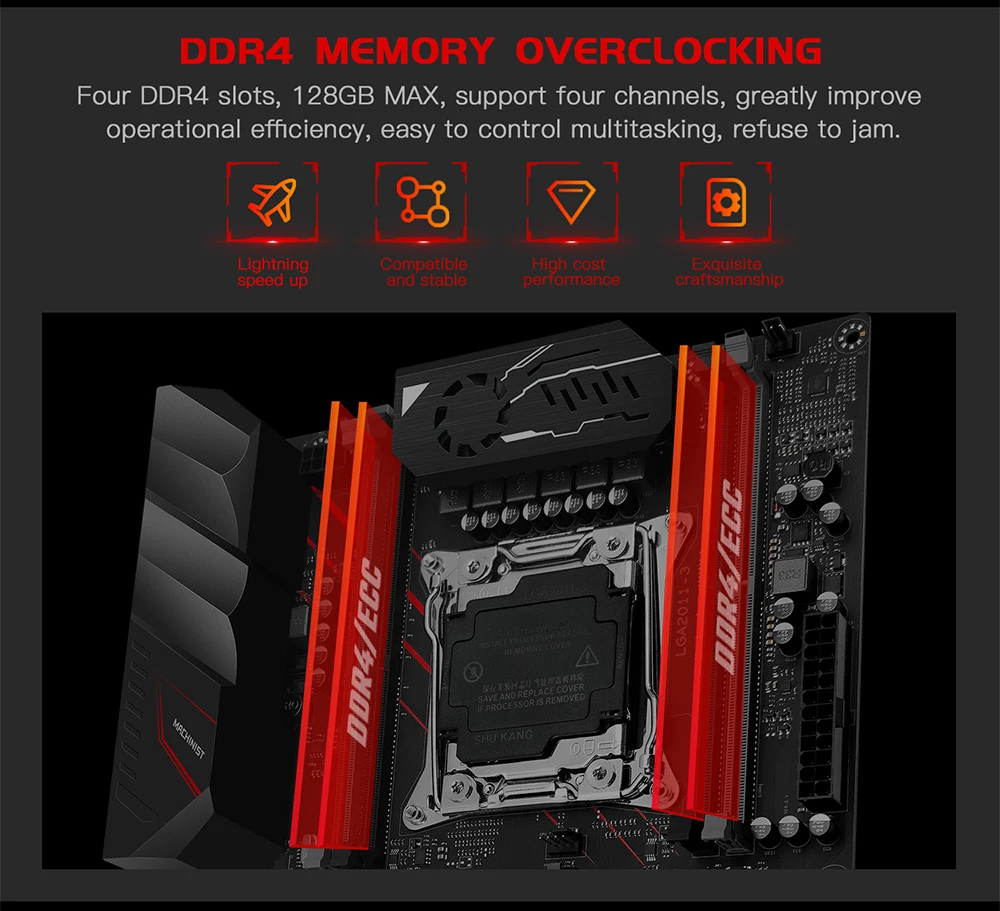

Technology: Quad-channel DDR4 2133/2666/3000/3200MHz;
Maximum capacity: 128GB;
Memory slot: 4 * 288 PIN ECC/DDR4;
>> Rear l/O:
USB port: 2 USB 3.0; 6 USB 2.0;
Audio: 1 0Mic-in. Line-out, Line-in);
Ethernet: 1 Realtek Gigabit LAN;
PS/2: 1 KB interface and 1 MS interface;

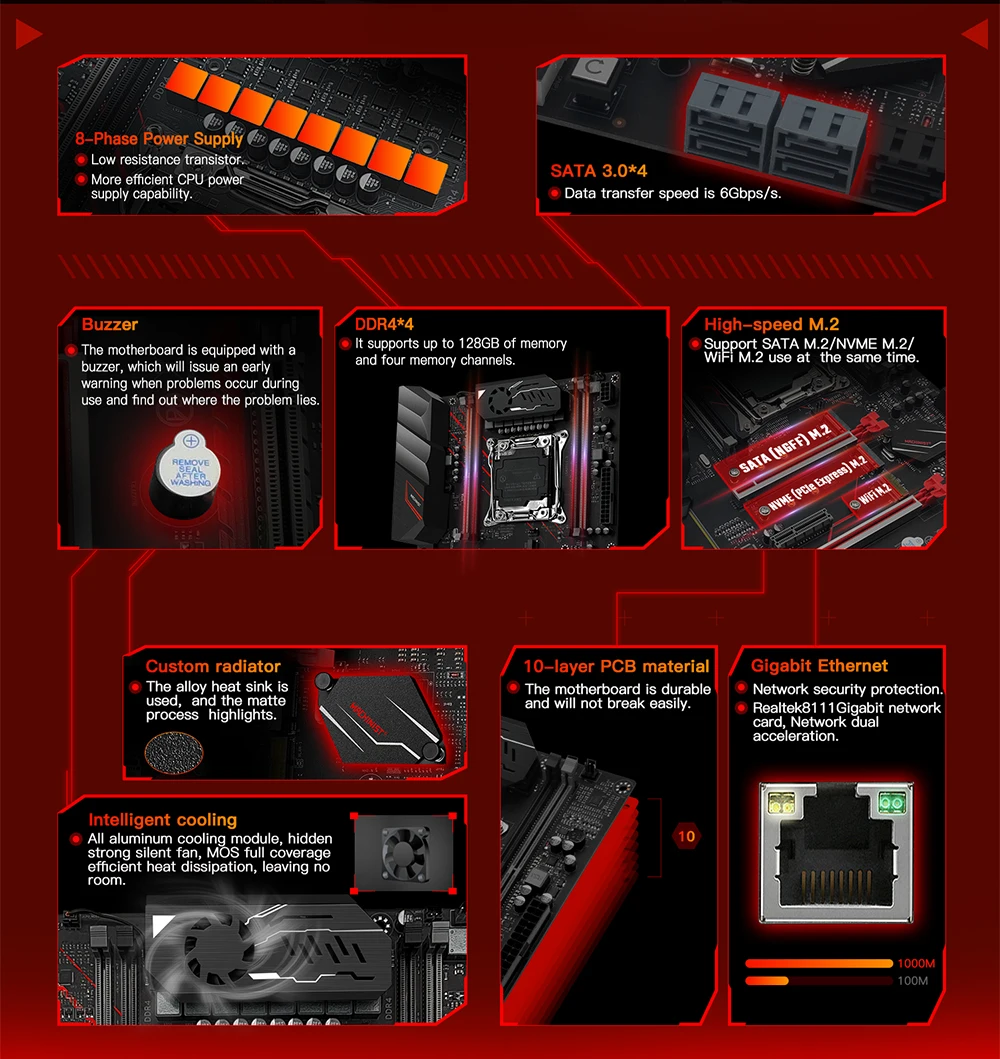

>>Internal connector
USB 2.0: 2 (one FUSB can transfer two USB 2.0 ports);
USB 3.0: 2 (one FUSB can transfer two USB 3.0 ports);
Serial port: 1 2x5Pin pin;
FAN: 4 (1*CFAN+-3*SFAN);

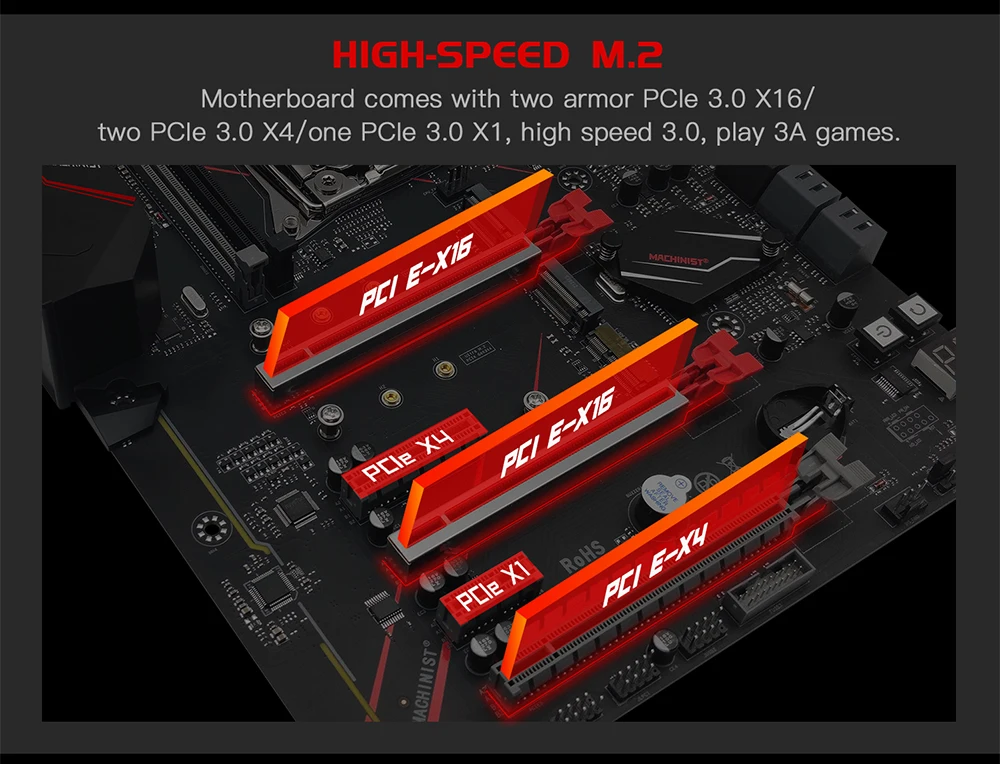

PCIe: 5 (3 PCIe x16; 1 PCIe x4; 1 PCIe x1);
SATA ports: 6 (2 SATA2. 0. 4 SATA3.0);
LAN: ATXPWR interface;
1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket;
JAudio: 1 2x5Pin pin;
Switch and restart: 2 independent buttons;
JLPC: 1 2x5Pin pin;

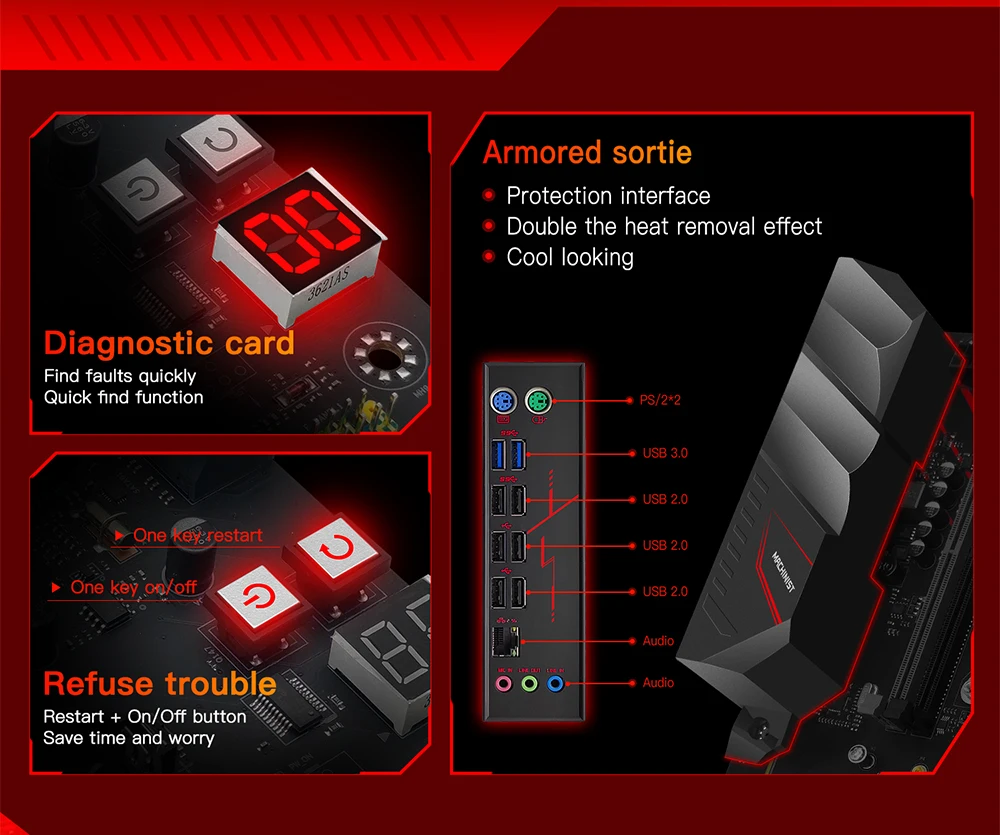

Diagnostic card: 1;
M.2 interface: 2 (1*PCIB protocol+1*SATA protocol);
>>Physical size
Size: 215mmx303mm;
Motherboard weight : about 1.4kg.

update notice

5.14th. On this day, we changed the color of memory to silver. Red memory was sold before. This notification informs: friends who have already purchased and those who have not. If you have any questions, please consult customer service. I wish you a happy life.

Note:

(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Please allow 1-3mm differs due to manual measurement.
(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
