Feature:
High compatibility for a higher experience.
All solid capacitors, fine workmanship, professional stability.

Support:

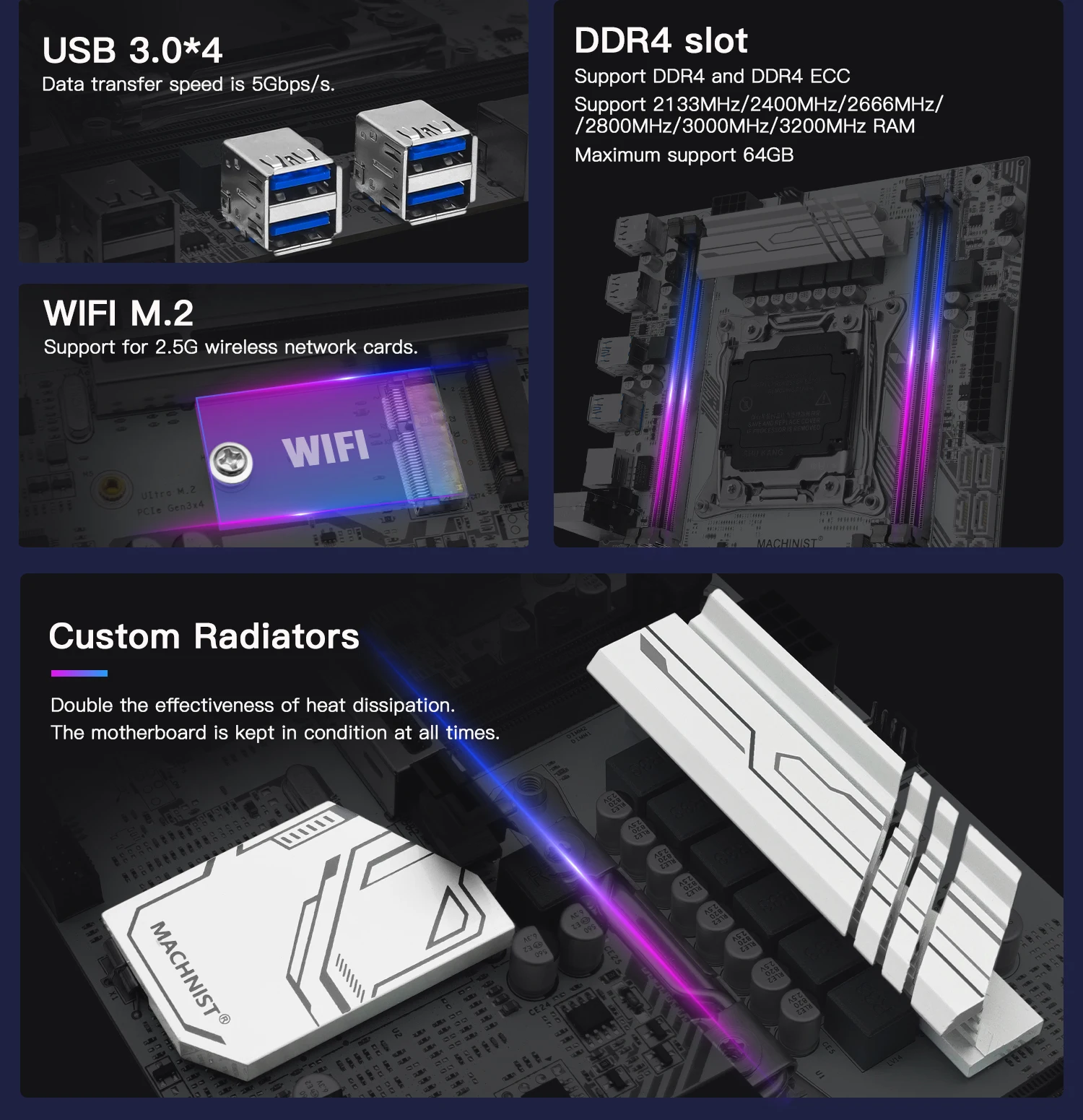

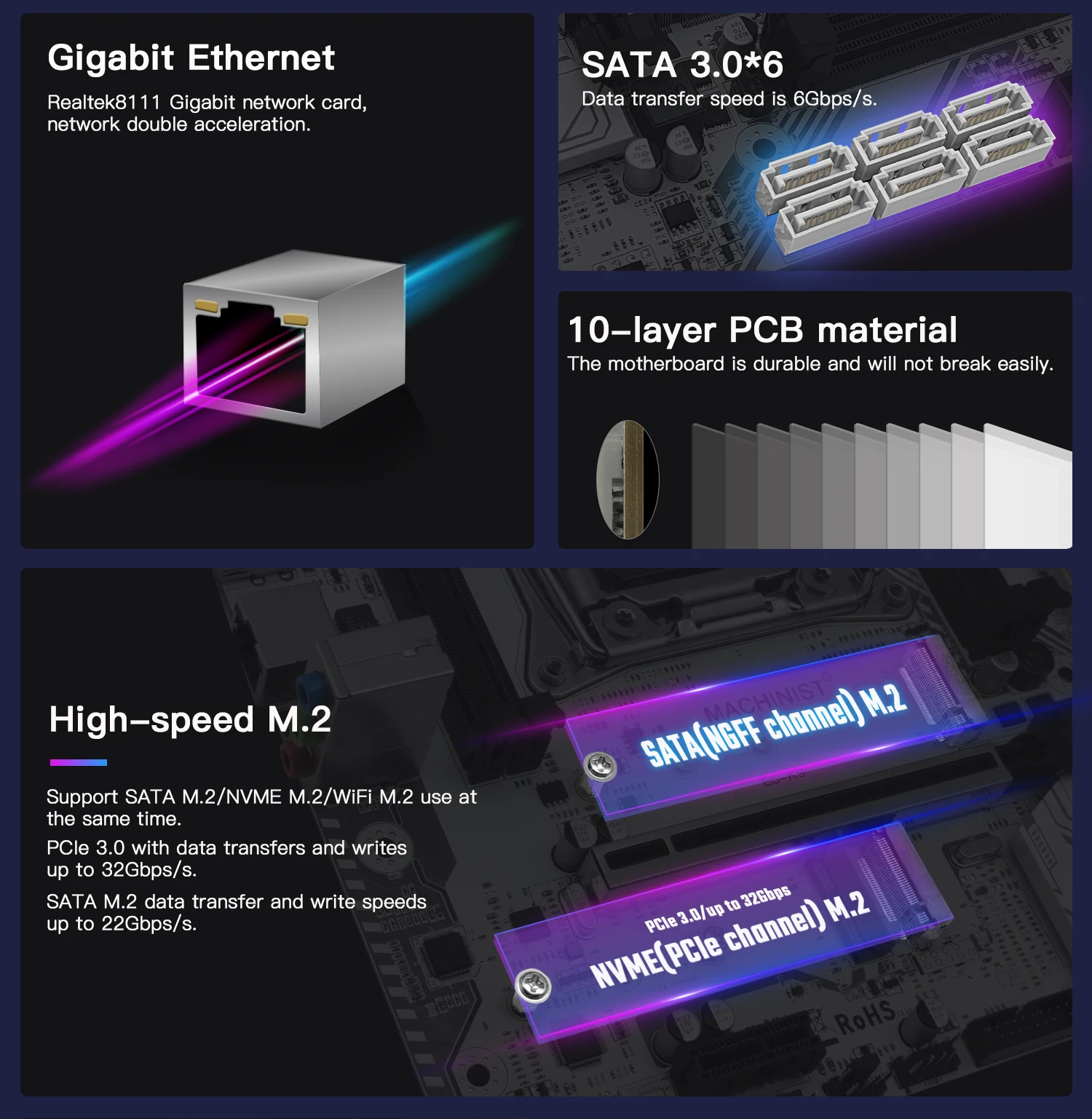

M.2 SATA and M.2 NVME SSD
1.2V DDR4 server memory/DDR4 Desktop memory.4Bit and 8bit
M.2 NGFF WIFI slot.

Specification:

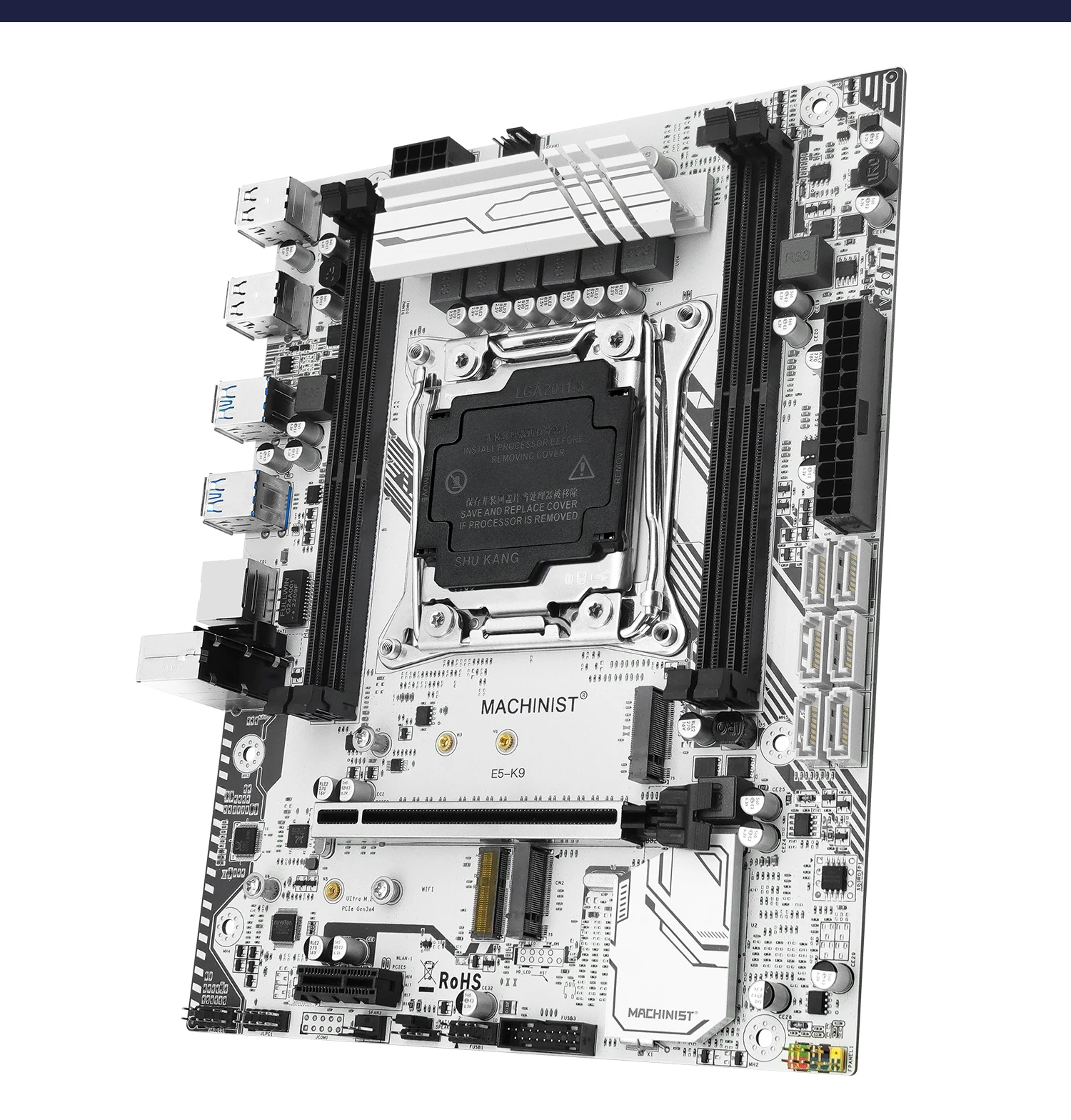

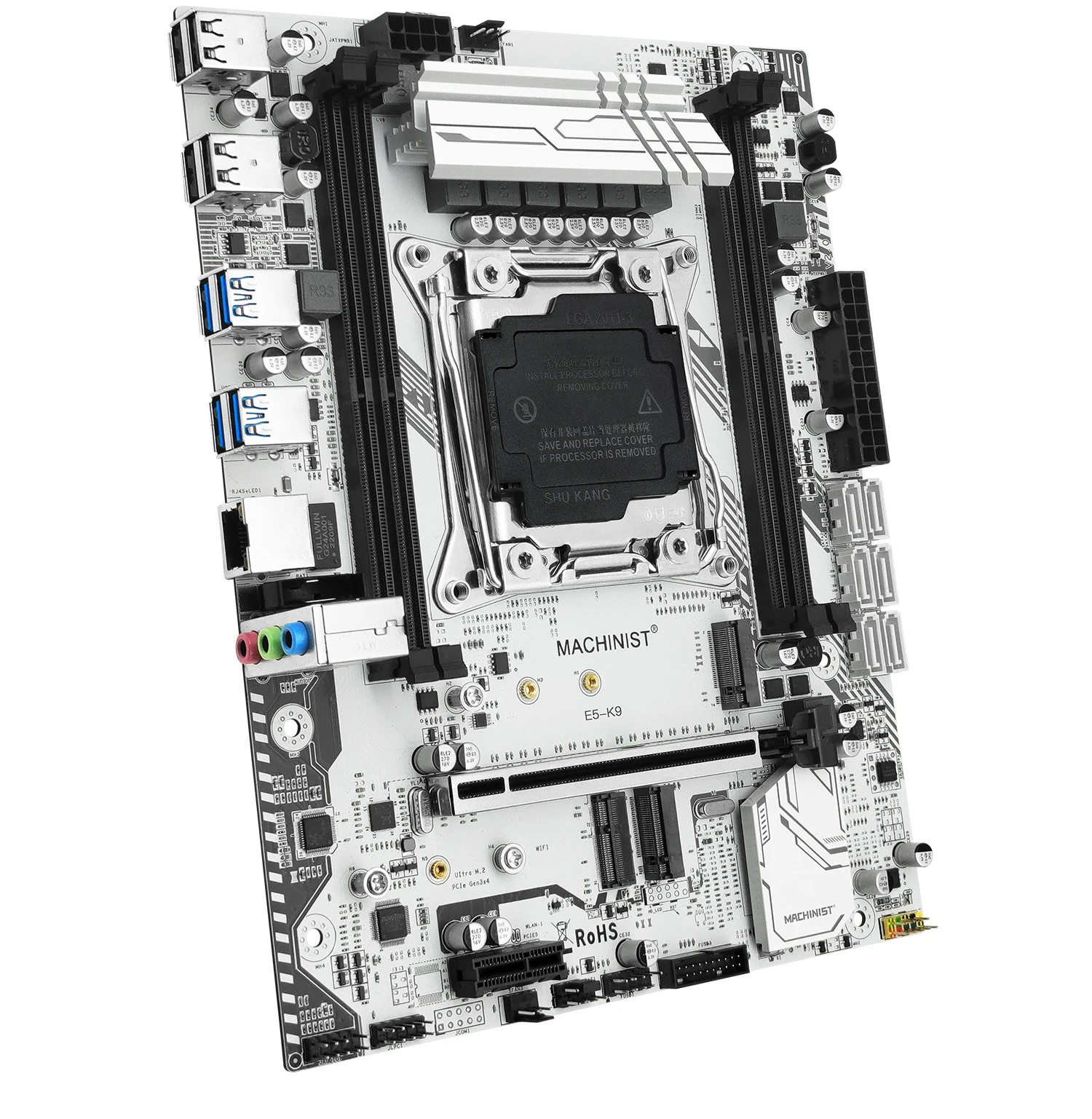

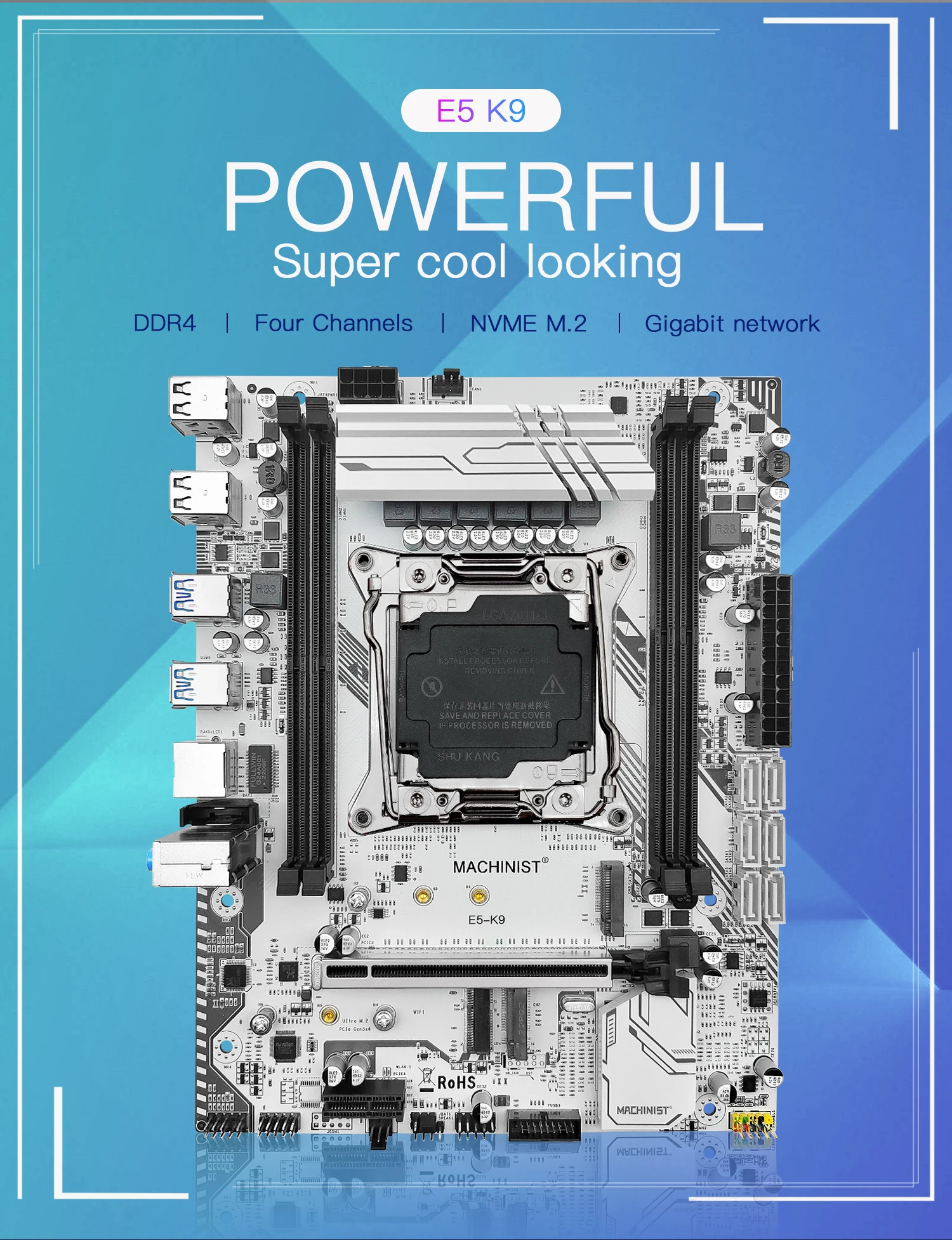

Motherboard series: Intel series
Chipset: C612
Model: MACHINIST
CPU socket: LGA 2011-3
Structure:Micro-ATX
CPU supported: Intel all series with LGA 2011-3 socket

E.g
Intel Core i7 or xeon e5 v3 & v4 series
Memory socket: 4*DDR4
Max memory supported: 4*16G DDR4
Memory Frequency supported: 2133/2400/2666 (Note: DDR4 desktop memory is required when installing the I7 processor; server memory and desktop memory cannot be used at the same time;)
Integrated video card: NO
Motherboard dimension: 235MM*185MM
Motherboard weight(including package): 1kg or so
Note:
1:The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
5:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding.
