Specification

Brand: MACHINIST

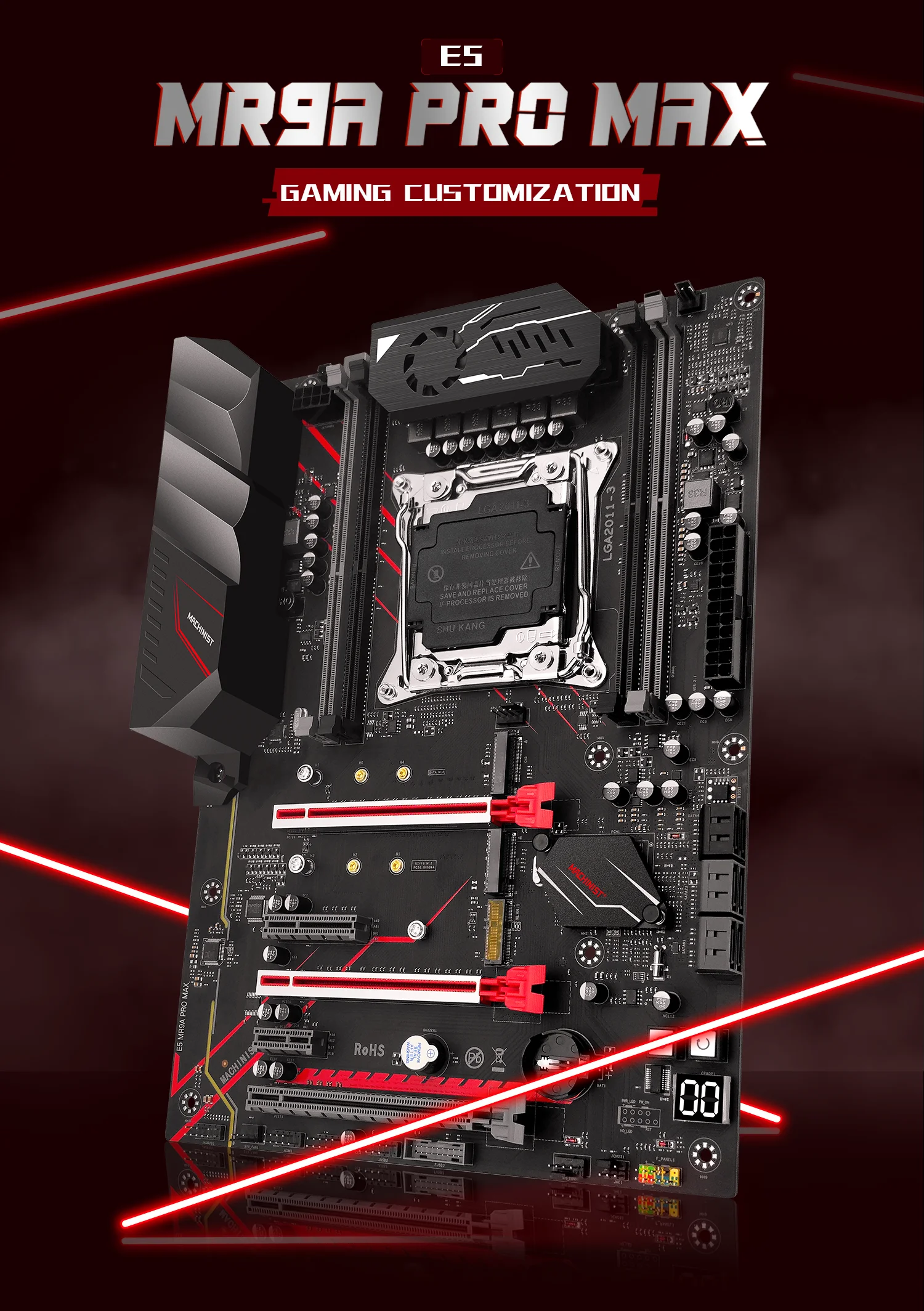

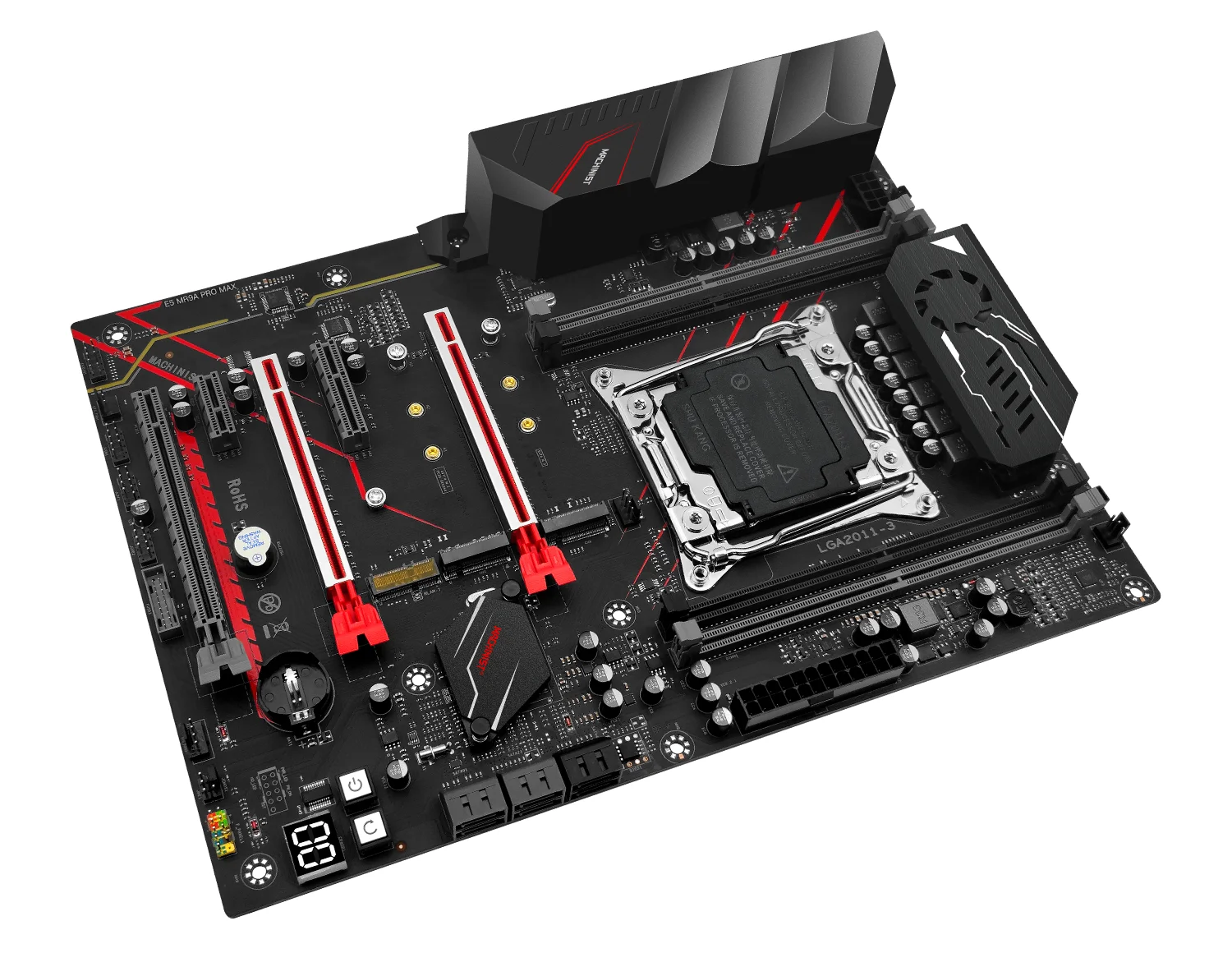

Model:E5 MR9A PRO MAX
Chipset: Q87

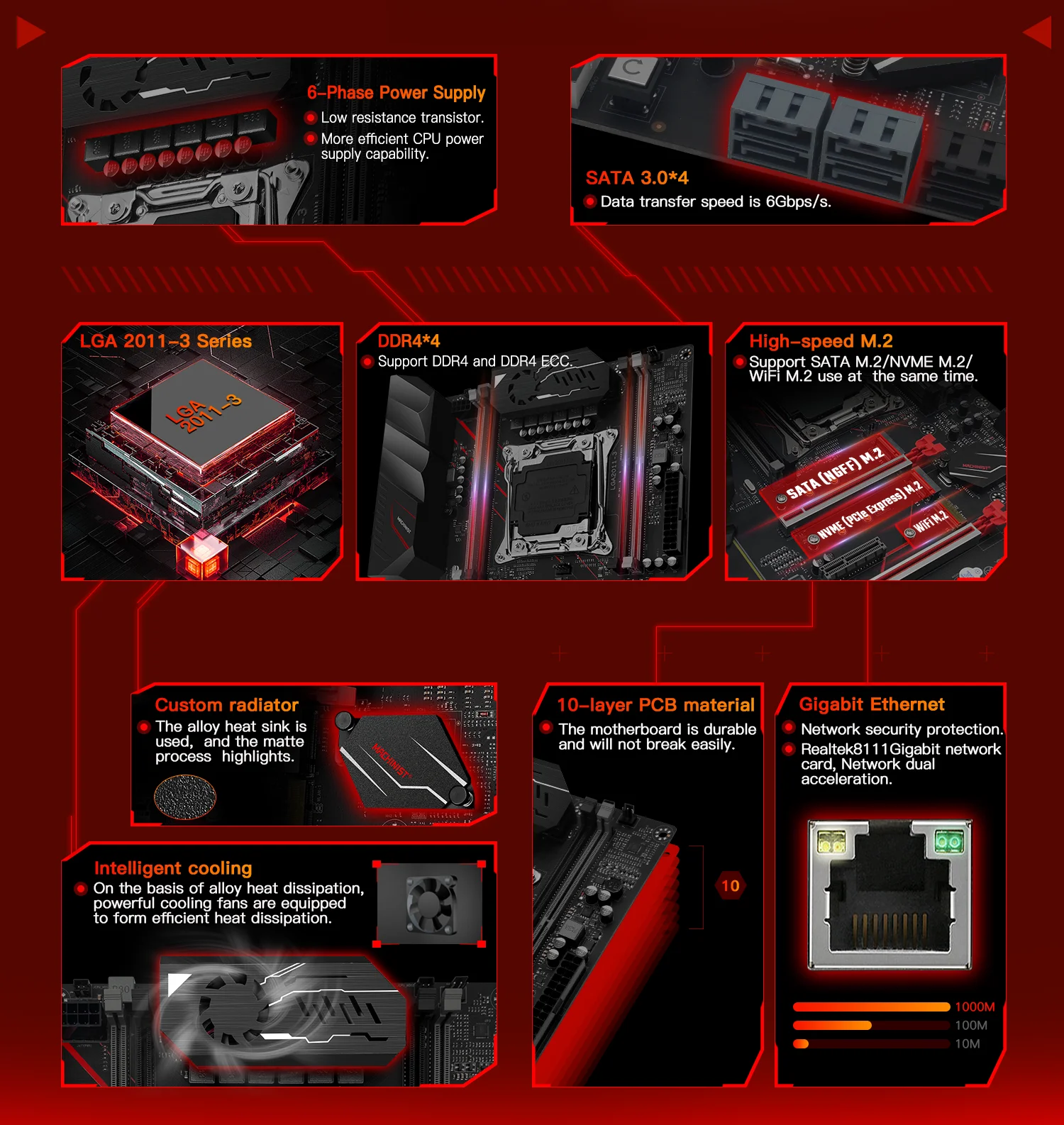

CPU socket: LGA2011-3( v3，v4）
M.2 interface：NVME M.2 SATA M.2 WIFI M.2
Structure:ATX
Memory slot: 4*DDR4
Memory channel:Four-channel
Maximum memory capacity: 4x32=128GB DDR4
Technology: Quad-channel DDR4 2133/2400/2666/3000/3200MHz
Memory type supported:supports DDR4 Desktops and servers memory. (Please use Samsung, Kingston, SanDisk, Micron, Hynix international brands. Not compatible with other brands)
SATA ports: 6 (2 SATA2.0, 4 SATA3.0)
power socket: 8PIN +24PIN power socket
USB port: 2*USB 3.0; 6*USB 2.0
Audio: 1 (Mic-in, Line-out, Line-in)
Ethernet: 1 Realtek Gigabit LAN
PS/2: 1 KB interface and 1 MS interface
USB 2.0: 2 (one FUSB can transfer two USB 2.0 ports);
USB 3.0: 2 (one FUSB can transfer two USB 3.0 ports);
Serial port: 1*2x5Pin pin
FAN: 4 (1*CFAN+3*SFAN)
PCIe: 3*PCIe x16: 1*PCIe x4: 1*PCIe x1)
JAudio: 1 2x5Pin pin
Switch and restart: 2 independent buttons
JLPC: 1 2x5Pin pin

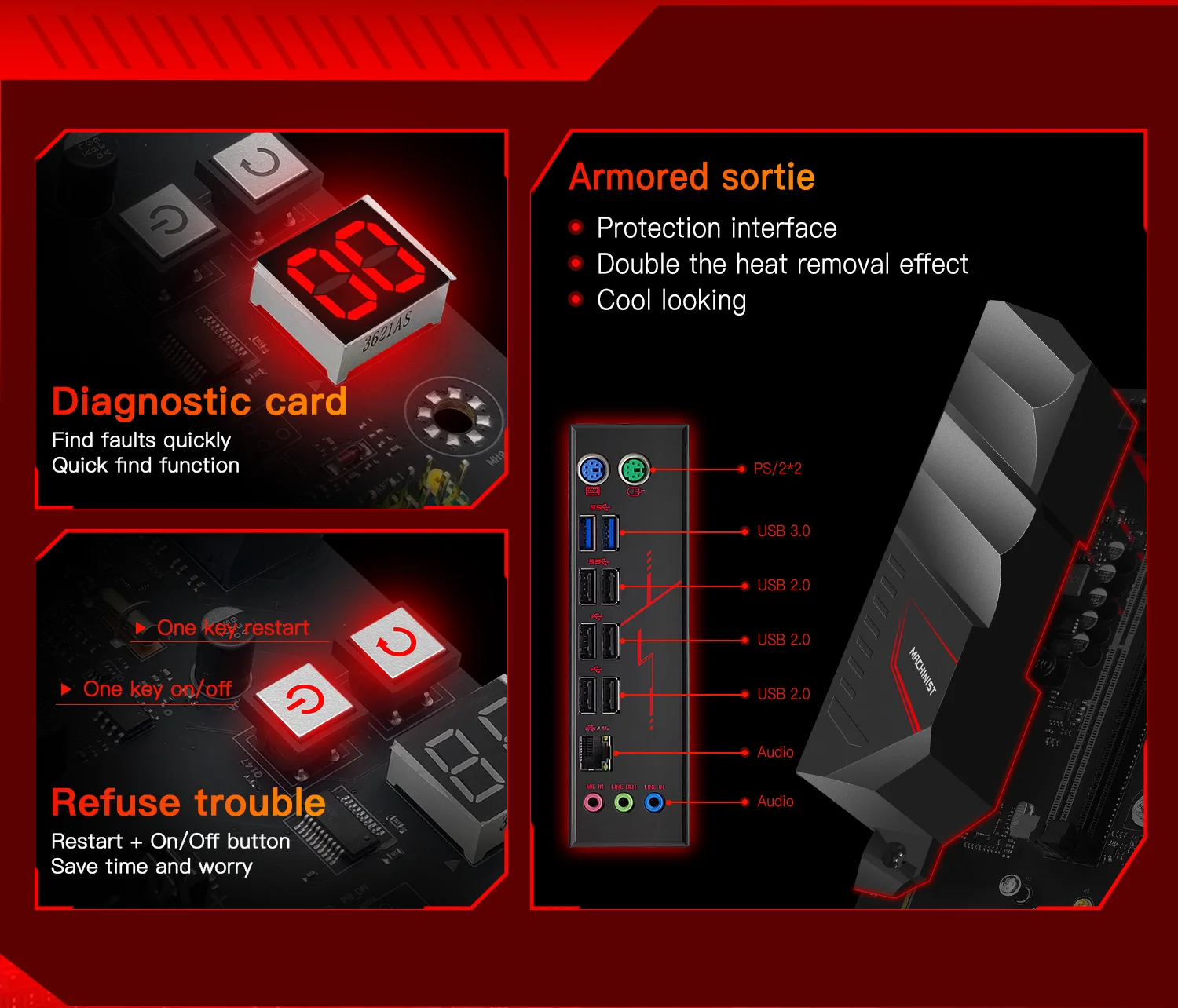

Diagnostic card: 1
Motherboard :300mm*215mm
Motherboard weight (including packaging): about 1.45kg.

Note:

1:The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 600w brand power supply)
5:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
6. If you have other requirements for the processor model and memory capacity, you can contact online customer service and we will customize it for you (besides, our store provides accessories like memory, nvme m.2 , fans for purchase)
