notes:

The package includes 1PCS motherboard + 1PCS processor + 2PCS memory.

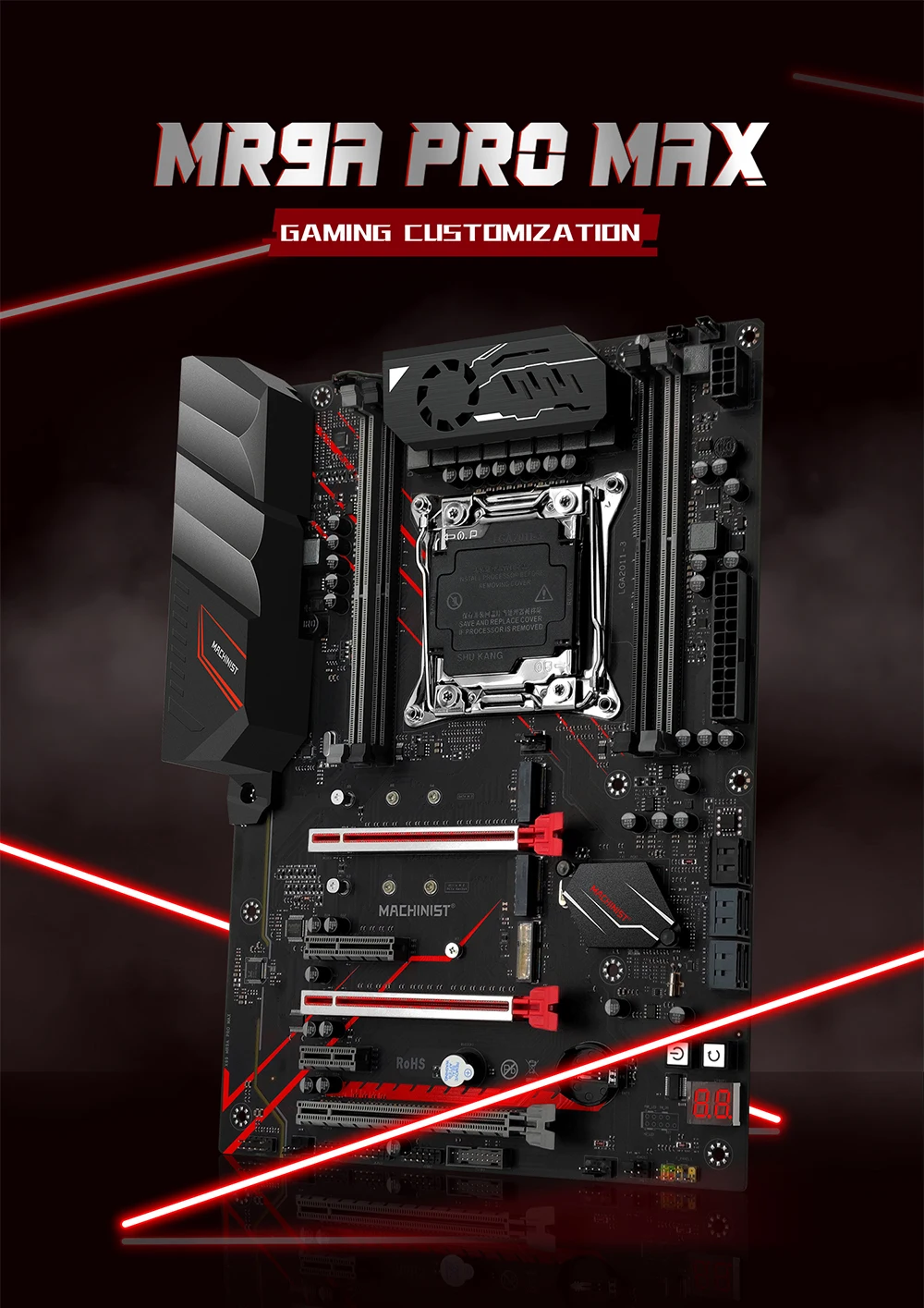

Motherboard is MACHINIST E5-MR9A-PRO-MAX

The processor is Intel Xeon E5 2667 V4

Memory is memory 32GB=2*16GB DDR4 ECC 2133Mhz RAM

CPU:
Processor Series: Xeon E5 2667V4 (8 cores/16 threads)
Main frequency: 3.2GHz
Socket type: LGA 2011-3
3rd level cache: 25MB
Technology: 14nm
Power consumption: 135W
notes:
1: CPU used, good condition, 2 years warranty

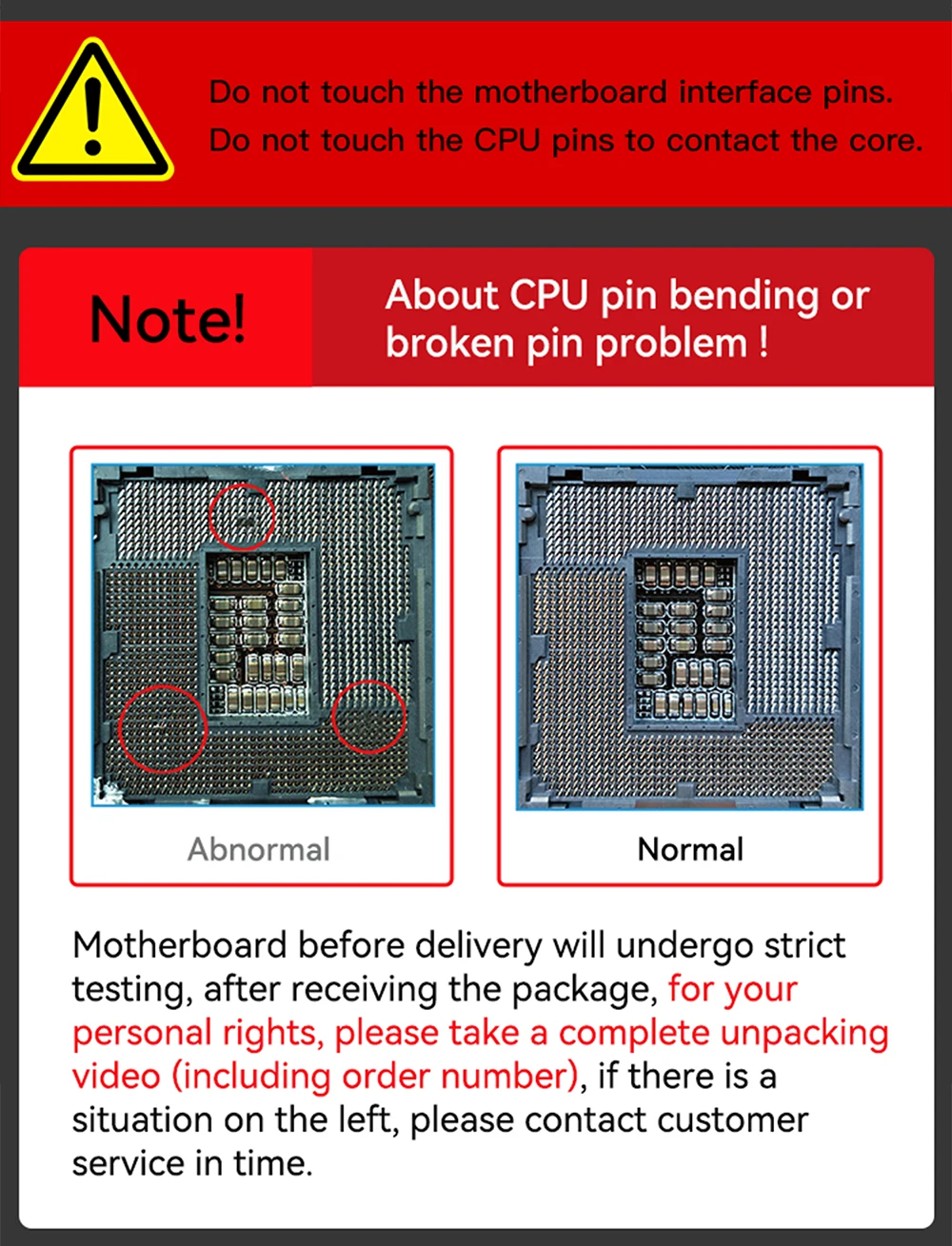

2: There may be some small physical scratches on the surface of the CPU, which is quite normal.
3: All CPUs have been strictly tested by our store

The motherboard does not contain a CMOS battery. (Embargo Regulations)

Make sure to buy the correct motherboard for compatibility with other hardware.

feature:

High compatibility brings a higher experience.

All solid-state capacitors, fine workmanship, professional and stable.

Specification:

Model: MACHINIST

Project Type: E5-MR9A-PRO-MAX

Chipset: Q87

Motherboard Type: ATX

Graphics card slot: 3*PCI-E X16

CPU Support: For Intel series LGA 2011-3 socket (E5 V3 & V4)

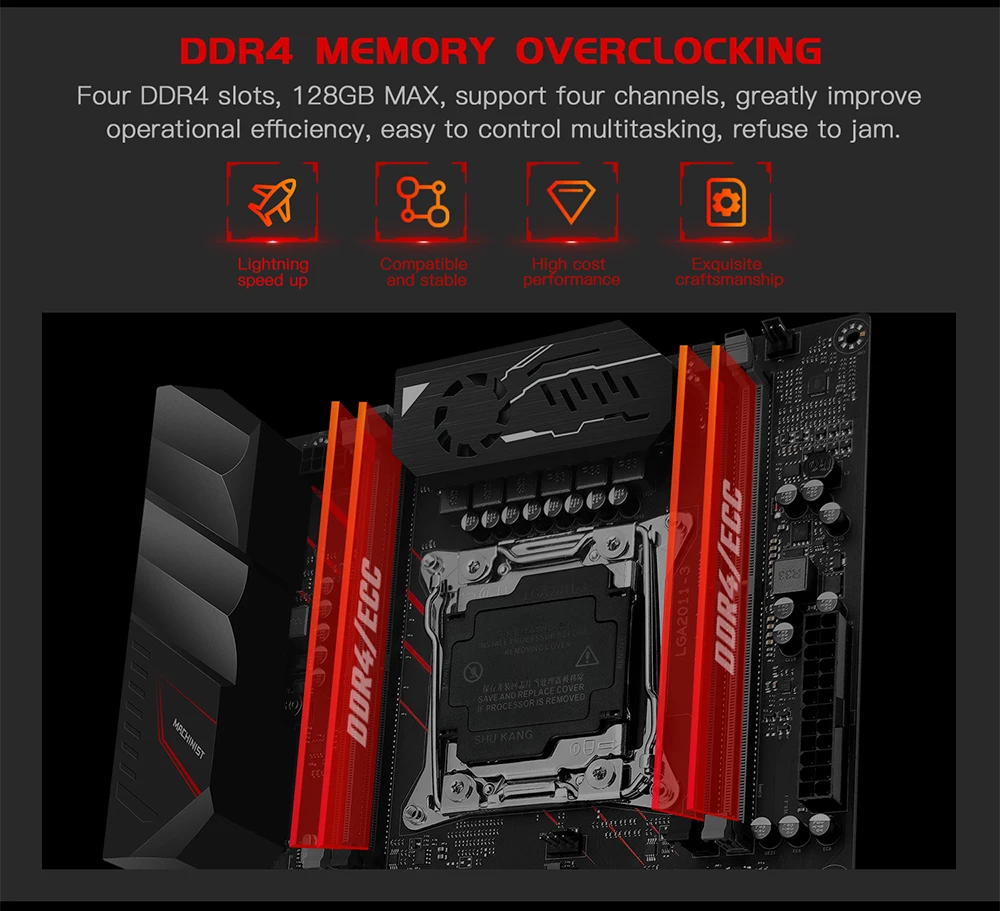

Memory slot: DDR4*4 four-channel compatible memory type: 2133/2400/2666/3000/3200 / 3600MHz

Memory capacity: 128GB

Network card type: Gigabit

Supported memory types: Desktop memory and server ECC

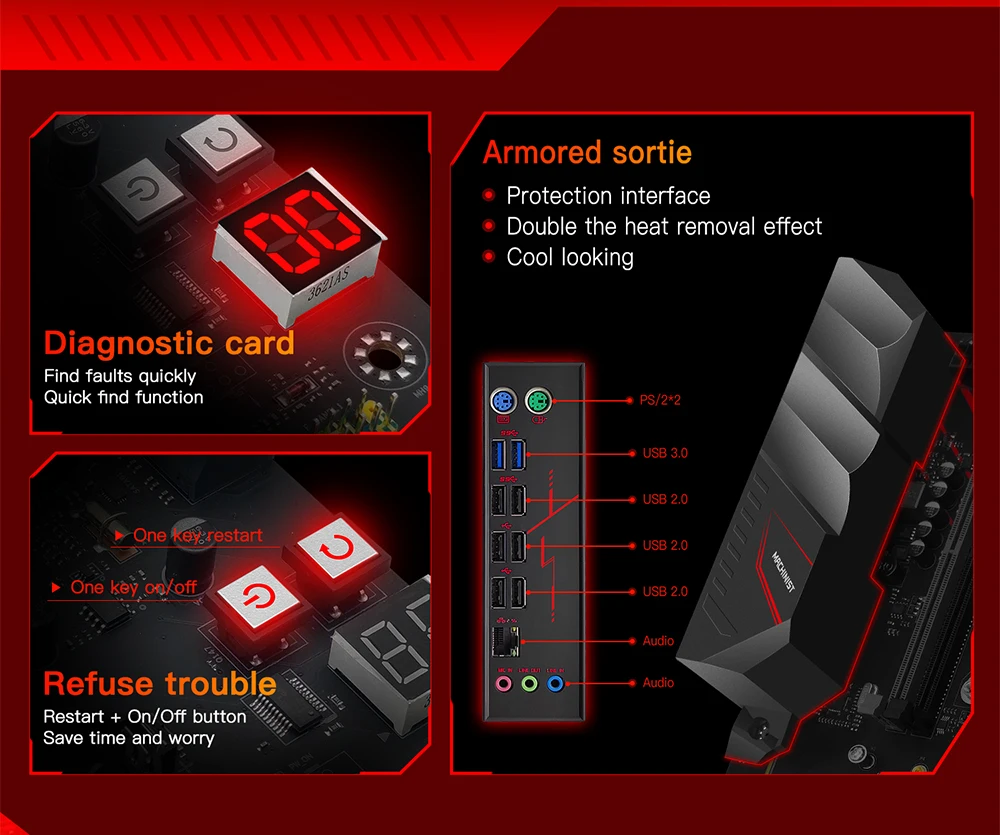

>> Rear l/O:
USB port: 2 USB 3.0; 6 USB 2.0;
Audio: 1 0Mic-in. Line-out, Line-in);
Ethernet: 1 Realtek Gigabit LAN;
PS/2: 1 KB interface and 1 MS interface;

>>Internal connector
USB 2.0: 2 (one FUSB can transfer two USB 2.0 ports);
USB 3.0: 2 (one FUSB can transfer two USB 3.0 ports);
Serial port: 1 2x5Pin pin;
FAN: 4 (1*CFAN+-3*SFAN);

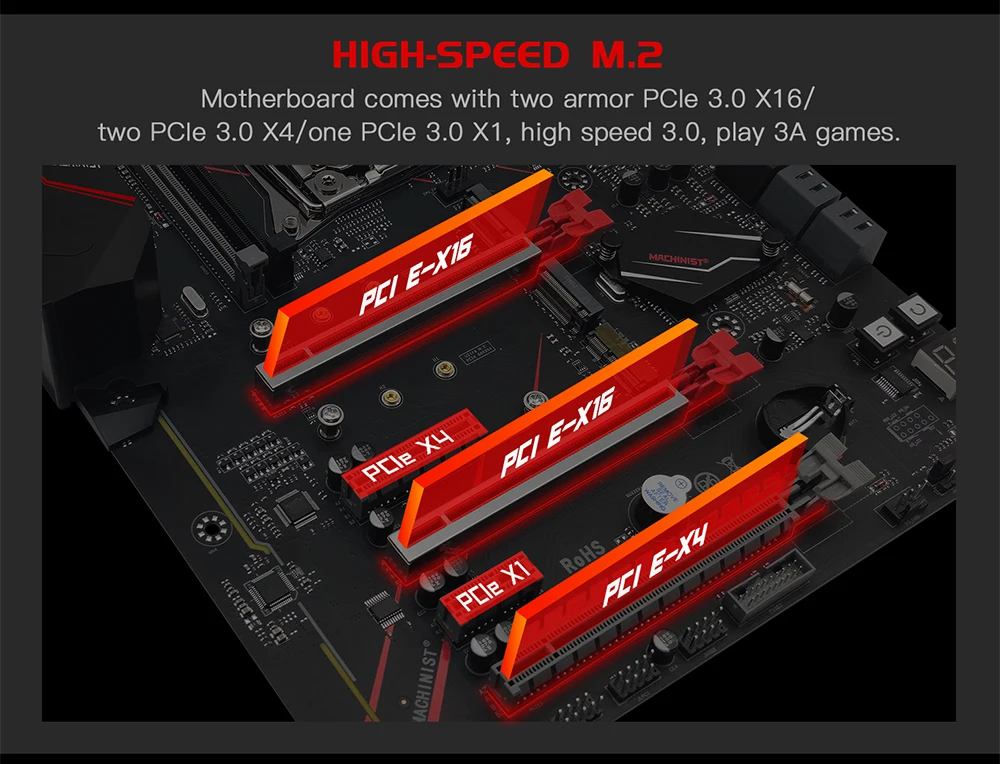

PCIe: 5 (3 PCIe x16; 1 PCIe x4; 1 PCIe x1);pcl-e 3.0
SATA ports: 6 (2 SATA2. 0. 4 SATA3.0);
LAN: ATXPWR interface;
1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket;
JAudio: 1 2x5Pin pin;
Switch and restart: 2 independent buttons;
JLPC: 1 2x5Pin pin;
Diagnostic card: 1;
M.2 interface: 2 (1*PCIB protocol+1*SATA protocol);

>>Physical size
Size: 215mmx303mm;
Motherboard weight (including packaging): about 1.4kg.
notes:

1: The color of the slot bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.
2: Manual measurement, please allow 1-3mm difference.
3: Due to different monitors and different lighting, the pictures may not show the actual color of the item. Thanks for your understanding.
4: This machine needs a strong power supply. Make sure you are strong enough to support this plan. (At least 500W brand power)
5: The battery in the motherboard photo will be taken out before shipping because the battery is disabled in CN POST and Custom.

For tax issues, if you can't solve it, please make sure you can solve your customs clearance problem, we do not recommend you to buy goods in this store. We are not responsible for customs duties. Thanks for your understanding.
