⭐⭐⭐The motherboard in the Brazil warehouse is the old K9 1.0. It does not have a VRM fan. Shipping from Brazil is an old model. The ones shipped from China Warehouse are new models. If in doubt, please consult customer service.

MACHINIST Official shop statement

>>What's in the package?
#MACHINIST E5 K9 Motherboard *1PCS,
# #Gift accessories :i/o shield, CPU cooling support, sata cable (all manual test packaging, there may be omissions, can not be used as the reason for refund, please forgive me!) ;

>> Regarding the tariff issue, please make sure you can solve the customs clearance problem by yourself, if you can't solve, we do not recommend you to purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

Features:

Brand: MACHINIST.

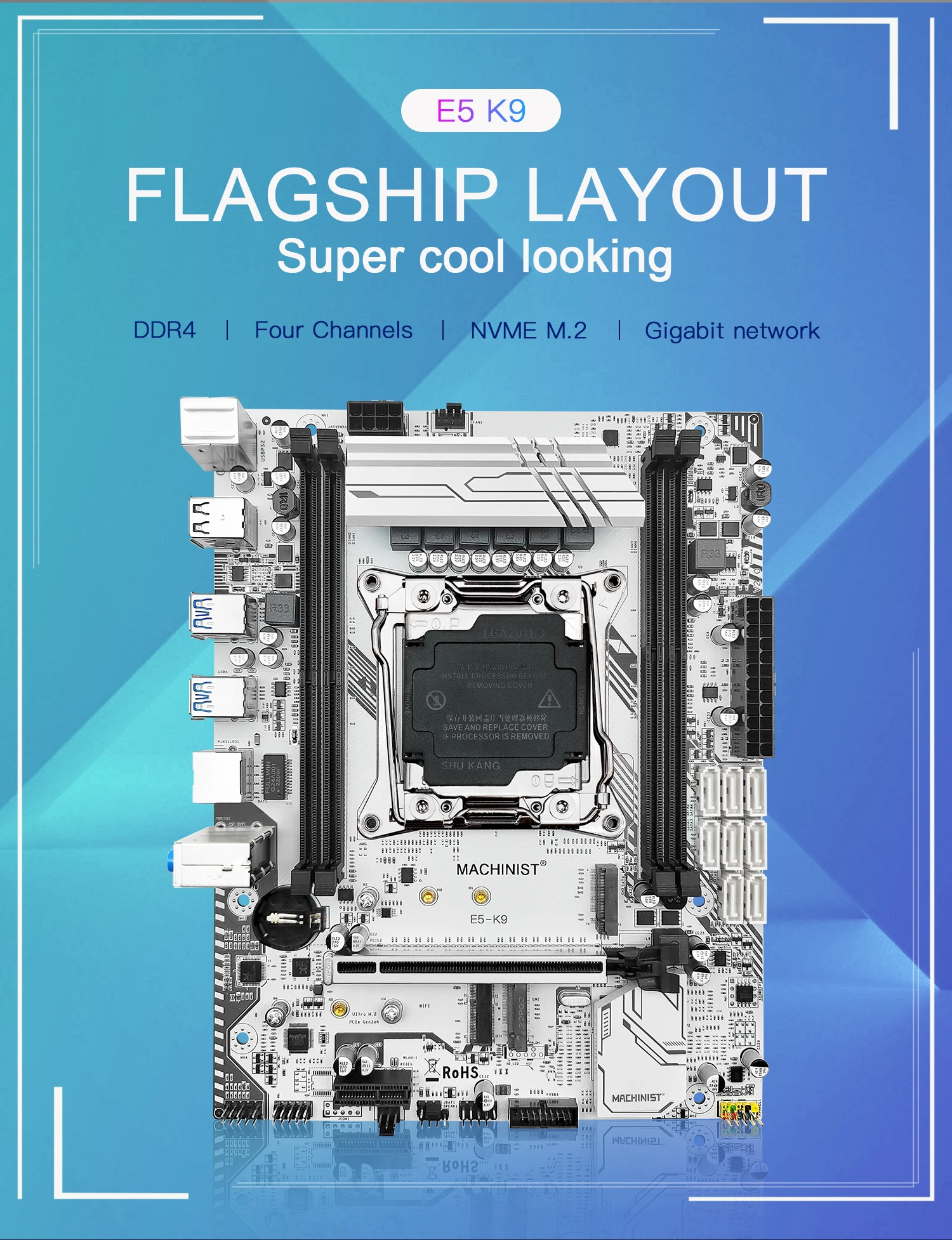

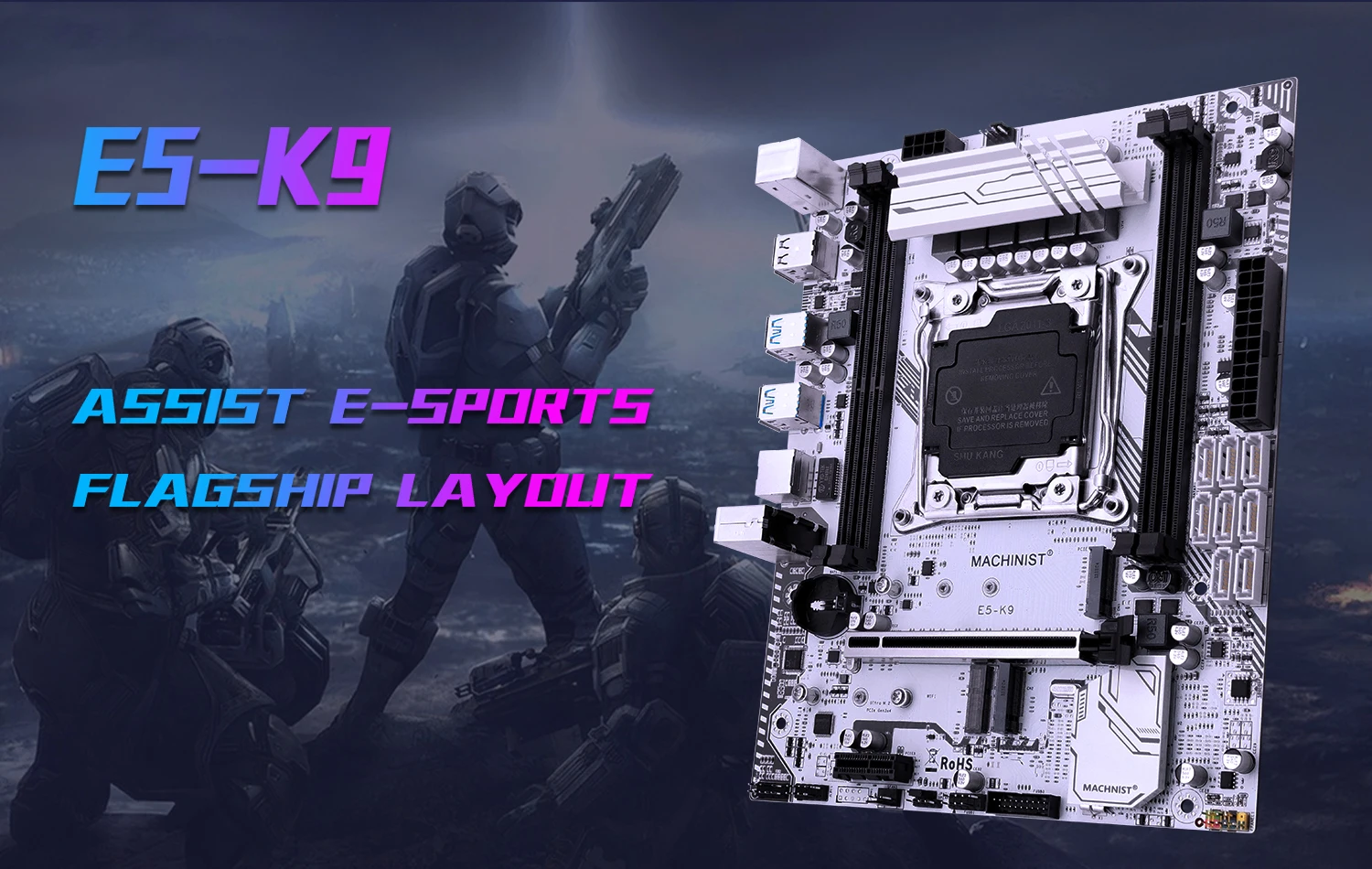

Motherboard model: E5 K9.
Structure: M-ATX.
Support 5.1 channel ALC897 sound card chip,
Supports M.2 SLOT*2,
Support wireless LAN * 1,
The transmission rate of the USB3.0 high-speed interface is increased again.
Supports PCIE expansion slots *2.
Support RJ45 Gigabit network adapter port,
10-layer PCB substrate, 8-phase power supply,
Support Win10 32-bit / 64-bit operating system.

MACHINIST Product Details

>> Processor :Intel Xeon E5 LGA2011-3 pin series processor,
>> Southbridge : X99 chipset series.
> > Memory:
Technology: Four-channel DDR4 2133/2400/2800/3200MH.
Maximum capacity :128GB.
Memory slot :4 x 288 PIN DDR4.
>> Post I/O:
USB ports :4 USB 3.0; 4 usb 2.0.
PS/2: One KB interface and one MS interface.
Audio :1 PCS (microphone input, line output, line input).
Ethernet: A Realtek Gigabit network adapter.
>> Internal connector:
usb2.0: 2 (1 FUSB can be converted to 2 usb2.0 ports).
USB 3.0: 2 (1 FUSB can be converted to 2 USB 3.0 ports).
JLPC: 1 2x5Pin pin.
CFAN: A 4-pin pin.
SFAN: A 3-pin pin.
WLAN: 1.
PCIe 2:(1 PCIe x16; 1 PCIe x1).
ATXPWR interface :1 standard 1x8PIN power outlet; 1 standard 1x24PIN power outlet.
JAudio: 1 2x5Pin pin.
SATA: Eight SATA ports.
M.2l: Two PCIe protocols (Gen3*4).
>> Physical size:
Size :185mm X 235mm.
Motherboard weight (including package): about 0.9kg.

Note:

(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Please allow 1-3mm differs due to manual measurement.
(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).
(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
