Good news:

CRP909C device changed from 1 year free update to 2 years free update.Special features added from 26 to 28

LAUNCH CRP909C OBD2 Scanner Professional IMMO ABS EPB TPMS Oil Reset Car Code Reader All System OBD 2 Car Diagnostic Tools

LAUNCH CRP909C Car Diagnostic Tablet is an newest evolutionary Android smart solution for 12V passenger car,light duty,pickup truck diagnosis & maintenance. this CRP909C car scanner’s advantages not only lie in its comprehensive functions include All Systems Diagnoses, All OBD-II functions, various Reset Maintenance Service(Oil Reset,EPB/SAS/BMS/TPMS/DPF reset etc), but It inherits from LAUNCH’s advanced diagnosing technology and is characterized by covering a world wide range of vehicles, featuring powerful enhanced functions, and providing accurate diagnosis & reset levels. it's desgin for car repair garage,car beauty service parlors, auto mechanic and DIY car owners auto scanner

LAUNCH CRP909C Support Diagnose Car Full System

Read and erase codes for all available systems using the supported protocols. The tablet type X-431 diagnostic tool is the best way to display live data in text, graph & analog for easy data review:

Engines, Auto Transmission, Airbags, Immobilizer, ABS ESP system, Cruise Control system, Gateway, Body Systems, Steering system, TPMS system, Rain Sensors, 4WD System Stabilizer, Intelligent Parking Assist, Audio Radio Systems, Air Conditioning, Central Locking, Electric Windows, Heated Rear Window, Xenon Headlights, Wash Wipe, Fuel Burning Heater, Seat & Door Motor system, Electronic Throttle system, Electronic Spark System.

And Many More...

LAUNCH X431 CRP909 CSupport Below 28 Kinds Maintenance Functions:

In addition to amazing & powerful diagnostic function, CRP909C also features various service functions. The most commonly performed service functions contain：

1> Oil Reset Service

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

2> Electronic Parking Brake Reset

This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.

3> Steering Angle Calibration

This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

4> ABS Bleeding

This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

5> Gear Learning

This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC 'tooth not learned' is present.

6> IMMo Service

This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.

7> Injector Coding

This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

8> Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

9> Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.

10> Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

11> Gearbox Matching

This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.

12> AFS (Adaptive Front-lighting System) Reset

This function enables you to initialize the adaptive headlamp system.

13> Sunroof Initialization

This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.

14> Suspension Calibration

This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor， or control module in the airsuspension system.
2. When the vehicle height is incorrect.

15> Tyre Reset

This function is used to set the size parameters of the modified or replacedtire.

16> Seats Calibration

This function is applied to match the seats with memory function that arereplaced and repaired.

17> Coolant Bleed

Use this function to activate the electronic water pump before venting thecooling system.

18> AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.

19> NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.

20> Ac System Initialization

AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.

21> High Voltage Battery Detection

This function is used for high voltage battery diagnosis and status informationdetection.

22> Windows Calibration

This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.

23> Language Change

This function is used to change system language of vehicle center console.

24> AF Reset

This function is applied to set or learn airlfuel rate parameters.

25> Transport Mode

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.

26> StoplStart Reset

This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).

27> Engine Power Balance Monitoring

This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.

28> Motor Angle Calibration

This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.

.......

LAUNCH CRP909C Also supports Deep Diagnostic Function - ECU Coding & Active Test :

( The two Functions need subscribe , about USD49.95/brand )

ECU Coding :

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc. But please note, ecu coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.

Active Test ( Bi-directional control ) :

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example , x431 v have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.

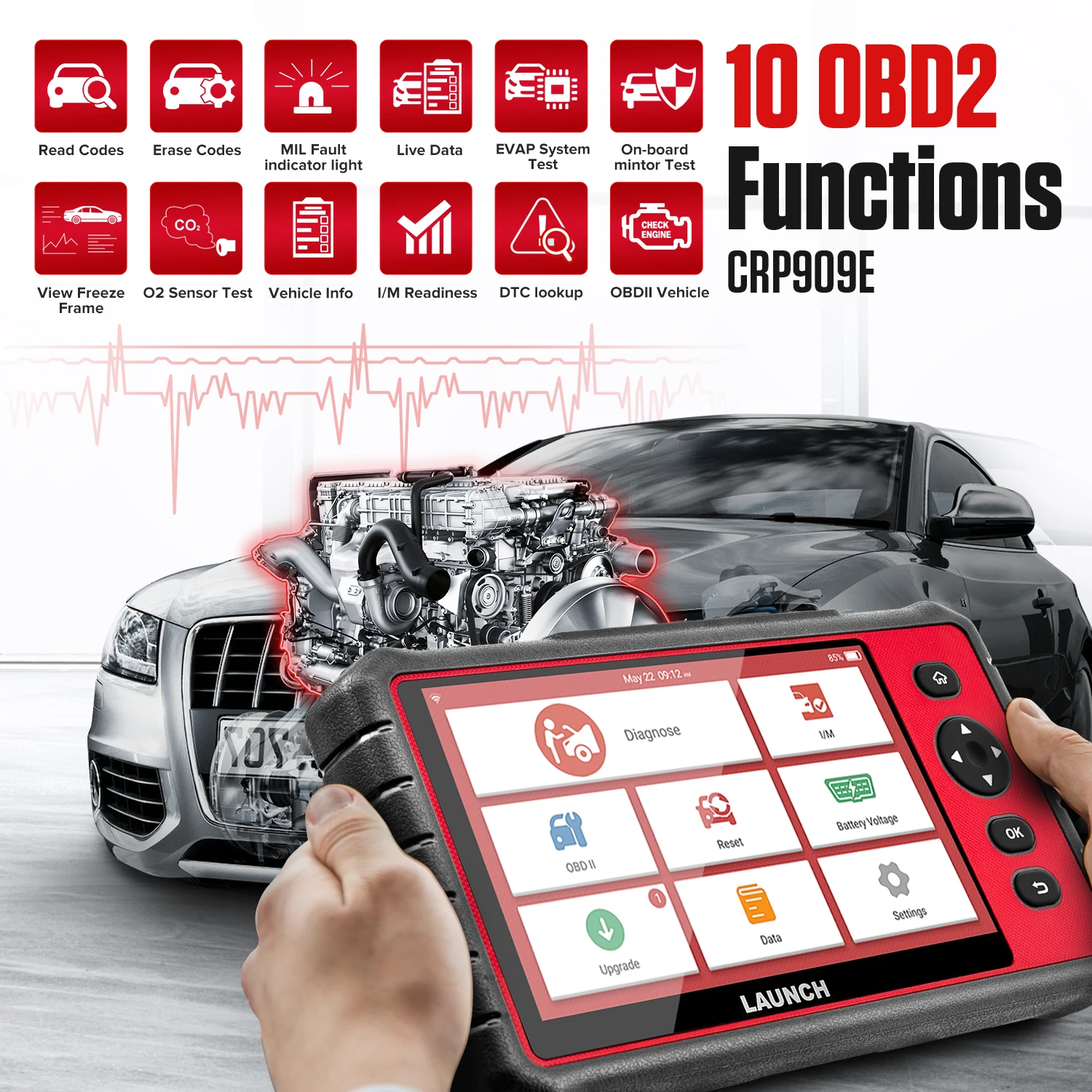

Full 10 Mode OBDII/EOBD/JOBD Car Diagnostics Functions:

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:
1.Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

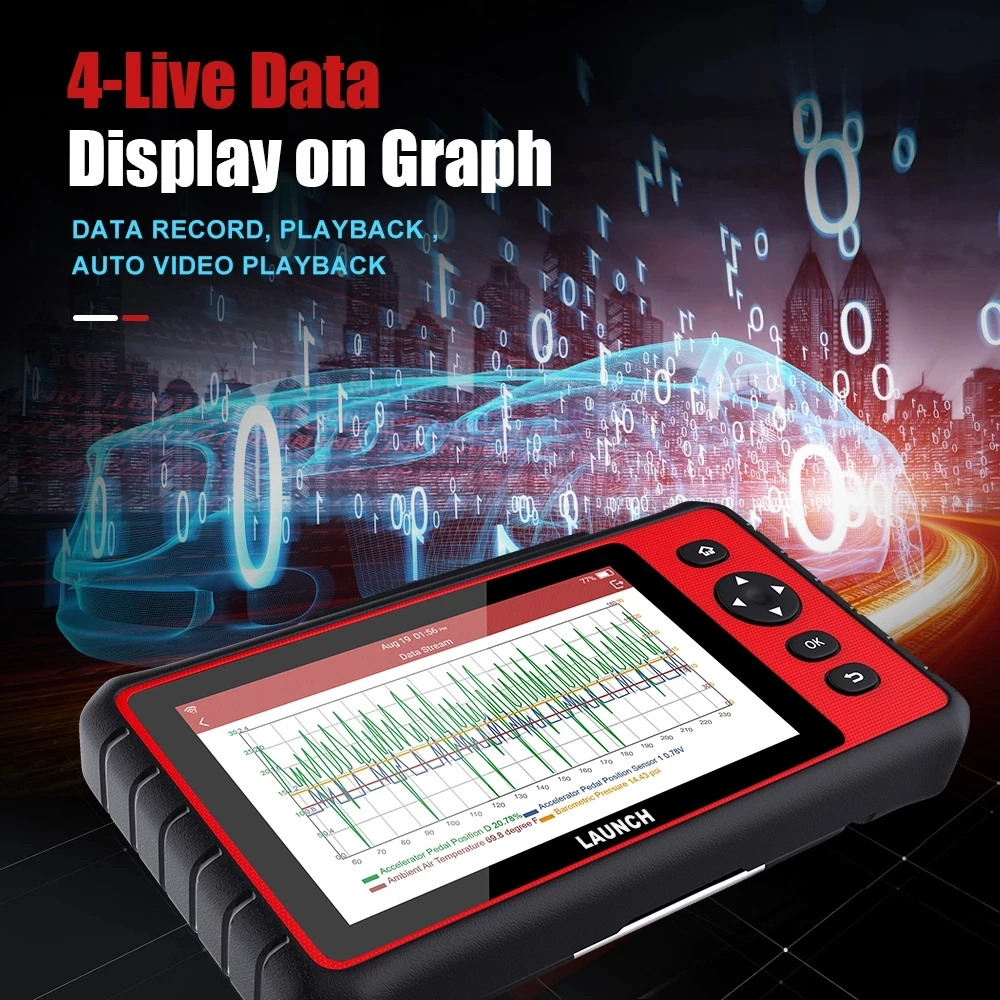

4 Live Data Display on Graph

Data Record, Report Share, Auto Video Playback.. Powerful graphing capability gives you the "real picture" of what's going on in the vehicle, which allows you focus on any suspicious or symptom-specific data parameters.

Professional Fast Identifies VIN Number:

Once connect with car OBD2 port , CRP909 will AutoDetect car Vin number. Give you a quick access to start the vehicle system detection.

Share Report via Wi-Fi & print Report

Rather than taking the additional hassle, with this LAUNCH scanner, you would easily be able to share the diagnostics report to your clients or technicians via Wi-Fi ( email address ) . They would take a look at the full, clear, and accurate diagnostic report, and then understand what would need to be done. No more Googling unreliable fixes that would waste your energy.

Perfect Performs Vehicle Battery Analysis

-Are you always worry about your car battery life?
-Are you confused when to change the battery?

This LAUNCH x431 crp909 automotive scanner can detect the real-time voltage for your 12v vehicles to monitor the battery status and make sure a safety driving journey. Cover the voltage range from 9v to 18v.

Graph the real-time battery voltage will be easier and intuitive for real-time monitor to check if the battery is in good condition.

LAUNCH X431 CRP909C Support Languages

English, French, Spanish, Russian, Japanese, German, Italian, Portuguese, Korean.

You can switch language freely !

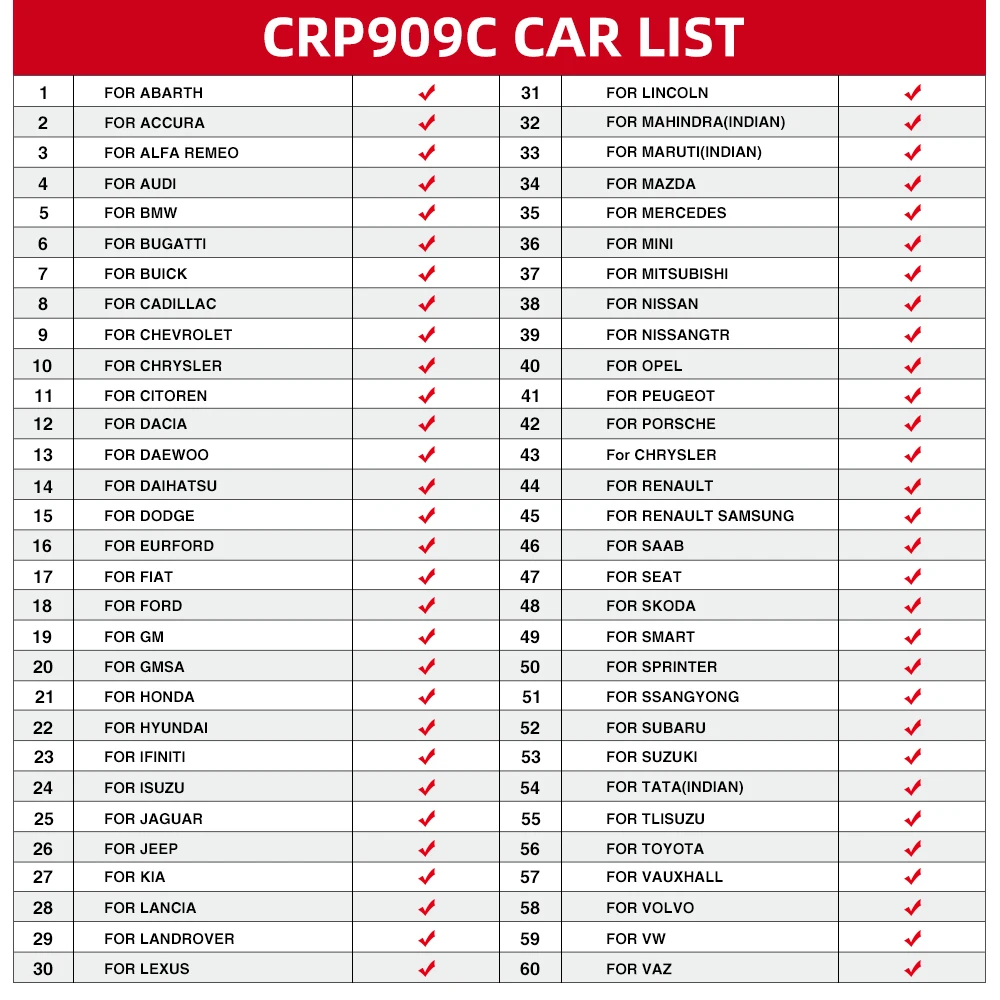

LAUNCH X431 CRP909 Car Supported List:

ull System Diagnose Scan:

For Abarth, For Accura, For Alfa Remeo, For Audi, For BMW, For Bugatti, For Buick, For Cadillac, For Chevrolet, For Chrysler, For Citoren, For Dacia, For Daewoo, For Daihatsu, For Dodge, For Eurford, For Fiat, For Ford, For GM, For Gmsa, For Honda, For Hyundai, For Ifiniti, For Isuzu, For Jaguar, For Jeep, For Kia, For Lancia, For Landrover, For Lexus, For Lincoln, For Mahindra(Indian), For Maruti(Indian), For Maserati, For Mazda, For Mercedes, For Mini, For Mitsubishi, For Nissan, For Nissangtr, For Opel, For Peugeot, For Porsche, For Renault, For Renault Samsung, For Saab, For Seat, For Skoda, For Smart, For Sprinter, For Ssangyong, For Subaru, For Suzuki, For Tata(Indian), For Tlisuzu, For Toyota, For Vauxhall, For Volvo, For VW, For VAZ

Note:

These special function NOT for all car models, if you are confused, you can send your car brand, model and release year to me, I will check for you.

One-Key I/M Checking

It support one-key I/M checking for all available emission systems.Help your car pass the emission test simpler.

LAUNCH X431 CRP909C Technical Support

LAUNCH Technical team offer free support for you, once you meet any problem, you can
1.Upload Could Feedback
2.Share Diagnose report
3.Contact with customer service directly

LAUNCH X431 CRP909C Technical Support

LAUNCH Technical team offer free support for you, once you meet any problem, you can
1.Upload Could Feedback
2.Share Diagnose report
3.Contact with customer service directly

Other Feature of LAUNCH X431 CRP909C

1.DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.

2.Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and the report can be saved offline.

3.Diagnose Report Share & Printed: you can share the diagnose report to your email ,then printed via computer.

4.Sensitive Touch & Keypad input are supported

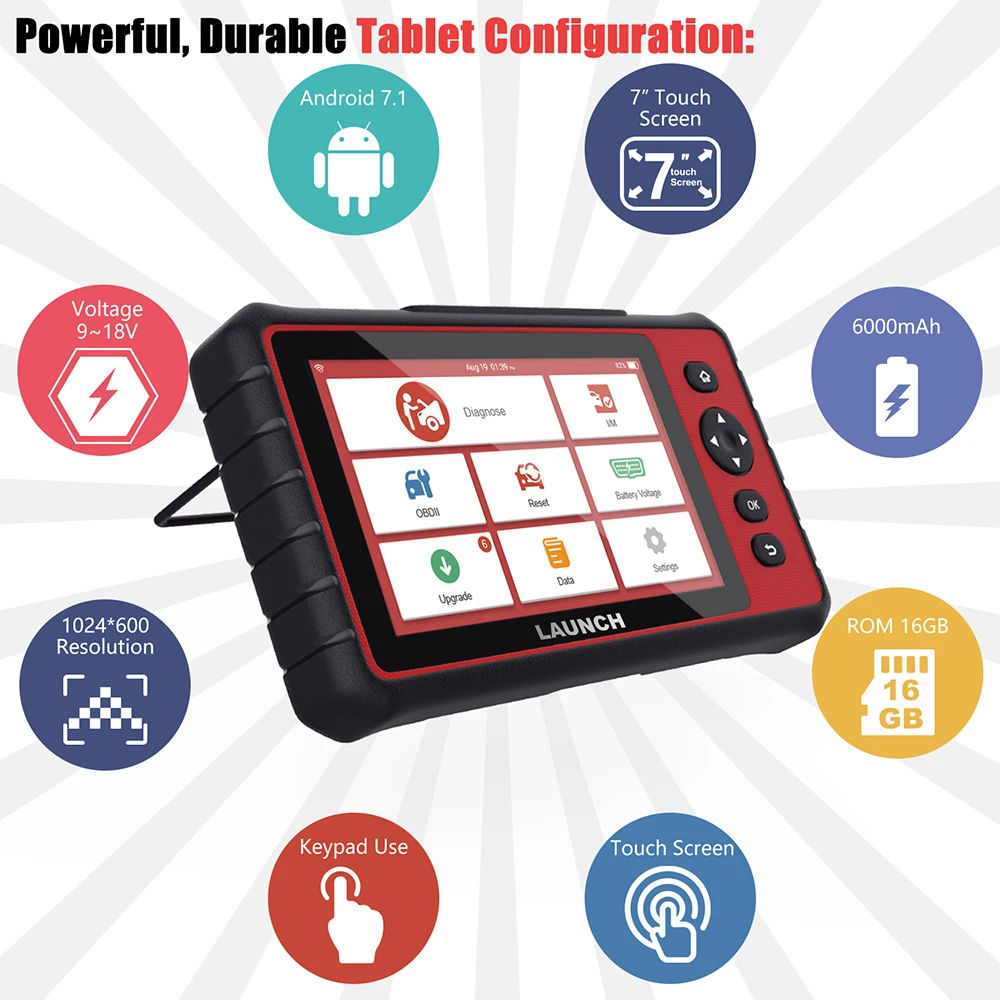

5.Android 7.1 systems. 7'' Touch Screen, 6000mAh battery

6.Global vehicle coverage.Including India and Russian car brands.

And many more...
