Description

Latest fanless mini pc Kaby Lake Intel Core i5 7260U smart computer Win 10 Pro HDMI VGA 2*DDR4 Msata+M.2 SSD HTPC barebone 4K HD Product highlight:

- Full Aluminum Alloy Silver color shell, Exquisite production craft on outside design.

- Fanless system without cooling fan for heat dissipation, work as long as 24 hours.

- Dual Gigabit RJ45 LAN, SD card reader, Optical ports and one embedded SIM card slot for 3G/4G Module.

- Low consumption TDP only 15W, save much energy and eco-friendly.

- Can stand up by free bracket or can be mounted back of monitor or wall.

- Can install M.2 SSD+MSATA SSD+2.5” SATA HDD together.

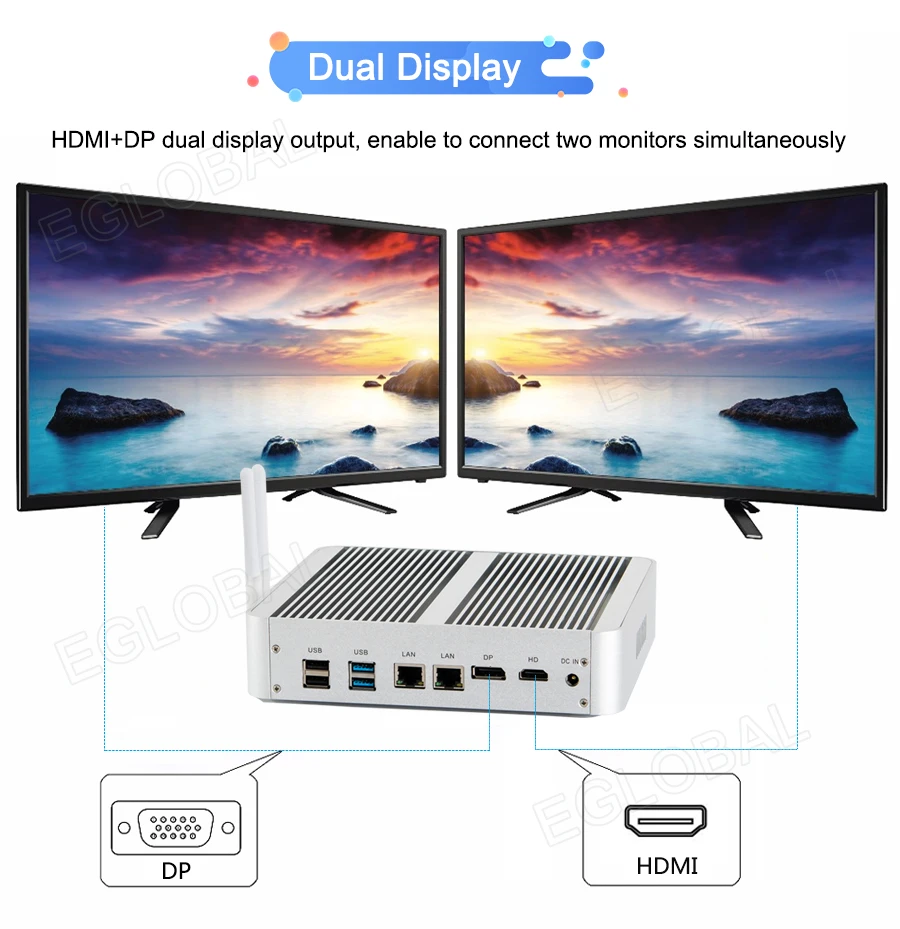

- Support DP + HDMI dual display output synchronously, 4K HD player.

Basic Information:
CPU	Onboard Intel Core i5 7260U 2.2GHz Max 3.4GHz Dual Core Four Threads
TDP	15W
Motherboard	170 x 170mm customized size
BOIS	AMI BIOS, ACPI supported Support Auto power on
Chipset	Intel Kaby Lake
Memory	2 x SO-DDR4 SDRAM Slot Support 4GB/8GB/16GB/32GB Dual Channel, DDR4-2133, LPDDR3-1866, DDR3L-1600
OS	Windows 7/Windows 8/Windows 10/Linux
PXE	YES
Audio	ALC892 chip, 6 channel sound, Intel Lynx Point-LP HDA
Network	Onboard RTL8111DL PCI-E Gigabit Ethernet NIC Onboard RTL8111DL 10/100Mbps/1000Mbps BaseT LAN
Video	Intel® Iris® Plus Graphics 640
Input/output port
Switch	1 x Power On/Off Switch
Power	1 x DC In
LED	2 x LED
USB	4 x USB2.0, 4 x USB3.0
SD Card	1 x SD Card Reader
Optical	1 x Optical
Display	1 x DP, 1 x HDMI
LAN	2 x RJ45 Giga LAN
Audio	1 x MIC, 1 x SPK
Others	1 x embedded SIM card slot onboard(optional)
Storage
MSATA	1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1 x M.2 slot for M.2 SSD, support 6Gb/s
SATA	1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module	1 x mini PCIE-half port for Wi-Fi module 1 x mini PCIE-full port for 3G/4G module
Antenna	2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC +12V~+19V, recommend 12V/5A
Operating Temperature	0/70 Centigrade(32F~140F)
Storage Temperature	-20/+80 Centigrade
Relative Humidity	0%~90% (non-condensing)
Product Dimension & Details
Size	20818045mm
Weight	Net 1.5kg, Gross 3.0kg
Shell	Silver color aluminum alloy(Black color V7 serial optional)
Cooling Mode	Fanless
Package Content
Standard	1xMini PC, 1x Power Adapter, 1xPower Cord, 1xScrews Bag, 1xStand Holder
Optional	Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xVESA mount
