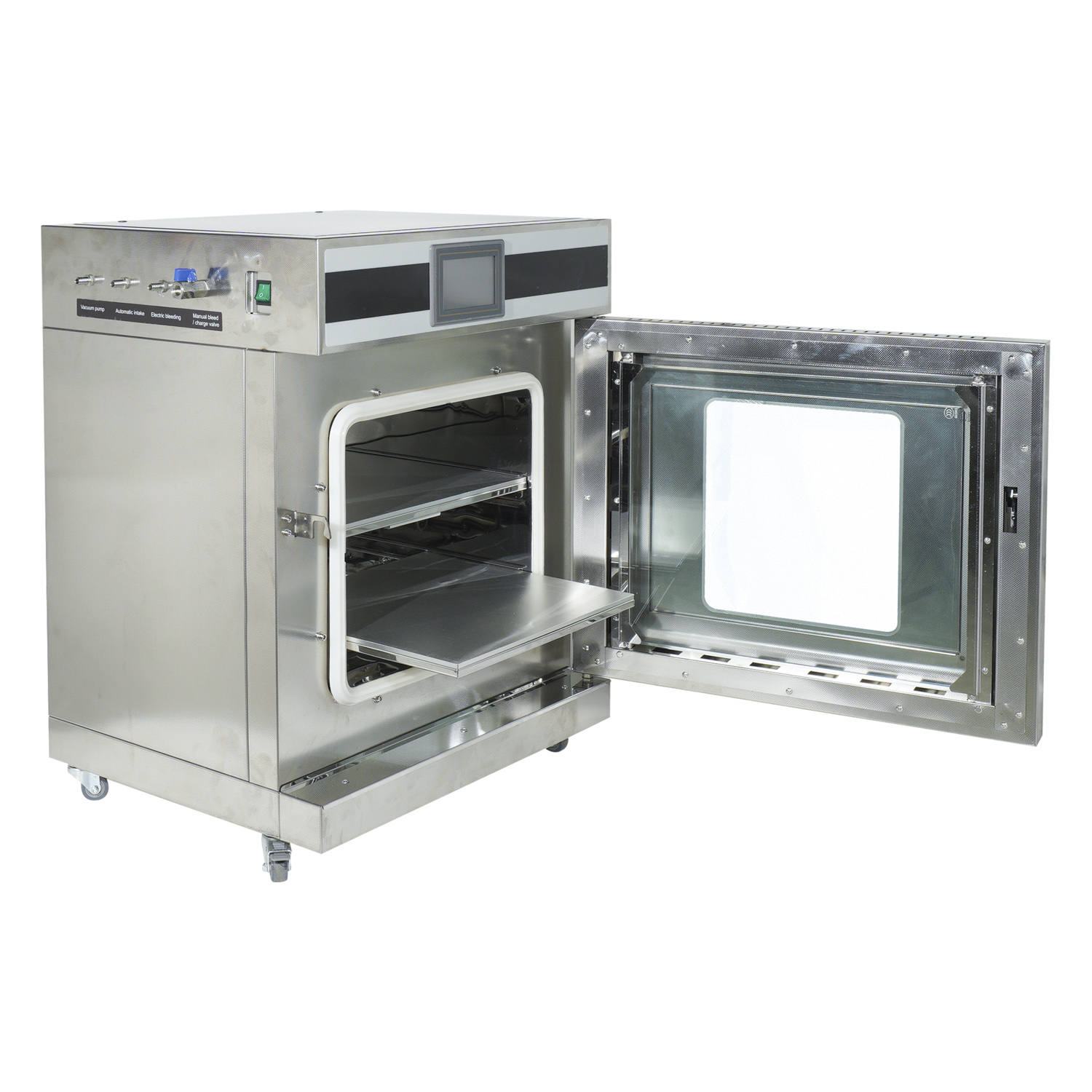

Laboratory DZ-3BL 91L New Type Heating Automatic Precision Vacuum Drying Oven
(No reviews yet)
Write a Review
Description
Model | DZ-2BL | DZ-3BL |
DZ-2BLT | DZ-3BLT | |
Heating Mode | Shelf direct heating | |
Temp. Range | RT+10-250℃ | |
Vacuum Degree Range | <133Pa | |
Temp. Resolution Ratio | 0.1℃ | |
Temp. Motion | ±1℃ | |
Heating-Up Time | ≤40 minutes | |
Inner Chamber | SUS304 mirror stainless steel | |
Outer Shell | SUS304 embossed stainless steel | |

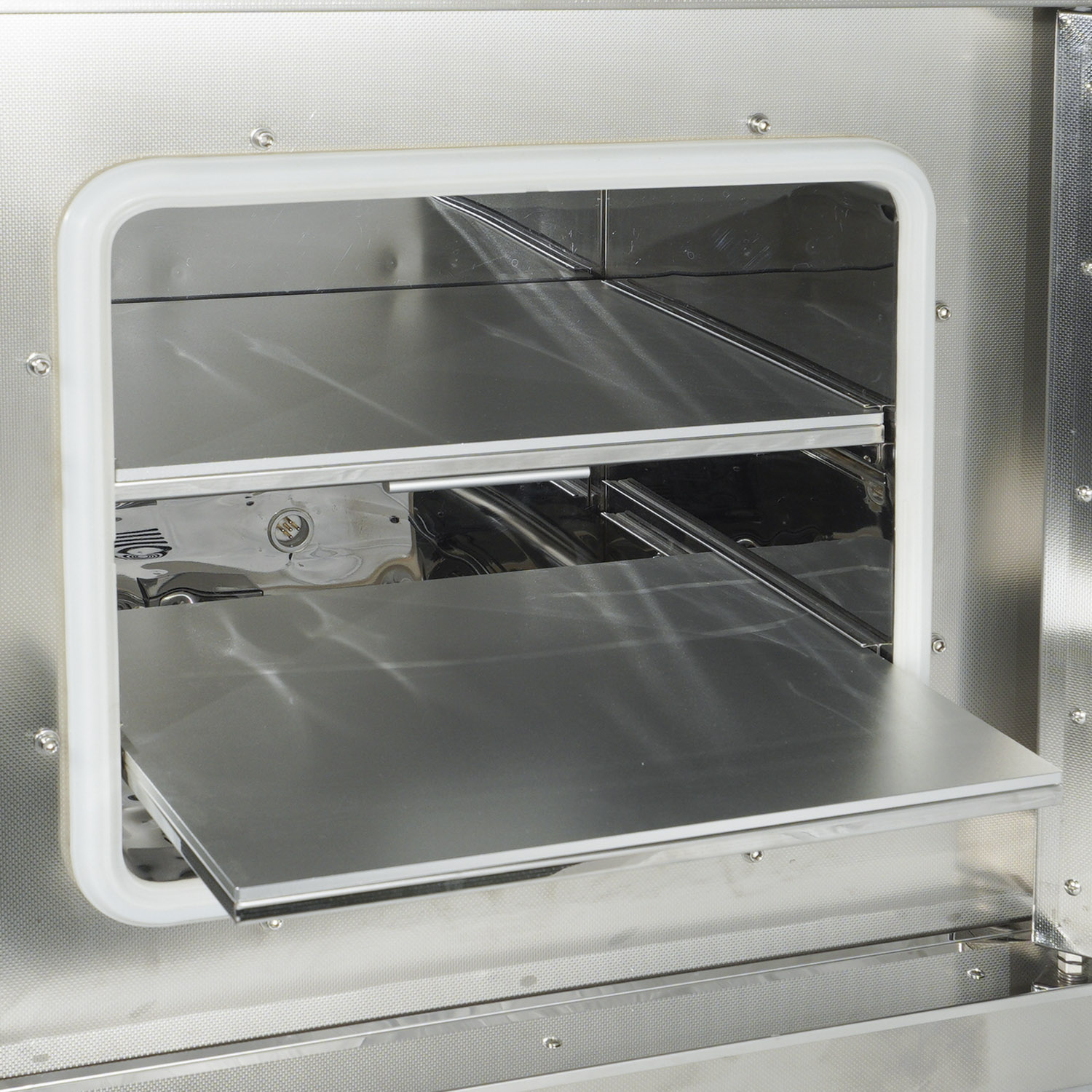

Shelf | 5083 Corrosion resistant aluminum plate | |
Insulation Layer | Aluminium silicate fibre | |
Heater | Mica electrothermal film | |
Observation Window | Bulletproof tempered glass | |
Vacuum Meter | Absolute pressure accuracy class 0.25 | |

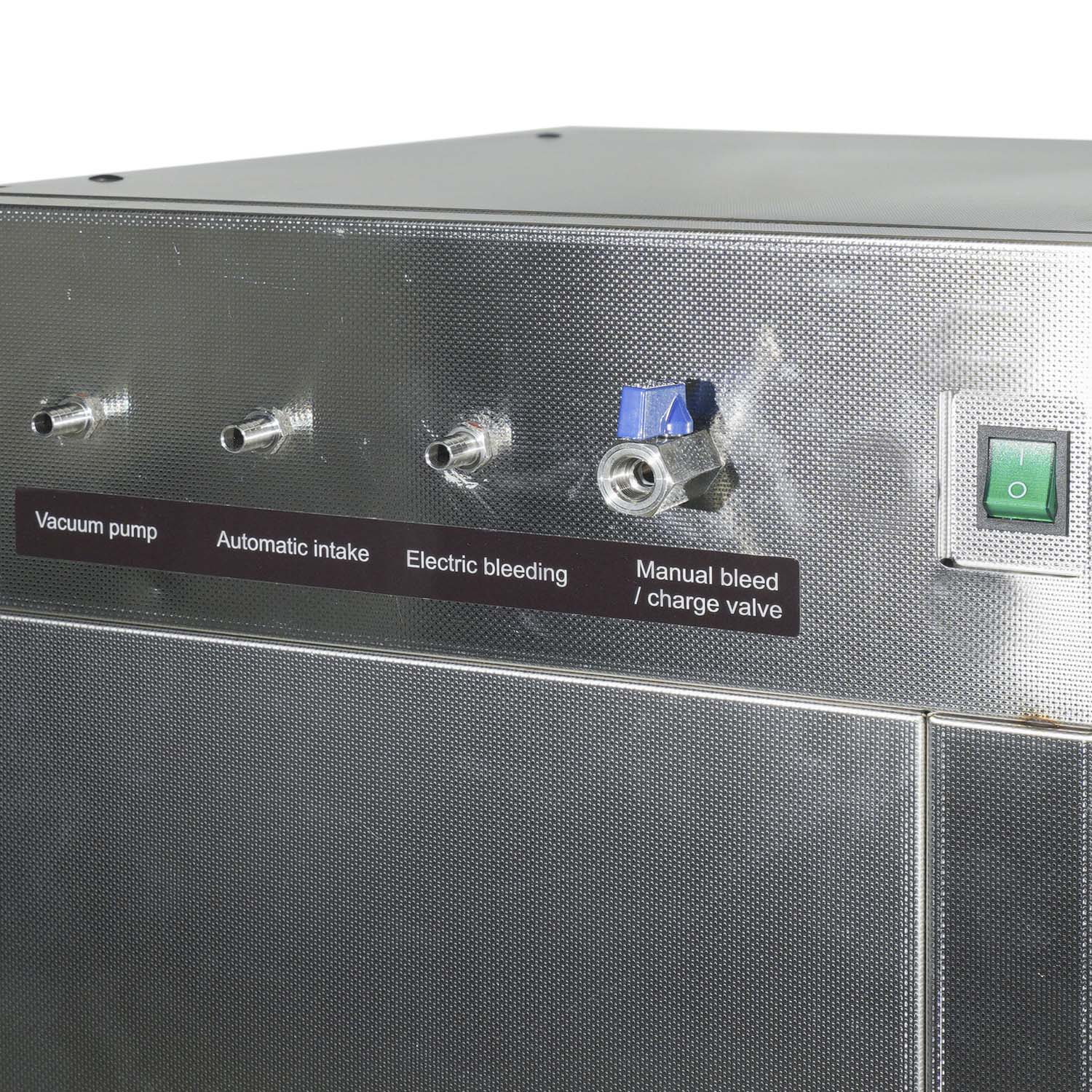

Exhaust device | Manualand electric double exhaust device | |
Air intake port | Standard inflation port | |
BLT Vacuum Pump System (BL: without Vacuum Pump) | Double stage rotary vane vacuum pump 2L/S | Double stage rotary vane vacuum pump 4L/S |
Vacuum pump air inlet drying filter | ||
Vacuum pump exhaust oil mist filter | ||
Nozzle Diameter | 10mm | |
Power | BL: 1.2kW BLT: 1.6kW | BL: 1.6kW BLT: 2.0kW |
Temp. Control Mode | 5.0-inch LCD color touch screen multi-stage PID program temperature control, single shelf independent temperature control | |
Temp. Setting Mode | Touch Screen Type | |
Timer | 0-9999 minutes / 0-9999 hours (can adjust) | |
Operation Function | Fixed value operation, regular operation, automatic stop | |
Fixed Value Mode | Control temperature and vacuum at the same time | |
Program Mode | Control temperature and control vacuum at the same time ,30 programmable operation | |
Additional Function | Vacuum pump oil return preventer | |
Real-time temperature curve recording, with U disk data storage and export function | ||
Sensor deviation correction, temperature overshoot self-setting, internal parameter locking, power off parameter memory | ||
Temp. Sensor | PT100 | |
Safety Device | Overtemperature acoustooptic alarm, sensor fault alarm, vacuum overvalue alarm | |
Inner Chamber(W*D*Hmm) | 415*370*340 | 450*450*450 |
Exterior Size(W*D*Hmm) | 635*565*796 (BLT:635*565*1296) | 670*645*906 (BLT: 670*645*1406) |
Packing Size(W*D*Hmm) | 804*705*957 (BLT: 804*705*1457) | 840*785*1062 (BLT: 840*785*1562) |
Capacity | 52L | 91L |
Number of Shelf | 2 | |
Load per Rack | 15kg | |
Shelf Space | 140mm | 185mm |
Power Supply(50/60HZ) Current Rating | AC220V/6.3A | AC220V/9.1A |
NW/GW(kg) | BL：67/92 BLT：87/112 | BL：82/105 BLT：102/125 |
Shelf | 2 | |
Shelf Frame | 4 | |
Optional Accessories | Shelf（ Independent temperature control ), RS485 Transfer to USB Communication Interface, Printer, Remote control | |
