Description

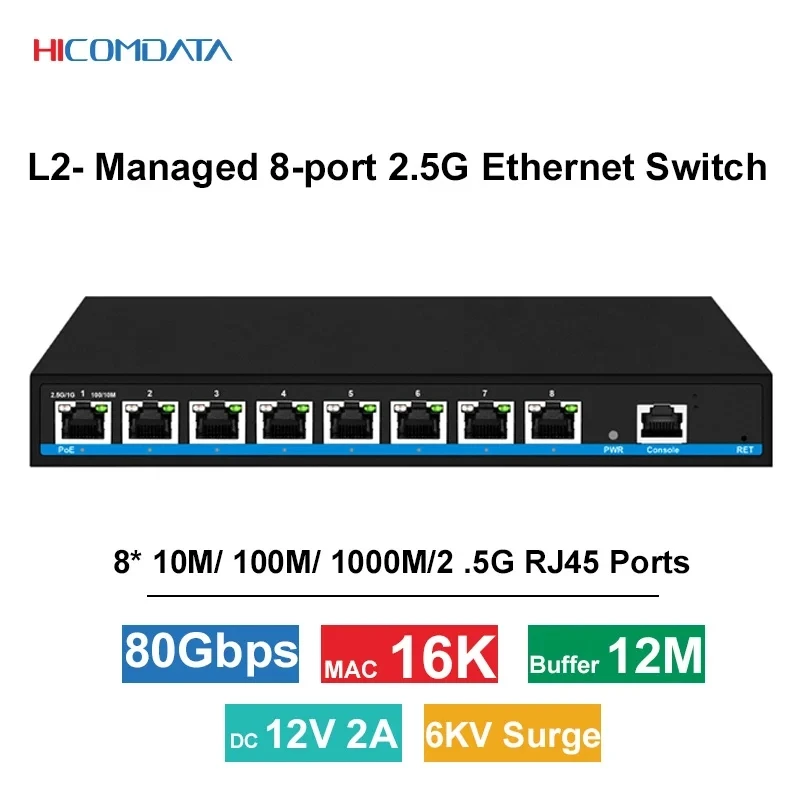

Mode:lHK-ES3205-8TW
Fixed Port:8* 10M/ 100M/ 1G/2 .5G RJ45
Reset Key:1
Bandwidth:80Gbps
Packet Forwarding:29.76Mpps
MAC:16K
Buffer:12M
TransmissionDistance:
10BASE-T :Cat3,4, 5 UTP(≤250 meter)
100BASE-TX :Cat5 or later UTP(150 meter)
1000BASE-TX :Cat6 or later UTP(150 meter)
2500BASE-TX :Cat6 or later UTP(100 meter)
SFP:100M/1G/10G single - mode multi- mode optical module,
the maximum distance is ≤120km (depending on the optical module)
LED Indicator:
PWR:Power LED
1 -8:10/100/1000,2500M Network connection indicator
PowerExternal switch power supply: DC: 12V 2A
Operating Temperature /Humidity:- 10~+65°C;5%~90% RH Non coagulation
Storage Temperature /Humidity:-40~+75°C;5%~95% RH Non coagulation
Product /Packing size:(L*W* H)220mm* 112mm* 30mm
265mm*220mm*68mm
N.W/G.W(kg):0.8kg/1.2kg
Installation:Desktop type
Lightning Protection level:6KV 8/20us;IP30
Certificate:3C;CE- EMC EN55032;CE- LVD EN62368;
FCC Part 15 Class B;RoHS;
