KuWFi 5.8G Outdoor Wifi Router 900Mbps Wireless Bridge 3-5KM Wifi Coverage Extender Long Range Remote Point to Point For Cameras
(No reviews yet)
Write a Review
Description
KuWFi 5.8G Outdoor Wifi Router 900Mbps Wireless Bridge 3-5KM Wifi Coverage Extender Long Range Remote Point to Point For Cameras
Installation Notes
1. Point A has a broadband of 300M, and point B is a place with no network at a distance of 1KM. Use N620 to transmit at point A, connect the gigabit port to the gigabit switch or router port at point A, point B is receiving, both network ports are lan wireless negotiation 600Mbps, the computer is connected to the left lan port, wired negotiation 1000Mbps. The final network speed at point B may be 260Mbps. If the N620 does not have a Gigabit Ethernet port, then the computer connects to the N620 to receive
2. If your wired negotiation is only 100Mbps, so no matter how many megabits, the speed at point B will not exceed 100M.
Product Detail
KuWFi Outdoor 5.8G Router 900Mbps Wireless Bridge Wifi Repeater 3-5KM Long Range WiFi Transmitter 14DBi High Gain Antenna with Gigabit RJ45 port IP65 waterproof
1.Outdoor Router is an 900Mbps Outdoor Wireless WiFi Bridge support 3-5KM Long Range WiFi Extender with LED display to configure the PT/PTMP connection
2.AP + Bridge operation mode, more stable Support AP and bridge operation mode, simple to built the PTP/PTMP connections
3.Meet with multiple Wi-Fi transmission scheme demands.Outdoor Wireless CPE Bridge Waterproof, dust proof, lighting protection.
4.it adaptive to various environment, the working temperature can be normal at -40℃ to 70℃. Suit for any country.
5.It has 2 network ports, one is for wireless transmission, and the other is for wired transmission, which is 100Mbps
6. chipset MTK7620DA+7612E , 64M RAM Inside 8MB Flash

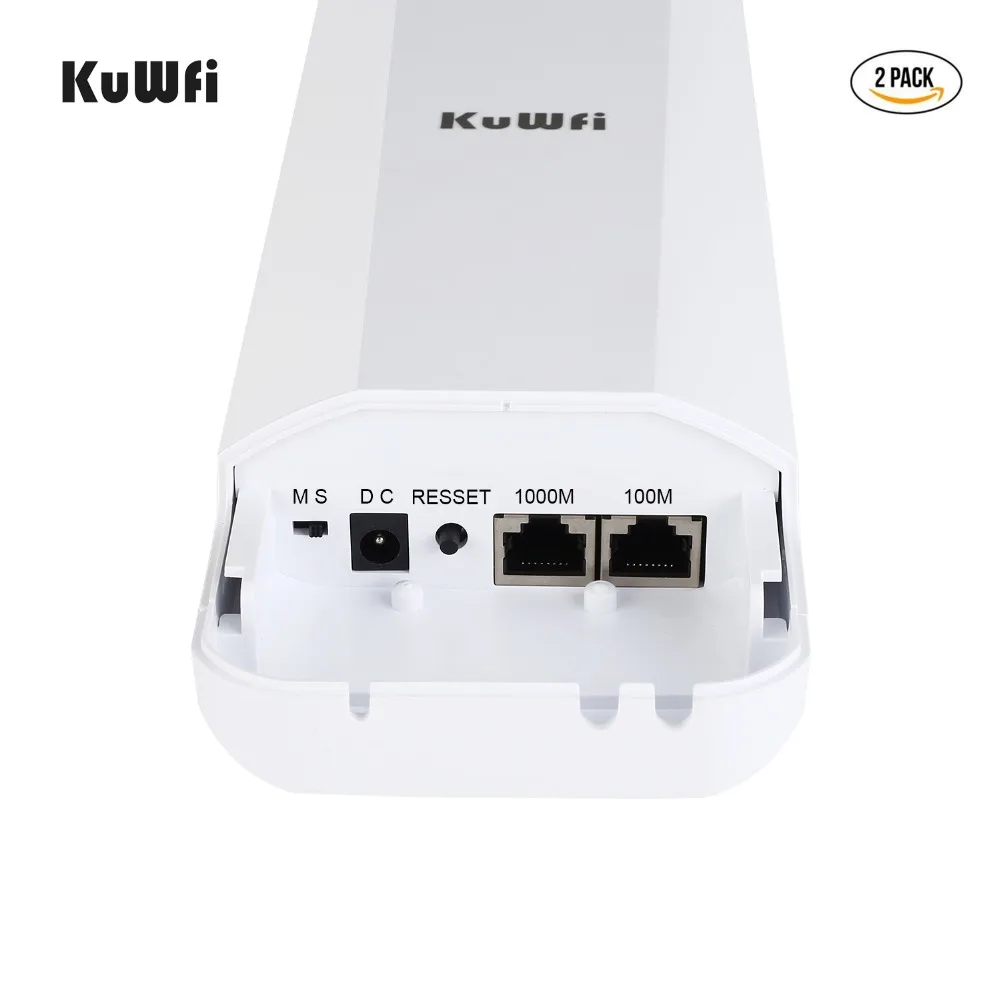

7. 1*10/1000Mbps WAN Port, 1*10/100Mbps LAN Port
8. antenna Inbuilt 14dBi Dual Polarization HG Directional Panel Antenna

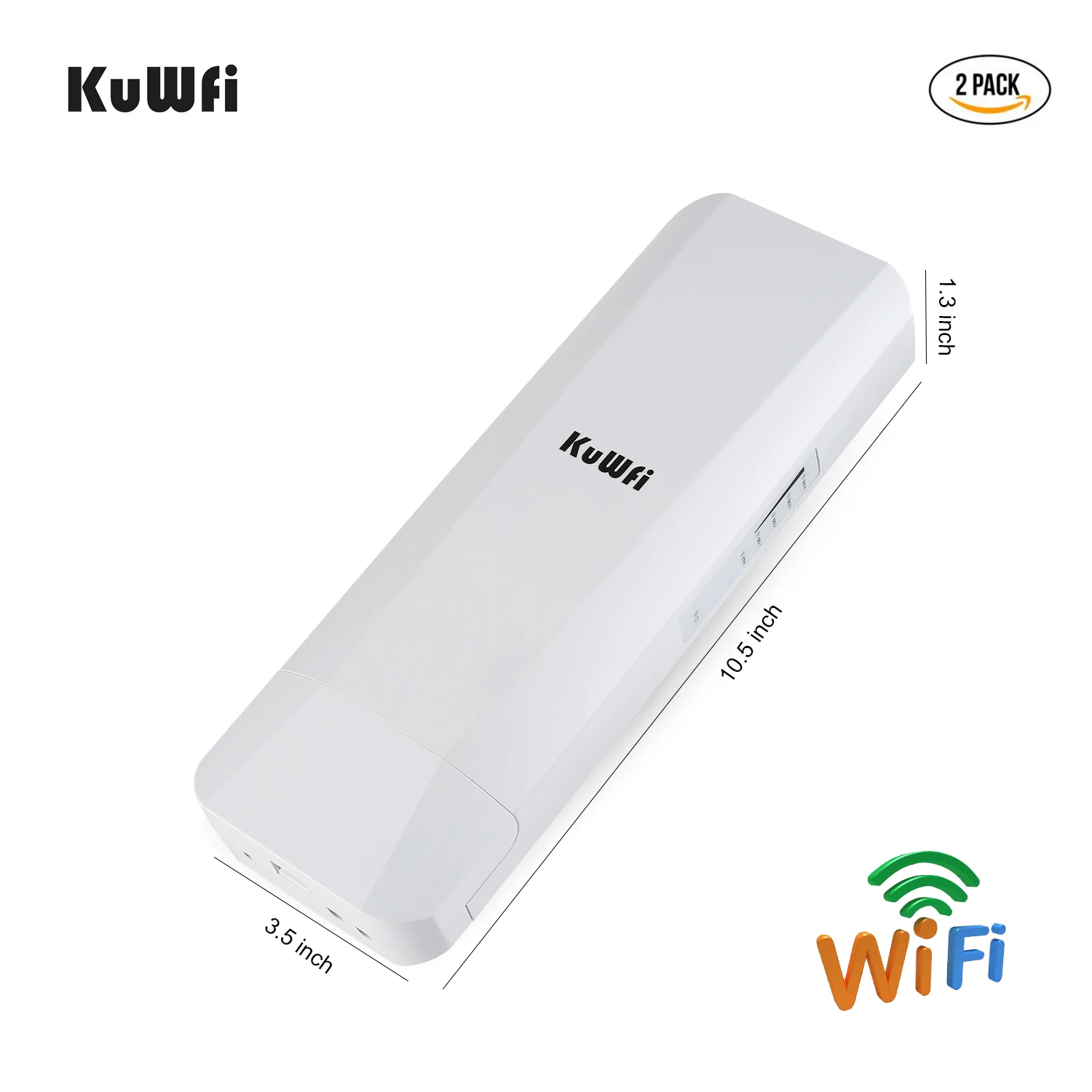

9.Size:260*90*37mm
10. power :DC 12V 1A / POE 24V 1A
NOTE:

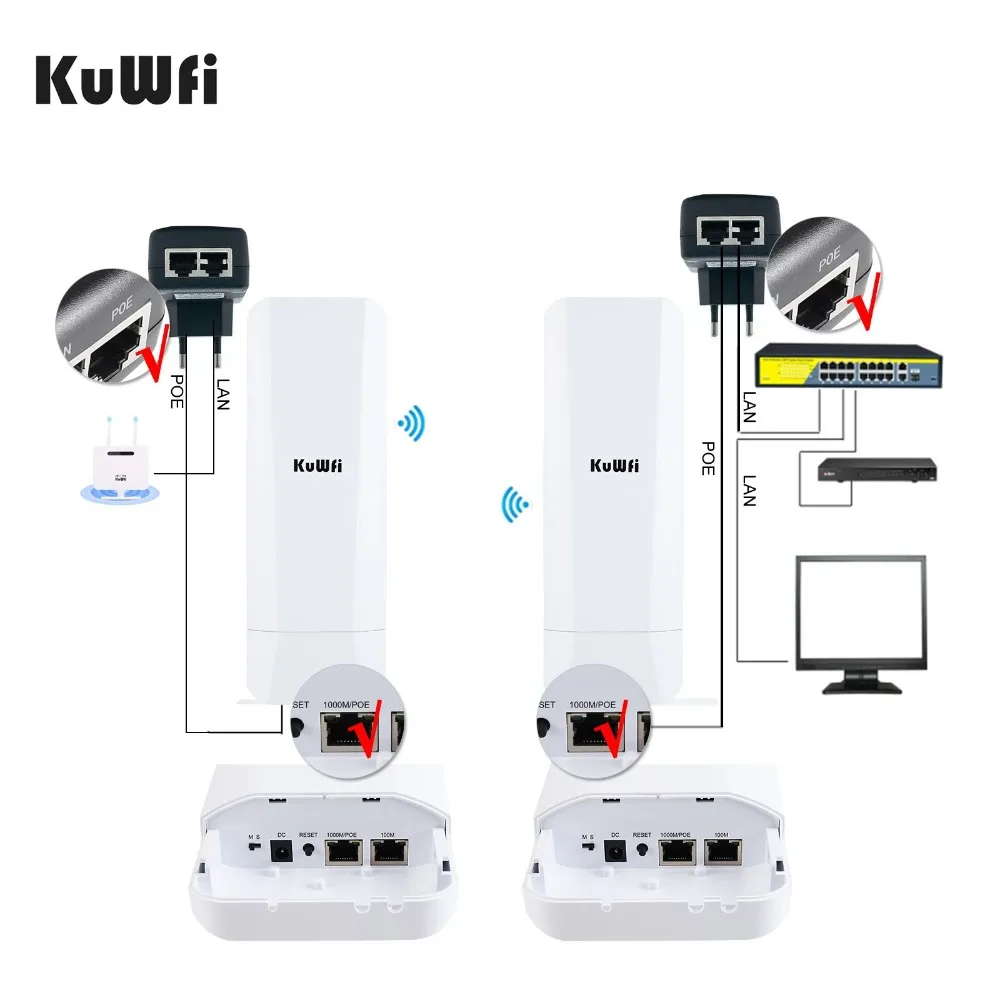

1.Master CPE :The CPE 1000M Lan port conenct to POE adapter POE port,The POE Lan Port conenct to PC network cable , and CPE 100M connect to other router have internet service.
2.Slave CPE :The CPE 1000M Lan port conenct to POE adapter POE port,The POE Lan Port conenct to PC
3.please donnot use 100M to conenct POE , it will be damage.

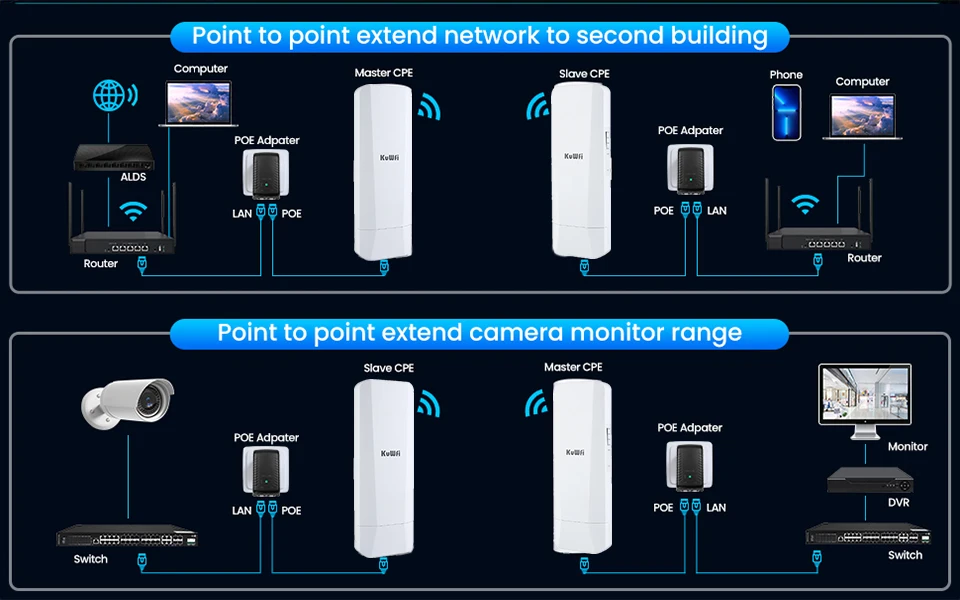

4.When Connecting The Product，Please Refer To Tthe Product Connection Diagram

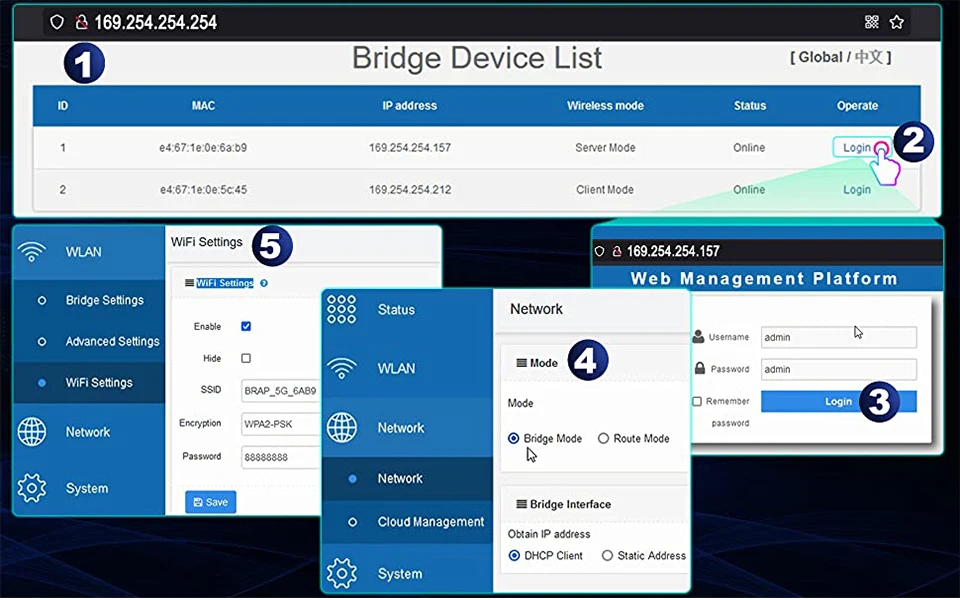

How to log in the management page?
1.Change the Fixed IP on your PC as:169.254.254.xx(xx=1-254)
2.Enter in the browser URL bar: 169.254.254.254.
3.On the Web management page, enter user name: admin, password is admin, click login, then enter the WebUI page
4.On the management page,You will see 2 options, Server Mode/Client Mode, Server Mode =Master AP ,Client Mode=Slave AP
5.On the network setting page, you can set the mode, bridge mode/ route mode. And set the IP address(DHCP/Static)
6.On the WiFi setting page, you can choose hide the WiFi or no, and set the SSID name and password(default 88888888)
