Details

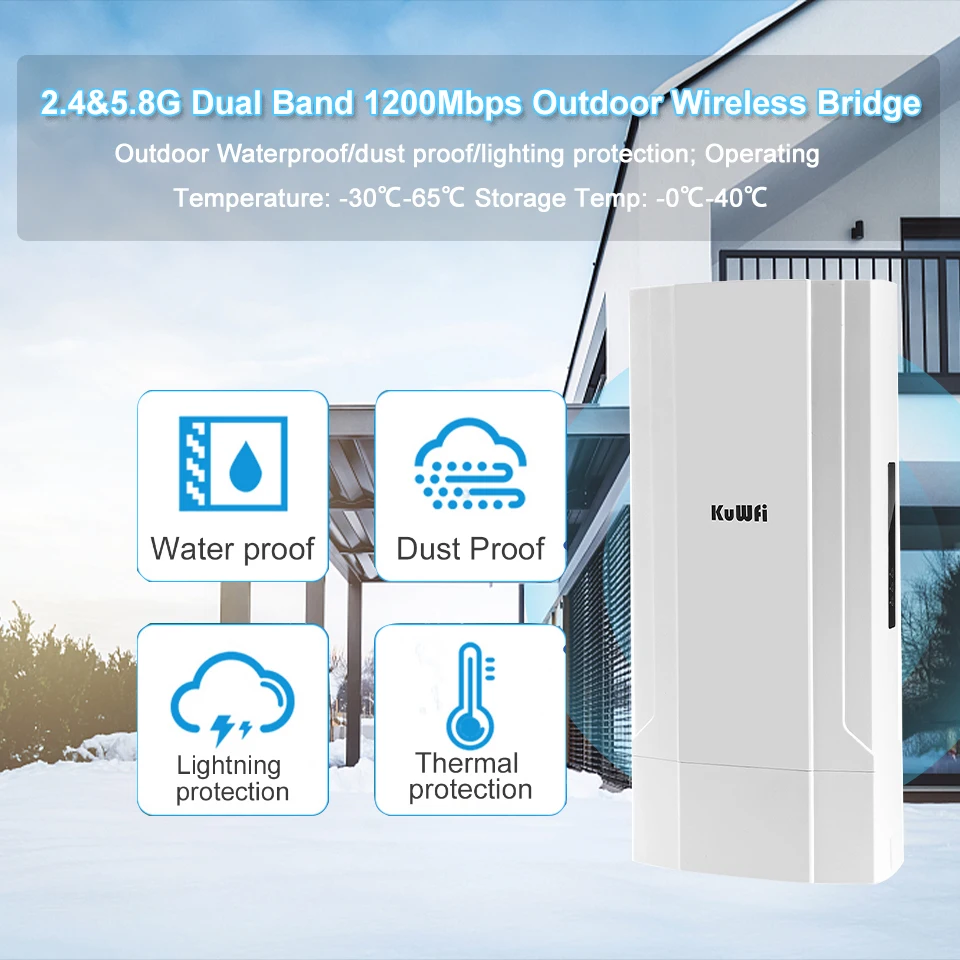

Adopt ABS waterproof, dustproof and sun protection shell to avoid damage caused by dust, rain. At the same time, it can adapt to various environments, and the working temperature can be from -40°C to 55°C.

Two-wire power amplifier designed on PCB board, power up to 500mW high power, built-in dual-band panel WiFi antenna, PTP/PTMP WiFi range over 5KM

The outdoor AP CPE2200 integrates Active Power over Ethernet (PoE) for ease of installation and reduced cost. Please note that the default is 48V IEEE 802.3at PoE, 24V Passive PoE can be achieved by replacing the PCB board

Support wireless AP, gateway, WISP, WiFi repeater operation mode, to meet different operation requirements

Cooperate with access control system in AP operation mode, easily access advanced network settings through PC, such as AP status monitoring, change IP address, ESSID, channel, password, upgrade firmware, backup and restore, and then cooperate with cloud management system for easy centralized and remote management , advertising and multi-factor authentication make this AP more professional in WiFi projects

Features

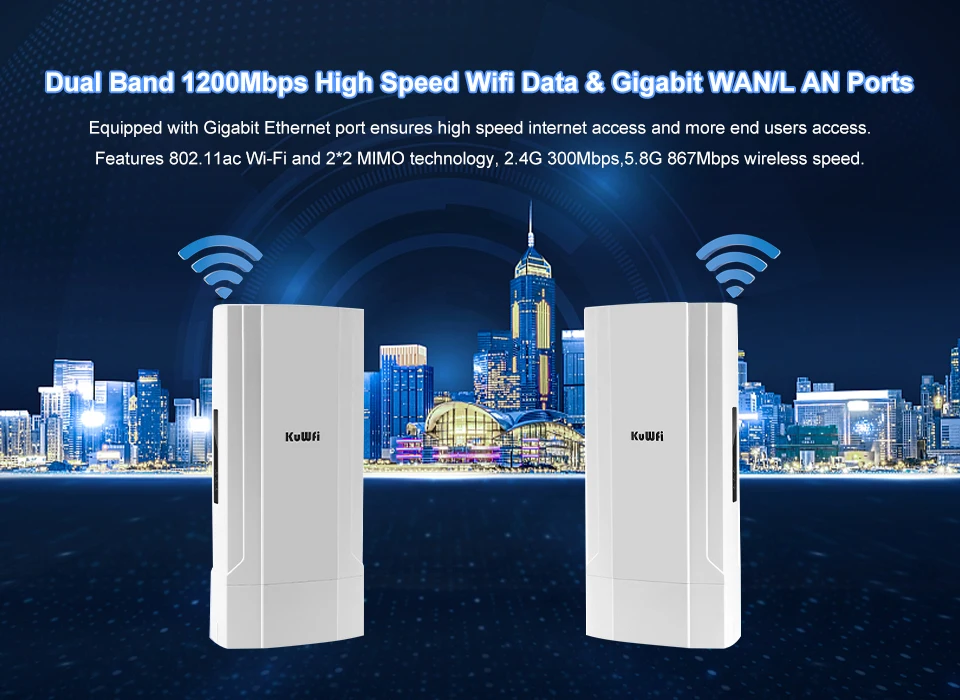

- Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate

- 500mW high power, 16M Flash, 128M DDR2 RAM

- Build in Panel antenna, 12dBi in 2.4GHz, 14dBi in 5.8GHz

- Support 48V active PoE, work with IEEE 802.3at standard PoE switch or 48V PoE adapter

- Power consumption: 48V PoE<30W

- Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz), support tag VLAN based on SSID to protect the whole data safety

- Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP operation mode

- With function of firewall, IP filter, URL filter and MAC filter

- Comply with IEEE 802.3az standard,RF power adjustment and frequency analyzer for better application in different environment

- Support DDNS, VPN pass through, Port forwarding and DMZ host

- Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security

Interface

1 * 10/100/1000Mbps RJ45 WAN Port, WAN port support IEEE 802.3at standard PoE

1 * 10/100/1000Mbps RJ45 LAN Port

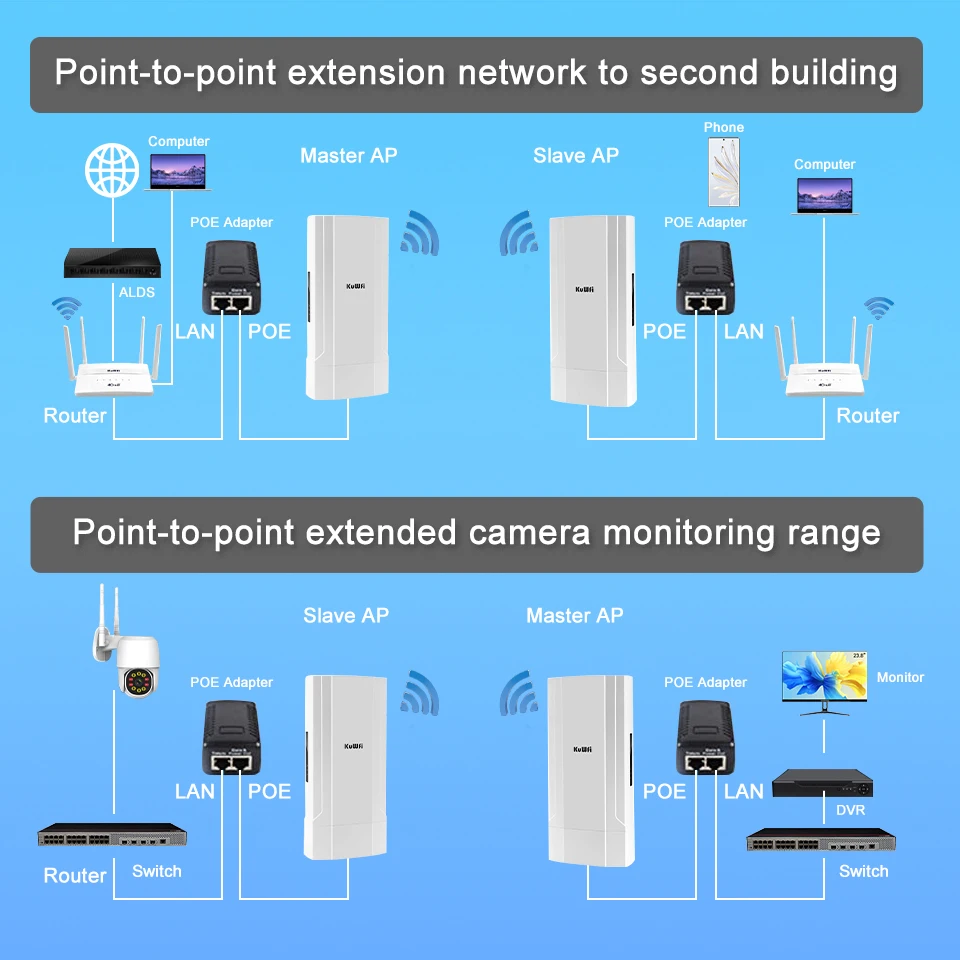

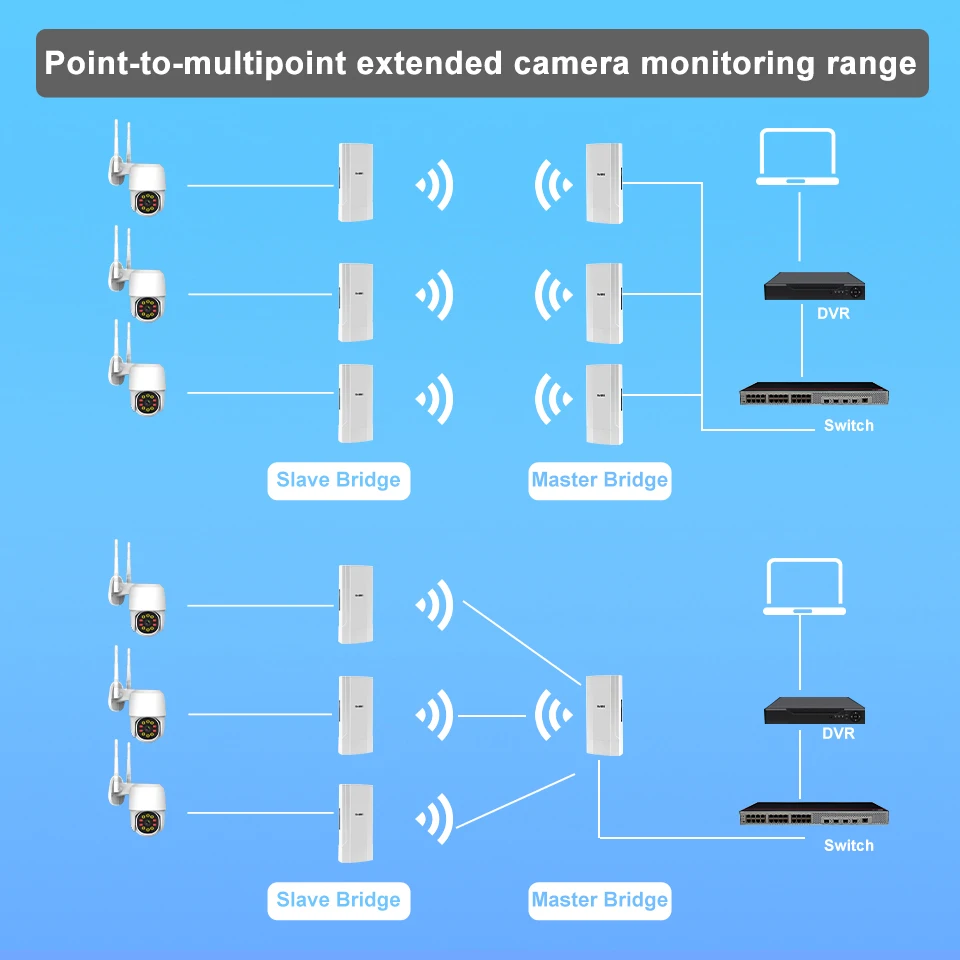

1 * switch button, press it to do PTE/PTMP connection

1 * Reset button, press 15 seconds to revert to default setting

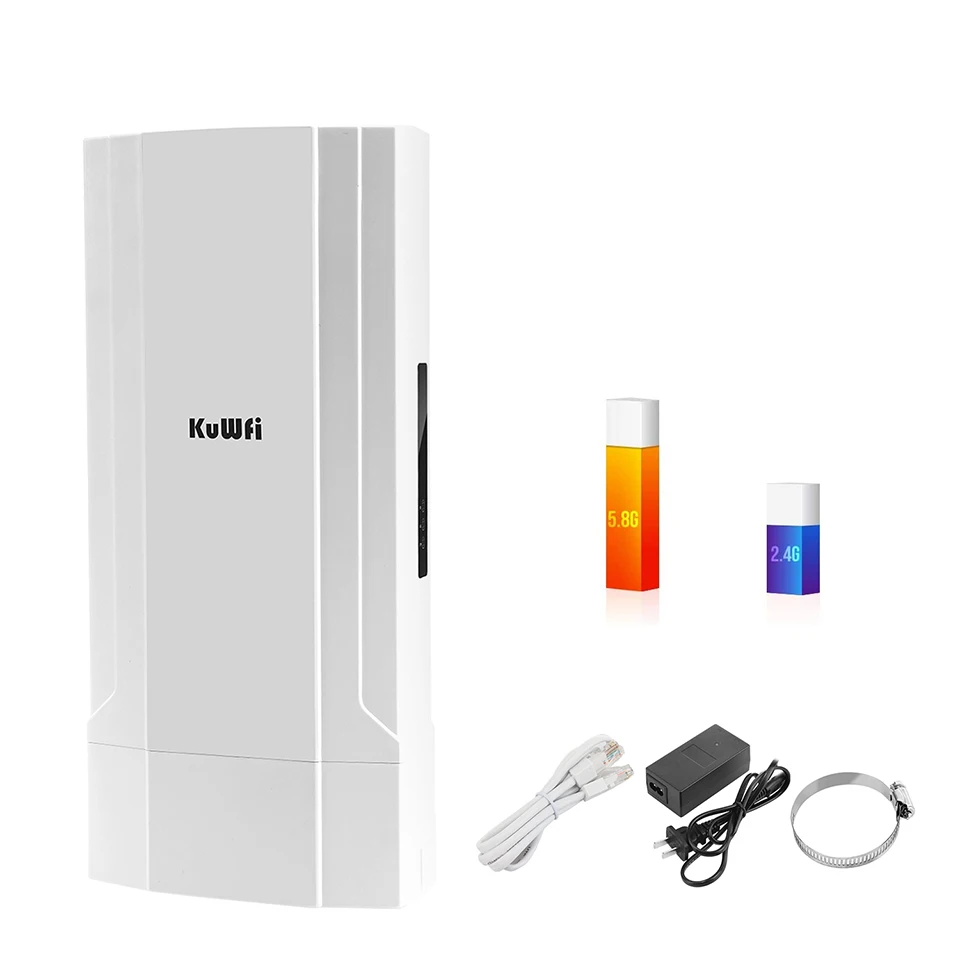

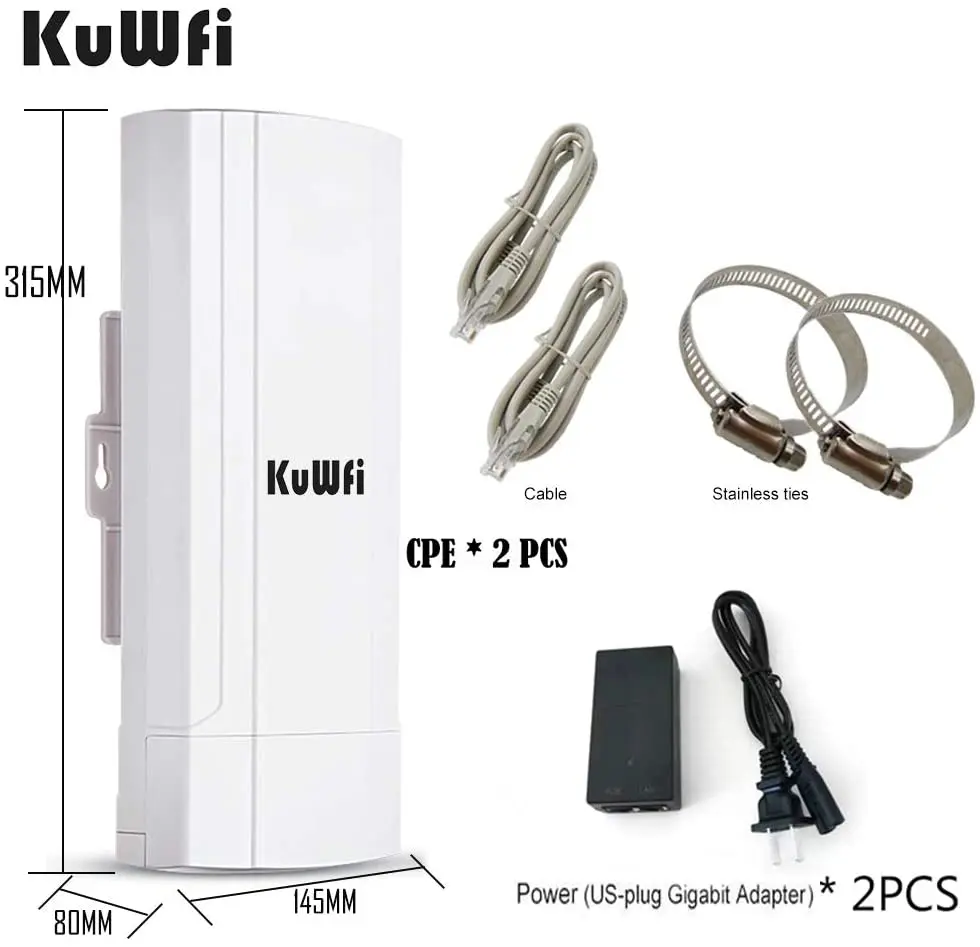

Package List

1 * KuWFi CPE2200 PTP Bridge (2-Pack)

2 * Stainless ties

2 * Cable

2 * 48V PoE Power

Shipping time and tracking

We use safe trackable shipping methods to ship parcels ,below is estimated delivery time for different countries :
Asian countries 7-10 days .
European countries 7-15 days .
United States 10-15 days .
American countries 15-25 days .
Brazil 15-45 days .

Warranty time and service

Customer service working hours:Beijing 9:30-18:30

Ship orders within 48 hours (except weekends)

The warranty period of the router is 1 year.

FAQ:

Q:Outdoor range do not reach 5KM
A:wifi speed is affected by many factors, such as local network, buildings, mountains, trees, railways, weather, etc.

Q:Pairing failed
A:Please Pick up the slave AP ,press "reset" button to adjust the number on the led screen(The number of the slave AP remains the same as the number of the master AP, that is, the pairing is successful）

Q:Product does not turn on
A：Please change the other POE Power and RJ45 Lan cable to try

Q:How to log in WEB UI
A:Master AP :Please fixed ip :192.168.255.20 ,Open the browser to seach 192.168.255.101 to log in web ui

A:Slave AP :Please fixed ip :192.168.255.20 ,Open the browser to seach 192.168.255.201 to log in web ui
