Wireless-N Repeater WIFI Router 300mbps 802.11N/B/G Signal Antennas Boosters Extend Amplifier Repeater Range Expander

Specifications:

Wireless Standard IEEE802.11b, IEEE 802.11g, IEEE 802.11n

Modulation 802.11b: DSSS / BPSK / QPSK / CCK

802.11g: OFDM / DSSS / BPSK / QPSK / CCK

802.11n: OFDM / DSSS / BPSK / QPSK / CCK

Speed 802.11b: 11Mbps / 802.11g: 54Mbps / 802.11n: 300Mbps

Channel 11: (Ch.1-11) - USA / 13: (Ch.1-13) - Europe /

14: (Ch.1-14) - Japan

Frequency band :

2.412~2.462GHz -USA

2.412~2.472GHz -Europe ETSI

2.412~2.484GHz -Japan

Power 802.11b:

17dBm ± 1.5 dBm

802.11g: 14dBm ± 1.5 dBm

802.11n: 14dBm ± 1.5 dBm

Sensitivity: 802.11b: -83dBm /802.11g: -70dBm / 802.11n: -68dBm

Antenna :2 x 3dBi Integrated Antennas

Distance Outdoor: 300m, Indoor :100m

Security 64/128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x, WPA-PSK, WPA2-PSK, MAC, WDS

Mode AP Mode / Repeater Mode

Wireless Security Wireless MAC address Screening

Wireless security function switch

64/128/152-bit WEP

WPA-PSK/WPA2-PSK, WPA/WPA2

Function IP bandwidth control (Router mode support)

DNS Relay (Router mode support)

VPN Pass-through (Router mode support)

Static Router (Router mode support)

DHCP Server (Router mode support)

DHCP settings Server list (Router mode support)

Static IP address allocation (Router mode support)

Ports :1 x RJ45 Jack(Button Reset WPS)

LED: 1 * LAN, 1 * WLAN, 1 * Power, 1 * WPS

Flash: 16Mbps

SDRAM: 128Mbps

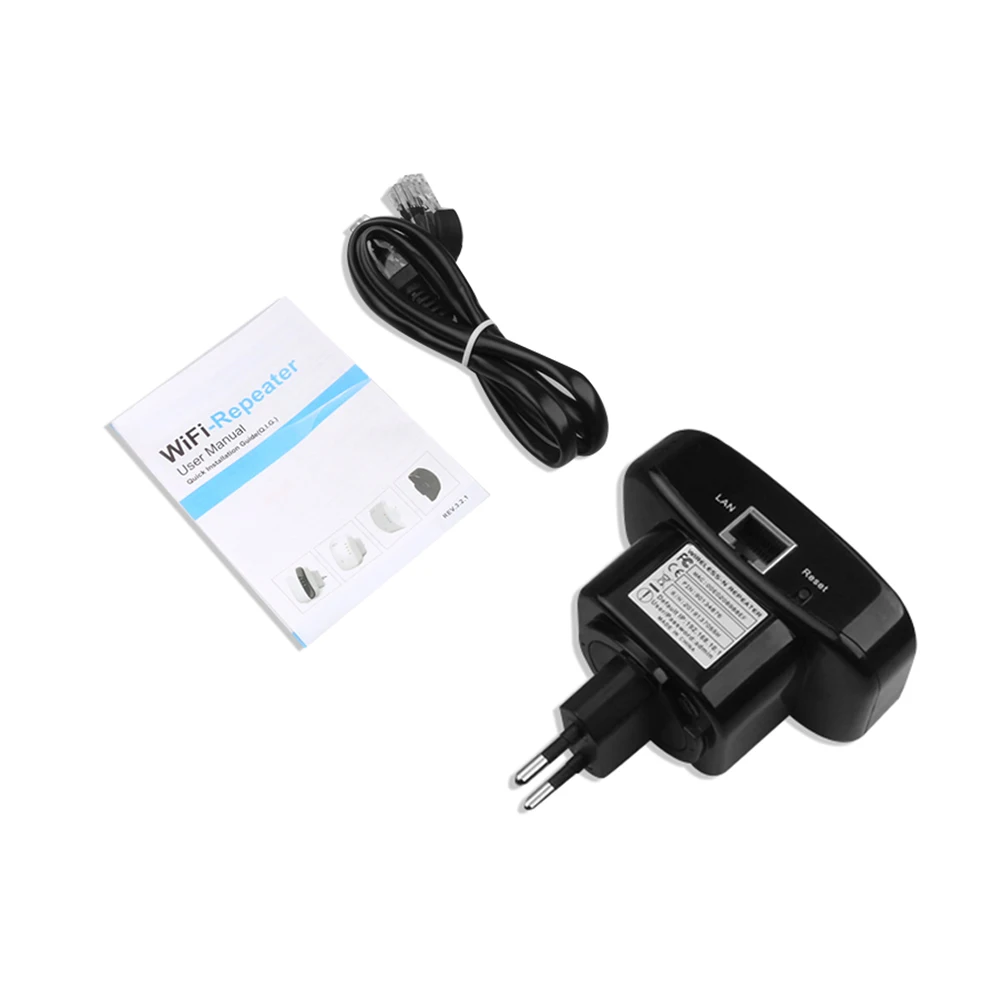

Package Contents:

1 * Wireless-N repeater

1 * RJ-45 networking cable

1 * Quick installation guide
