Details:

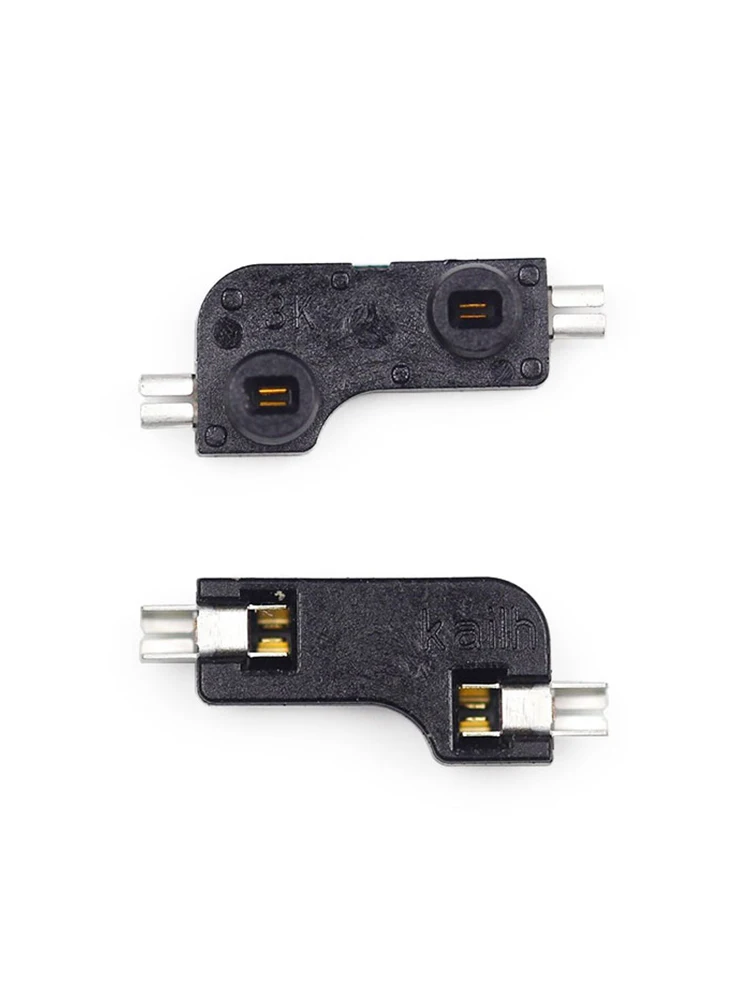

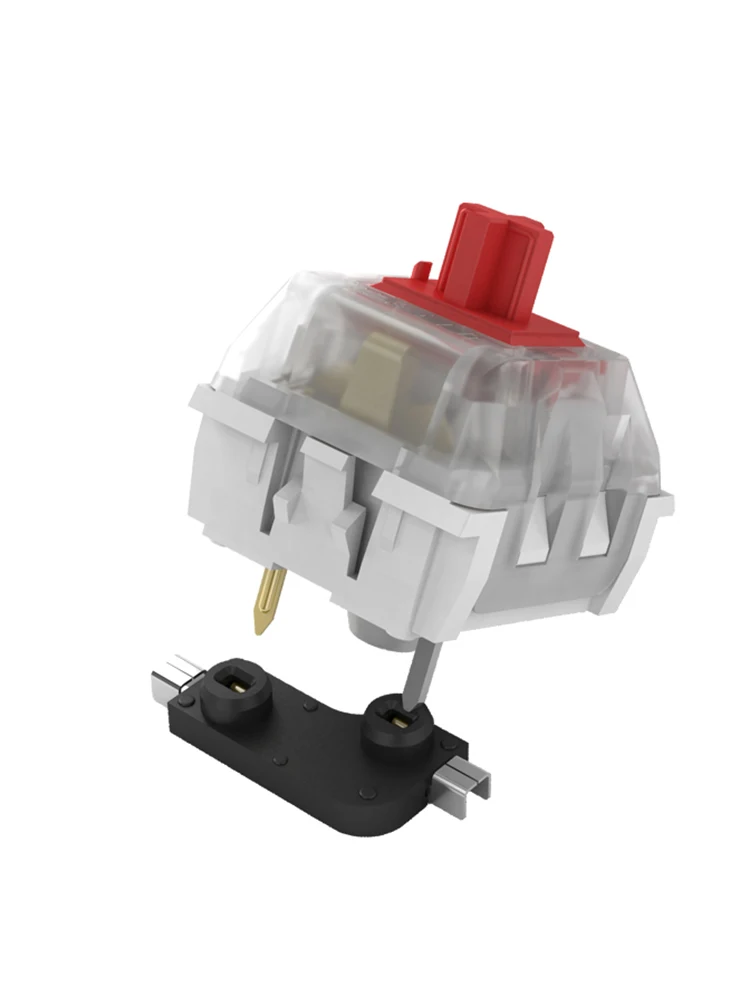

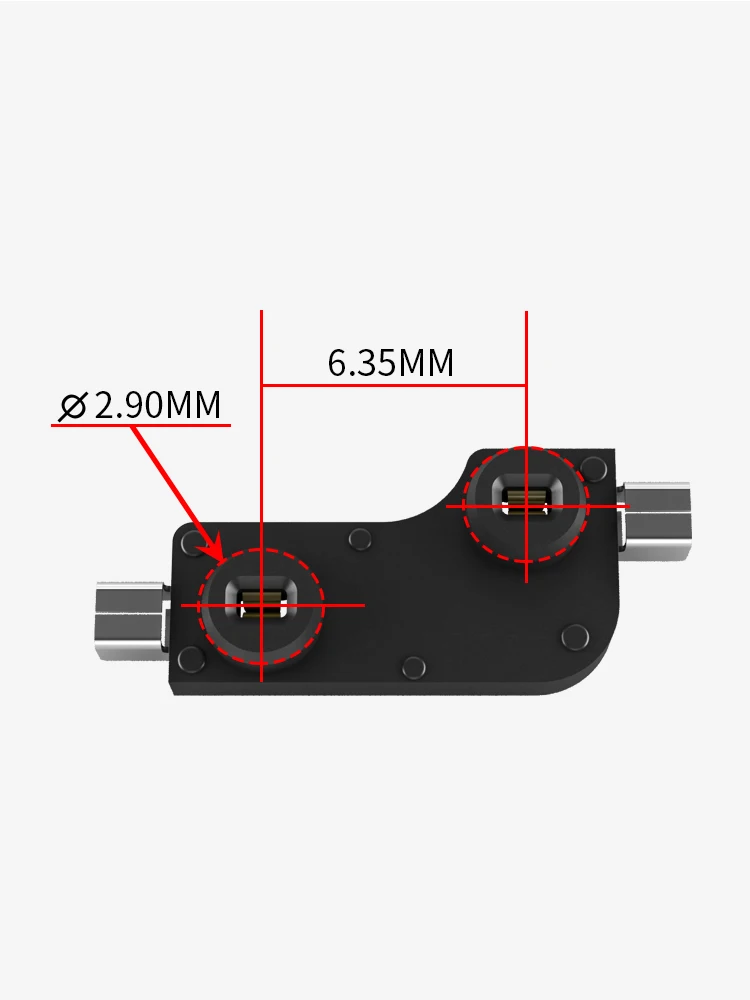

1511 Keyboard PCB Socket for MX Switch
Rating voltage: 12V AC/DC (maximum) and 2V AC (minimum)
Rating current: 10mA AC/DC (maximum) and 10μA DC (minimum)
Contact resistance: 200mΩ (maximum)
Insulation resistance: 100mΩ (minimum) (100V DC)
Withstand Voltage: AC100V(50-60Hz)
Motion Force: 3.0kgf max
Operating Life: 100 Cycles (can replace switches 100 times)
Product Application:
Mainly applied on computer keyboards,cash registers equipment and Man-Machine interface.
Note:Product upgrade: 1511 terminal cancels pre-breaking wire, improves welding leg deformation, and improves customer welding success rate.






Details:

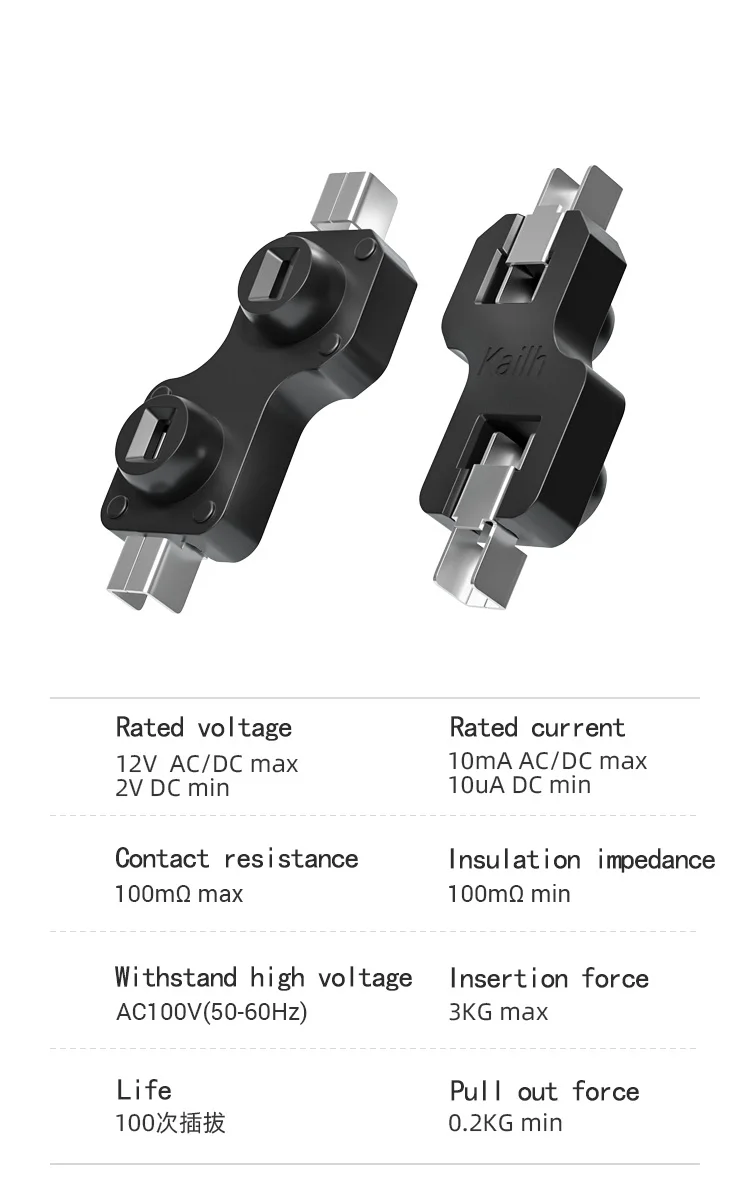

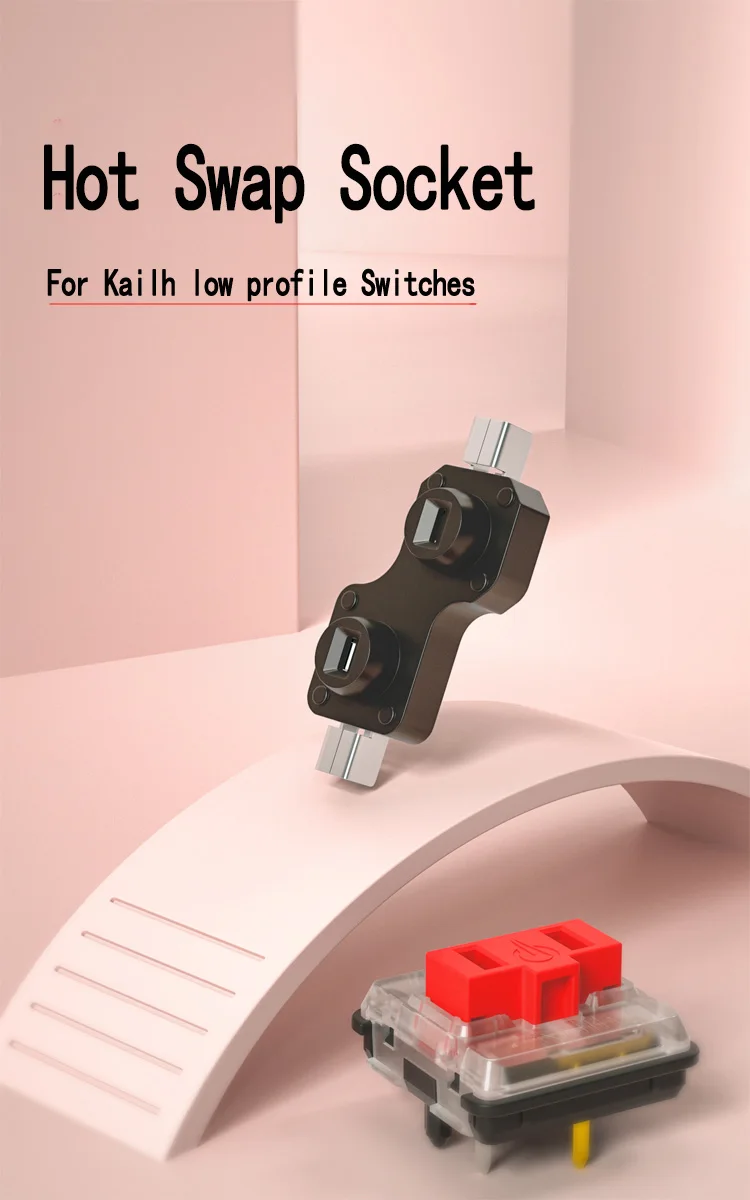

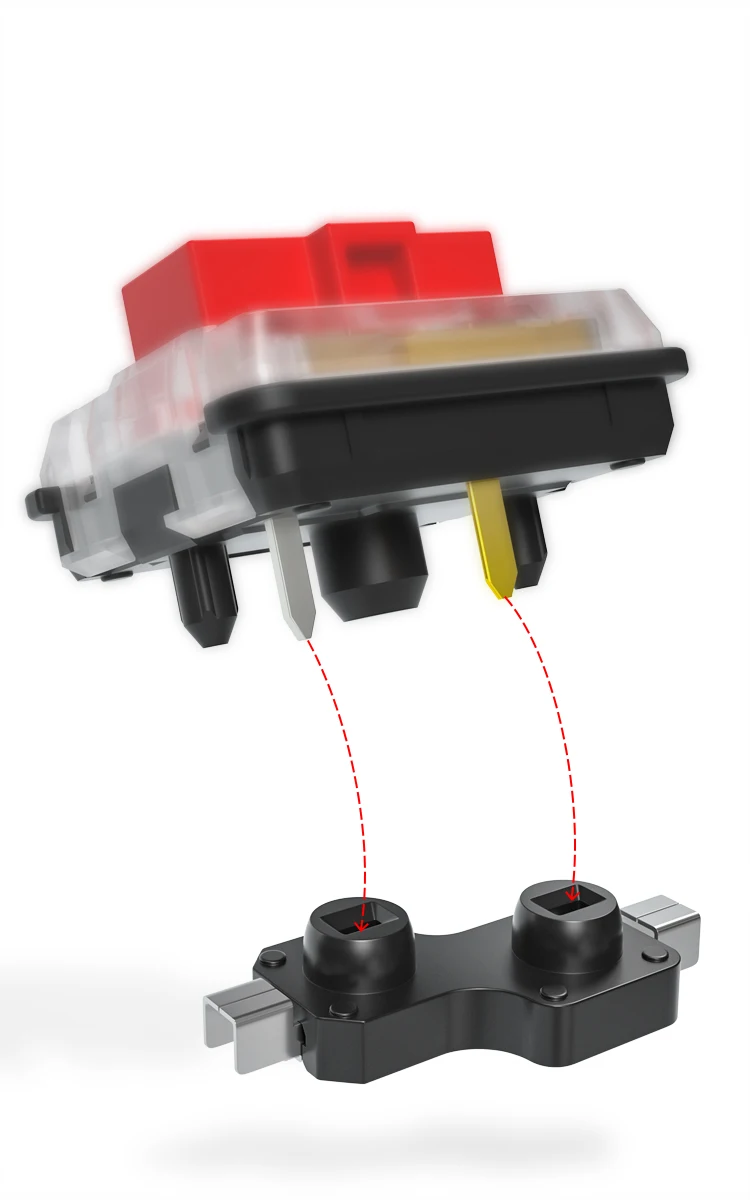

1350 Keyboard PCB Socket for Low Profile Switch
Mainly applied on computer keyboards,cash registers equipment and Man-Machine interface.
