   Specifications:

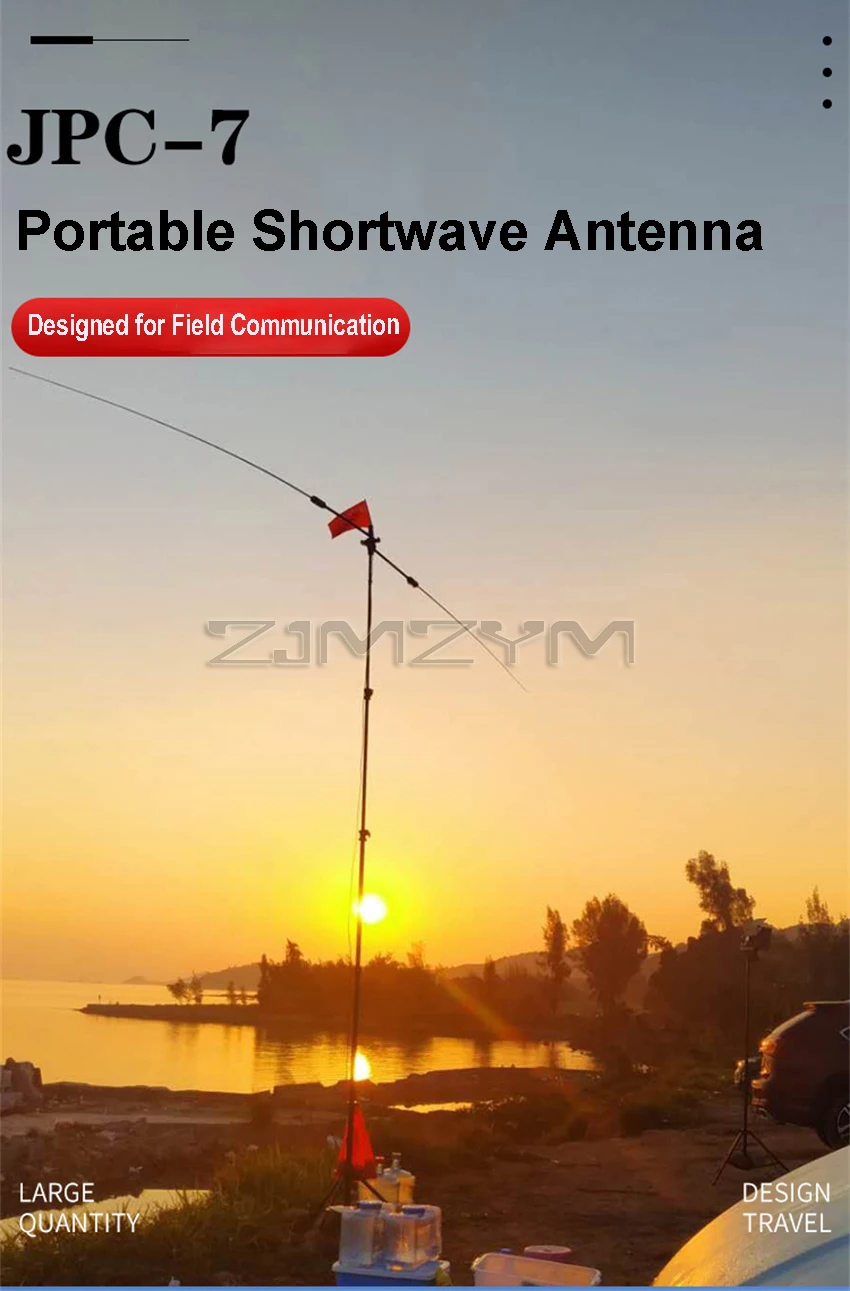

Name: JPC-7 portable shortwave antenna

Product parameters:

2. Shrinkage length is about 34.5cm, erection length is about 410cm

3. Frequency: It can work in 8 wavebands (7 mhz-50 mhz) of 40.30.20, 17.15.12 and 10.6 meters.

4. Impedance: 50 (Ω)

5. Rolling power: 100w

6. Longitudinal wave: 40m swr band<1.3, other bands can be adjusted to 1.1

Slider reference data:

Close to the aluminum tube for 4 turns, 7mb, pull rod retracts about 10cm, foot wave 1.1-1.3

14mb slider position is close to the side of the rod antenna, and the left and right foot waves are pulled back by 20 cm for 6 turns 1.1-1.3

21.4 Aluminum tube and 4-pole antenna, 7-10cm, vertical wave 1.1-1.3

29.6 As long as the antenna is pulled out of the pole, everyone pulls back about half a section, standing wave 1.2

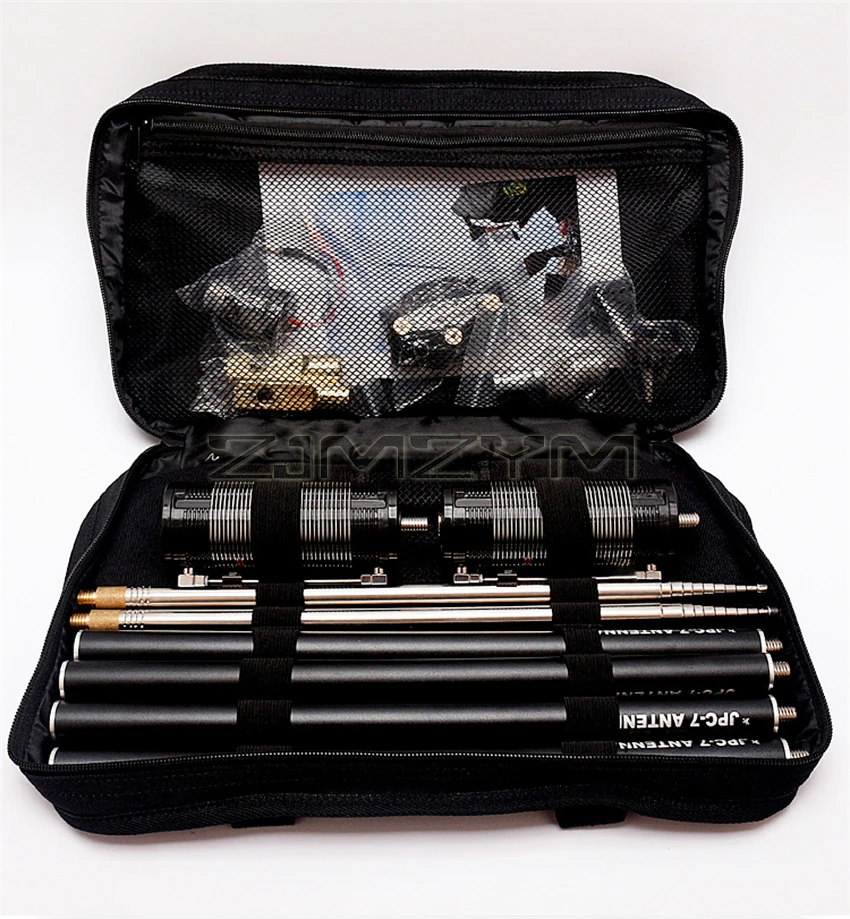

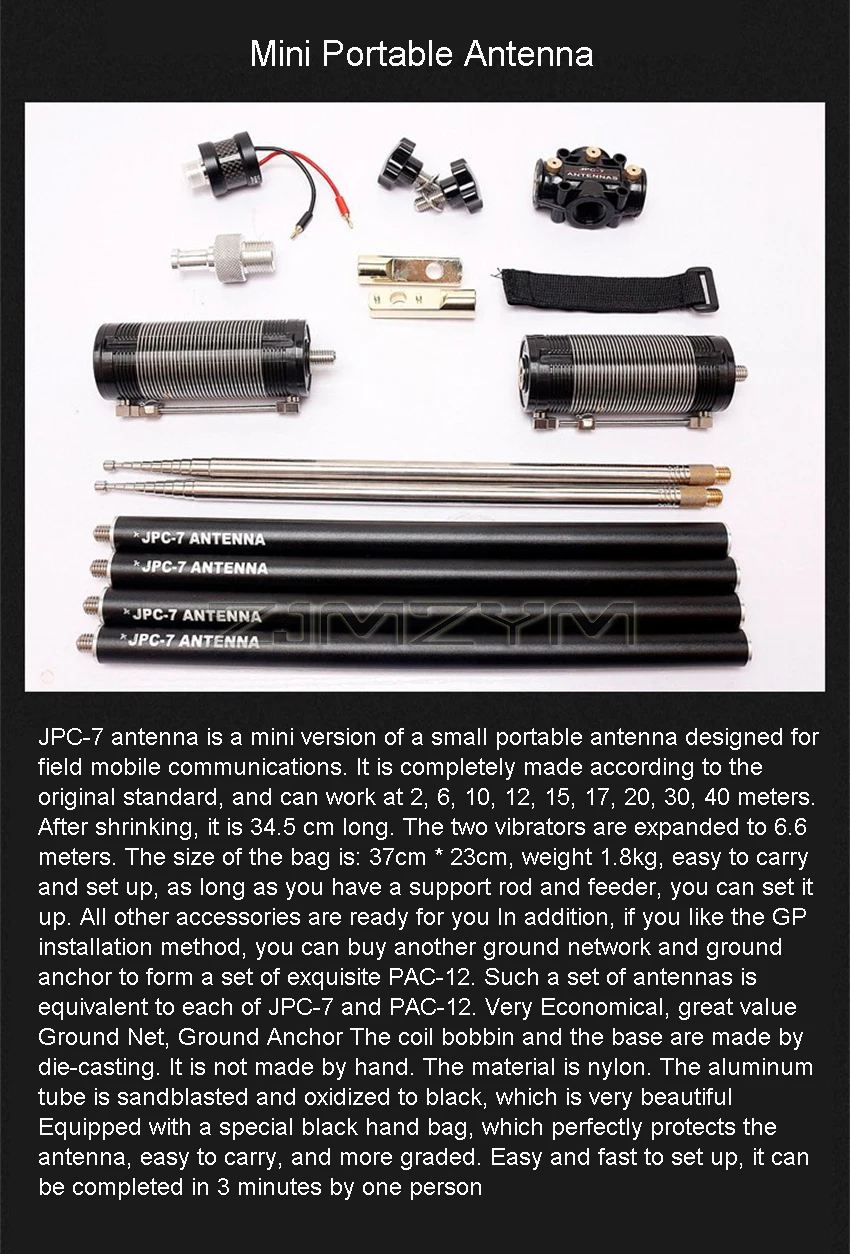

Packing list:

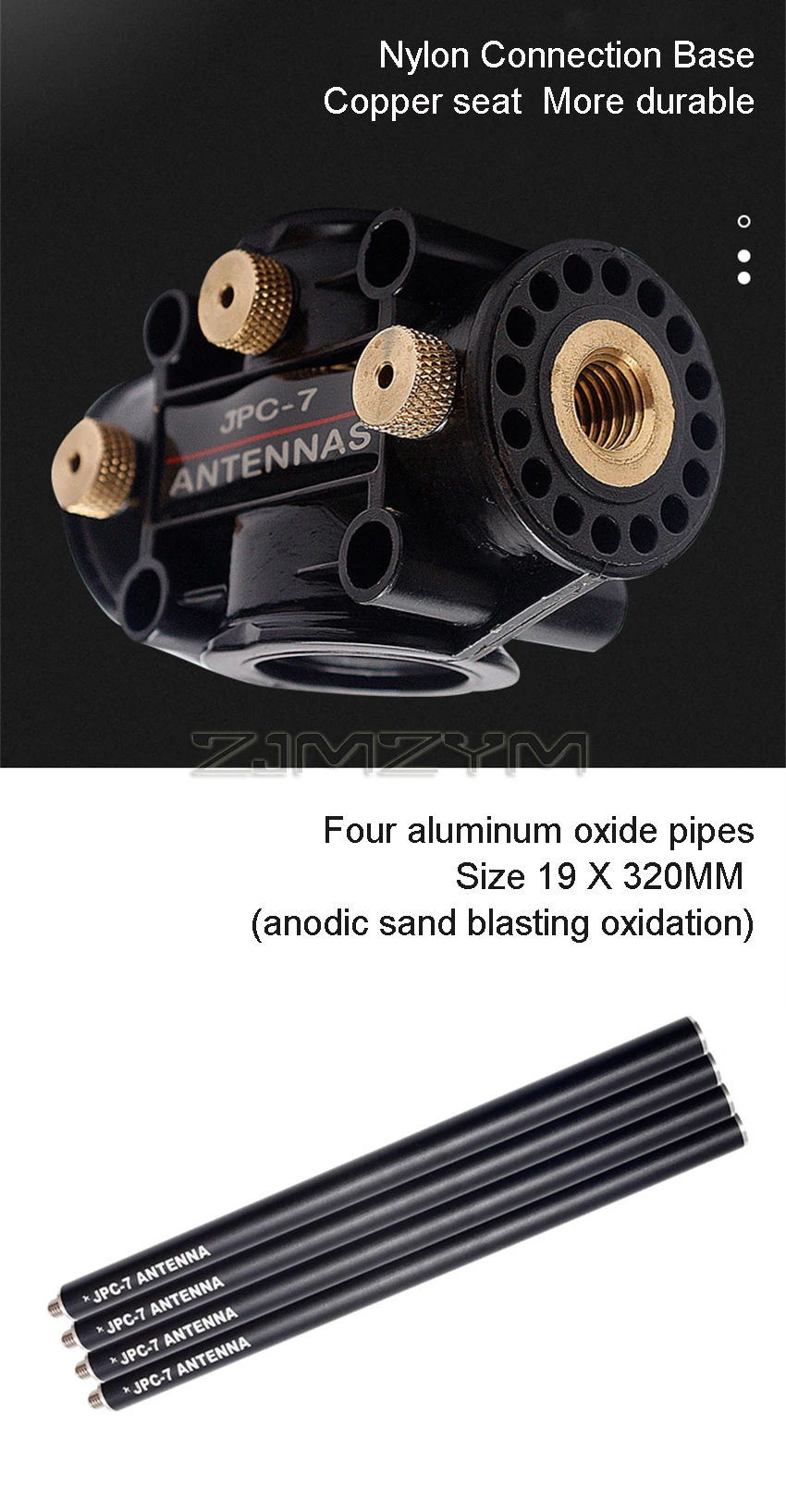

1. A nylon base

2. Multi band coil (40m-10m, material: nylon)

3. Two rubber head screws

4. Four aluminum oxide pipes (black), size 19 × 320mm (anodic sand blasting oxidation)

5. Two rod antennas (customized and thickened by 2.5m)

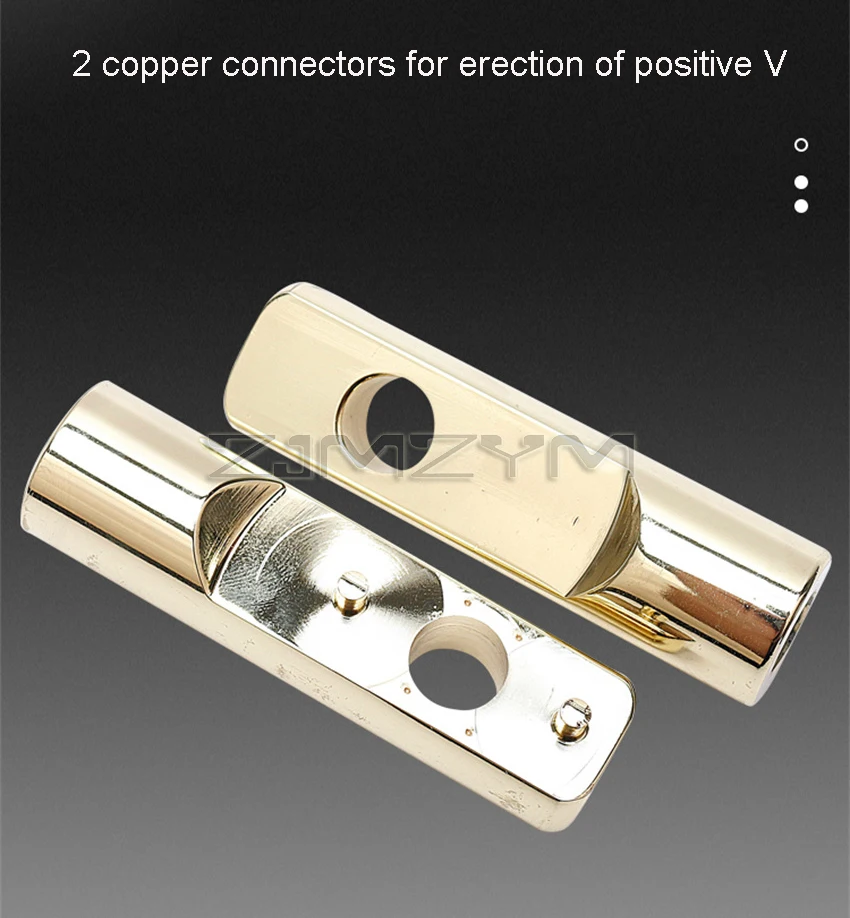

6. Two positive V copper connectors are erected

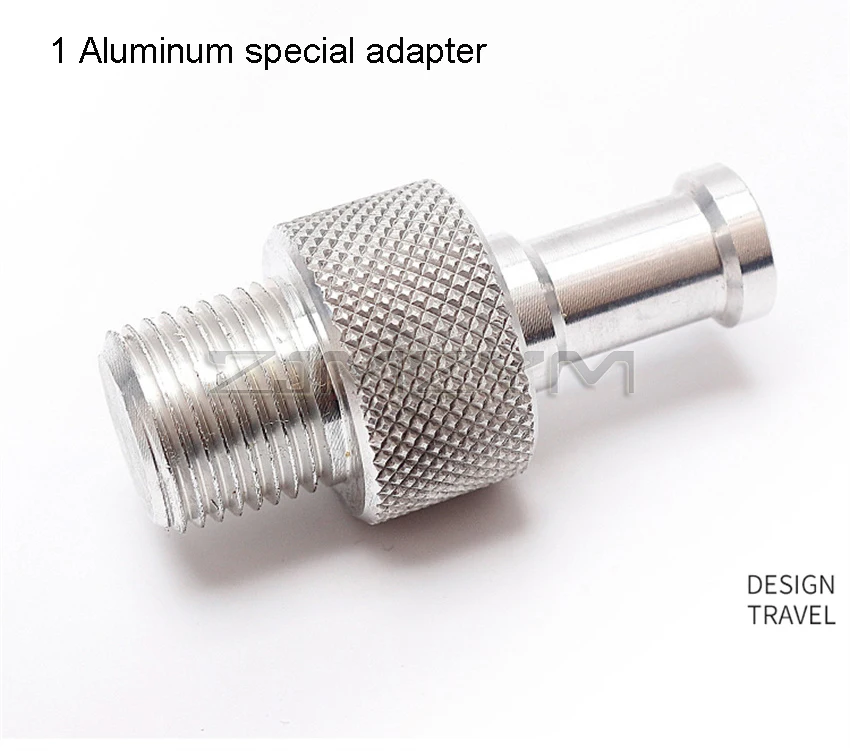

7. 1 aluminum special joint

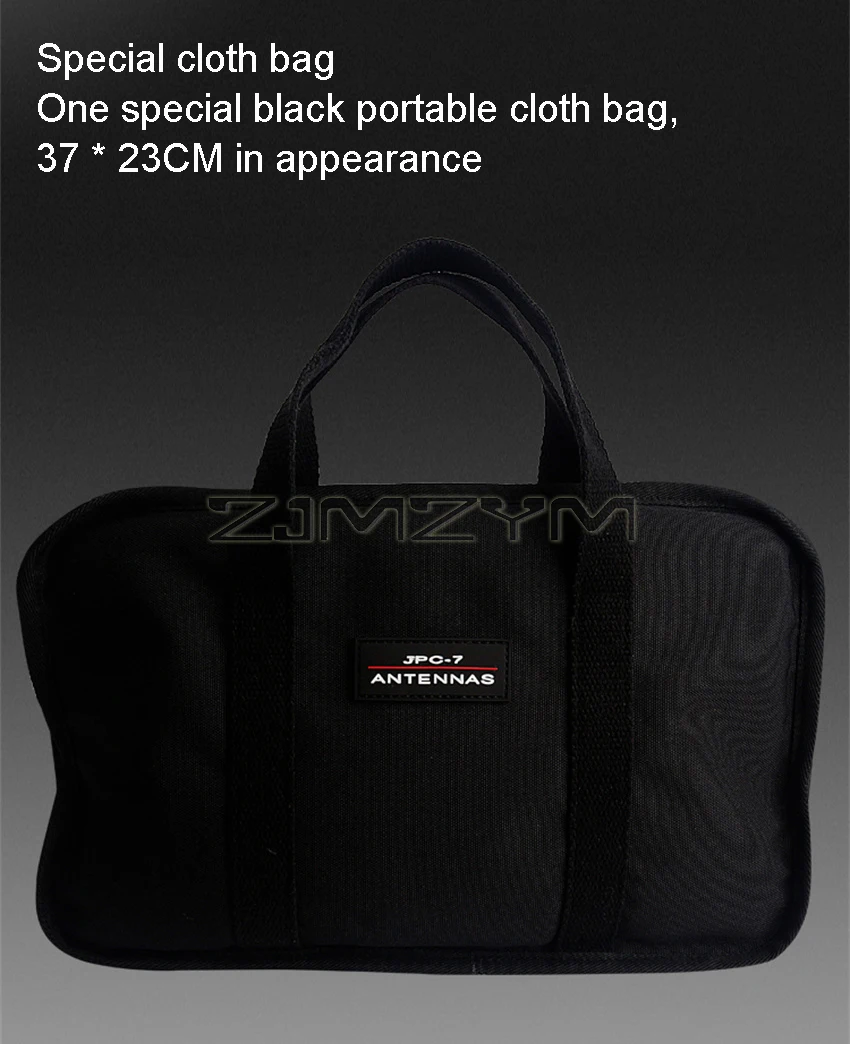

8. Special cloth bag 37 * 23cm

Notice :

The antenna does not include the supporting rod, feeder and fixture for balcony erection

  Product show:
