Description
Jecha VHD20x Zoom 1080p PTZ Video Conference Camera USB Full HD webcam
✔ USB2.0 video output
✔ 1/2.8" HD CMOS
✔ 2.1 mega pixel
✔HD1080P 10X optical zoom
✔ Pan: 0-340° Tilt :0°~120°
✔ RS-232, RS-485, IR remote control
✔Supports H.264
Specification
✔ 20x optical zoom
✔ Sleek and intelligent design
✔ Plug & Play USB2.0 Connectivity
✔ Crystal clear HD1080P image quality
✔ Preset: 9 via IR remote setting (256 via RS232)
✔ Wide field of view with no video distortion
✔ 1/2.9 inch high quality, 2.1MP (16:9) CMOS sensor

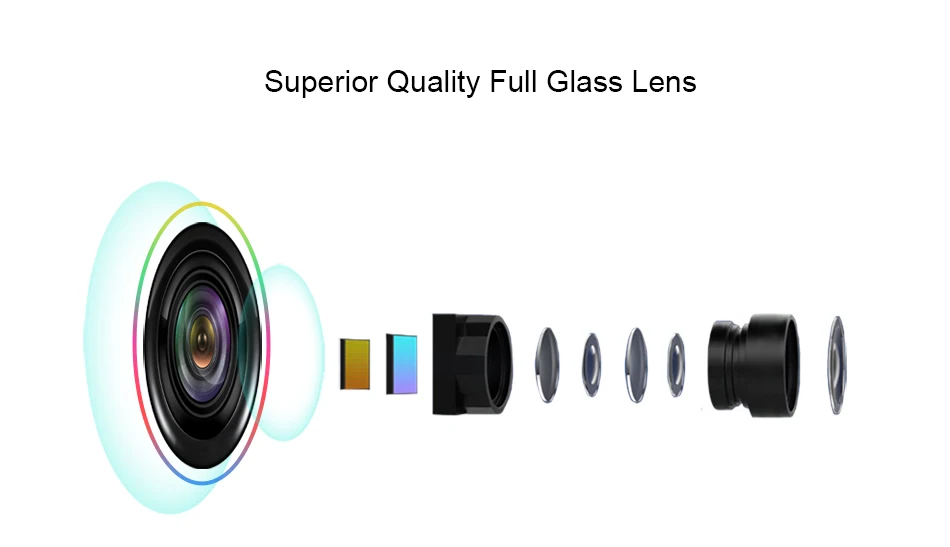

✔ Superior quality with Full Glass Lens Material

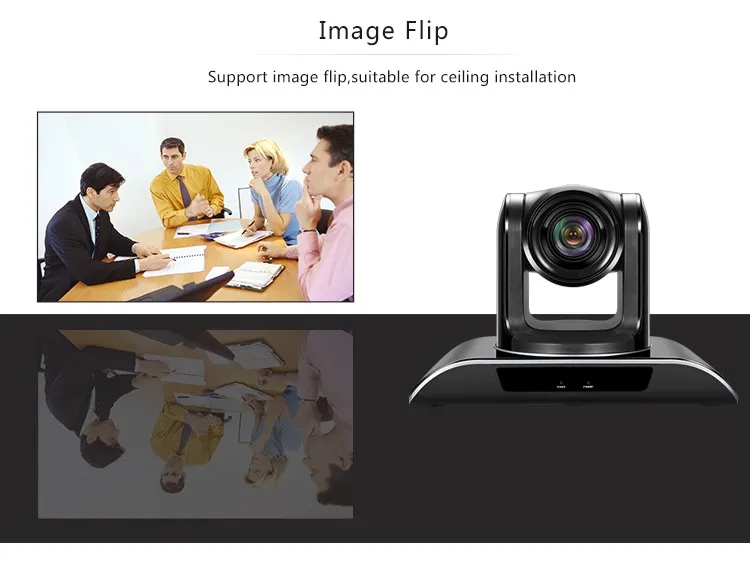

✔ Support ceiling mount, wall mount and tripod mount (Reverse mountable)
✔ 2D and 3D NR for best video quality in different lighting conditions
✔ Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
✔ Compatible with most leading video conferencing software and platform
✔ Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth
Model No. | JECHA-VHD20X |
Image Sensor | 1/2.9 inch SONY HD CMOS |
Effective pixel | 2.1 mega pixel (16:9) |
Horizontal Resolution | 1080p 30/25 720p 30/25 |
Signal standard | NTSC/P AL |
Zoom | 10x optical zoom |
Focal length | F=5.0mm(wide)-50.0(tele) |
Horizontal Angle | Near-end 47°~Far-end 5.3° |
Gain control | Auto/manual |
Focus | Auto/manual |
SNR ratio | ≥50dB |
Wide dynamic | D-WDR |
Shutter speed | 8to1/ 10000s(auto) |
Preset position | IR remote control supports 9 presets |
Pan/Tilt movement range | Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S) |

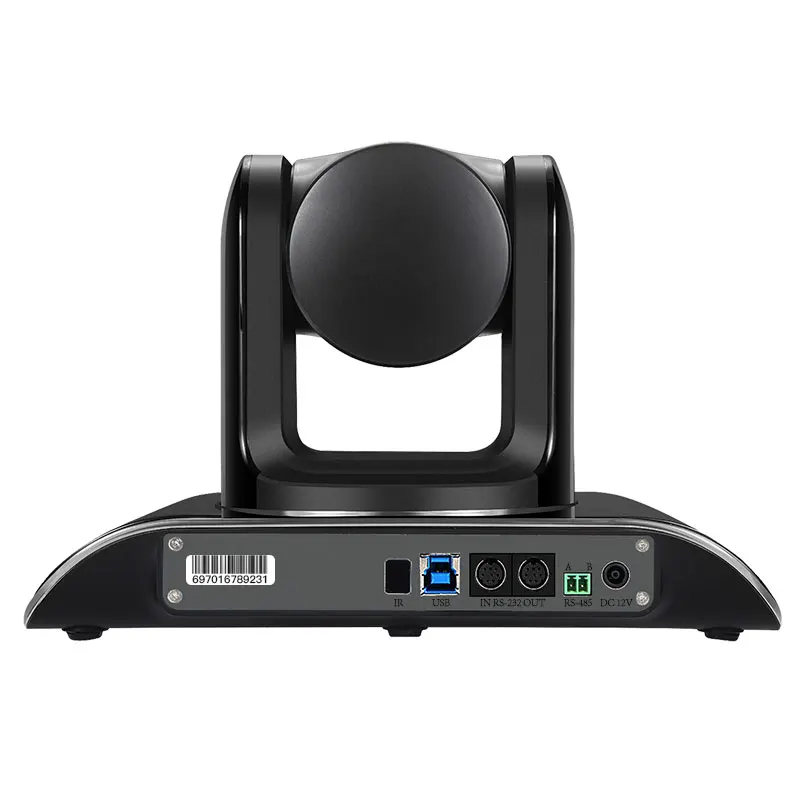

Control terminal | RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
Video output | USB |
Video Compression Format | YUV, MJPEG, H.264 |
Noise Reduction | 2D/3D |
Work temperature | -10°C-~50°C |
Storage temperature | -20°C~60°C |
Baud rate | 2400/4800/9600/19200bps |
Decoder | Built-in |
Address set | 1~255 |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
Power supply | DC12 V/ 2A |
Power consumption | 12 W |
Net weight/Gross weight | 1.7kg/3.5kg |

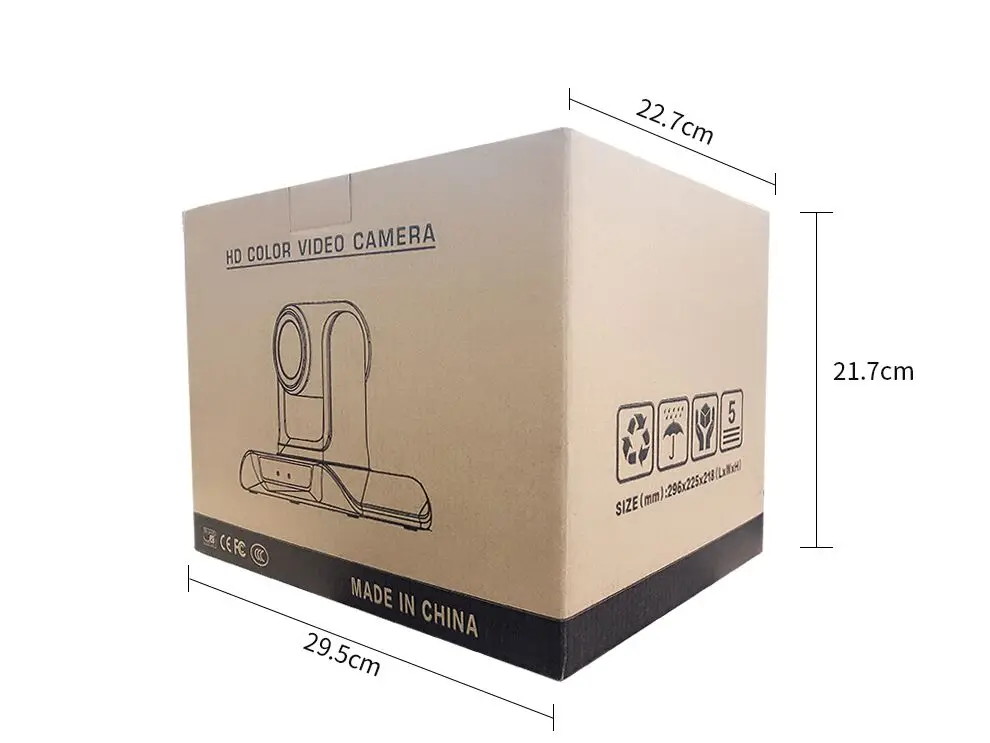

Dimension(LXWXH) | 260*175*180 mm /296*255*218mm (before / after packing) |
Accessories | DC 12V Power adaptor, IR remote control, Manual, RS232 cable, USB 2.0 cable, Ceiling brackets & screws. |

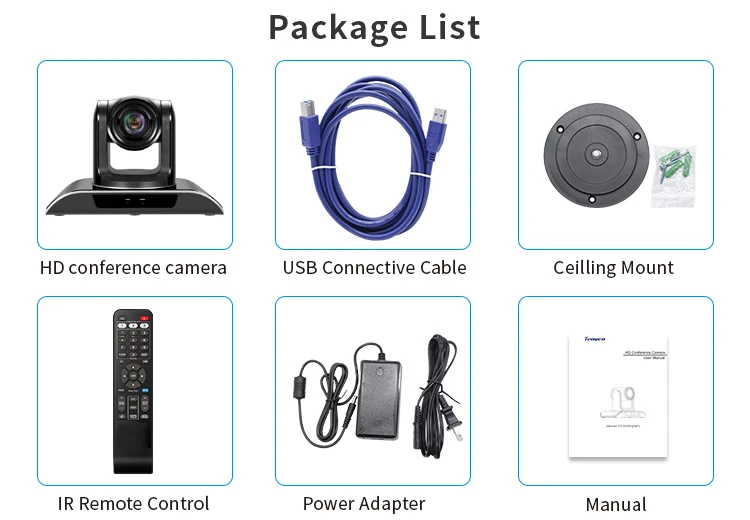

What's in the box
1 x Camera
1 x DC/12V power adaptor
1 x IR remote control
1 x Manual
1 x RS232 cable
1 x USB2.0 cable
1 x Brackets & screws
1 x Warranty card
1 x Certificate of qualification
Q&A
1. What is including in an Video Conference System ?
there is Video Camera, Audio equipment, Central control unit, and the Codec or a set Conference software based on PC instead.
2. Is it easy to operation?
Yes, it is easy to install. Just connect the camera to a TV or PC and the internet, give it power and pair it to your account to start making calls.
3. What is the resolution of your cameras?
We have 1920x1080p/60fps progressively output
4. What is the Video Connector?
There are USB Video output.
5. What are the zoom of your video conference cameras?
There are 3X, 10X.20X optical zoom.

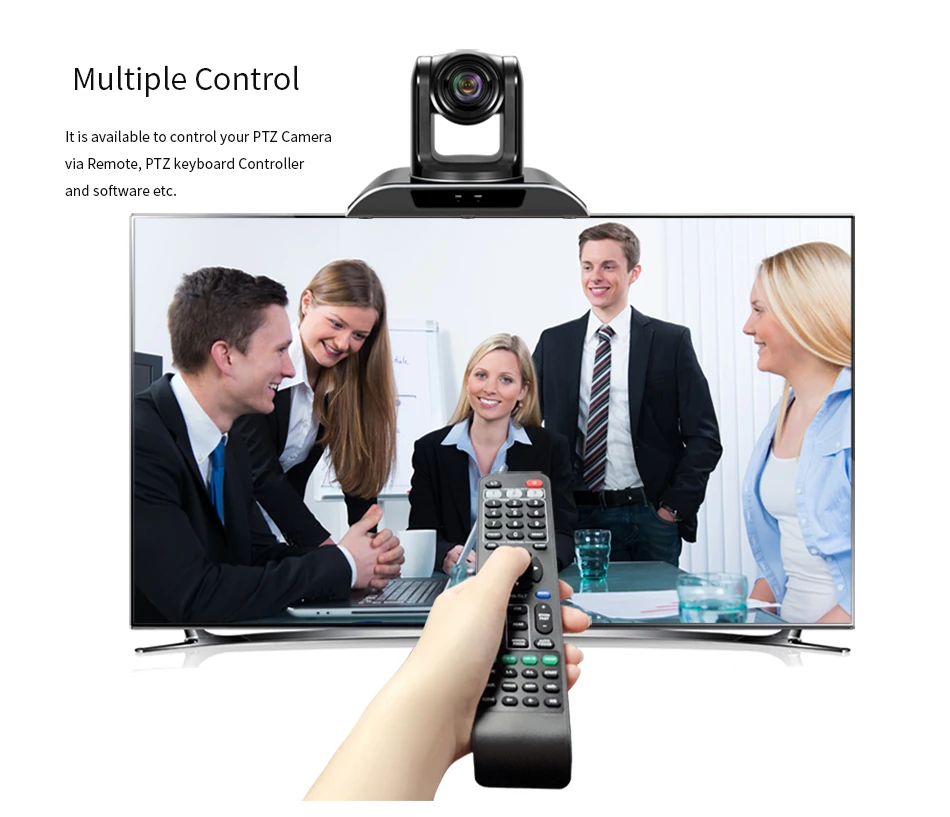

6. How to control this Camera?
There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
7. What kind of softwares are compatible with this Camera?
Itrsquos compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh, WebEx, easy meeting, Vidtel and working with Microsoft Lync Software, and ZOOM.US, SKYPE, VIDYO Etc.
8. What are the MOQ?
Our MOQ is 1 unit. We can do OEM/ODM if you need.
9. What is the requirements of the system?
Compatible with Windows 10 or later, windows 8, windows 7, Mac OS X10.6or later, Chrome OS and Android V5.0 or above, available USB port;Internet connection;
10. How to install this camera?

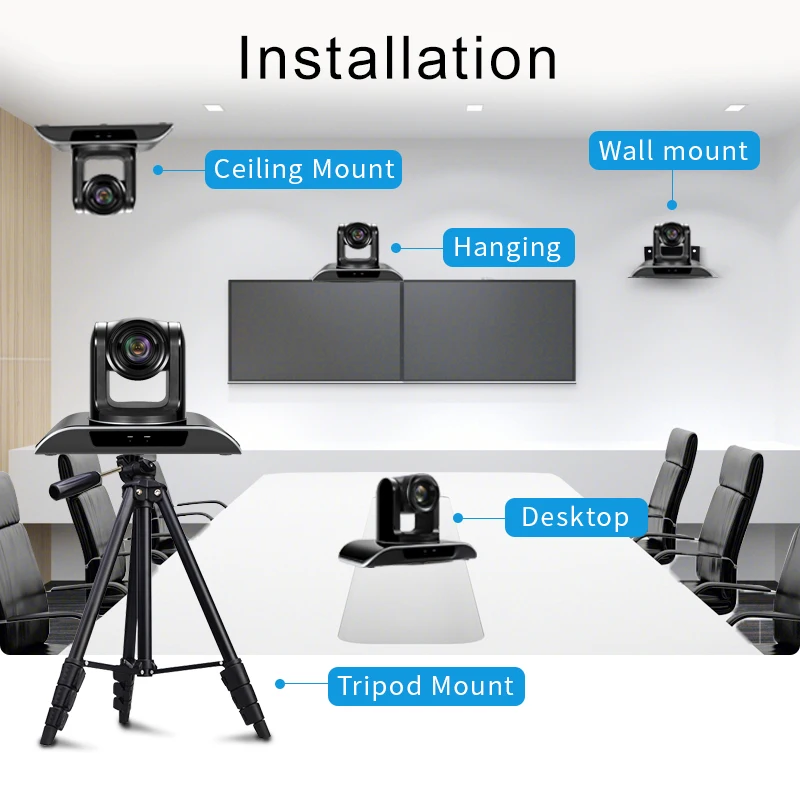

Our cameras support wall amount, ceiling mount and tripod mount installation. (Wall mount brackets are standard equipment)
11. Can I use it with video terminal equipment
Yes, It can connect with Polycom, Cisco, Huawei and other video terminal equipment
