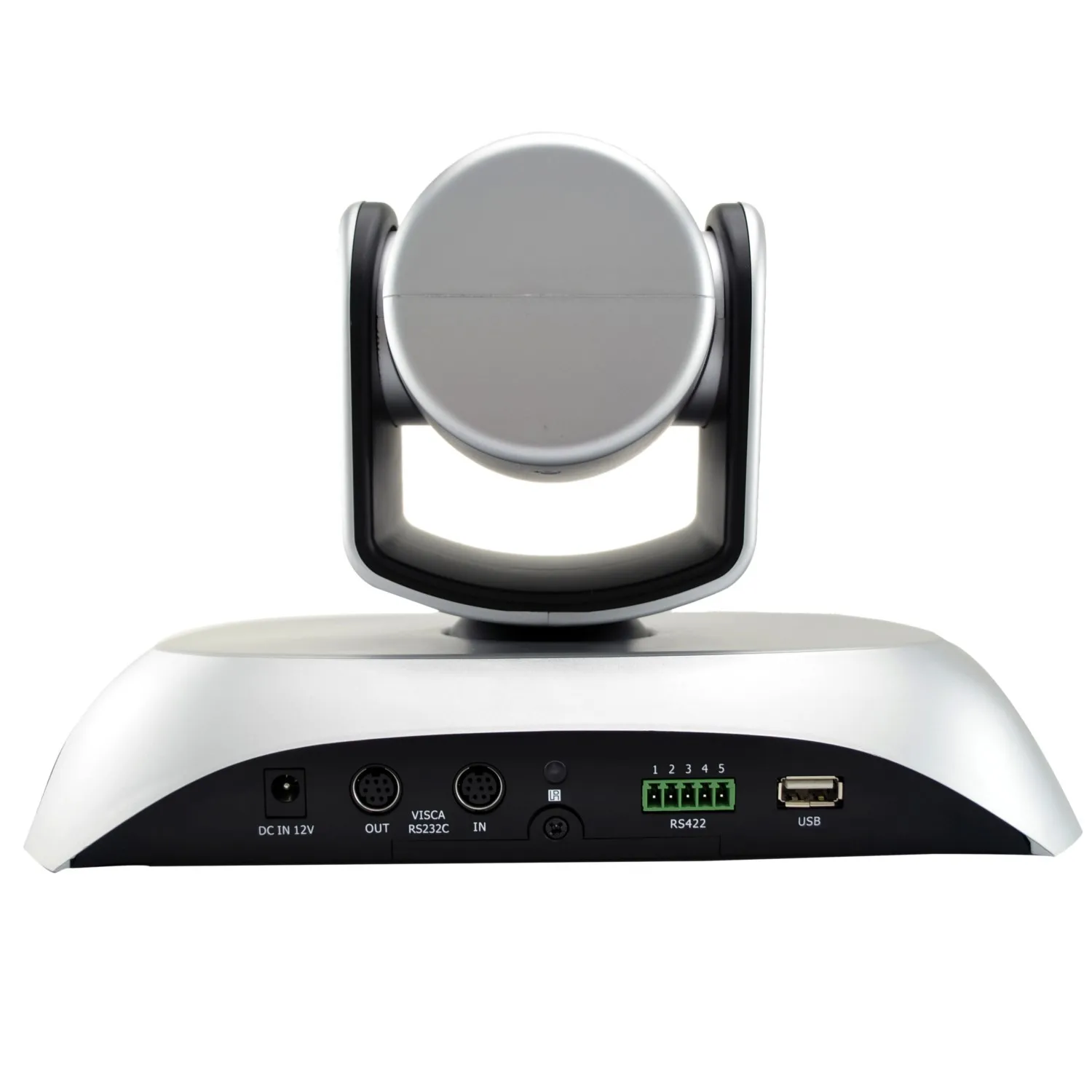

The video conference camera is a kind of integrated product that integrates HD color camera, omnidirectional video smart cloud terrace and multi-protocol decoder. This product uses an integrated design scheme, whose structure is sophisticated and compact, with high strength and good performance of heat radiation, and it is easy for quick assembly and disassembly, and its driving section is made of sophisticated and stable motor which can be operating stably and positioning accurately.

Key Characteristics and Functions

1. Rotate it in horizontal 360 degrees continuously, and rotate it in vertical 45 degrees and downward 45 degrees. The rotation speed is adjustable, with the picture rolling-over function, and the picture is always right whether the camera is upright or reverse.
2. Set and invoke the preset point. The positioning precision can reach +0.15°, and this smart conference camera can support 64 preset points.
3. When the conference camera suffers any accident, adjust the key Reset to make the camera back to the factory setting and restart it.
4. Automatic tour: while starting the tour every time, set the time when the preset point stays. This camera can support 4 pieces of tour paths, each of which can store 16 preset points.
5. Interval scanning: it can preset the left limit position and right limit position with control keyboard or remote control conveniently and quickly, in order to realize the reciprocating scanning of the camera in level interval between the left limit position and right limit position with set speed.
6. Level full-angle scanning: preset scanning speed by remote control, and the conference camera conducts the level and full-angle reciprocating scanning with set speed.
7. Data memory after power failure: restore the data automatically before power failure after restarting since power failure.
8. There is an embedded multi-protocol decoder, and the baud rate and address of conference camera can be set by DIP Switch, and the control signal can be transmitted by choosing RS-422 or RS-232C via DIP Switch or USB (optional).
9. USB2.0 video output interface.
