Intel 2.5G 4 LAN Celeron N5105 Fanless Mini PC Switch Win10 VPN PfSense Firewall Appliance I225 Nics Router Server ESXI Barebone

(No reviews yet) Write a Review
  • Intel 2.5G 4 LAN Celeron N5105 Fanless Mini PC Switch Win10 VPN PfSense Firewall Appliance I225 Nics Router Server ESXI Barebone
  • Intel 2.5G 4 LAN Celeron N5105 Fanless Mini PC Switch Win10 VPN PfSense Firewall Appliance I225 Nics Router Server ESXI Barebone
  • Intel 2.5G 4 LAN Celeron N5105 Fanless Mini PC Switch Win10 VPN PfSense Firewall Appliance I225 Nics Router Server ESXI Barebone
  • Intel 2.5G 4 LAN Celeron N5105 Fanless Mini PC Switch Win10 VPN PfSense Firewall Appliance I225 Nics Router Server ESXI Barebone
  • Intel 2.5G 4 LAN Celeron N5105 Fanless Mini PC Switch Win10 VPN PfSense Firewall Appliance I225 Nics Router Server ESXI Barebone
  • Intel 2.5G 4 LAN Celeron N5105 Fanless Mini PC Switch Win10 VPN PfSense Firewall Appliance I225 Nics Router Server ESXI Barebone
$182.44 - $325.57

Description

Intel 2.5G 4 LAN Celeron N5105 Fanless Mini PC Switch Win10 VPN PfSense Firewall Appliance i225 Nics Router Server ESXI Barebone


Processor parameter

CPU Celeron J4125 4 cores 4 threads 2.0GHz up to 2.7GHz 4MB cache TDP 10W Intel UHD Graphics 600, AES-NI supported.


CPU Celeron N5105 4 cores 4 threads 2.0GHz up to 2.9GHz 4MB cache TDP 10W Intel UHD Graphics, AES-NI supported.



Features

-4xIntel i225-V3 2.5G RJ45 LANs, 2xUSB3.0.


-1xDDR4 SODIMM non-ecc ram slot, max support 16GB 2400MHz.


-Support two storage: 1 x mSATA3.0 Port for mSATA SSD(J4125), 1 x M.2 2280 slot for NVME SSD(N5105), 1 x SATA 3.0 slot for 2.5inch SSD/HDD.


-Support 1xHDMI+1xVGA dual display output syn and asy.


-1xSIM slot(optional), 1xMini PCIE port (only support USB protocol), support WiFi/3G/4G(3 choose 1) connection.


-Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.


-Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance, Exquisite production craft on outside design.


-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.


-Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).



Notice

-Buy option with RAM and SSD, free VESA mount.(First 100 only)


-Intel i225 is a new network card, some system suppliers maybe have not released compatible driver to match yet, suggest to install newest version of following systems: pfSense 2.5.x, OPNsense 22.1, OpenWrt, ROS7, ESXI, Proxmox, CentOS etc.


-All bundles on sale DO NOT include WiFi/3G/4G module(antennas), WiFi module cost US $10, 3G module cost US $47, 4G module cost US $66. If you need, pay at this link or this link or contact us.


Processor

Intel Celeron J4125 / N5105

Chipset

Intel Gemini Lake-ULT - Lynx Point-LP

Memory

1 x DDR4 SO-DIMM Socket up to 16GB RAM
Graphics

Intel HD Graphics 600

Support HD Port

Network

4 x GbE RJ45 Intel I225

Support PXE booting and remote wake-up

Storage

1 x mSATA3.0 Port for mSATA SSD(J4125), 1 x M.2 2280 slot for NVME SSD(N5105)

1 x SATA3.0 Port for 2.5 inch HDD/SSD

Audio

Realtek High Definition Audio

Expansion

1xMini PCIE port (only support USB protocol), support WiFi/3G/4G(3 choose 1) connection

External I/O

1 x HDMI, 1 x VGA

4 x RJ45 Intel i2225

2 x USB 3.0

1 x 12V DC In

1 x Power Button

1 x Reset Button

Internal I/O

1xSIM slot(optional), 1xMini PCIE port (only support USB protocol), support WiFi/3G/4G(3 choose 1) connection

BIOS

AMI BIOS, 64Mbit flash

Function

  AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN


OS

Windows 8,10 Linux, ubuntu, pfSense 2.5.x, OPNsense 22.1, OpenWrt, ROS7, ESXI, Proxmox, CentOS

Power Type

DC 12V 5A Power supply

Working Temperature

-10℃~55℃

Storage Temperature

-20℃~70℃

Working Humidity

0%-95% relative humidity, no condensation.

Package Content

1xMini PC, 1xpower adapter, 1xHDMI cable, 1xSATA cable

Physical Properties

Material: Aluminum Alloy

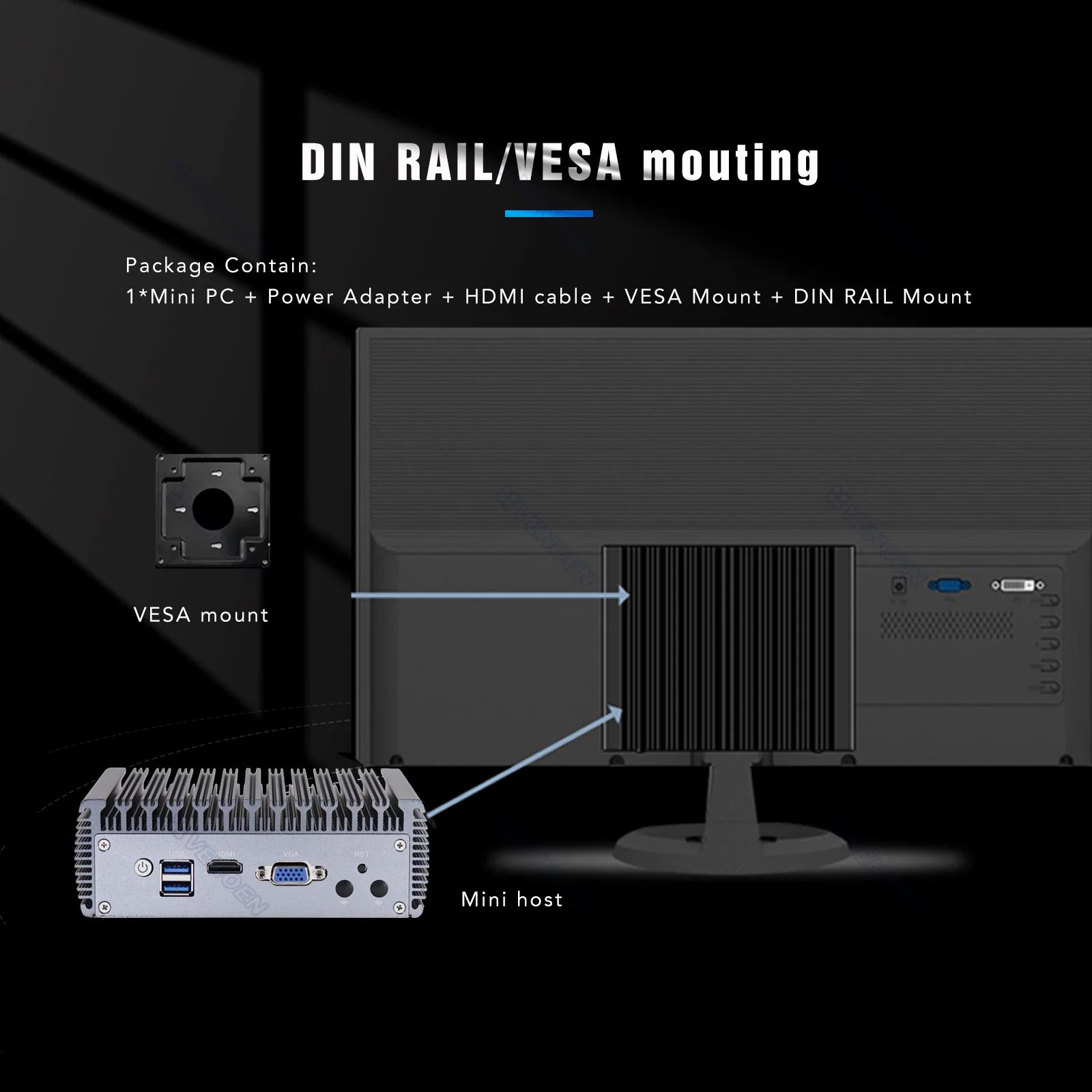

Mounting: VESA Mounting & DIN Rail (additional purchase)

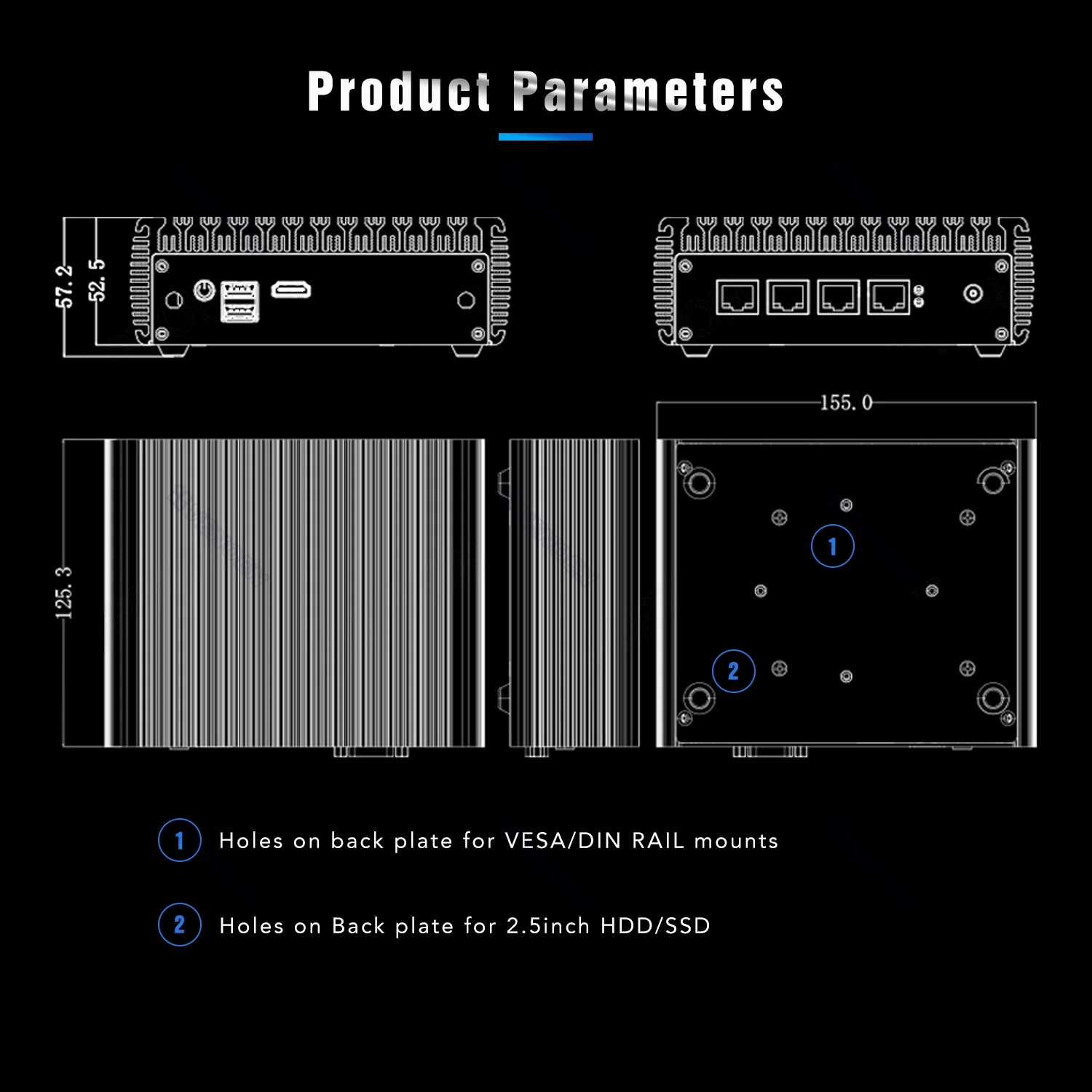

Dimensions: 125*53*155mm

NW:1.6Kg; GW:1.8Kg

Warranty

30 days free defective replacement and 3 years free repair



Kind reminder

1. Barebone (No RAM No SSD No WF) package DO NOT include WiFi and Antenna, if you need, please contact us.
2. PC had best to use Samsung, SKhynix, Micron etc original brand accessories, We DO NOT compensate for buyer's own ram and hard drive and DO NOT compensate for man-made damage and faulty.
3. If you need printe OEM logo in your mini pc, please send us the HD picture.
4. Please make sure the shipping address, zip code and tel-number are correct before payment.
5. All SIM-enabled mini PCs need to purchase additional 3G / 4G modules.
About Tax
1. Normally we declare item as Mini PC or TV BOX with value(like $75.8-$180), we only help you reduce costs, but DO NOT bear. Buyers are fully responsible for paying fees involved, such as remote dispatching fees, storage costs, brokerage, TAX or VAT etc.
2. If you want to declare real price value, must leave a message to note when you make order.
3. Due to the tax problem, buyer refuse to receive the goods, buyer need to be fully responsible for the freight back and forth.Thank you for you cooperation.
About Feedback
1. If you are satisfied with our product and service, please leave us positive feedback and 5 star review and images upload.
2. If you are not satisfied, please contact us kindly first. We will try our best to deal with the issue for you or you can exchange or return the item in one week.
About Warranty
1. We provide 30 days replacement and 3 years warranty period, repair for free; but more than two years, charge for parts and shipping charges as appropriate.
2. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed.
