Industrial Mini PC Intel Core i5 8250U i7 7500U Barebone System 3G/4G SIM 2 RS485 COM GPIO 2 RJ45 Lan 8 USB Wifi Bluetooth
Description
Product Hightlight:
| Basic Information: | |
| CPU | Intel Core i5-8250u / Intel Core i7-7500u |
| TPD | 15W |
| Motherboard | Xeon E3-1200 v6/7th Gen Intel Core/DRAM Registers - 5914 - 7th Gen Intel CPU Fami |
| BOIS | American Megatrends Inc. 5.12 |
| Chipset | Intel KABYLAKE |
| Memory | 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB, Dual channel, DDR4-2400, LPDDR3-2133 |
| OS | Windows 10/Linux |
| PXE | YES |
| Audio | Intel High Definition Audio Controller |
| Network | Onboard Intel i211 Gigabit Network Connection, 10/100Mbps/1000Mbps BaseT LAN |
| Video | Intel UHD Graphics 620 / Intel HD Graphics 620 |
| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 12V DC In |
| LED | 2 x LED |
| USB | 4 x USB2.0, 4 x USB3.0 |
| Display | 1 x VGA, 1 x HDMI |
| LAN | 2 x RJ45 Giga LAN |
| COM | 2 x COM ports, can change to RS232/422/485 from BIOS |
| SIM | 1 x SIM card slot with push function |
| GPIO | 1 x GPIO |
| Audio | 1 x MIC, 1 x SPK |
| Others | 1 x Reset, 1 x CMOS clear button, 1 x 2Pin Phoenix terminal power supply input |
| Storage | |

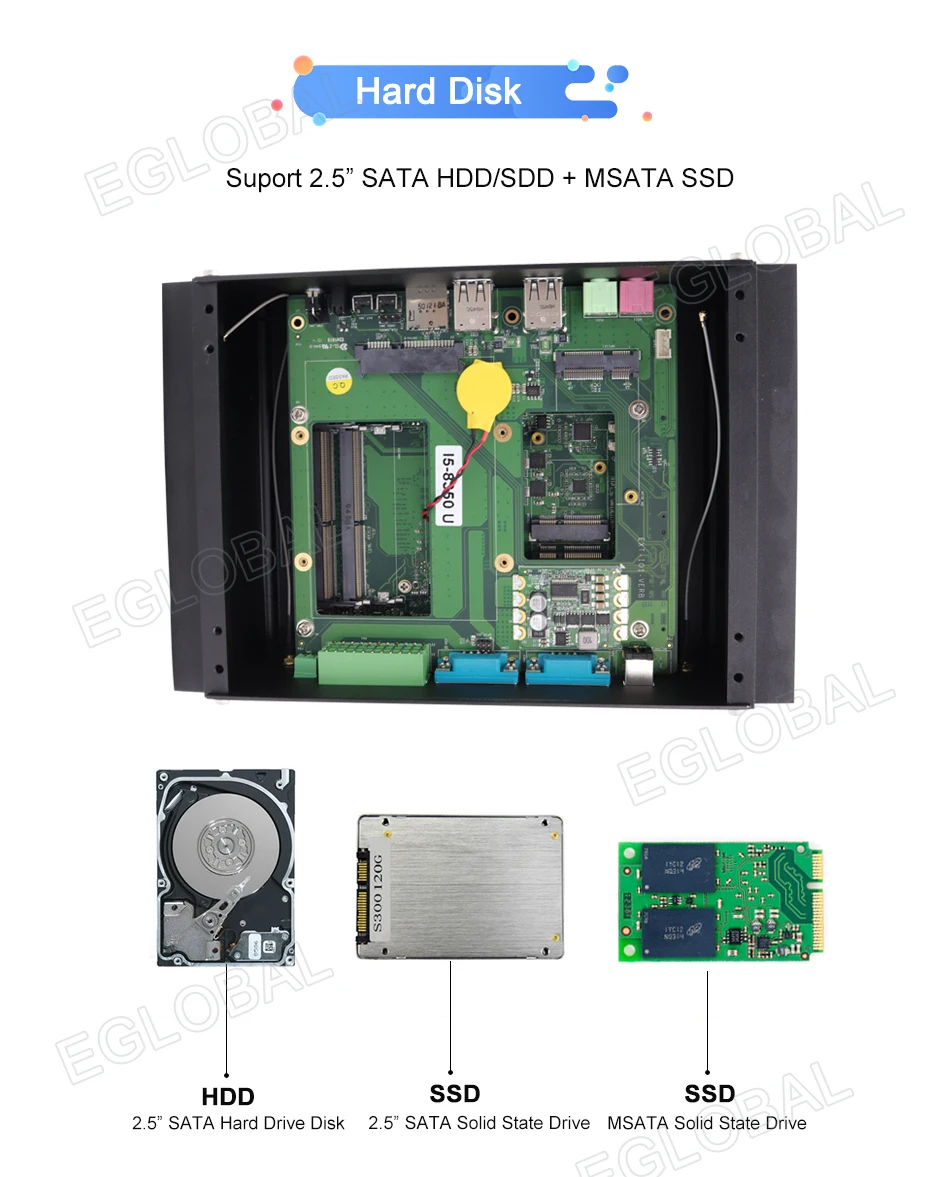

| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Wi-Fi | |
| Module | 1 x mini PCIE-half port for WiFi module 1 x mini PCIE-full port for 3G/4G module |
| Antenna | 2 x inner RF cables and 2 x external antennas |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +9V~+36V, recommend 12V/5A |
| Operating Temperature | 0/+60Centigrade |
| Operating Humidity | 0%~90% (non-condensing) |
| Storage Temperature | -20/+80 Centigrade |
| Storage Humidity | 0%~50% (non-condensing) |
| Relative Humidity | 20%~85% (non-condensing) |
| MTBF | MTBF = 50,000h |
| Vibration frequency (5~ 200 Hz) | (1g) acceleration amplitude (0.5mm) |
| Impact | Acceleration (10g) duration (11MS) |
| Product Dimension & Details | |

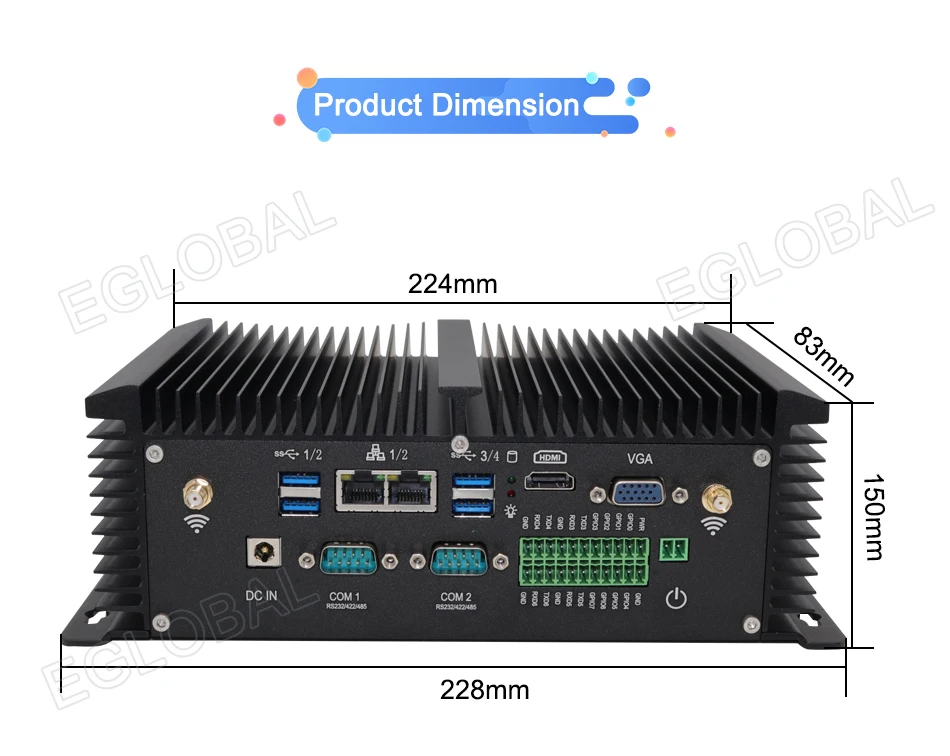

| Size | 150*83*224mm(248mm chassis) |
| Weight | 3.5KG |
| Shell | Black/Silver color aluminum alloy(any customized color for bulk order) |
| Mounting | 4 Mounting holes on case |
| Cooling Mode | Fanless |
| Functions | Watchdog, Auto power on, RTC, State lamp interface, Trigger switch(wafer 1*2) |
| Package Content | |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
| Optional | 1xWiFi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
CPU: Onboard Intel Core i5-8250U 1.6GHz Max 3.4GHz Quad Core Eight Threads processor
CPU: Onboard Intel Core i7-7500U 2.7GHz Max 3.5GHz Dual Core Four Threads processor
Kindly Remind：
Tips:
System:
Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is irresponsible and makes no compensation for trial OEM system.
Accessories as Ram, SSD, HDD, we use famous brand:samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison etc, What brand we use depends on our test and our stock.What brand we use depends on our test and our stock. Generally we use Msata SSD installed on Mpcie port and leave the SATA port blank for you to install 2.5'' SSD/HDD.
