ICON Uports 6 USB recording interface provides an audio input and output USB External Sound card 24-Bit 96/192KHz 4-In/2-Out USB
Description
ICON Uports 6 USB recording interface provides an audio input and output USB External Sound card 24-Bit 96/192KHz 4-In/2-Out USB
Uports 6

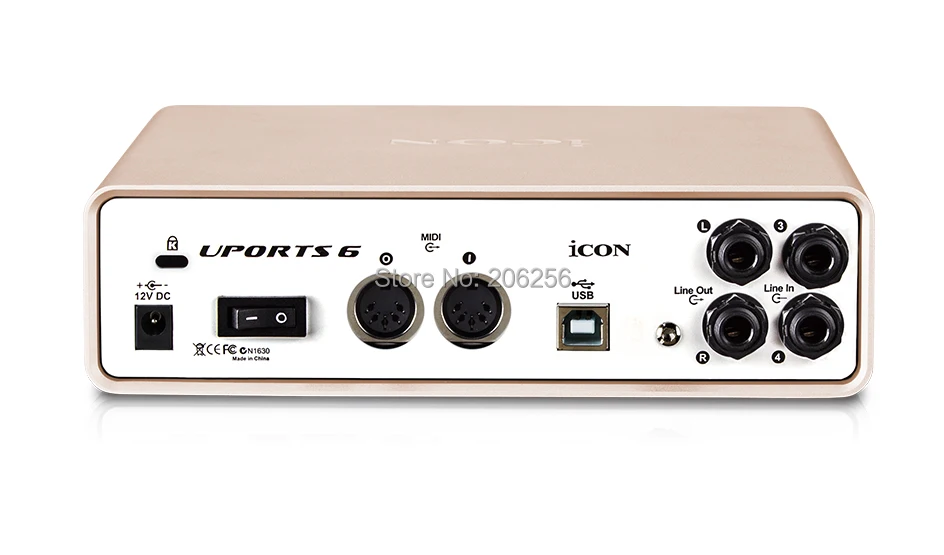

The ICON Uports 6 USB recording interface provides an audio input and output
module with USB connectivity. Main features include:
● 24-Bit 96/192KHz 4-In/2-Out USB Recording Interface
● 4×2 analog I/O full duplex recording and playback
● Dual MIC/Instrument preamps with individual gain control and phantom power
switch
● 2 analogue line inputs on 1/4” TRS jacks
● 2 analog outputs on 1/4” TRS jacks
● 1 x 1 – 16 channel MIDI I/O
● Direct monitoring control knob on the front panel
● 2 headphone output with assignable source and individual volume control
● Flexible channel routing via the software control panel
● USB2.0 High Speed equipped and USB bus-powered
● Supports DirectSound, WDM and ASIO2.0
● Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit),
Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit) & Windows 10 (32-bit/64-bit)
● Full duplex, simultaneous record/playback
● Rugged aluminum construction
| Mic/Inst Inputs 1/2 (Balanced; at Minimum Gain) | ||
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) | |
| Dynamic Range | 100dB, A-weighted | |
| Signal-to-Noise Ratio | -100dB, A-weighted | |
| THD+N | <0.0061% (-90dB) | |
| Crosstalk | -100dB @ 1kHz | |
| Maximum Input level | -3.8dBu, typical | |
| Input Impedance | Inst in: 500K Ohms, typical | |
| Input Impedance | Mic in: 1.8K Ohms, typical | |
| Adjustable Gain | > 50dB | |
| Total Gain Range | +54dB | |
| Line Inputs 3/4(TRS) | ||
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) | |
| Dynamic Range | 100dB, A-weighted | |
| Signal-to-Noise Ratio | -100dB, A-weighted | |
| THD+N | <0.0061% (-90dB) | |
| Crosstalk | -100dB @ 1kHz | |
| Nominal Input Level | Balanced: +4dBu | |
| Nominal Input Level | Unbalanced: -10dBV | |
| Maximum Input level | Balanced: +10.2dBu, typical | |
| Maximum Input level | Unbalanced: +2.0dBV, typical | |
| Input Impedance | 10K Ohms, typical | |
| Line Outputs 1-2 (TRS) | ||
| Frequency Response | 22Hz 22kHz (+/-0.1dB) | |
| Dynamic Range | 102dB, A-weighted | |
| Signal-to-Noise Ratio | -102dB, A-weighted | |
| THD+N | <0.003% (-90 dB) | |
| Crosstalk | -100dB @ 1kHz | |
| Nominal Output Level | Balanced: +4dBu | |
| Nominal Output Level | Unbalanced: -10dBV | |
| Maximum Output Level | Balanced: +10.2dBu, typical | |
| Maximum Output Level | Unbalanced: +2.0dBV, typical | |
| Output Impedance | 150 Ohm | |
| Load Impedance | 600 Ohm minimum | |
| Headphone Outputs: 1 & 2 (at Maximum Volume; Into 100 Ohm load) | ||
| Frequency Response | 22Hz to 22kHz (+/-1dB) | |
| Power into Ohms | 90 mW into 100 Ohms | |
| THD+N | <0.06% (-66dB) | |
| Signal-to-Noise Ratio | -90dB, A-weighted | |
| Max Output Level into 100 Ohms | +2.0dBV, typical | |
| Output Impedance | 75 Ohm | |
| Load Impedance | 32 to 600 Ohms | |
