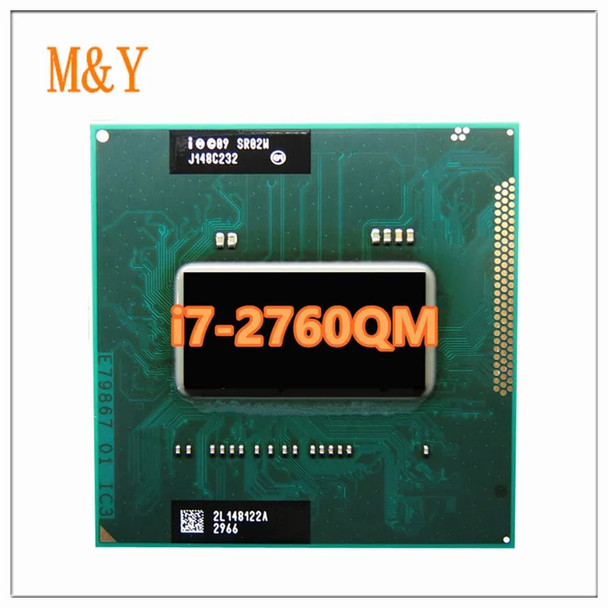

i7-2760QM SR02W I7 2760QM SRO2W Processor Quad-Core SOCKET G2 / rPGA988B i7 2760QM laptop CPU 2.6GHz 45W 6M
Description
Core i7-2760QM (PGA) specifications
General information | |||||||||
Type | |||||||||
Market segment | Mobile | ||||||||
Family | |||||||||
Model number ? | |||||||||
CPU part numbers |
| ||||||||
Frequency ? | 2400 MHz | ||||||||
Maximum turbo frequency | 3500 MHz (1 core) | ||||||||
Bus speed ? | 5 GT/s DMI | ||||||||
Clock multiplier ? | 24 | ||||||||
Package | 988-pin micro-PGA (rPGA988B) | ||||||||
Socket | |||||||||
Size | 1.48" x 1.48" / 3.75cm x 3.75cm | ||||||||
Weight | 0.2oz / 6.8g | ||||||||
Introduction date | |||||||||
End-of-Life date | Last order date for boxed processors is February 25, 2013 | ||||||||
Price at introduction | $378 | ||||||||
S-spec numbers | |||||||||
| |||||||||
Architecture / Microarchitecture | |||||||||
Microarchitecture | Sandy Bridge | ||||||||
Processor core ? | |||||||||
Core stepping ? | D2 (SR02W) | ||||||||
CPUID | 206A7 (SR02W) | ||||||||
Manufacturing process | 0.032 micron High-K metal gate process | ||||||||
Data width | 64 bit | ||||||||
The number of CPU cores | 4 | ||||||||
The number of threads | 8 | ||||||||
Floating Point Unit | Integrated | ||||||||
Level 1 cache size ? | 4 x 32 KB 8-way set associative instruction caches | ||||||||
Level 2 cache size ? | 4 x 256 KB 8-way set associative caches | ||||||||
Level 3 cache size | 6 MB 12-way set associative shared cache | ||||||||
Physical memory | 16 GB | ||||||||
Multiprocessing | Not supported | ||||||||
Extensions and Technologies |
| ||||||||
Security Features |
| ||||||||
Low power features |
| ||||||||
Integrated peripherals / components | |||||||||
Integrated graphics | GPU Type: HD 3000 | ||||||||
Memory controller | The number of controllers: 1 | ||||||||
Other peripherals |
| ||||||||
Electrical / Thermal parameters | |||||||||
Maximum operating temperature ? | 100°C | ||||||||
Thermal Design Power ? | 45 Watt | ||||||||
