HUION Kamvas Pro 16(2.5K) QHD Screen Drawing Monitor Pen Display —— The second generation of Kamvas Pro 16

Strong Compatiblity——Support Windows 7 or later, MacOS 10.12 or later, Android (USB3.1 GEN1 DP1.2 or later), Chorme OS.

145% sRGB Quantum-dot technology:

Rich colors and smooth color gradation can be realized with 145% sRGB color gamut and 16.7M(8 bit) display colors combined. Users can enjoy accurate color presentation and smooth color gradient when drawing on the Kamvas Pro 16 (2.5K).

2.5K QHD Screen: The new product improves the resolution to 2.5K, which doesn’t require that high computer configuration and it can function well in most users’s computer. Besides, 2.5K resolution in 15.8 inch screen can present the picture and text in proper size, reducing visual fatigue and providing a comfortable creating experience.

Full laminated Screen and : Compared with the non-laminated screen, it can reduce the light loss caused by reflection of the glass, making the pictures clearer and providing a better display quality.

Anti-glare Glass:AG glass reduce the interference of ambient light on human eyes, and increase the viewing angle and brightness of the screen. Increase the friction between the pen and the glass and provide a pen-on-paper experience.
The specially treated glass surface is wear-resistant and corrosion-resistant, and no additional protector is needed.

Lighter and thiner than Kamvas Pro 16, Pro 16(2.5K) is 10-11.5mm
thickness. With Active Area 350 x 197mm (15.8 inch), enough for drawing.

8 programmable press keys: the same as the previous version, but it touchs more comfortable and can be used effortlessly.

The rear case of Kamvas Pro 16 (2.5K) is made of metal in silver frost, has delicate texture, and does well in heat dissipation, durability and wear-resistance.
GT1602 bulges partially. The thinnest part is only 10mm, 1.5mm thinner than the previous generation, and the raised part is 11.5mm thick, the same as the previous generation.

Battery Free Digital Pen PW517 : Adopt Pentech 3.0 Technology, designed with 8192 Levels Pressure Sensitivity, ＞300PPS Report Rate, 5080LPI Pen Resolution, Tilt support ±60°.

Pen-enabled OSD menu : Kamvas Pro 13(2.5K) / Kamvas Pro 16(2.5K) applies the pen-enabled OSD menu. And there are two setting methods.

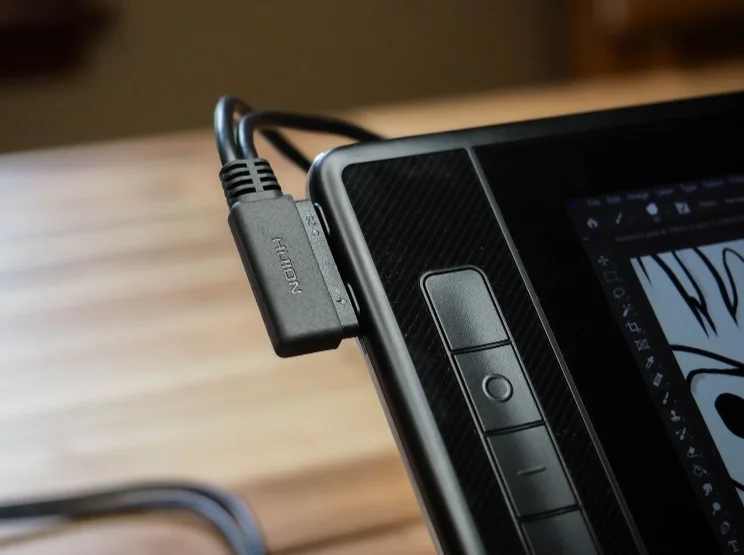

Connecting Mode (1)， 3-in-2 cable（HDMI signal）: Supports Windows, macOS, please refer to the connection diagram.

Note: 1. Please insert the 3-in-2 cable to your computer and display correctly according to the signs on the plug and the display.

2. Users can also use other adapters, but make sure that they reach 5V/2A output or above.

Connecting Mode (2)， Full-featured USB-C to USB-C cable(DP signal)：Supports Windows, macOS, ChromeOS, and Android.

Note: 1. The USB-C ports of mobile phones, tablets and computers must at least support USB3.1 GEN1 data transfer protocol and DP1.2 at the same time.

2. For GT1302, users can buy an adapter separately.

Pen tablet mode: When the screen is turned off, Kamvas Pro 13/16 (2.5K) can also serve as a pen tablet, offering a more natural and comfortable way of creation.

Kamvas Pro 16 2.5K(GT1602) Compare to Kamvas Pro 16 (GT-156):

List of Compatible Android Devices: Compatible with SAMSUNG Galaxy Note 8/ Galaxy Note 9/ Galaxy Note 10/10+/10+5G/ Galaxy Note 20/20 Ultra 5G/ Galaxy S8/S8+/ Galaxy S9/S9+/ Galaxy S10/S10+/S10e/ Galaxy S20 5G/S20+ 5G/S20 Ultra 5G/S20 FE 5G/ Galaxy S21 5G/S21+ 5G/S21 Ultra 5G/ Galaxy Z Fold/ Galaxy Z Fold 2/ Galaxy Z Fold 3 5G/ Galaxy A90 5G/ Galaxy Tab S4/ Galaxy Tab S5e/ Galaxy Tab S6/S6 Lite/ Galaxy Tab S7/S7+/S7 FEHuawei P20/P20 Pro/P20 RS/ P30/P30 Pro/ P40/P40 Pro/P40 Pro+/ P50/P50 Pro/ Mate 10/Mate10 Pro/ Mate 20/Mate20 Pro/Mate20 X/ Mate 30/Mate30 Pro/Mate 30 RS/Mate 30E Pro/ Mate 40/Mate40 Pro/Mate 40 Pro+/Mate 40 RS/ Mate X/ Mate X2.

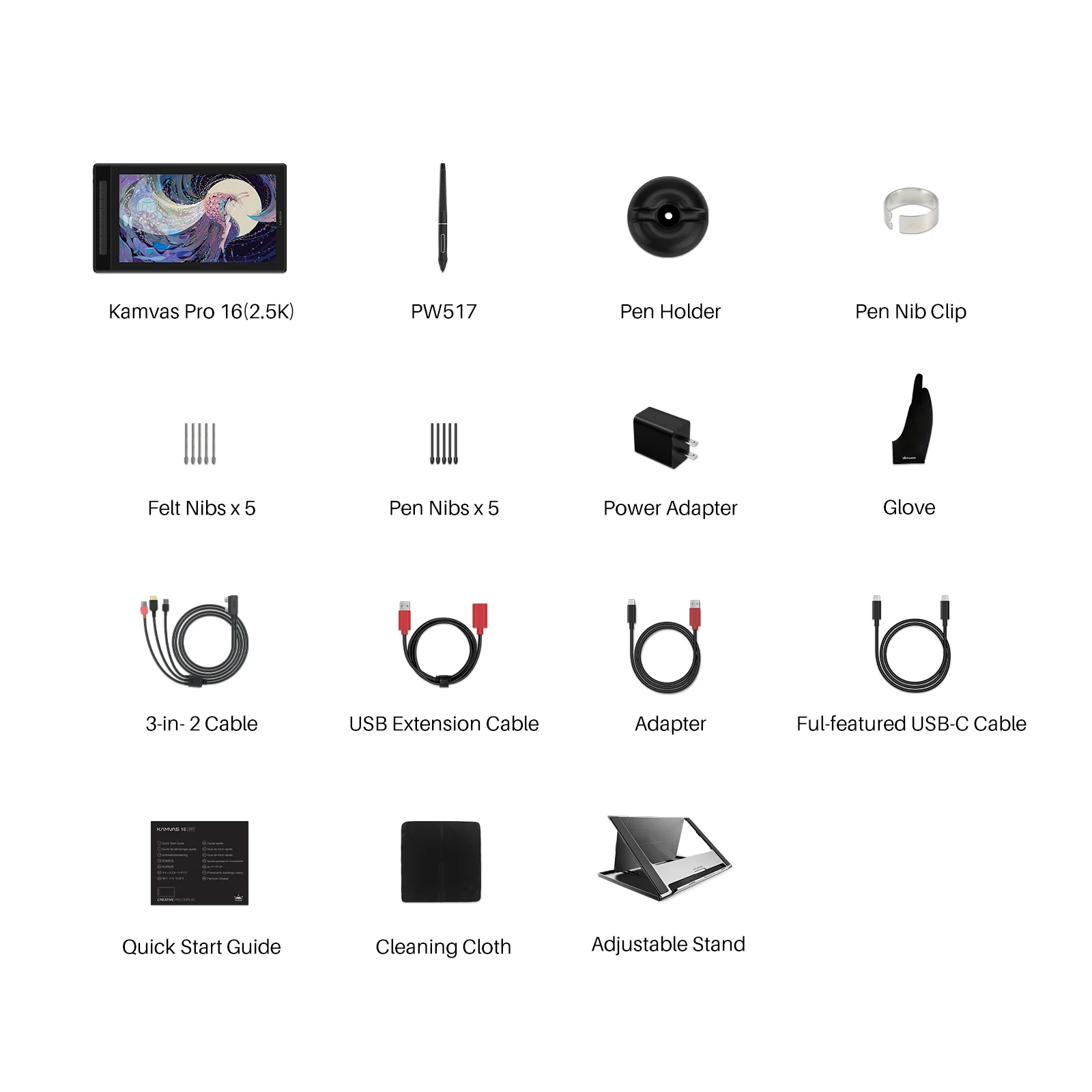

GT1602 Package Content: Kamvas Pro 16(2.5K) monitor, digital pen PW517, pen holder, 5 standard pen nibs, 5 felt nibs, nib clip, power adapter, 3 in 2 cable, full feature USB-C to USB-C cable (1m length), extended cable, power cable, stand, glove, quick start guide, cleaning cloth.
