HUION Kamvas 22

Large size pen display

21.5 inch display provides a wide place for creation.

Anti-glare Matte Film

1, Alleviate the glare effect caused by surroundings and ensure clear visual effect even under bright light conditions.
2, Matte finish that is more similar to the texture of paper.

120% sRGB Color Gamut

Boasting 16.7M（8bit）display colors, 120% sRGB color gamut ensures a better display effect with more natural colors.

178°Wide Viewing Angle

The application of the IPS screen technology ensures a wide viewing angle of 178° which allows clear and vivid display of your work without distortion.

1920x1080 Display Resolution

1920×1080 display resolution enables more details to be revealed on the screen, with each pixel to be presented in a more delicate way.

Top Thin Bottom Thick Design

The pen display is slim and slender with the thickness from 19mm to 26.7mm.

OS Support

Strong compatibility supports connections to computer, tablet and phone running Windows, macOS and Android（At least supports USB3.1 GEN1 & DP1.2）

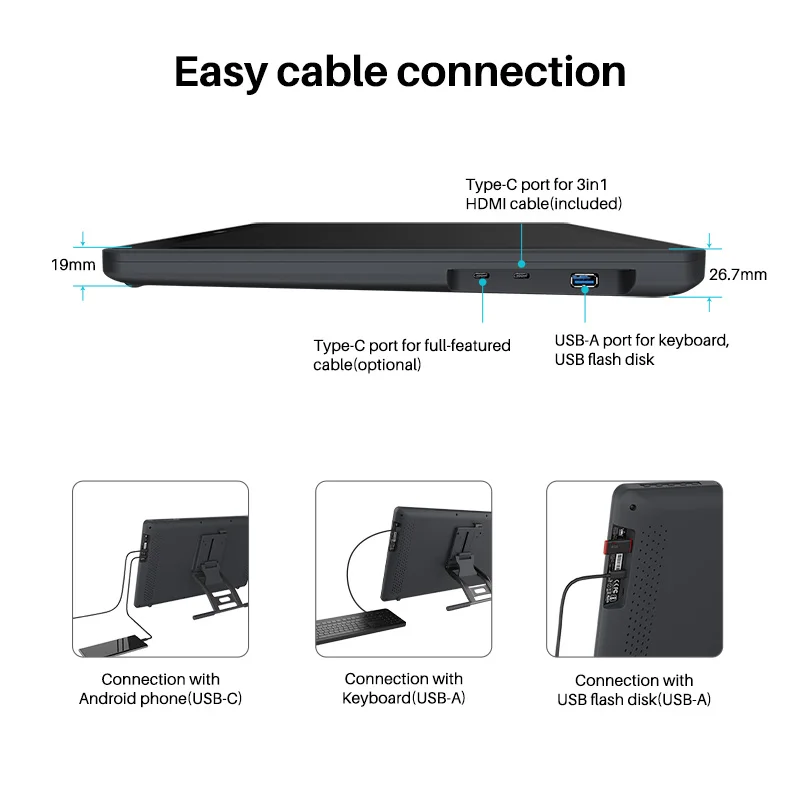

Two USB-C Ports Facilitate Connections

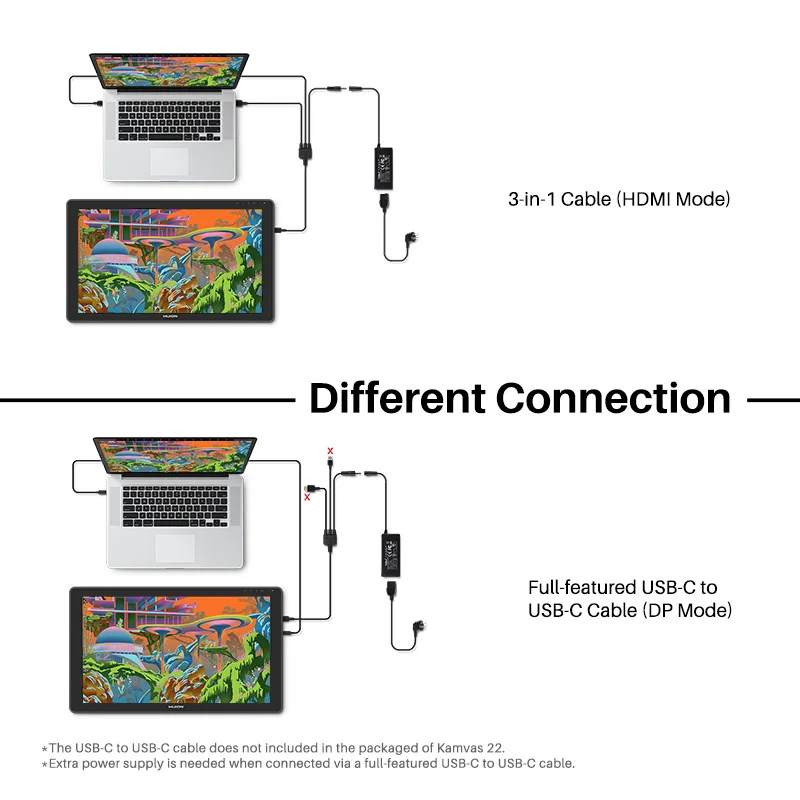

1, 3-in-1 USB-C Port (HDMI Signal): Connect your pen display to computer and power supply via a 3-in-1 cable.

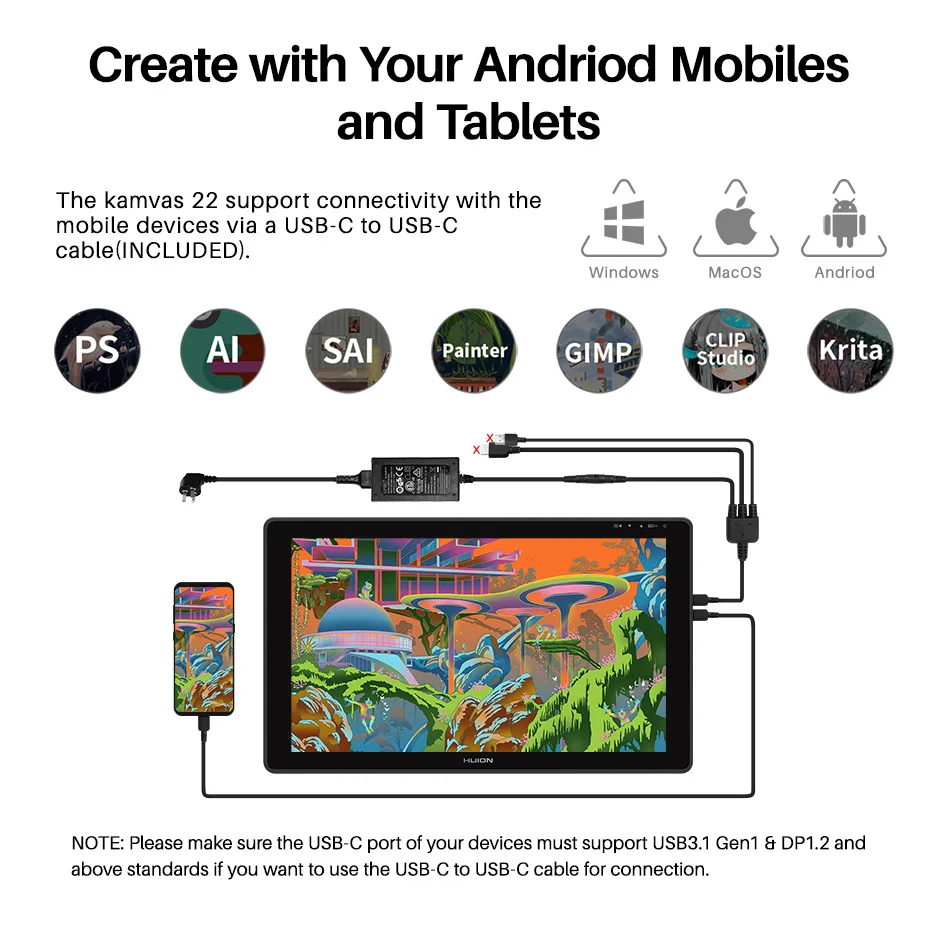

2, Full-featured USB-C Port (DP Signal): Connect your pen display to computer or Android phone via a full-featured USB-C to USB-C cable, and a 3-in-1 cable for extra power supply.

(Note：Please make sure the USB-C port of the phones, tablets and computers at least supports USB3.1 GEN1 data transfer protocol and DP1.2.)

*USB-A Port: Connect to external equipment such as keyboard, USB flash drive, etc.

Pen Technology

8192Levels Pressure Sensitivity, 266PPS Report Rate, 5080LPI Pen Resolution

Digital Pen PW517

1, Adopted the PenTech3.0, digital pen PW517 needs no battery or charge and brings more accurate measurement on pressure sensitivity.

2, In drawing software that support tilt recognition, of which Photoshop is an example, lines input with different gestures can be reproduced precisely without compromising of the lifelike drawing experience.

3, The magnetic core position of PW517 is lowered to 3.5mm which ensures more precise positioning.

4, From PW507 to PW517, idling distance is shortened from 0.8mm to 0.3mm, which ensures a more lifelike drawing experience, just like you're using a real pen.

(idling：the state when the pen nib contacts the surface of the tablet but doesn't work)

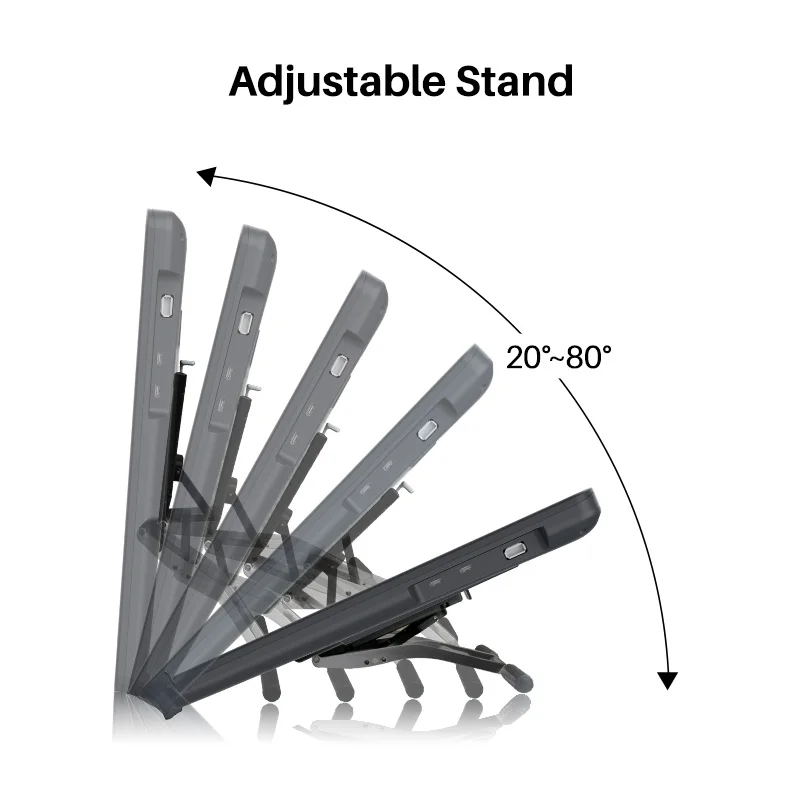

Adjustable stand

Metallic stand with angles ranging from 20°to 80°for adjustment is easy to operate and stable to use, and the metallic grey color looks harmonious with the pen display.

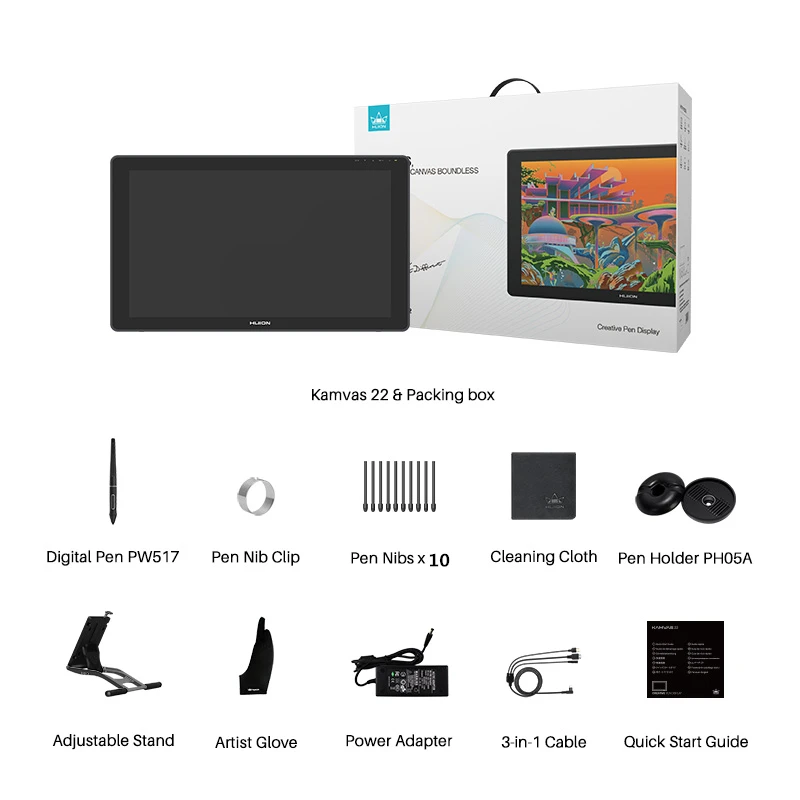

Accessories

1 Digital Pen
2 Pen Holder PH05A
3 Pen Nib x 10
4 Nib Clip
5 Power Adapter
6 Power Cable
7 3-in-1 Cable
8 Adjustable Stand ST100A
9 Glove
10 Quick Start Guide
11 Warranty Card
12 Cleaning Cloth
(*Type-C cable is optional)
