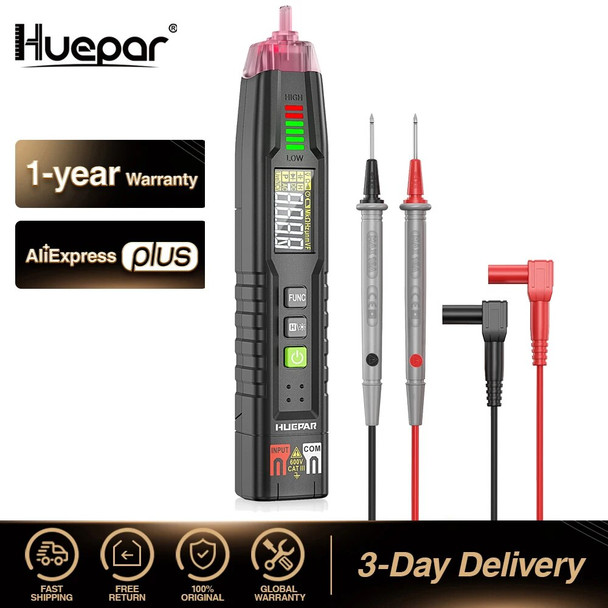

Huepar Smart Voltage Detector Digital Non-Contact Multimeter Voltage Tester Pen High Precision AC/DC Multimetro Voltmeter Tester

Huepar S60-G(S100-G/S120-G) Laser Distance Measure Specifications:

• Model：HT122

• Environment condition of using: 1.CAT. III 600V；2.Pollution level2, Altitude < 2000m

• Working temperature and humidity：0~40°C(<80% RH，<10°C non condensing)

• Storage temperature and humidity：-10~60°C(<70% RH, remove the battery)

• Temperature coefficient：0.1 accuracy /°C（<18°C or >28°C）。

• MAX. The voltage between terminals and the earth’s ground：600V

• Sampling rate: approx. 3 times/second.

• Display: 4000 counts

• Power requirement: 2 x 1.5V AAA batteries.

• Weight: 280g

• Pakage contents:

  1 x HT122 Multimeter pen

  1 x Testing probe

  1 x Multi-language instruction manual

  1 x Kraft paper box

All In One Design:

Multi-functional TesterHT122 is an electrician tool that combines a non-contact test pen with a multimeter, and is a multifunctional voltage tester for household use.One button to switch function is convenient and fast.

Smart measurement:

In this mode, DC voltage, AC voltage, resistance, and continuity can be measured, and the meter can automatically identify the measurement signal.

Multifunctional measurements:

The voltage tester do supports the following measurement modes :

- NCV measurement, - Smart measurement, - Frequency measurement, - Cap measurement, - Diode measurement, - Live wire detection, - Non contact phase sequencetest.

Note：

1.Power on is in NCV measurement mode by default.

2.Press and hold the H button for about 2 seconds to return to the NCV measurement mode.

LED lights : The Huepar multimeter is equipped with LED flash light inside the device, which can help you accurately find the points you need to measure in the dark.

Sockets for Probes：Anti-slip cover with test probe slots can protect voltage tester and organize probes as well.

Electric field strenth indicator bar：Enable users to clearly and quickly understand the strength of the electric field.

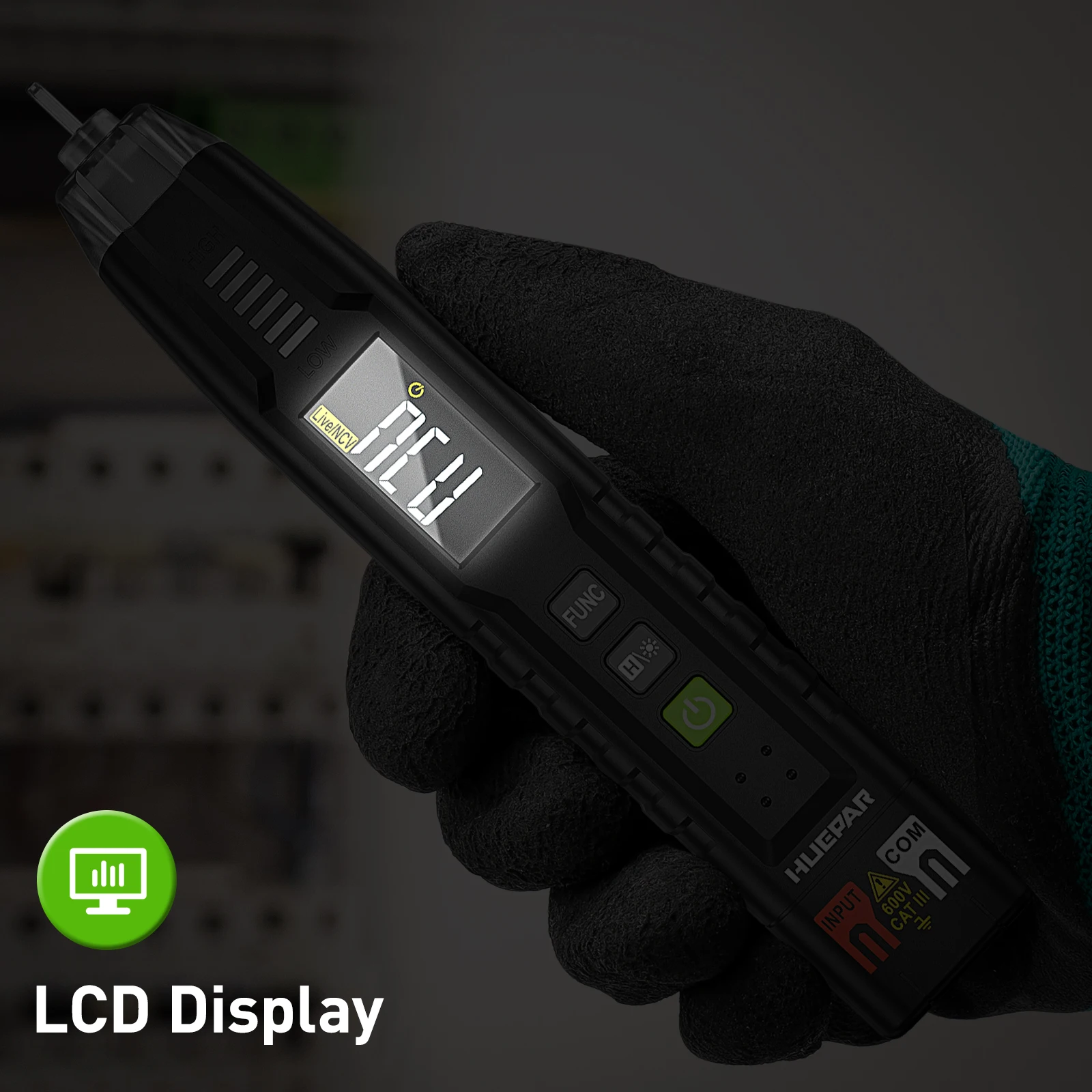

LCD Display :

The product is equipped with an LCD electronic screen, making reading clearer and more convenient during use .The backlit light design for clear readings and visibility in dimly light areas.

Breakpoint test:

Easy to check the strong electric field signal is detected.

Continuity test：

The multimeter supports continuous measurement and has the function of saving data. We come with a multilingual manual for your convenience when using the product.

Auto power off:

The product will automatically shut down after being left for 15 minutes, retaining battery power and extending usage time.

Great Portability:

The voltage pen is very small with portable per shaped, easy and convenient to carry.
