Product Description





Specification

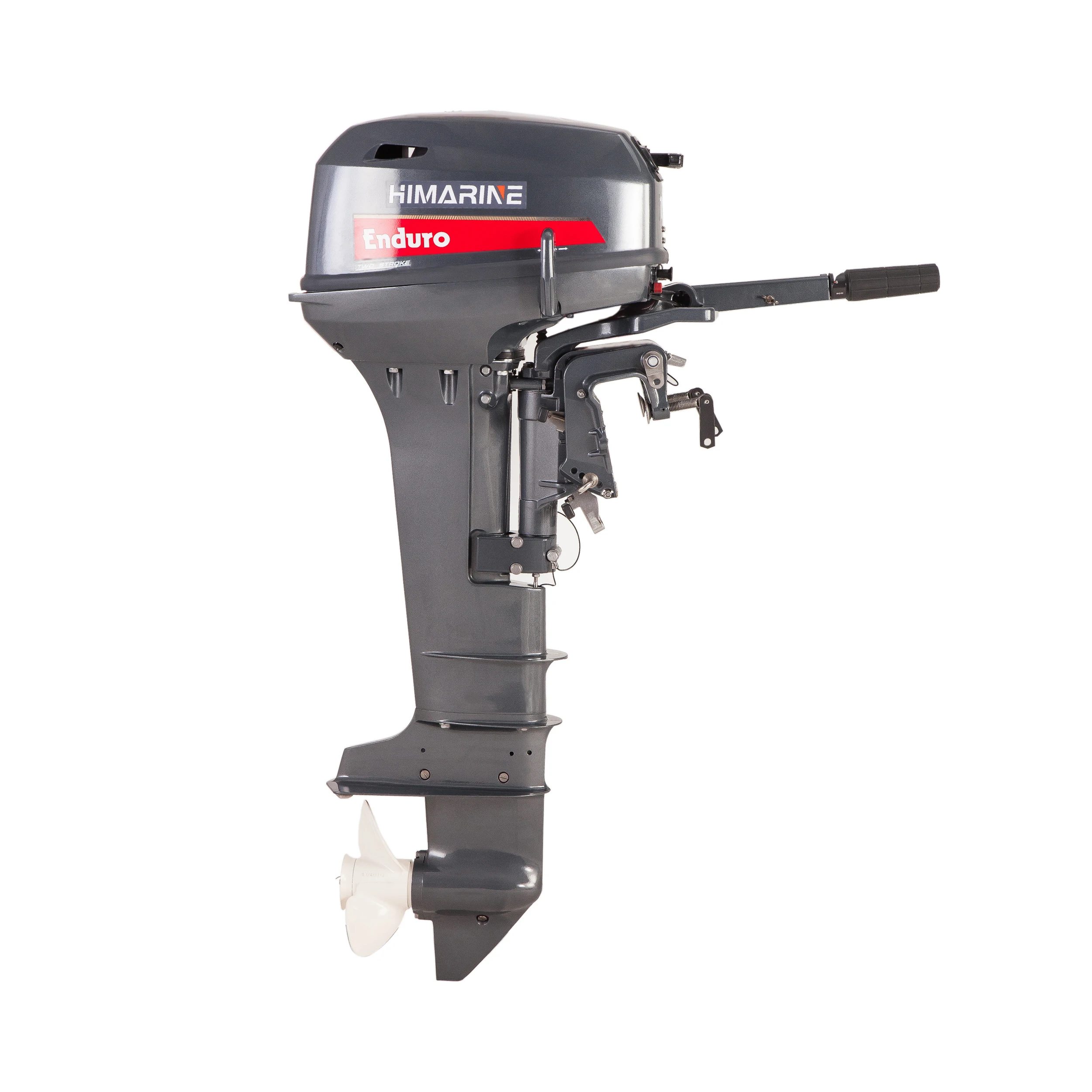

Model (2-stroke) | HMT15D |
Demension | Overall Length:878mm Overall Width:330mm Overall Height L:1,189mm |
Net Weight | Long Shaft:40.5 kg |
Gross Weight | Short shaft:50kg Long |
Full Throttle Operating Range | 4500-5500 r/m |
Maximum Output | 7.3 KW |
Idling Speed | 1050±50 r/m |
Displacement | 246 cc |
Bore&Stroke | 56*50mm |
Ignition Systerm | CDI |
Spark Plug | B7HS-10 |
Spark Plug Gap | 0.9-1.0 mm |
Control Systerm | Tiller Handle |
Starting Systerm | Manual |
Starting Carburetor Systerm | Choke Valve |
Gear Position | Forward-Neutral-Reverse |
Gear Transmission Ratio | 2.08 |
Trim and Tilt Systerm | Manual Tilt |
Recommended Fuel | Unlead Gasoline |
Recommended Engine Oil | 2-Stroke Outboard Motor Engine Oil |
Gear Oil | 0.250L |
Fuel Tanks Capacity | 24L |
Fuel Oil Ratio | 50:1 |
Package Size | 143.5*72*45 cm |

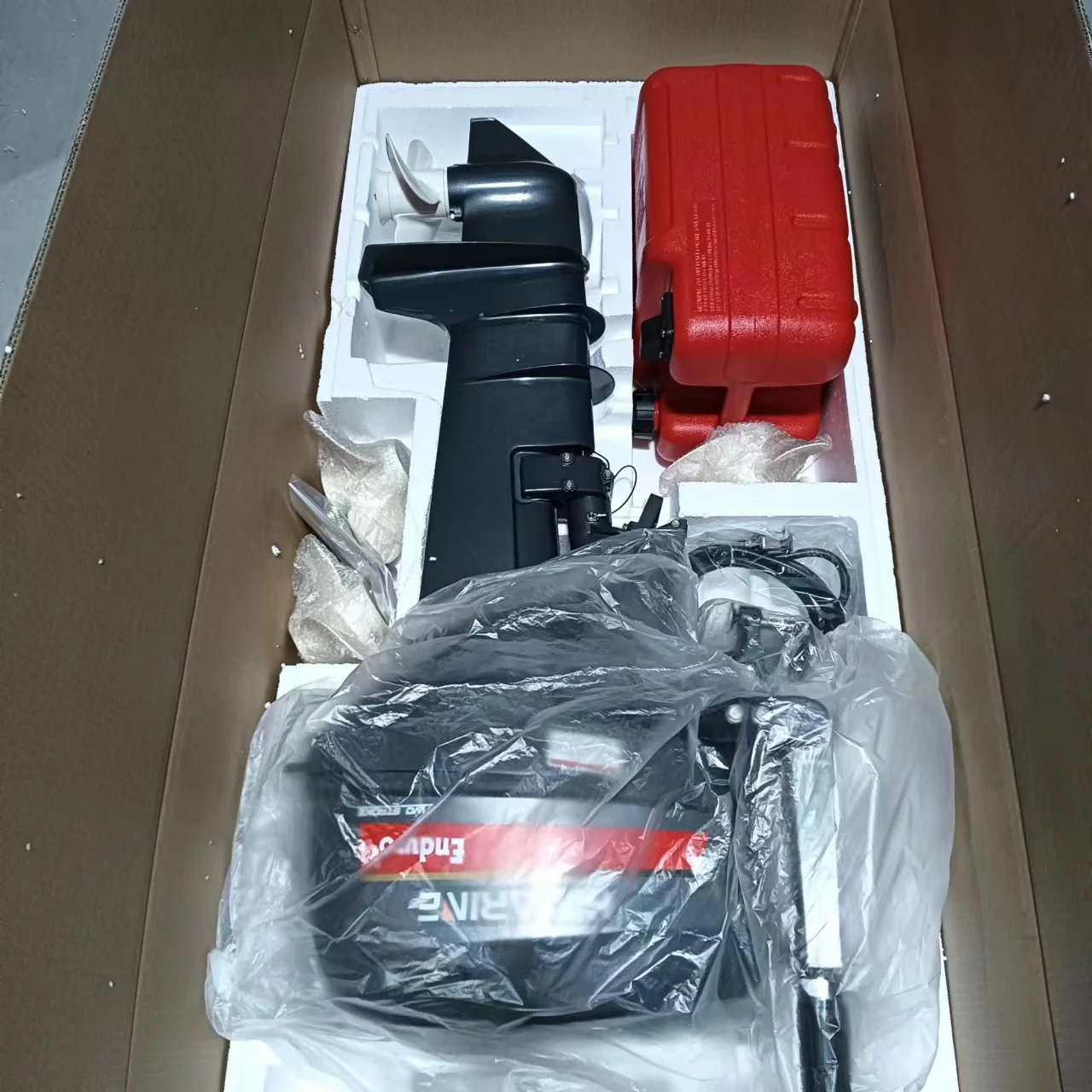

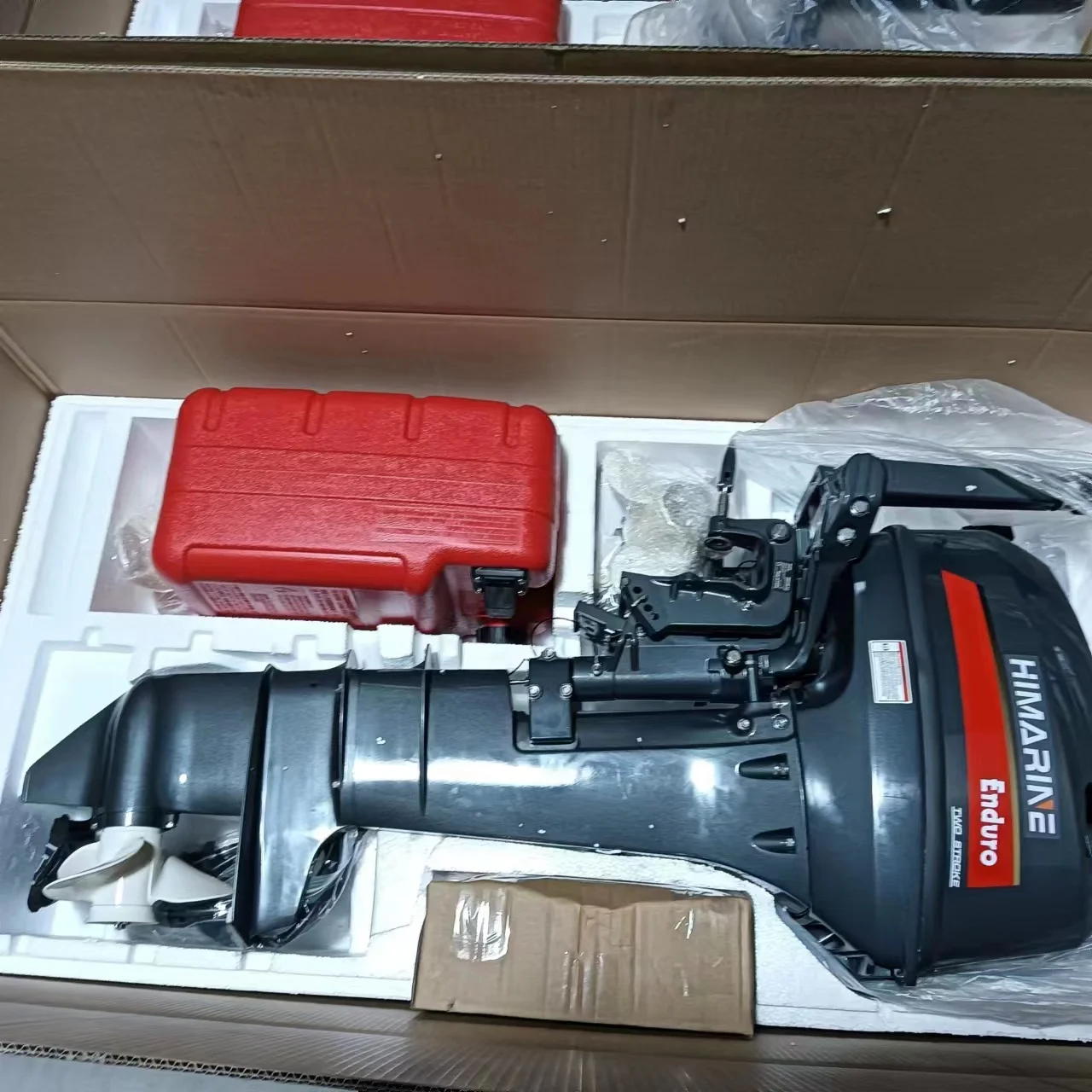

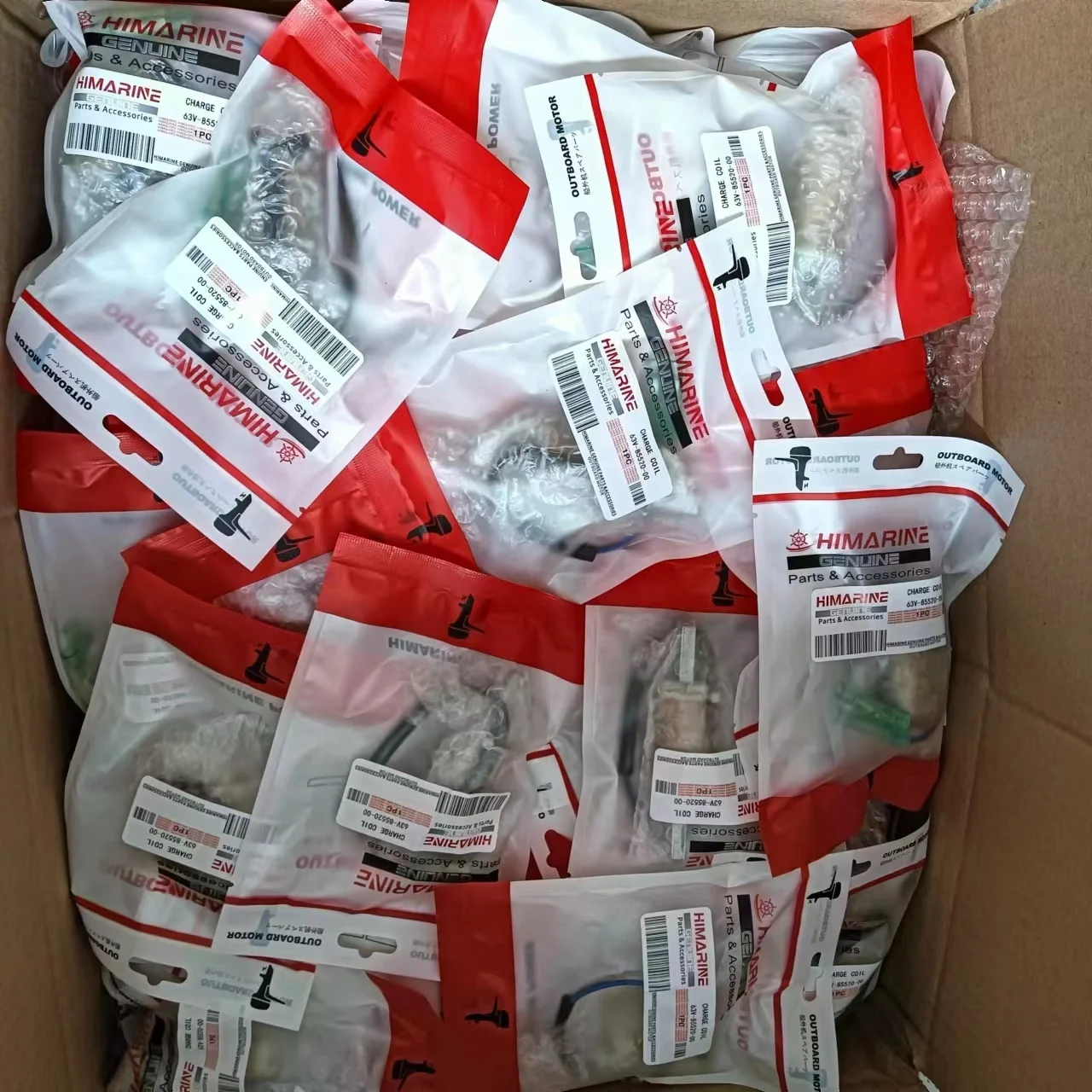

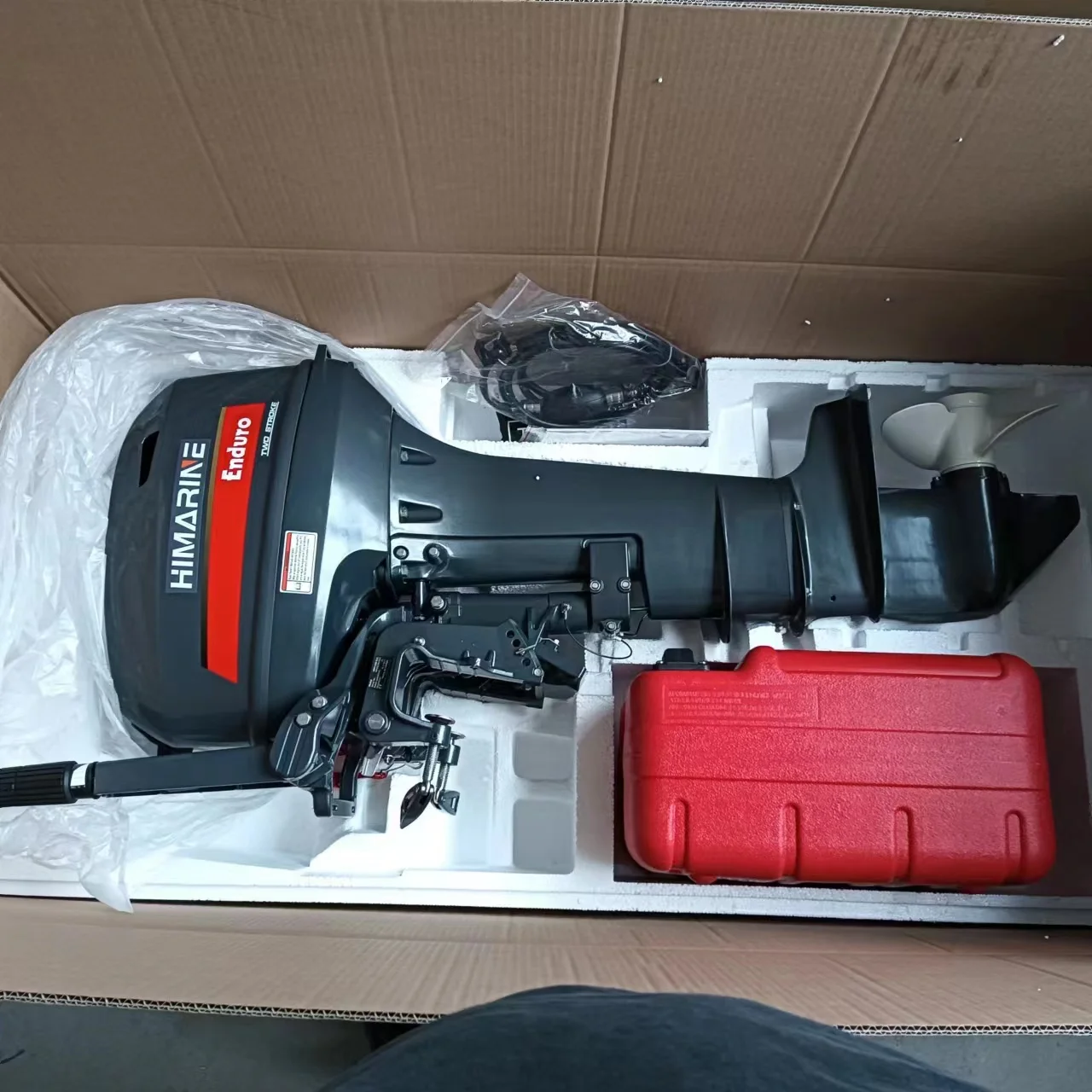

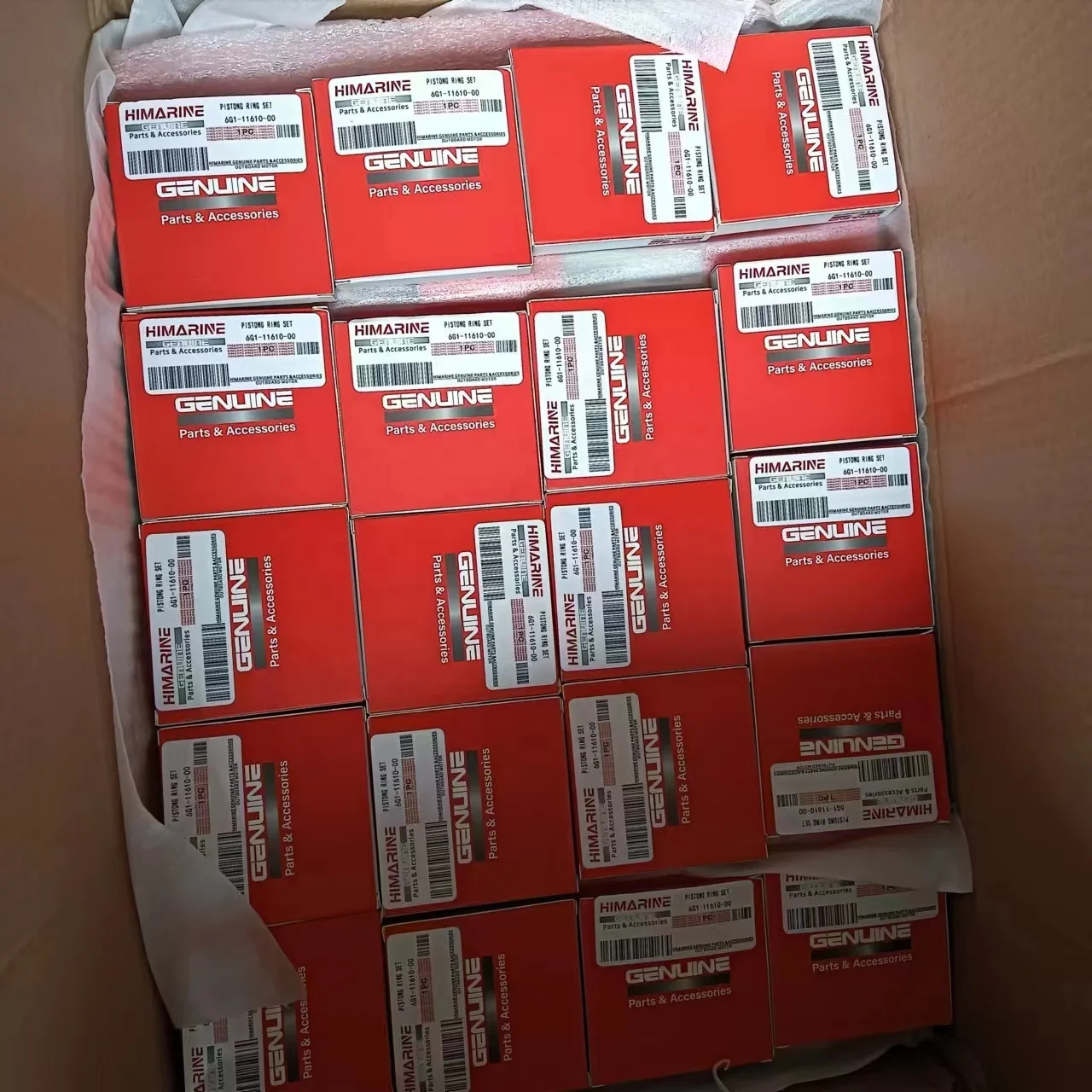

Packing & Delivery




Company Profile

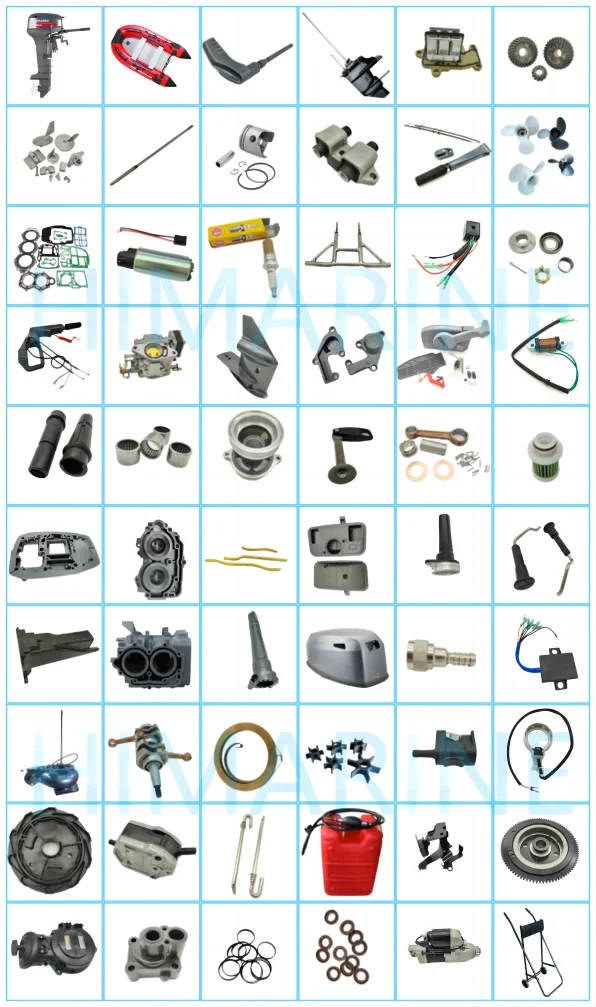

Yongkang Himarine Boat Engine Parts Co.,LTD is a new established trading company, specialized in outboard motor spare parts. Our staff team are from previous outboard motor manufacturing factory which improve our ability in sourcing spare parts in decent quality. Our spare parts will be including the most consumable parts of various brand outboard motors.Yamaha,Mercury,Suzuki, Tohatsu parts will be available. Products will be covering main items like propellers,various size of gears, drive shaft, propeller shaft, impellers, water pump repairing kits,hardware parts,carburetor,reed valve,fuel pump,fuel filter,fuel pipe&joint, electrical parts like CDI,charging coil, pulser coil,lighting coil,romote control systerm, steering systerm,Crank shaft, connecting rod, piston kits,etc. Our team members are young and energetic, we have the very simple dream to grow our business together with our valued customers. Honest and spirit of contract are our principle and foundation.
