Description
GTK 4000W Adjustable Charger 0-93V 30A 50-102V 45A 60V-120V 50A Lithium Battery 24V 36V 48V 30A 60V 72V 54.6v 45A 25A 40A 20A
Note :
This charger can charge lithium ion, lifepo4, LTO, lithium titanate, lipo, lead acid battery, current and voltage can be adjusted !!!
If 110V input , the output curretn only half !!
Product Descriptions:
Model TK-XNY-A003 aluminum case smart charger
Shell material: Aluminum
Dismensions :40*130*290mm
Charger Weight : 3kg about
Maximum output watt 4000W
Input voltage 110v or 220V, no both
Rated input voltage 110-230v 50-60 Hz
Highest output voltage 84V +/- 0.2Vdc
Error range +/- 0.2V
Output Current 0-45A /OR 0-50A
Error range +/- 0.2A
Smart charging modes (Constant Charge Current (CC), Constant Charge Voltage (CV)
Constant Voltage CV 0-102V or 66v-93v
Protection features:
Over voltage Protection Yes
Voltage Limit protection, Yes
Short circuit protection, Yes
Current limit protection Yes
Charging indicator
Power supply LED1: Red
Charging LED2: Red
Full Charged LED2:Green
OEM services : We provide. Can customize voltage and current .please contact us !

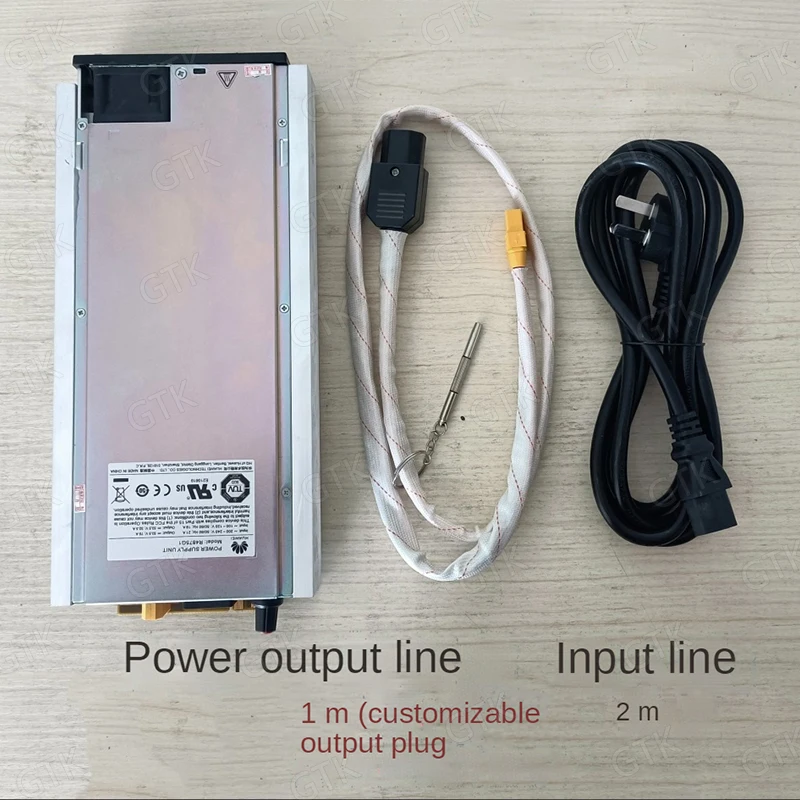

Charger AC plug: We provide EU AU US plugs , we will choose type fits your country.or you can leave a message tell us .Output plug ,please check picture blow
If you need other discharge plug , please feel free to contact us.
Remark
We focus on lithium, lifepo4 and ni-mh battery, accepting customized battery pack . If any battery you want which is not updated on our page, please feel free to contact us . Thank you.
