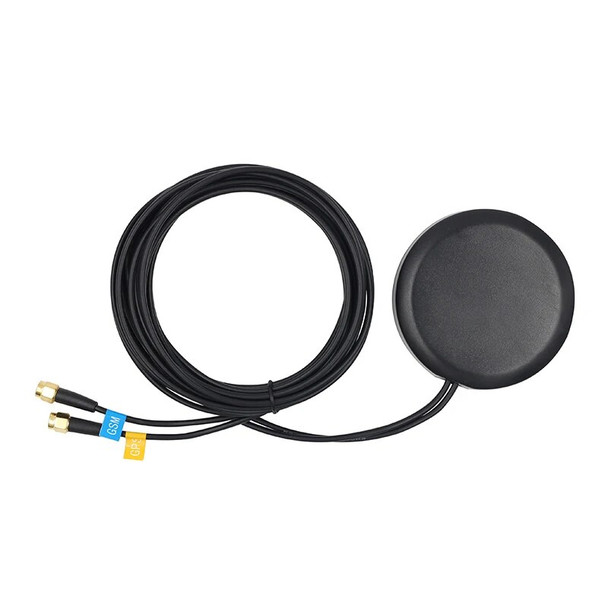

GPS+GSM Antenna

1.Electrical Specification

1.1 GPS Antenna Performance

Frequency Range

1575.42±3MHz

V.S.W.R

1.5 Max.

Band Width

5MHz

Impendence

50Ω

Gain

3.0dBi

Polarization

RHCP

1.2 GPS LNA Performance

Frequency Range

1575.42±3MHz

DC Voltage

3.0-5.0V

Gain

28dB±3dB

Noise Figure(Typical)

1.5dB

Out of Band Rejection(dB)

Fo=1575.42MHz

≥14dB@fo+50MHz

≥18dB@fo-50MHz

≥30dB@fo+100MHz

≥42dB@fo-100MHz

1.3 GSM Antenna Performance

Frequency Range

824-960MHz/1710-1990MHz

V.S.W.R

2.0 Max.

Impendence

50Ω

Gain

3.5dB

2. Mechanical Specification

Size

φ80*14mm

Color

Black

Cable Type

RG174

Cable Length

3m(customizable)

Connector Type

SMA Male, Straight(customizable)

Mounting Method

Magnet

Working Temperature

-40°C~+85°C

Humidity

95%-100%RH

Water Proof

100%
