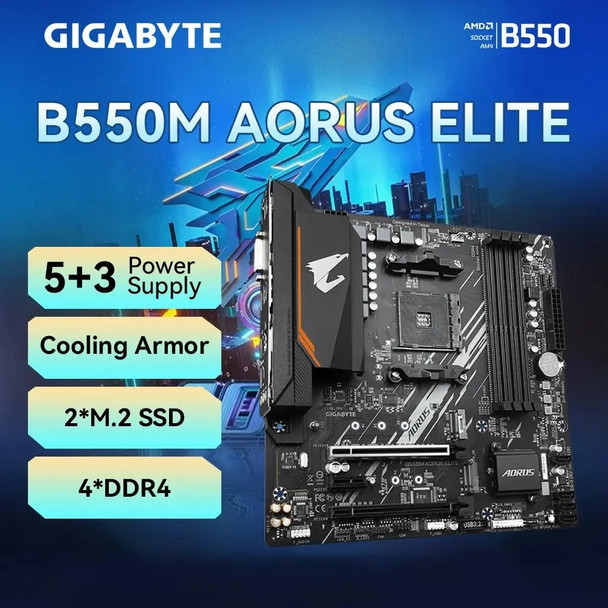

GIGABYTE B550M AORUS ELITE Motherboard AMD AM4 For Ryzen 3/4/5 Series CPU 4*DDR4, PCI-E 4.0 X16 ,4XSATA3.0 ,2xM.2, HDMI/DVI
Description
• High Compatibility :This GIGABYTE B550M AORUS ELITE motherboard is compatible with AMD Ryzen 3000 Series-R9 processors, making it a versatile choice for your desktop build.
• Advanced Chipset :Equipped with an AMD B550 chipset, this motherboard ensures high performance and stability for your computing needs.
• Next-gen Storage :With M.2 (NVMe) storage interface, this motherboard supports fast and efficient data transfer, enhancing your computing experience.
• Enhanced Connectivity :Featuring HDMI 2.1 back I/O ports and RJ45 onboard LAN, this motherboard provides high-speed connectivity for all your devices.
• Robust Cooling :The motherboard's Cooling Armor design helps to keep your system cool even under heavy loads, ensuring optimal performance.
• High RAM Capacity :With a maximum ram capacity of 128 GB, this motherboard can handle demanding applications and games with ease.
ProductInformation
Model GIGABYTE B550M AORUS ELITE
Chipset AMD B550
AMD AM4 CPU battery
RAM slot 4×DDR4
RAM standard DDR4 2133/2400/2666/3000/
3200/3400/3600MHz
Max RAM Capacity 128GB
SATA 4×SATA3.0 6Gb/s；
Network Realtek® GbE/Realtek Wi-Fi 6E
Video interface 1×HDMI、1×DVI
Plate size M-ATX，24.4CM*24.4CM
PCIE 1XPCI-E x16 PCI-E 3.0 1XPCI-E X1
Power supply 5+3 Power Supply

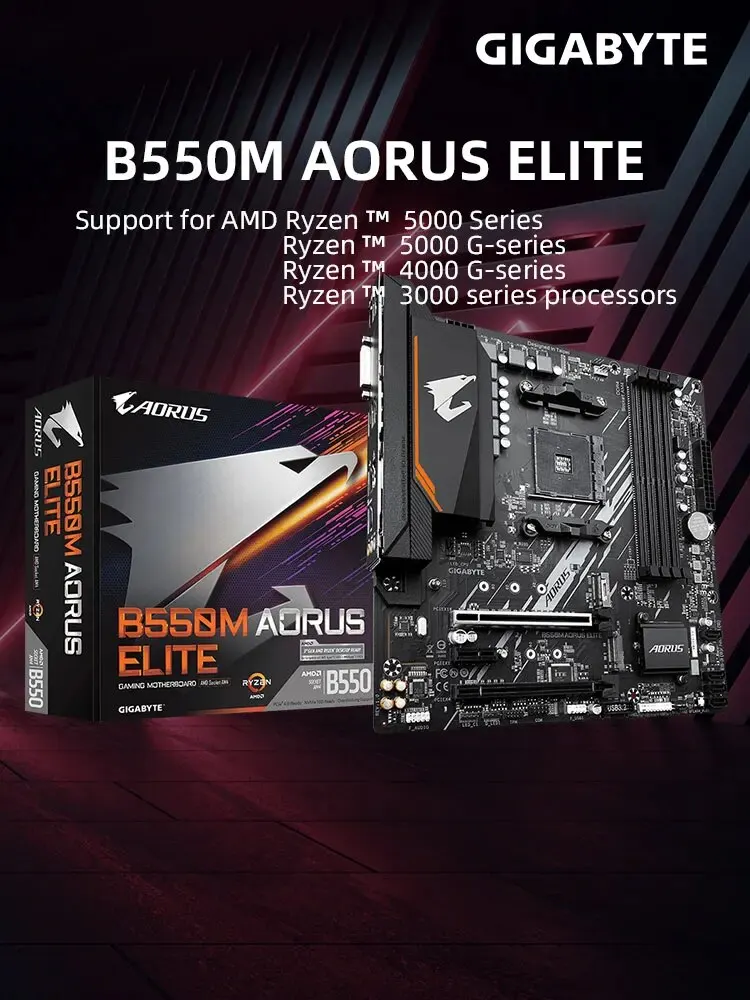

The motherboard supports AMD AM4 slots and supports: AMD Ryzen ™ 5000 Series/Ryzen ™ 5000 G-series/Ryzen ™ 4000 G-series and Ryzen ™ 3000 series processors

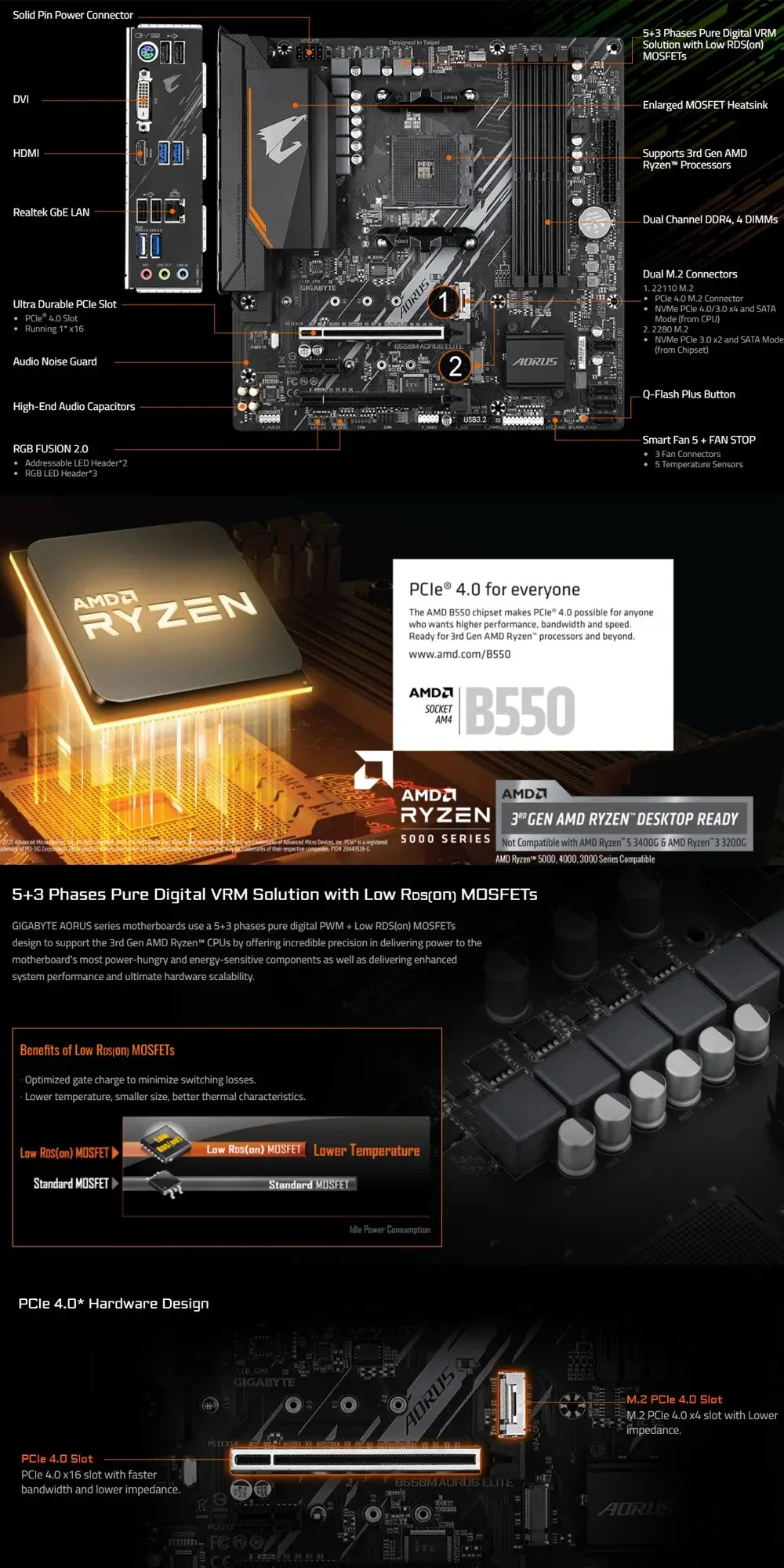

The motherboard has rich scalability; 5+3 Phases Pure Digital VRM Solution with Low Ros(on) MOSFETS
Realtek GbE LAN with Bandwidth Management;The Industry's Leading LAN Static-Electricity 8 Surge Protection
Hybrid Fan Pin Header;Update the BIOS easily without installing the CPU, memory and graphics card
NOTICE
*The words HDMI, HDMI High Definition Multimedia Interface, HDMI trade dress, and HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*The specifications, pictures, and other information of the above products are for reference only. If there is any inconsistency with the actual product, the actual product shall prevail. Gigabyte Technology reserves the right to make modifications at * time. Gigabyte Technology shall not be liable for any losses caused by *'s use of the above data.
*The performance indicators of this product are based on the theoretical values proposed by various chip manufacturers or official interface organizations. The actual performance may vary depending on specifications and equipment.
*The trademarks and enterprise identification diagrams used in this article are the property of their legitimate owners.
*Based on the basic architecture of PC, some memory space needs to be reserved for system purposes, so the detected memory size will be smaller than in reality.
