USB Splitter box network switch USB KVM SWITCH USB sharing switch USB HUB 8K@30Hz USB LAN Switch Extended Screen

1. Description

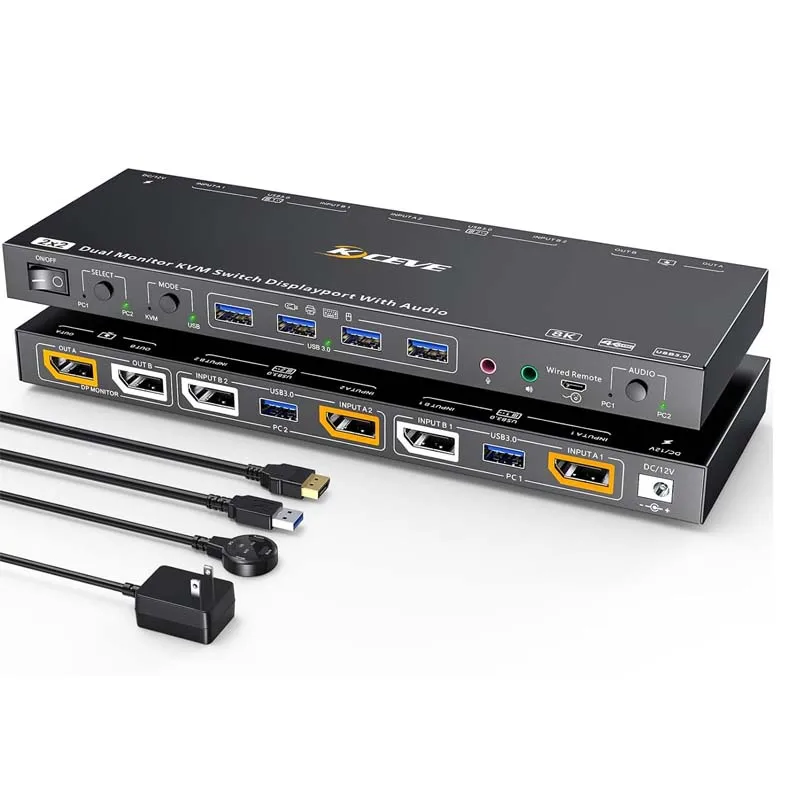

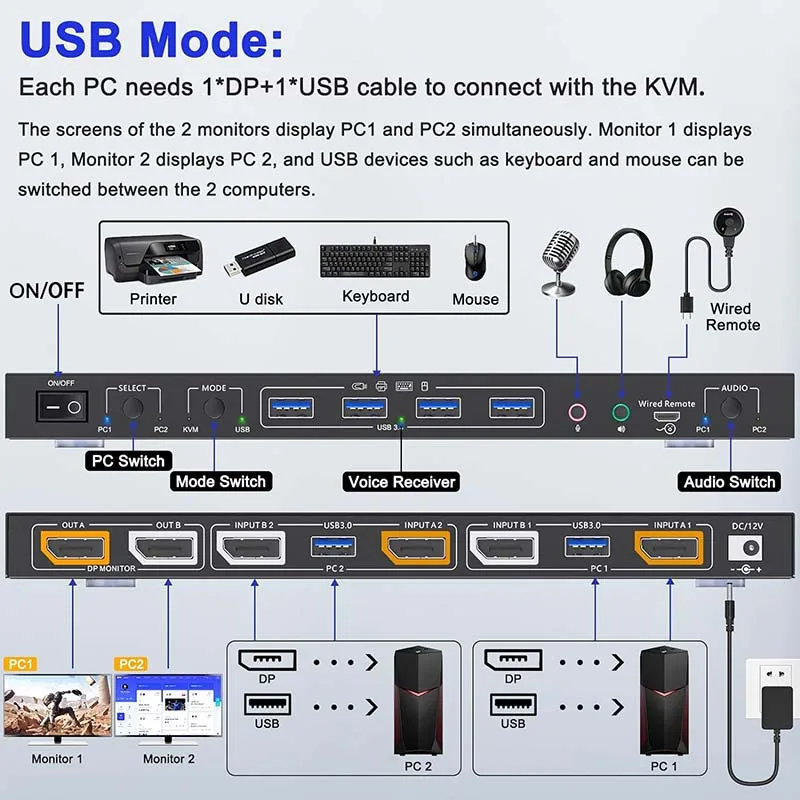

This USB & Displayport KVM switch can control 2 computers or laptops with 1 set of keyboard and mouse, share 2 monitors and 4 USB3.0 hubs.

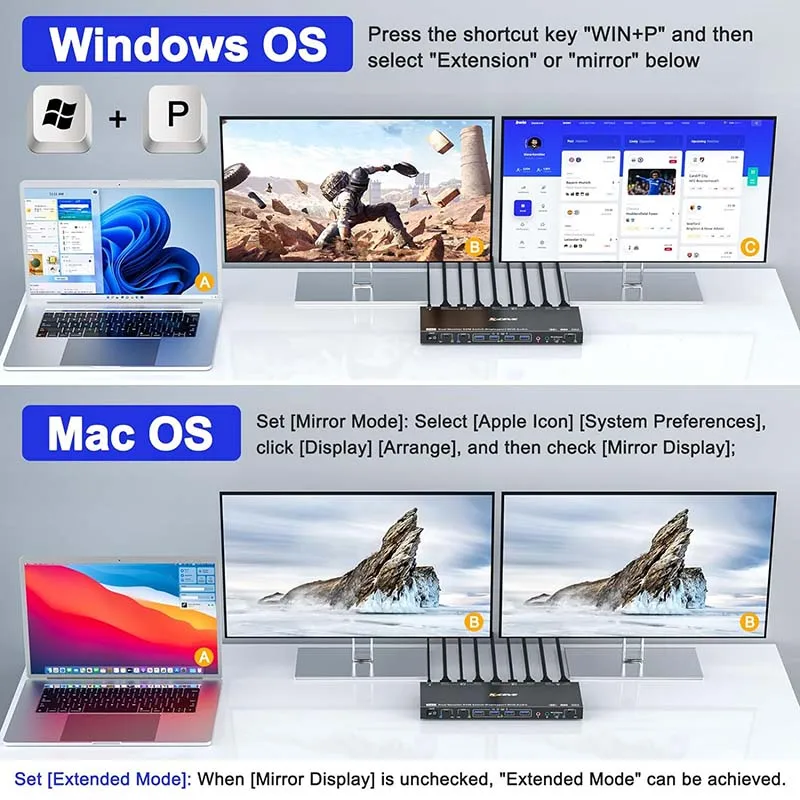

Supports multiple display modes (extended,mirrored and splicing wall).

It is the best KVM switch to improve your productivity and make your workspace tidier, also a premium choice for work and home.

2. Features

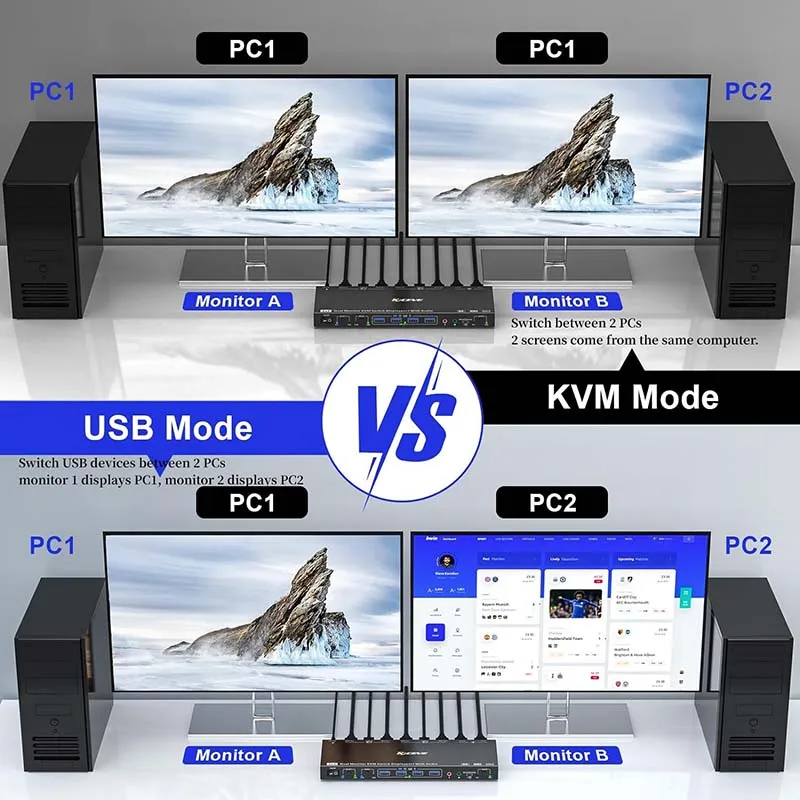

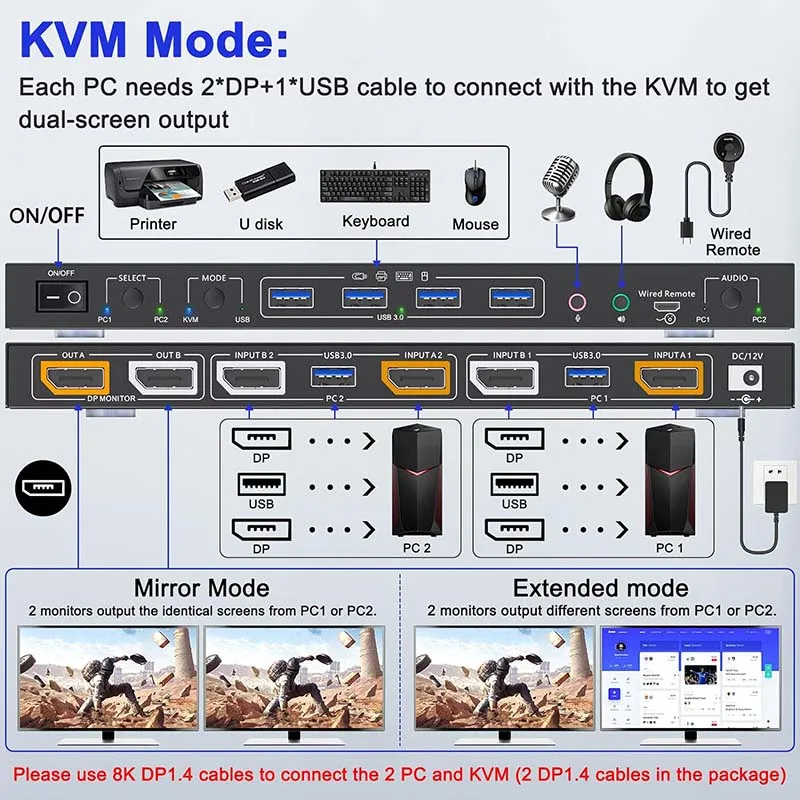

>. Dual monitors output support extended, mirrored and splicing wall display

>. Displayport 1.4 Compatible input and output ports

>. Supports video resolutions up to 8K@30Hz; 4K@144Hz

>. Support Deep Color

>. Switching modes: Physical button and wired remote

>. High compatibility, can auto-match source and display device

>. Built-in automatic adjustment system, make the image smooth, clear and stable;

>. Built-in ESD protection system

>. Simple to install, plug and play

3. Packing list

DP KVM Switcher----------------------------1 pc

USB cable------------------------------------2 pcs

Wired remote --------------------------------1 pc

User manual----------------------------------1 pc

4. Specifications

    Video

               Standards :Displayport 1.4

               Resolution range: 7680*4320@30Hz; 3840*2160@144Hz/120Hz/60Hz,

                                            3440*1440@144Hz/120Hz/60Hz；

                                            2560*1440@144Hz/120Hz；

                                            1920*1080@240Hz/165Hz/144Hz/120Hz/60Hz;

                                            (Depending on the system and the connected hardware)

              Connector :Standard DP Interface

             DP Cable Range(Total) :<8M(Res:1920*1080@60Hz)

                                                   <5M (Res:3840*2160@60Hz)

                                                   <3M (Res:7680*4320@30Hz)(3440*1440@144Hz)

   USB

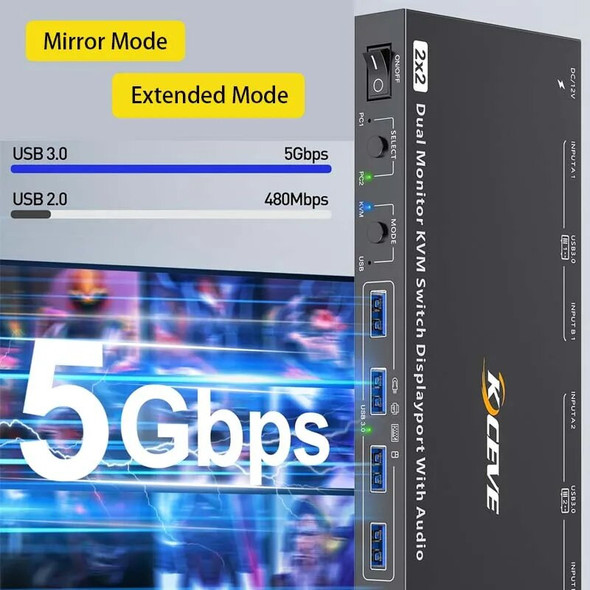

             Interface protocols :USB3.0 or USB2.0（depends on product version ）

             PC input :USB-A(USB3.0); or USB-B(USB2.0)

            Output :USB-A

   Other

            Power supply :DC12V Power

            Power dissipation :MAX 5W

            Temperature Operating: -5℃ ~ +70℃

            Humidity Operating: 5% ~ 90%
