Description
1 years warranty , Lead time:
220V: 2-3 days
110V: 3-5 days
Introduction

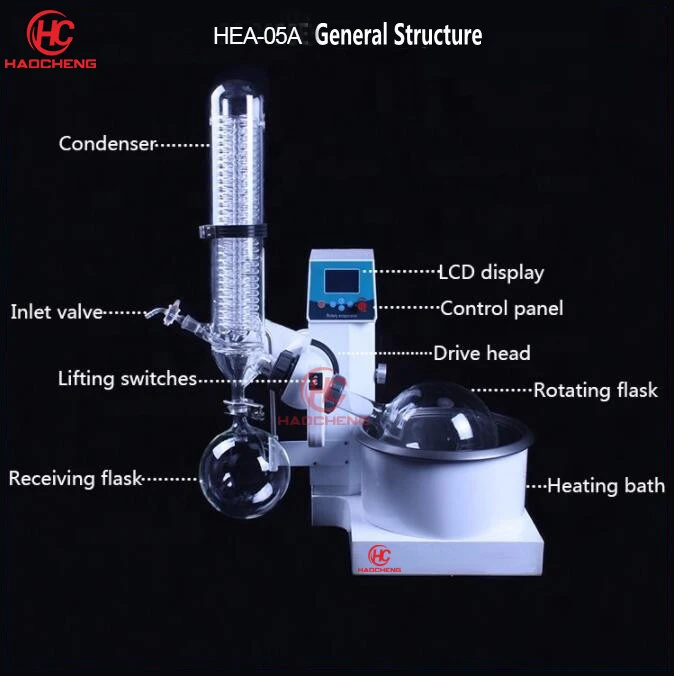

The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.
Feature
◎ High vacuum performance.
◎ Electrical lifting with easy and quick operation.
◎ High borosilicate glass 3.3(GG-17), good physical and chemical properties.
◎ PTFE sealing parts and tight sealing to offer high vacuum and high evaporation rate

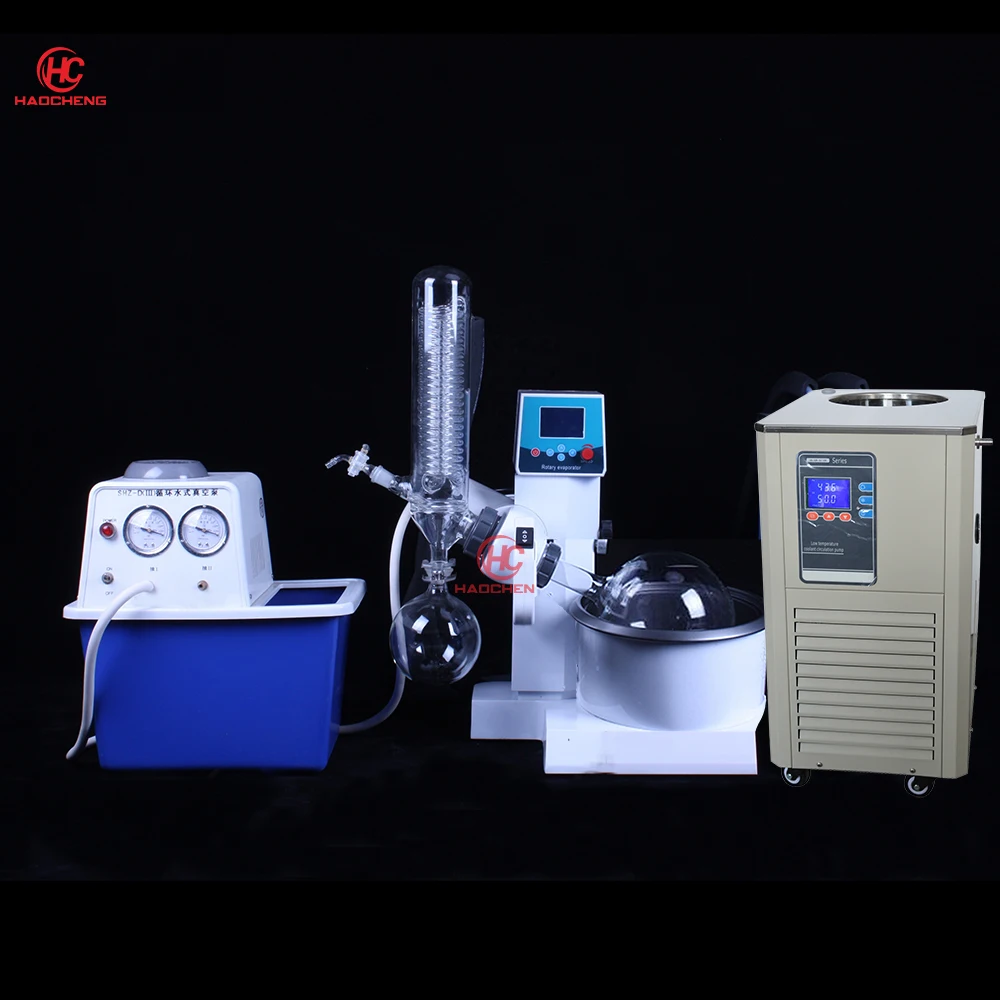

Matching Machines--Optional
Specifications:
Model | HEA-05 |
Condenser | Vertical Condenser |
Collect Flask | 2L |
Rotary Flask | 5L |
Motor Power | 40W |
Power Voltage | 220/110V for Optional |
Bath Power | 1500 W |
Bath Volume | 5L |
Bath Material | SS304Combined Bath &Teflon Material Completely Closed Heated |
Evaporation Rate(Water) | 3.5L/ H |
Speed Range | 0 - 180 RPM |
Lift and Stroke | Water Bath Lifting with Eletric Control,150 mm |
Glass Material | GG-17 Glass |
Heating Temperature Range | Rm-99 Degree |
Heat Control | PID |
Heat control accuracy | ±1 Degree |
Ultimate Vacuum | 0.098 Mpa |
Dimensions (W x H x D) | 950×520×550 mm |
Weight | 75kg |
