For BMW 3 Series 4 Series F30 F35 2 Color Center Console AC Panel Ambient Light Radio Trim LED Dashboard Light Atmosphere Lamp

Fitment:

For 3 series F30 F31 F35 2012-2018

For 4 series F32 F33 F36 2013-2019

For 3GT F34 2013-2019

For M3 M4 F80 F82 F83 2013-2019

Specification:

Item Type: Ambient Light

Light Color: Orange/Blue

Material: ABS+PC

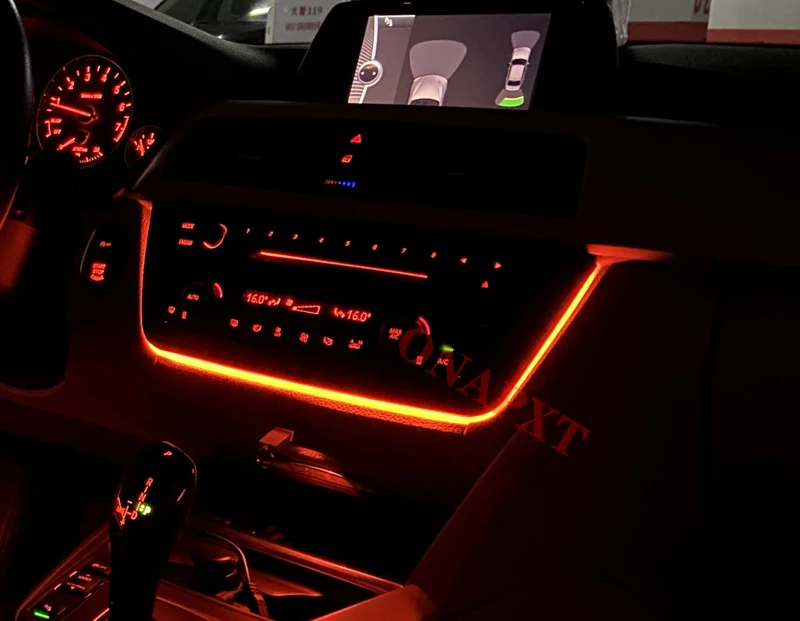

Installation position: Central console

Panel Color: Black /Silver /Carbon fiber

Packaging includ: Central console Panel*1

Installation :

1.Your center console panel has a 3-pin plug, which only needs to plug to installed.

2.If your center console panel does not have a 3-pin plug, you need to break the cable of

If your car is LCI model, or if your car is low configuration without cup holder lamp in the original car. Please refer to the second installation method.

First, disconnect the power supply to the vehicle, disassemble the panel of the dual flash lamp in the central control position, peal off the wires of dual flash lamp, find out the power wire and negative wire. Then peel off the plug of the central control atmosphere lamp ,connect the color line (the blue wire represents the blue light, and the orange wire represents the orange light) of the central control atmosphere lamp to the power line of the dual flash lamp. Finally, connect their negative wires together.

Piano black:

carbon fiber:
