Product  Description

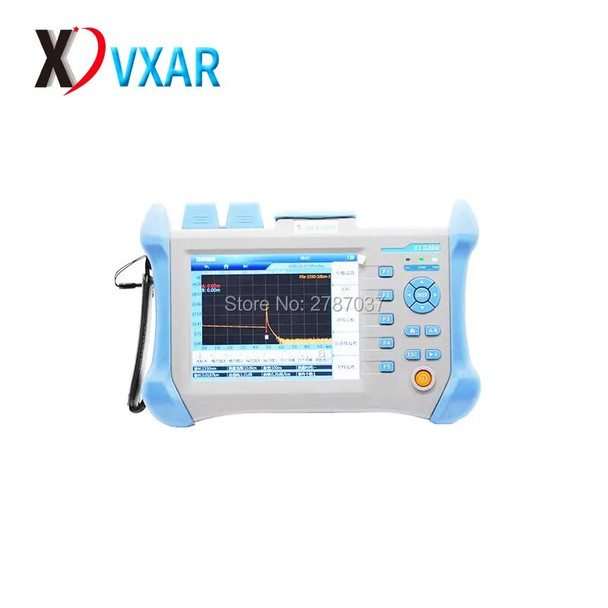

VX-OT300 Smart handy OTDR is portable fiber fault locator, it is quickly to detect fault location and type of optical fiber using OTDR element and stronger software analysis tool.

Product Features

1.5.6-Inch outdoor-enhanced touchscreen, 7.4V/4.4Ah Lithium battery

2.Event Dead zone as lower as 1.5meter

3.Combined multi-dynamic range and wavelengths

4.Muti measurement mode, support Touching LCD and pressing keys

5.Warning function could prevent OTDR module from being damaged by optical signal in fiber.

6.Realtime measuring function, convenient to monitor the splicing process
7.Integrated 10mw Visual Fault Locator
8.Support English/ Chinese input, adopts friendly input interface, totally simulate the
computer keyboard input
9.Integrated with 8GB internal memory, more than 80,000 groups curve storage

10.PC remote access and control function is available, which support the printing work of the measurement report

Functions:

1.Automatic Measurement Mode:Operators do not need to choose the test distance and
pulse width, the tester will automatically judge the length, and choose suitable dynamic range
as well as pulse width to complete the work; The storage of event trace can be saves
manually or automatically which will be convenient for data analysis
2. Multiple Wavelengths Measurement Mode:In order to use different wavelengths to
execute the loss calculation in one fiber, we can choose duplex wavelengths test mode from
parameter settings, the tester will switch wavelengths automatically
3. Multiple Trace Analysis:Simultaneous display 4 traces, operators can compare the traces
and make analysis of any ones among the traces
4. Online Test:This will protect the test instruments and equipment
5. Duplex Operation Mode: Pure operation through touch screen ; or pure operation
through the pressing keys
6. Data Analysis:
 Save and generator standard trace file(. Sor), more than 20000 groups storage capacity:
 Print the analysis report and traces which make the acceptance or work easily;
