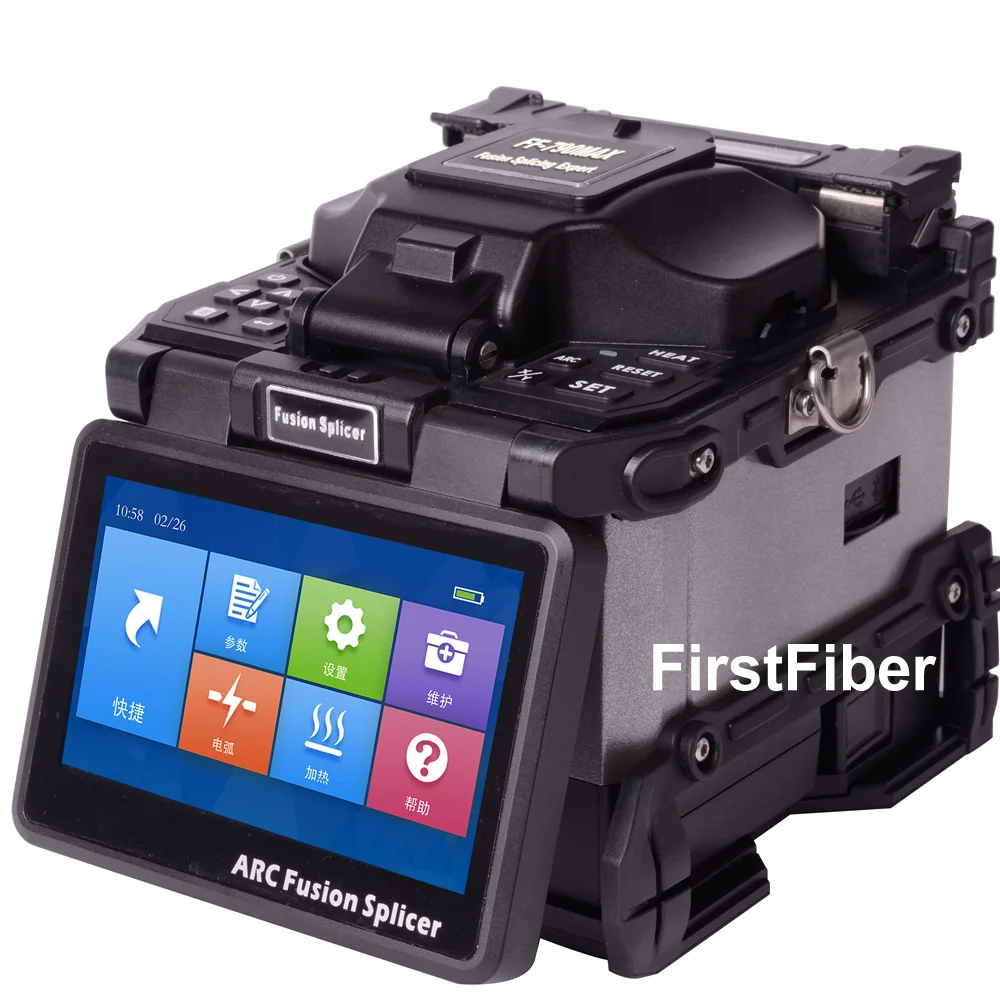

FF-790MAX 6 Motors Optical Fiber Fusion Splicing Fiber Optic Splicer Core to Core Alignment
(No reviews yet)
Write a Review
Description
FF-790MAX Fiber fusion splicer is a 6-motor fusion splicer with the latest fiber core to core alignment technology, it has very stable performance and low
fusion loss, it is suitable for different fiber optical projects , including backbone, FTTx etc.
Features
- 1s boot up, 6s splicing, 16s heating
- 6 Motors
- Fiber type identification automatically
- Real-time ARC calibration automatically
- Inductive automatic heater, separate charging battery
- Industrial quad-core CPU
Accessories
| NO. | ITEM |
| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 | Strap |
Specifications
| Applicable fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) |
| Diameter of cladding | 80 -150μm |
| Diameter of coating | 160-900μm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 10-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 6 seconds |
| Typical heating time | 16 seconds |
| Fiber magnification | 250X (X or Y view), 125X (X and Y view) |
| Display screen | 5.0 inch color LCD monitor |
| Records storage | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 300 cycles splicing and heating, suppport separating charging |
| Power supply | Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V |
| Electrodes life | More than 4000 ARC discharges, can be replaced vonveniently |
| Ternimal | USB2.0 port, for software upgrading and records exporting |
| Operating conditions | Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
| Dimension | 160mm(L) * 136mm(W) * 140mm(H) (including rubber armor) |
| Weight | 2.20kg (including battery) |
