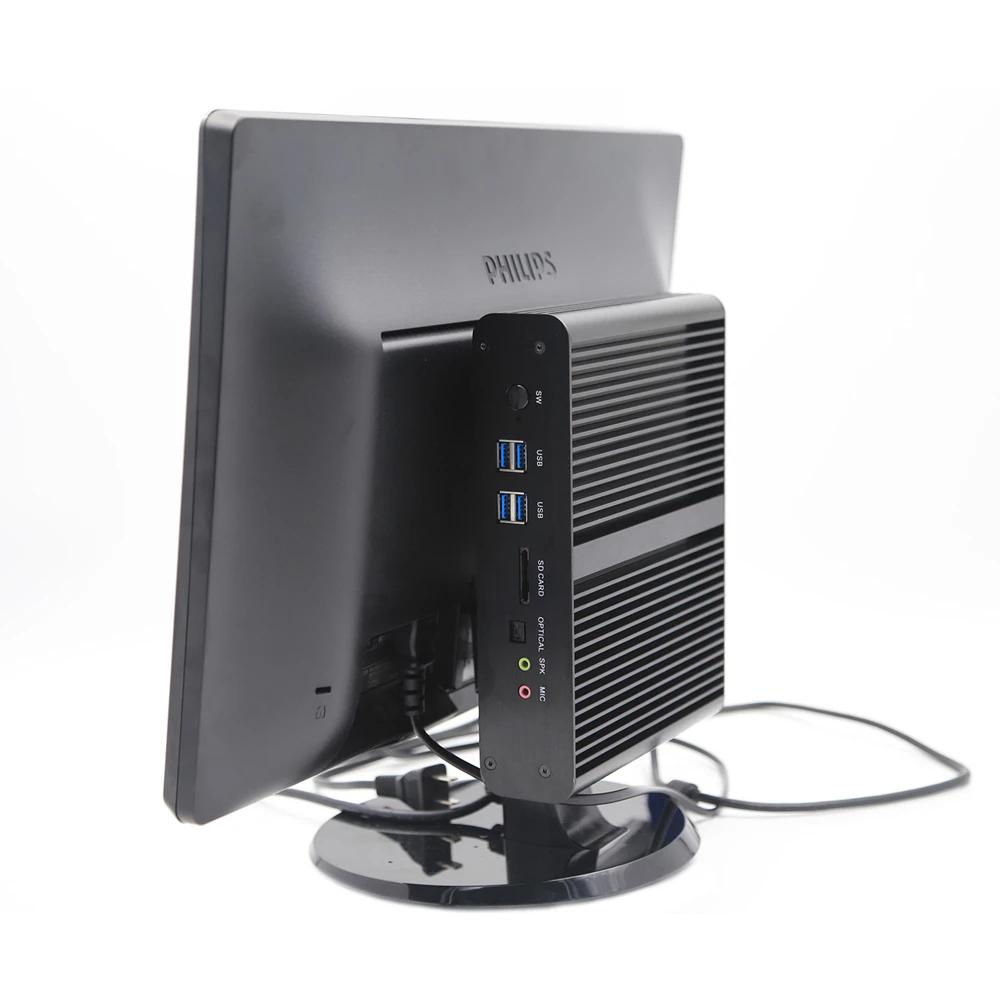

Fanless Mini PC 12th Gen Intel Core i7 1255U 1165G7 10710U Desktop Gaming Computer Barebone HTPC Aluminum Efficient Cooling WiFi
Description
Processors | Cores & Threads | Cache | Base Frequency | Max Turbo Frequency | Graphics |
Core i7-1255U | 10 cores, 12 threads | 12M | 1.70 GHz | 4.70 GHz | Intel Iris Xe Graphics up to 1.25GHz |
Core i7-10510U | 4 cores, 8 threads | 8M | 1.80 GHz | 4.90 GHz | Intel UHD Graphics up to 1.15GHz |
Core i7-10710U | 6 cores, 12 threads | 12M | 1.10 GHz | 4.70 GHz | Intel UHD Graphics up to 1.15GHz |
Core i7-1165G7 | 4 cores, 8 threads | 12M | 2.80 GHz | 4.70 GHz | Intel Iris Xe Graphics up to 1.30GHz |
Dimension:225mm(L)x185mm(W)x50mm(H)
CPU: Intel Core i7-1255U/i7-1165G7/i7-10710U/i7-10510U
GPU:Intel Iris Xe/UHD Graphics
Ram: 2 x SO-DIMM DDR4 slots, max 64GB 3200MHz
SSD: Support 1xM.2 2280 NVME/PCIE3.0x4 SSD+1xMSATA SSD+1x2.5 inch SATA SSD/HDD
WiFi: Dual band AC WiFi5 with Bluethooth4.2
I/O: 1 x Switch, 4 x USB 3.0, 4 x USB 2.0, 1 x HDMI, 1 x DP, 1 x RJ45 LAN, 1 x MIC, 1 x SPK, 1 x DC-IN
OS: Windows 11 pre-installed(except bareabone no storage bundle)
Power: 19V/4.74A
Heat-sink: fanless full aluminum case
What's in the package
Key Features | CPU | Intel Core i7 |
RAM | Support 2*DDR4 SODIMM ram | |
Storage | Support 1*mSATA SSD+1*M.2(NVMe) SSD+1*2.5'' SATA HDD/SSD installation together | |
Graphics | Intel UHD graphics, support ultra HD 4K resolution | |
I/O | 4*USB 3.0 port;4*USB 2.0 port; 1*RJ45 Gigabit LAN; 1*DP; 1*HDMI; 1*DC In; | |
Operating System | Windows 10, Linux, Ubuntu etc | |
Language | Multi Language | |
Feature | Fanless system design, without noise | |
USB port | 4*USB 3.0+4*USB 2.0 | |
Wireless | 802.11.b/g/n/ac, 2.4G/5G dual band WiFi&Bluetooth with 2 Antennas | |
HD Output | 1* HDMI port, 1*DP port, support dual 4K display | |
LAN port | 1* Gigabit Realtek RJ45 LAN speed up to 1Gbps | |
Power and Environment | Input | DC100-240V AC/50-60Hz |
Output | DC 19V~3A/5A | |
Operating Temperature | 0/70 Centigrade (32F~140F) | |
Storage Temperature | -20/+85 Centigrade | |
Relative Humidity | 0%~90% (non-condensing) | |
Energy-saving | Support Energy-saving technology, Speedstep | |
64 bit computing | Support 64 bit computing | |
Virtualization | Support Virtualization technology | |
Hyper-threading | Support Hyper-Threading | |
Consumption | 15W | |
Physical Properties | Material | Brushed Aluminum Alloy |
Weight | GW: 3Kg | |
Package Content | 1* Mini PC; 1*power adapter; 2* Antennas etc |
