Good News:

Send from China to EU/RU/UK by DPD or DHL, TAX Free, must choose seller's shipping method.

This Mini PC Motherboard can install 5 types of processors:

1. CPU Intel Core i3 5005U 2 core 4 threads 3MB cache 2.0GHz TDP 15WGraphics HD 5500.

2. CPU Intel Core i5 4200U 2 core 4 threads 3MB cache 1.6GHz Max 2.6GHz TDP 15WGraphics HD 4400.

3. CPU Intel Core i7 5550U 2 core 4 threads 4MB cache 2.0Ghz Max 3.0Ghz TDP 15W Graphics HD 6000.

4. CPU Intel Core i7 4500U 2 core 4 threads 4MB cache 1.8Ghz Max 3.0Ghz TDP 15W Graphics HD 4400.

5. CPU Intel Celeron 2955U 2 core 2 threads 2MB cache 1.4Ghz TDP 15W Graphics HD.

This link for CPU i7 4500U/i7 4510U Only, if need other CPU, please click above CPU separetely. Thank you.

Model	I4
General
CPU	Onboard Intel Core i3 4010U & i5 4200u & i7 4510u
Operating System	Windows (OEM) or Linux
Memory	1* DDR3L SDRAM Memory Slot, Max to 8G
MemoryType	DDR3L1333/1600LPDDR1333/1600
Storage	SSD: 8GB/16GB/32GB/64GB/128GB/256GB/512GB
Storage	HDD:80GB/160GB/320GB/500GB/750GB/1TB
Chipset	Intel QS77 Express
Processor Details
CPU	Intel Core i3 4010U
GPU	Intel® HD 4000 Graphics, support Blu-ray 1080P
Core code	Haswell
Technique	22nm
L1 data cache	2*32 KB
L2 data cache	2*256KB
L3 cache	3MB
Characteristic	MMX, SSE,SSE2,SSE3, SSE4.1,SSE4, AVX
BIOS	AMI BIOS, ACPI Supported
	Supportcallsonfunctionautomatically
	SupportWake-On-LAN
Function	Hyper-Threading, Virtualization Technology, 64 bit computing
Network Card	2* Intel 1000M 82574L Lan Ports
Audio Card	ALC892 HIFI
Audio Card	6channelsound
Ethernet	10/100/1000 BaseT Lan
WiFI	With dual antenna, 802.11b/g/n(300M WiFi as Default)

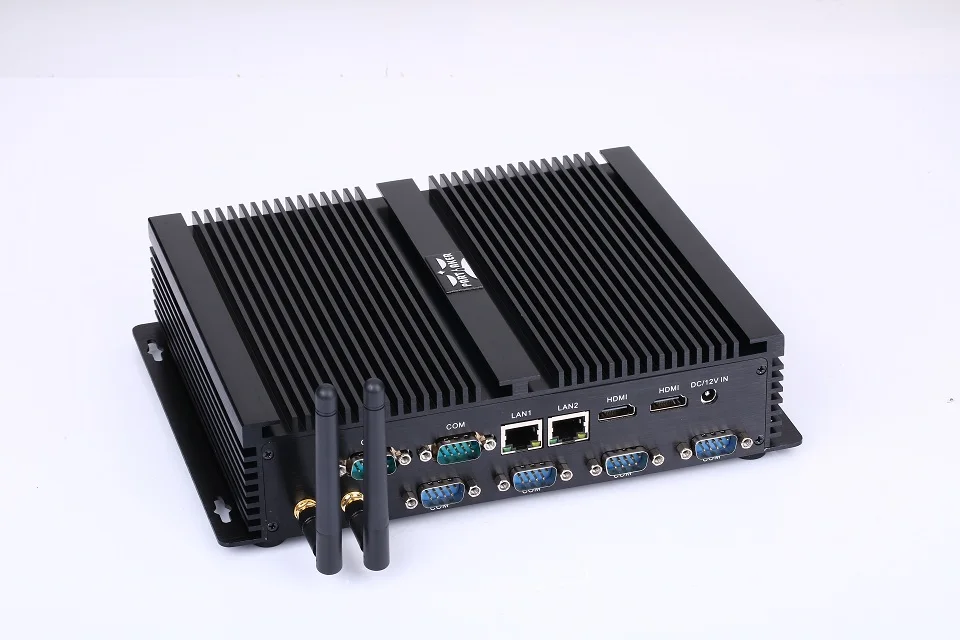

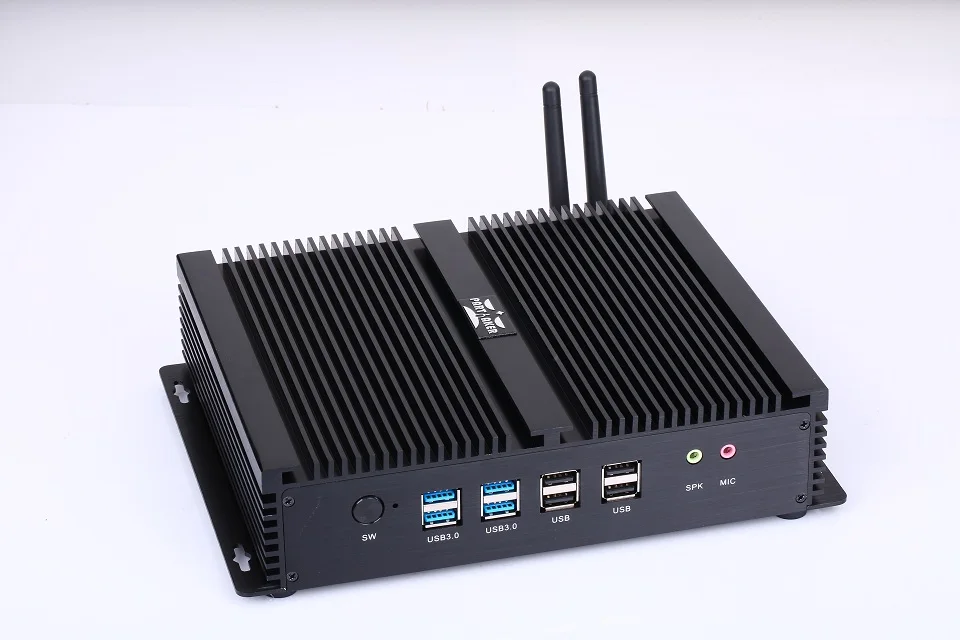

I/O Ports
Display Phort	2*HDMI Ports
USB Port	4* USB3.0
USB Port	4*USB2.0
COM Port	6 COM Port with RS232
SATA Port	1* MSATA 3.0, 6Gb/s;
SATA Port	1*SATA3.0,6Gb/s
Mini PCIE	1*MSATA SSD
Mini PCIE	1*WiFiModule
Ethernet	2* RJ45 Gigabit LAN Port
Power input port	1* DC12V IN
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC 12V~19V/6A
Consumption	15W
Operating Temperature	0/70 Centigrade(32F~140F)
Storage Temperature	(-20/+80)Centigrade
Relative Humidity	10%~90%(non-condensing)
Product Dimension&Details
Noise	Fanless System
Size	17.5X21X4.5cm
Weight	2.5KG
Shell	Black Color
Package Box	Neutral Color Box or INCTEL Color Box
Content	Mini PC device, Power Adapter, Desk base, Antennas

Free Operating System: Default installed our activated OEM cracked version(not genuine, works good)Windows English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.

1.AccordingNewest AliexpressBusiness Service Agreement informs all productsshould be showed real price to customs because buyers are responsible for paying tax involved, such as import tax, VAT, etc.

2. Due to the tax problem, buyer refuse to receive the goods, buyer need to responsible for the freight back and forth. Thank you for your cooperation. Any request, leave us message.

3. According to customs rules in Russia, we have to write real price to customs.and buyer have to offer passport information, personal VAT number and link of product to local customs for clearance. Thanks.

4. For German customers, please note that German custom decide to implement the single customs clearance costs for e-commerce goods from Mar.1 2018. Deutsche Post DHL will charge an additional fee of 6 EUR / set (including VAT) for taxable and hospitality tax on incoming mail.

5. For Swedish customer, please note that the Swedish Customs decided to impose VAT on all non-EU e-commerce items (including mail) starting March 1, 2018. The implementation of zero-value-added tax threshold, does not distinguish between the level of value, the recipient VAT. If the value of the goods is less than 150 euros, Sweden Post will charge 7.5 euros for services, more than 150 euros, for 12.5 euros service charges e-commerce items.

6. For Brazil customer, please note that the Brazil Customs decided to charge a fee of 15 reais (about 3.5 US dollars) per order for all international parcels handled by the customs from August 27, local time.You have to pay it within 30 days, otherwise the package will be returned or destroyed. For that, we wont do money refund.

7. To European union(28 counties) we have XINNUO or YUNTU shipping which will pre-paid taxes in our side which means no need pay taxes when goods received, the delivery time need 8-15 days to GB, France, Italy, Spain, Germany etc.Contact us if you need this service.

1. We prefer payment through ESCROW which is security way for you.

2. Pls make sure the shipping address, zip code and tel-number are correct before payment.

3. The buyers are responsible for all additional custom fees, brokerage fees, duties and taxes for importation into your country.

4. We also can accept the payment by Paypal if you think Paypal is convenient for you to order. But now only can ship to USA, UK, Italy, Spain, France, Germany.

5. Welcome to contact us by chat tool directly or leave a message if you order in bulk.

6. Refund will be done by Paypal.

1. All items will be double checked and well packed and they will be dispatched within 5 business days when order is paid.

2. Normally we ship package by DHL, it will take about 3~7 working days to most of countries, door to door.

3. If you address is a remote area by DHL, if you do not add remote area shipping fee, we will arrange shipment by our methods, hope you can kindly understand it, thanks.

4. e-EMS: it is for Russia and some other countries.

5.If youchoose the shipping wayis air post mail, it normally takes 30-90 days without tracking information, pls noticed. It's betterto chooseEMSor DHL, more fasterand safe.

6. If you don't get the package in normal time, please contact us kindly, we will do our best to assist you.

7. If you don't accept above terms, pls do not buy it, thanks.

1. We provide 1-3 year warranty period, repair or replace for free;the second year and the third year, we can repair it free. but we will charge for the parts that need to change.

2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first. We will try our best to deal with the issue for you or you can exchange or return the item in one week.

3. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed.

4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product. Thanks.

5. If the productbreak down, please contact us.

1. We maintain high standards of excellence and strive for 100%customer satisfaction!

2. If you are satisfied with them, please lease 5 star positive feedback

3. Negative feedback or low DSR does no resolve any underlying issues. If you have a problem, please contact us via email firstly and give us the opportunity to reasonably rectify in a reasonable amount of time. We will try to respond ASAP, and we are always willing to work things out.

4. For some uncontrollable factors, the item may be damaged during shipping. If you receive a broken item, please contact us first, we will investigate and replace, if you have any other questions please email us. we will respond within 24 hours or less.
