Description

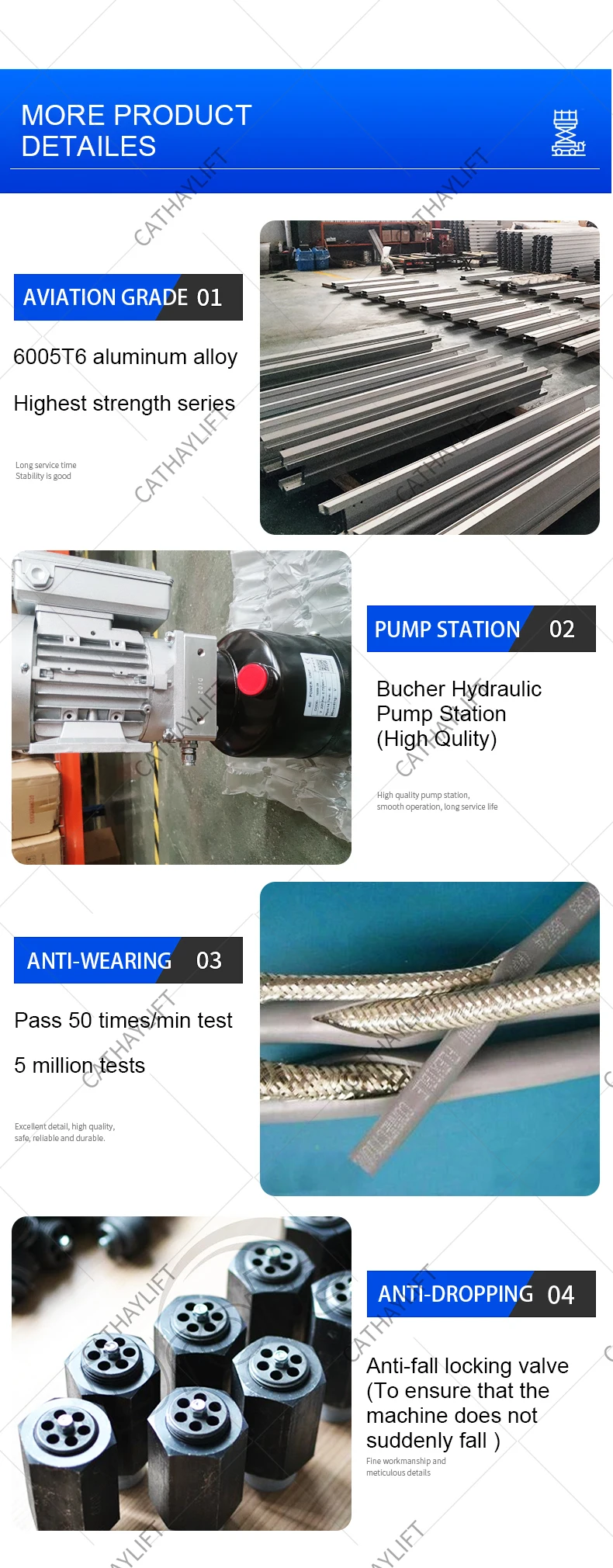

The unique power main structure of The low-level access platform is high-quality high-strength aluminum alloy thin-walled long cylinders, and high-molecular polymer polytetrafluoroethylene sliders are used between the long cylinders so that the long cylinders cooperate closely and slide flexibly. Compact size, lightweight, flexible and easy to move, safe and reliable, non-marking rubber tires can make it move on various grounds, 25% Grade Ability can meet common climbing needs. Our vertical masts are responsive, strong, reliable, and very easy to use and maintain, making them ideal for safe and efficient work at heights.
Model Type No. | CSTAR-3600 | CSTAR-4800 | CSTAR-6000 |
Max.Platform Height | 3.6m | 4.8m | 6m |
Max Working Height | 5.6m | 6.8m | 8m |
Load Capacity | 227kg | 159kg | |
Extendable platform capacity | 114kg | ||
Platform Size | 1.3x0.7m | ||
Extendable Platform Length | 0.51m | ||
Wheel Base | 1.04m | ||
Inner Turning Radius | 0m | ||
Outer Turning Radius | 1.4m | ||
Travel Speed(Stowed) | 4km/h | ||
Travel Speed(Raised) | 1.1km/h | ||
Up/down Speed | 31/32sec | 41.5/42sec | 52/53sec |
Grade Ability | 25% | ||
Drive Tires | 305X100mm | ||
Drive Motors | 2X24VDC/0.5KW | ||
Lifting Motor | 24DC/1.3KW | ||
Battery | 2X12V/100AH | ||
Charger | 24V/15A | ||
Weight | 810kg | 980kg | 1060kg |
Features and Advantages:
● Use in various places
● High precision driving and smoothness
● High agility and durability
● Smart Transport and Lifting
● Intelligent maintenance-free lead-acid battery (Qiu Jian)
● Minimal maintenance and downtime
● Brushless AC Motor (DC power drive)
● easy access to parts
● Best value on the market
