1.Product Specification

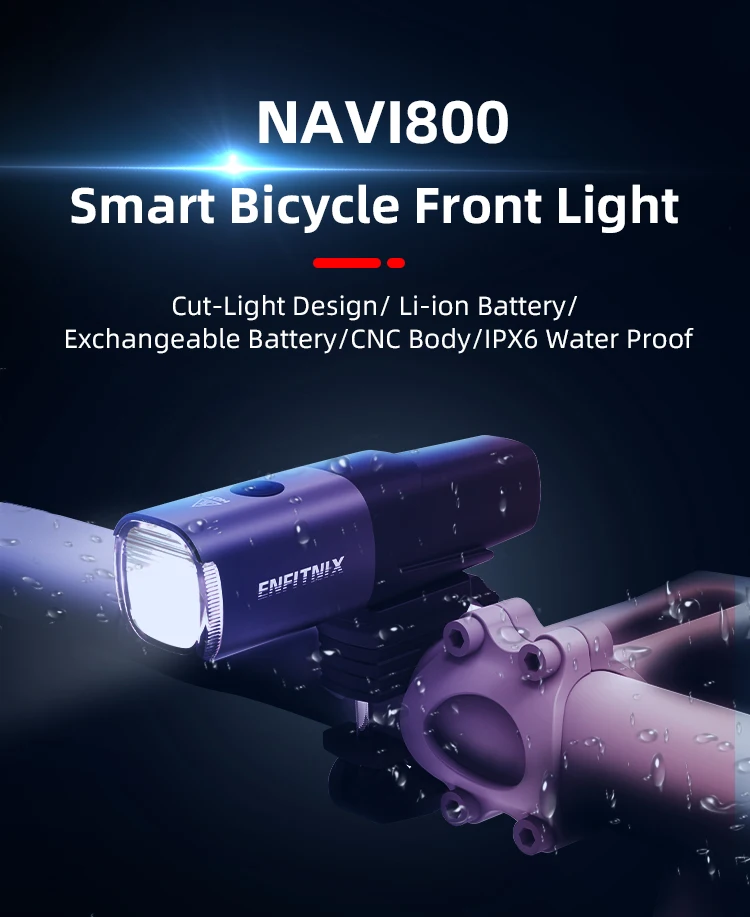

Product Name:Navi800 Smart Front Light

Oimensions :L:105mm W:31mm O:34mm

Operation Mode: Ruto/Manual

Battery: 3350mah rechargeable Lithium-ion bettery

Weighe:139g(including mounting bracket)

Run Time: 8.4hrs@200Lm 1.5hrs@800Lm

Color: Black

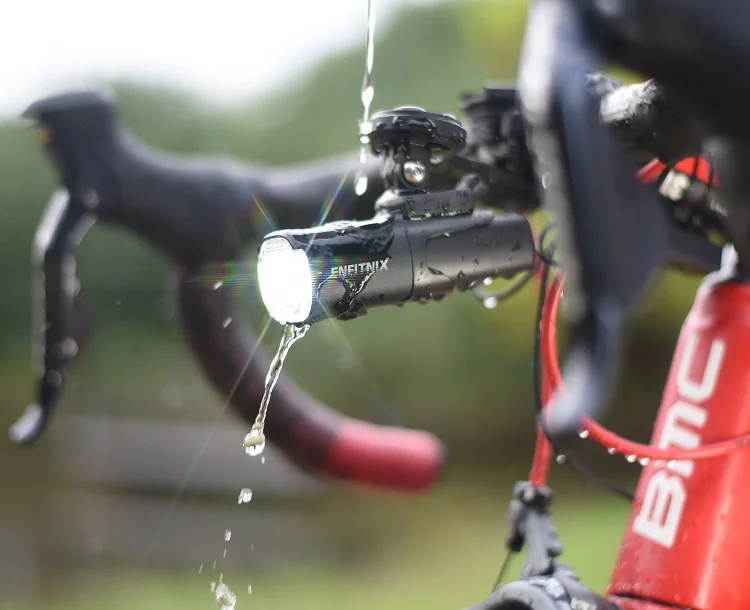

Waterproof:Ipx6

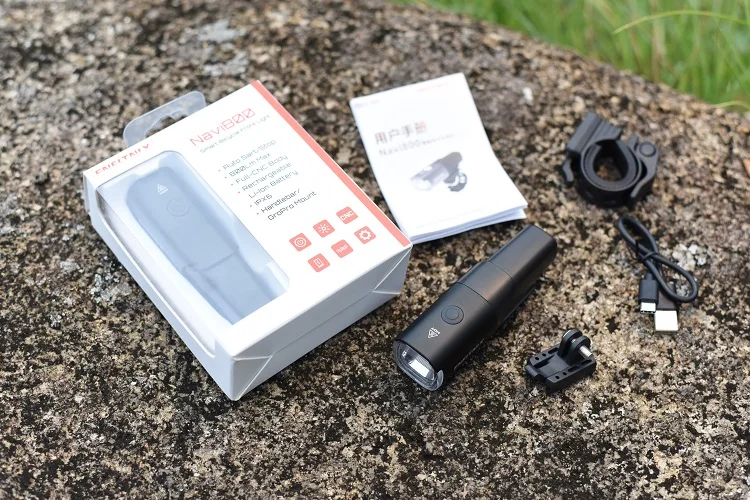

2.Accessories

Navi800/Battey/USB Cable /Handlebar Bracket Mounting/ Gropro Mount Bracket

3.Operation and functionality

Navi800 comes with a motion sensor which allow the light to detect if the user is moving the bike and truning

on/off the light automatically

Key Function

Operation Function

Single click Change the output power or turn on the light

Oouble Click Switch betweenAuto moda and manual made

Press down>1s Switch off

Note:When operation in Auto-mode the light will be turn on again if motion is detected

Auto/Manual mode

The navi800 supports two operation modes which can be changed between the two modes by double tclicks he

button

4.Change the batery

Chanrge the battery

Remove the rubber seal 1 on the button of Navi800 and charge the battery via the USB connector.,Battery will be

fully charge in2-3 hours.Charge indicator will turn red when charging is in progress and will turn gree when charge

completed.

Replace the battery

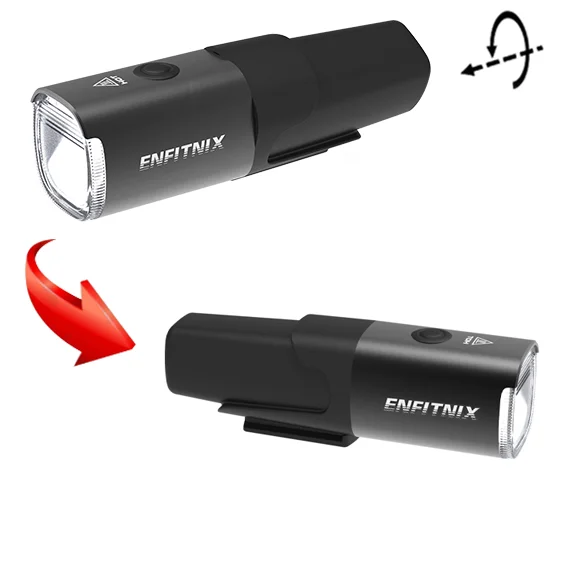

The battery can be remove/replace by turning the cartridge clockwise or anti-clockwise as below:

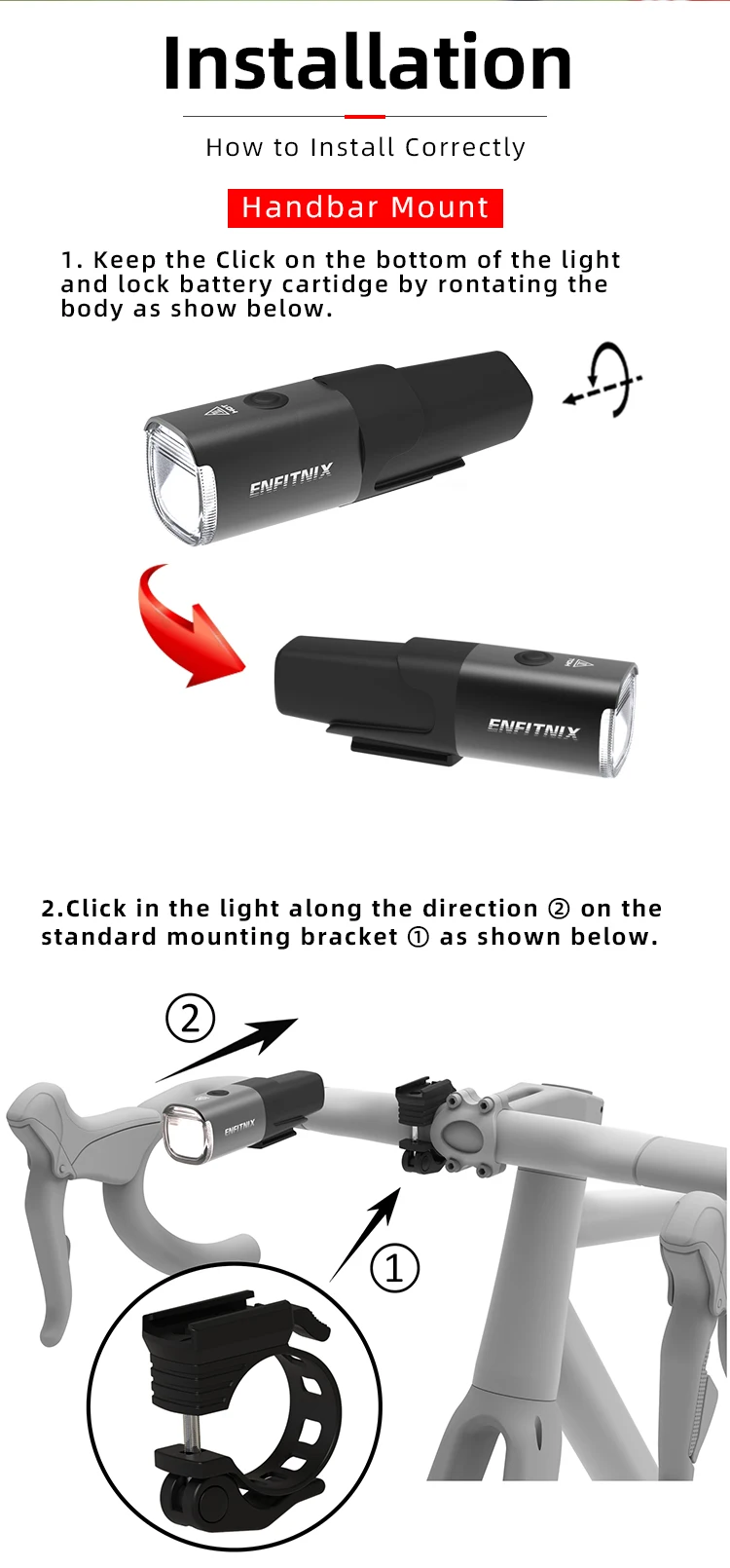

5.Installation

Handlebar mount:

Mount the handlebar bracket to the handlebar and slide in the Navi800.

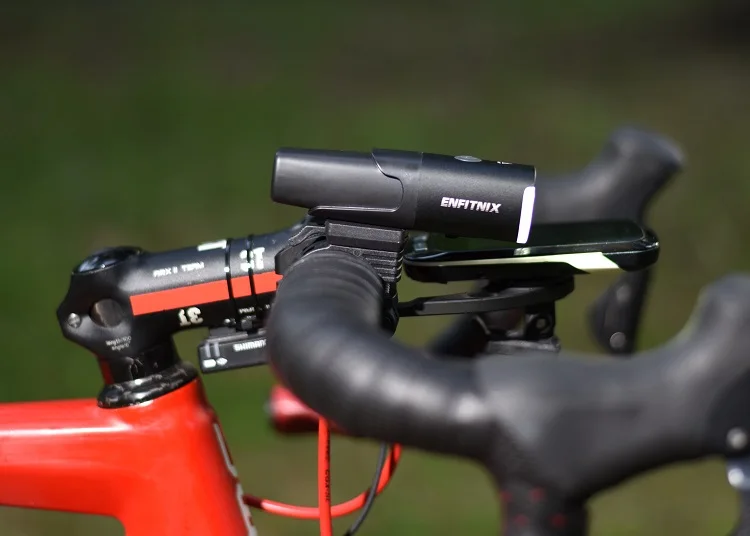

Cycle Computer Mount(GroPro Adaptor

Inseall the GroPro adaptor to a standard cycle computer bracket (with GpoPro pount),and slide in the Navi800.Make

sure keep the button on the top.

6.Warranty

The tail light is covered by a one year warranty
