Eglobal New Intel Core i9 10880H i7 1065G7 Barebone Micro PC Windows TV BOX 2*RJ Lan DP HDMI Dual Band WIFI Mini Computer
Description
-Smart tiny case 137x150x61mm hold by a hand, butpowerful stronger performance.
- Rich interfaces:USB, DP, HDMI, 2 LAN,MIC, SPK,etc.to connect more devices.
-Onboard an ultra-quietaluminum cooling fan for heat dissipation can keep the computer steady working long time.
-2xSODIMM DDR4 memoryslotup to64GB more fast speed improve work efficiency andhavea smooth experience.
-Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.
Available CPU
Model:V320-7300HQ
CPU: Onboard Intel Kaby Lake Intel Core i5-7300HQ Processor, 6M Cache, 2.50GHz up to 3.50GHz(Turbo boost Technology) Quad Cores 4 Threads TDP 45W Intel® HD Graphics 630.
Model:v320-1035G4
CPU:Onboard 10th Gen 10nm CPU Comet Lake Intel Corei5-1035G4 4 cores 8 threads 1.1GHz up to 3.7GHz 6MBcache TDP 15W Intel Iris 940
Model:V320-1065G7
CPU:Onboard 10th Gen 10nm CPU Comet Lake Intel Corei7-1065G7 4 cores 8 threads 1.3GHz up to 3.9GHz 8MBcache TDP 25W Intel Iris 940.
Model:V320-7820HK
CPU: Onboard Intel Kaby Lake Intel Core i7-7820HK Processor, 8M Cache, 2.90GHz up to 3.90GHz(Turbo boost Technology) Quad Cores 8 Threads TDP 45W Intel® HD Graphics 630.
Basic Information | |
CPU | OnboardIntel Core i5-7300HQ/Intel Corei7-7820HK/Intel Core i5 1035G4/intel core i7 1065G7 |
TDP | 45W |
Level 2 Cache | Depend on CPU |
Motherboard | 140 x 130mm customized size |
Chipset | IntelXeon E3 - 1200 v6/7th Gen Intel Core/DRAM Registers - 5910 - 100Series/C230 Series |
Memory | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB/64GB DDR4-2400, LPDDR3-2133, DDR3L-1600 |
OS | Windows 10/Linux |
PXE | YES |
Audio | IntelHigh Definition Audio Controller |
Network | 2xOnboard RealtekRTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN |
Video | Intel® HD Graphics630 |
Input/output port | |
Switch | 1 x Power On/Off Switch |
Power | 1 xPowerIn |
USB | 6x USB3.0 |
Display | 1 xDP, 1 x HDMI |
LAN | 2x RJ45 Giga LAN |
Audio | 1 xMIC, 1 x SPK |
Storage | |
MSATA | 1 x M.2 slot for M.2NGFF22*80(Key M), up to 2TB(Only NVMEPCIe3.0x4),support 6Gb/s 1xM.2 slot for M.2NGFF 22*80(Key M),upto 2TB(NVME/SATA),support 6Gb/s |
Wi-Fi | |

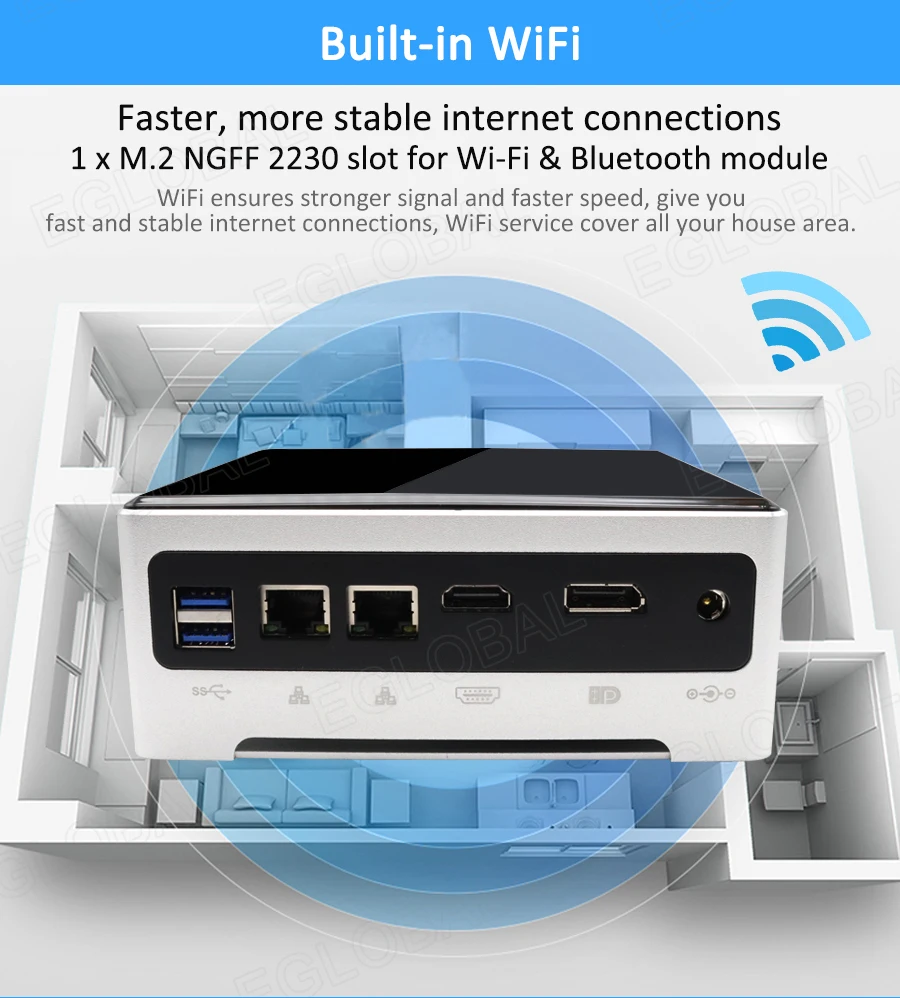

Module | 1 xM.2NGFF 2230slotfor Wi-Fi& Bluetoothmodule |
Antenna | 2 x inner RFcablesand without external antenna |
Power and Working Environment | |
Input | DC100-240V AC/50-60Hz |
Output | DC +12V~+19V, recommend19V/5A |
Operating Temperature | 0/70 Centigrade |
Relative Humidity | 10%~85% |
Product Dimension & Details | |
Size | 137*150*61mm |
Weight | Net 0.9kg,Gross 1.4kg |
Shell | Black colorPVP top and Silveraluminum alloybody |
Cooling Mode | An ultra-quiet aluminumcooling fan |
Functions | PXE,Power On AC,RTC |
Package Content | |
Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord,1xScrews Bag |
Optional | 1xHDMI cable, 1xUser Manual |
