Description

1. Uprade DDR4 ram to 2666MHz free!

2. Upgrade strong signal Intel AC WiFi+Bluetooth free!

3. Uprade M.2 Sata SSD to fast M.2 NVMe/PCIe SSD free!

1. 9th Gen Intel i5-9400F 6 Cores 6 Threads 2.90GHz up to 4.10GHz 9M Cache

2. 9th Gen Intel i3-9100F 4 Cores 4 Threads 3.60GHz up to 4.20GHz 6M Cache

3. 9th Coffee Lake 14nm Intel Core i7-9700F 3.0GHz up to 4.7GHz(Turbo boost Technology) 8 Cores 8 Threads 12MB Smart Cache TDP 65W, Max 64GB DDR4-2666 RAM.

4. 9th Gen 14nm CPU Coffee Lake Intel Core i9-9900 3.1GHz Max 5.0GHz 8 Core 16 Threads 16MB cache TDP 65W Intel® UHD Graphics 630.

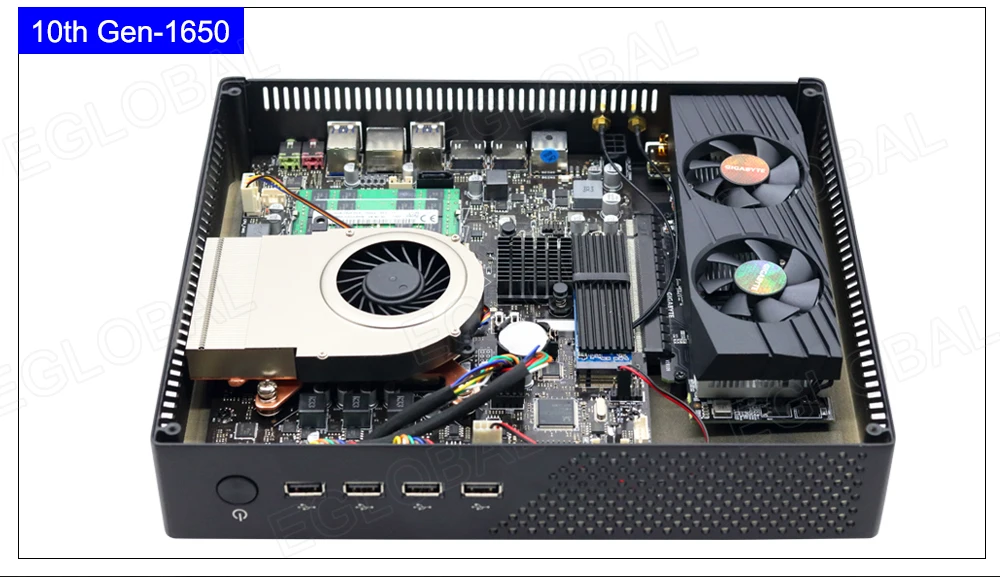

Motherboard:B360/H310

Memory: 2*DDR4 ram slots, max64GB2666MHz

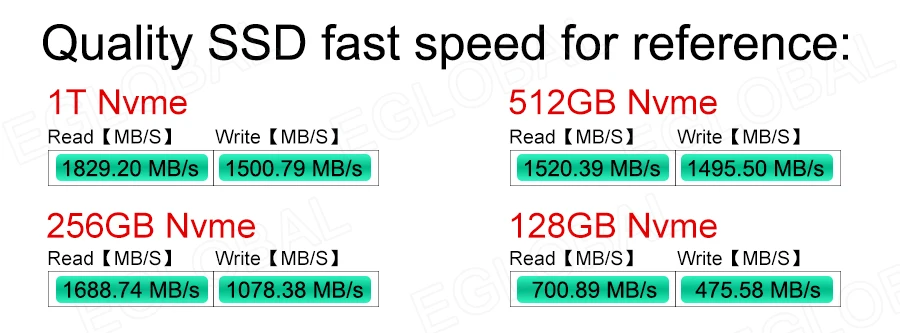

Storage: 1*M.2 22x80SATA/NVME/PCIESSD+1*2.5'' SATA

Graphic card:Nvidia GT 1030 2GB

Video ports: 1 x DP(4096*2160@60Hz), 1 x HDMI2.0( 4096*2160@60Hz), 1 x DVI(1920*1080@60Hz)

Network card: Intel(R) i211 Gigabit Network Connection

USB: 4*USB3.0+4*USB2.0

Heat-sink: Full cooper turbo cooler

Power Supply: 19V 13.16/15A

Color: Black

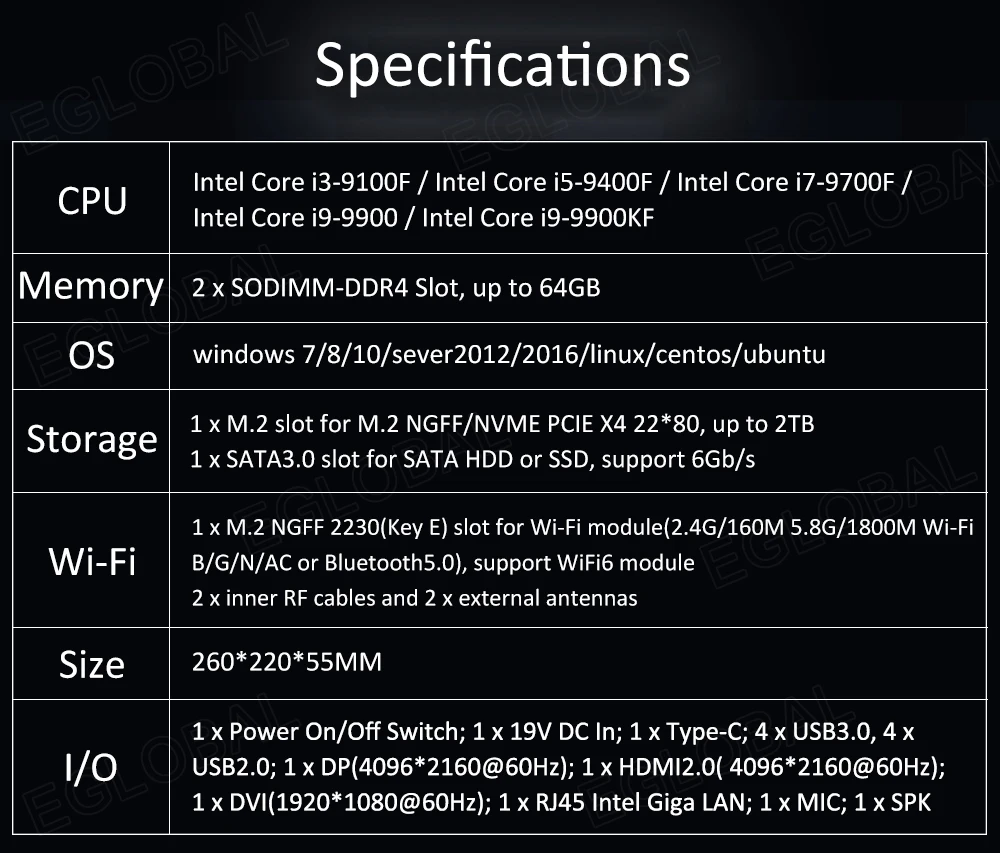

Basic Information:
CPU	Intel Core i3-9100F / Intel Core i5-9400F / Intel Core i7-9700F / i9-9900
TDP	65W
Motherboard	H310C/B360
BOIS	AMI BIOS
Chipset	Intel Coffee Lake

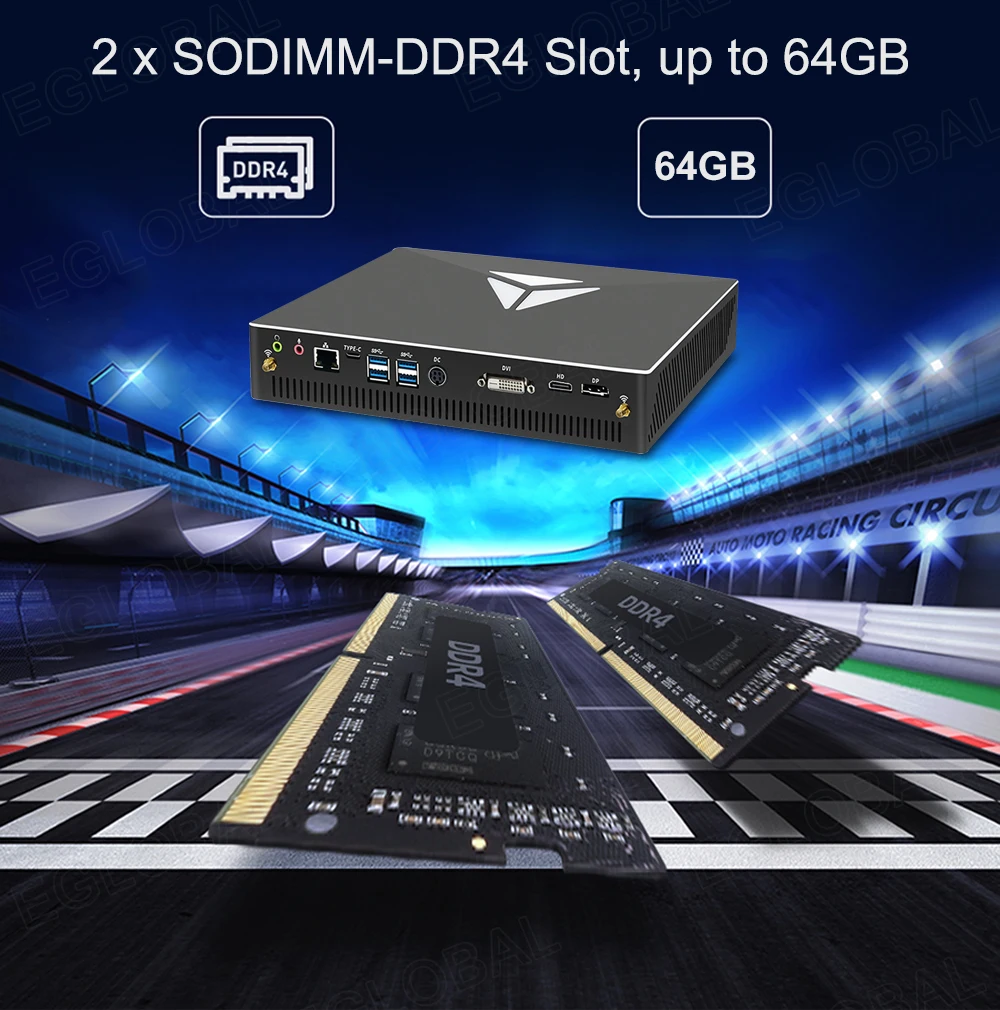

Memory	2 x SO-DIMM DDR4 slot, up to 64GB Dual Channel, DDR4-2400/DDR4-2666/DDR4-2666/ DDR4-2666
OS	windows 7/8/10/sever2012/2016/linux/centos/ubuntu
PXE	YES
Audio	Azalia Codec support 3.5 channel output High Definition Audio Controller
Network	Intel(R) i211 Gigabit Network Connection 10/100/1000 Mbps BaseT LAN
Video	Refer to CPU Nvidia GT 1030 2G

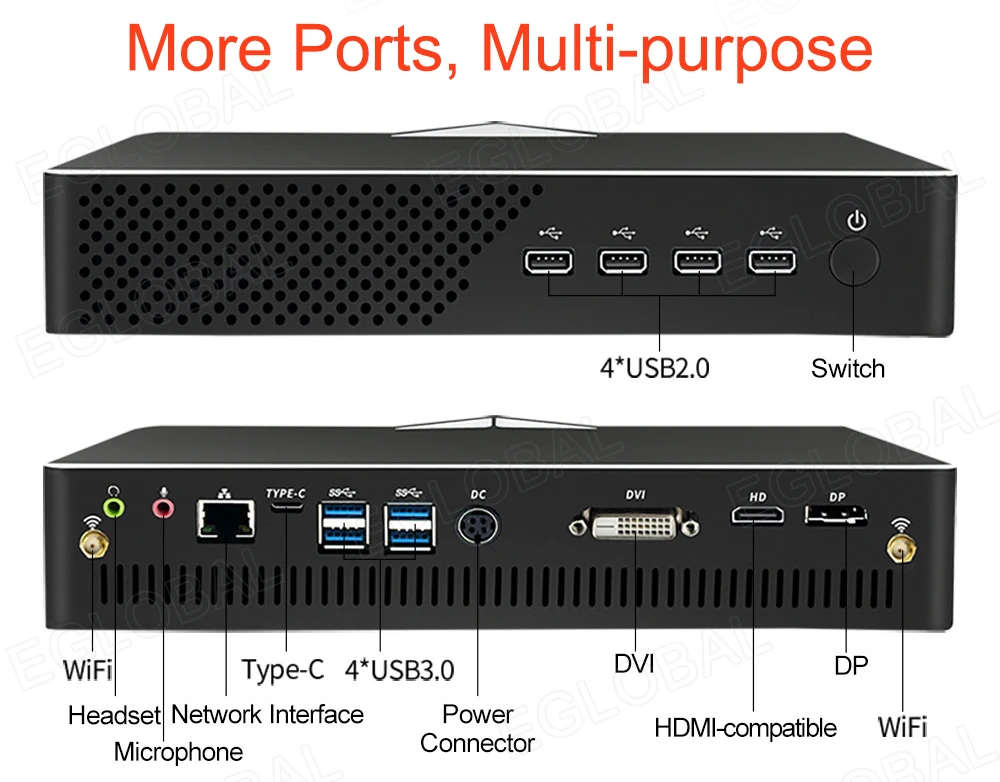

Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 19V DC In
LED	1 x LED
USB	4 x USB2.0, 4 x USB3.0
Display	1 x DP(40962160@60Hz), 1 x HDMI2.0( 40962160@60Hz), 1 x DVI(1920*1080@60Hz)
LAN	1 x RJ45 Giga LAN
Audio	1 x MIC, 1 x SPK
Storage
MSATA	1 x M.2 slot for M.2 NGFF/NVME SSD, support 6Gb/s
SATA	1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module	1 x mini PCIE-half port for Wi-Fi module
Antenna	2 x inner RF cables without external antennas
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC 19V 13.16/15A

Operating Temperature	0/+60 Centigrade
Storage Temperature	-40/+85 Centigrade (-40~185°F)
Relative Humidity	0%~95% (non-condensing)

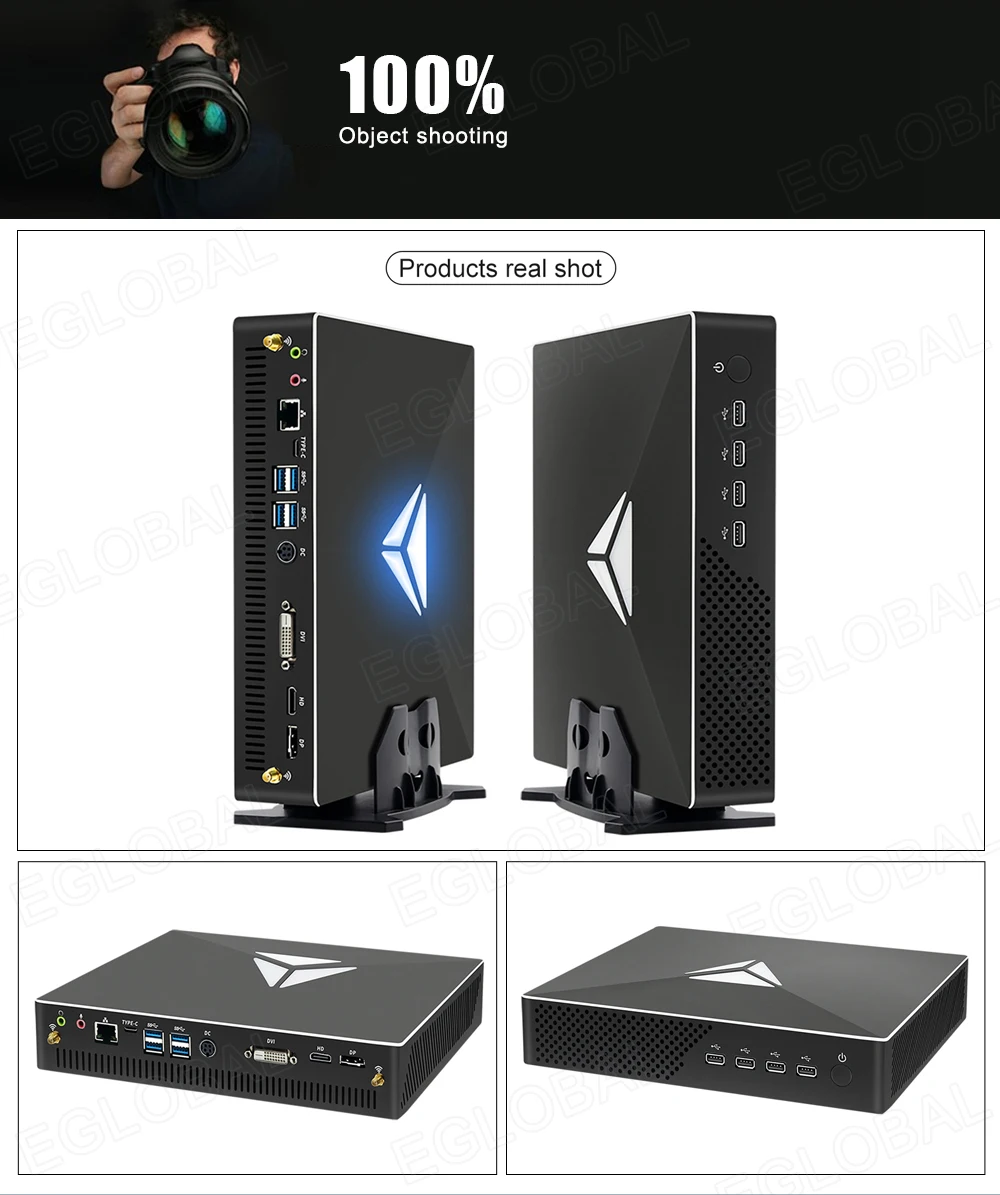

Product Dimension & Details

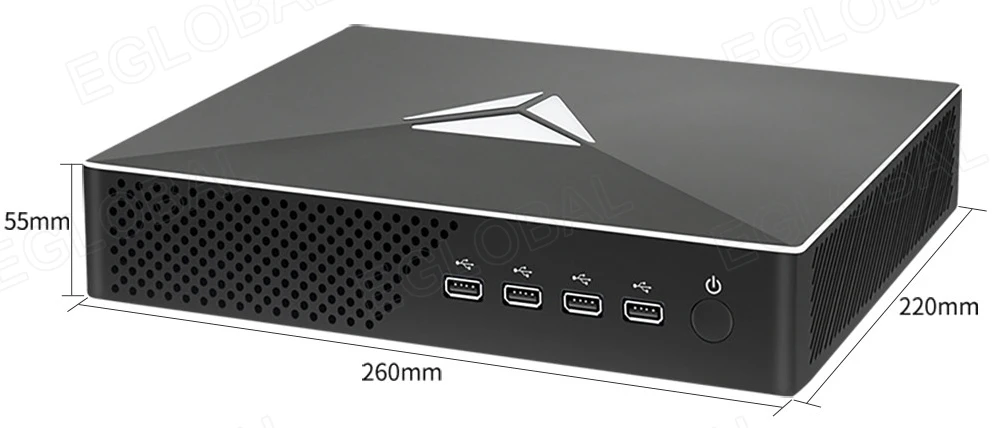

Size	26022055MM
Weight	Net 2.5kg, Gross 3.5kg
Shell	Black color aluminum alloy
Cooling Mode	All-copper turbo fan
Functions	AWAL, RTC, WOL, PXE

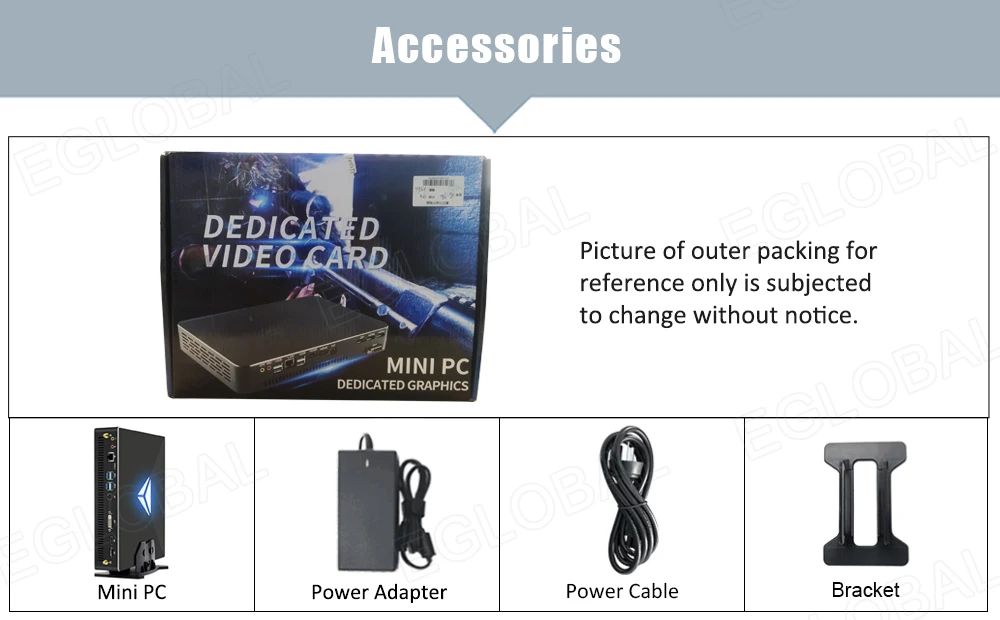

Package Content
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional	1xHDMI cable, 1xUser Manual
