Eglobal HTPC Intel Core i5 7200U i3 8145U Fanless Kaby Lake Mini PC Windows 10 Barebone HD Graphics 620 Tiny Nettop Computer
Description
Eglobal HTPC Intel Core i5 7200U i3 8145U Fanless Kaby Lake Mini PC Windows 10 Barebone Intel HD Graphics 620 Mini Computer
1.Kaby Lake14nmCPUIntel Core i5 7200U 2 cores 4 threads 2.5GHz up to 3.1GHz 3MB cache TDP 15W HD Graphics 620.
2. Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core i3-8145U Dual Cores Four Threads 2.1GHz up to 3.9GHz(Turbo boost Technology) 4MB cache TDP 15W Intel® UHD Graphics 620
3. Onboard Intel Kaby Lake Refresh Intel Core i5 8250U Processor, 6M Cache, up to 3.40 GHz(Turbo boost Technology) Quad Cores 8 Threads TDP 15W Intel® UHD Graphics 620
- Full Brushed Aluminum Alloy Silver color shell, Exquisite production craft on outside design.

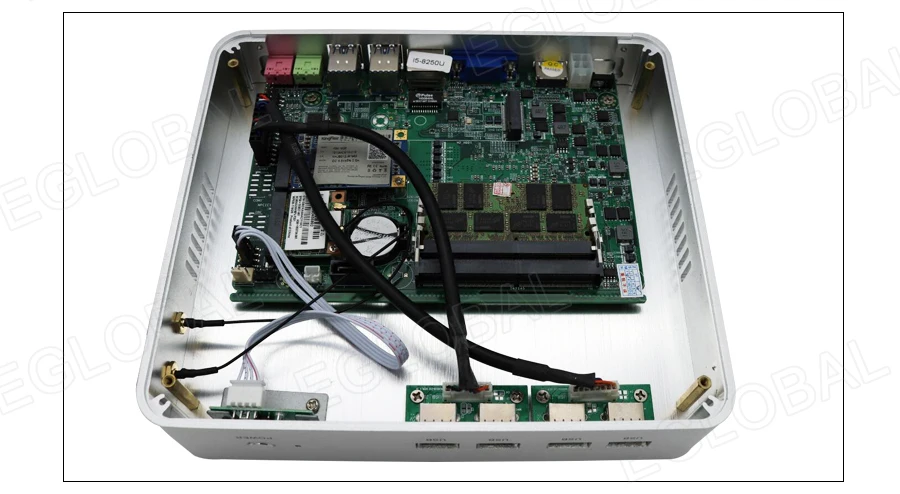

- 2xSODIMM DDR4 memory slot up to 32GB more powerful performance improve work efficiency and give you a smooth experience.

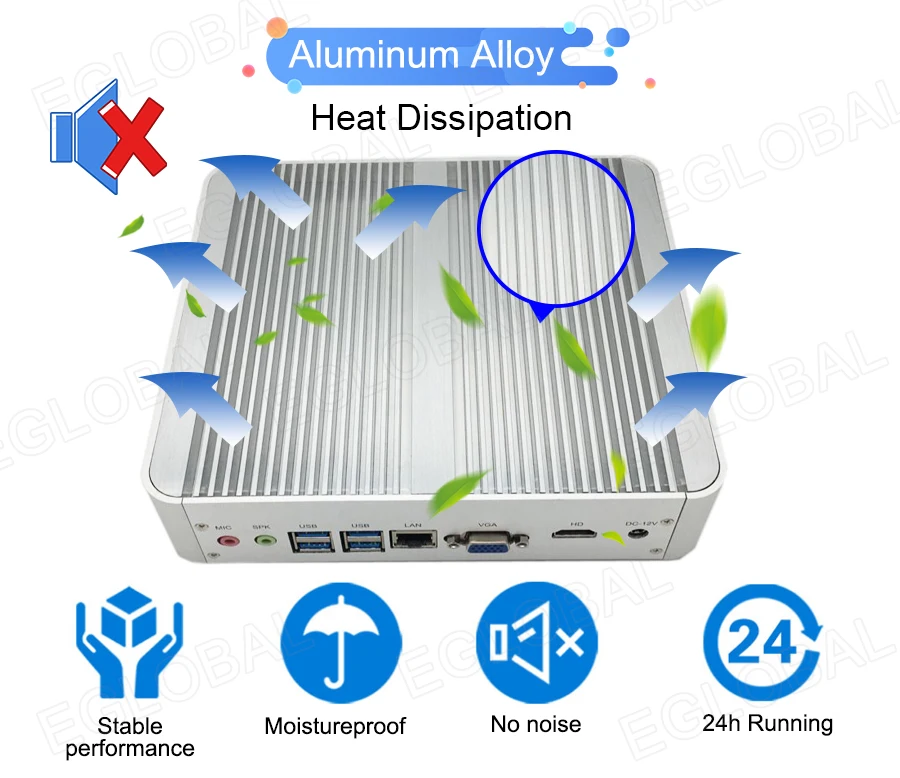

- Fanless system without cooling fan and slim design 208*180*45MM.
- Low consumption TDP only 15W, save much energy and eco-friendly.

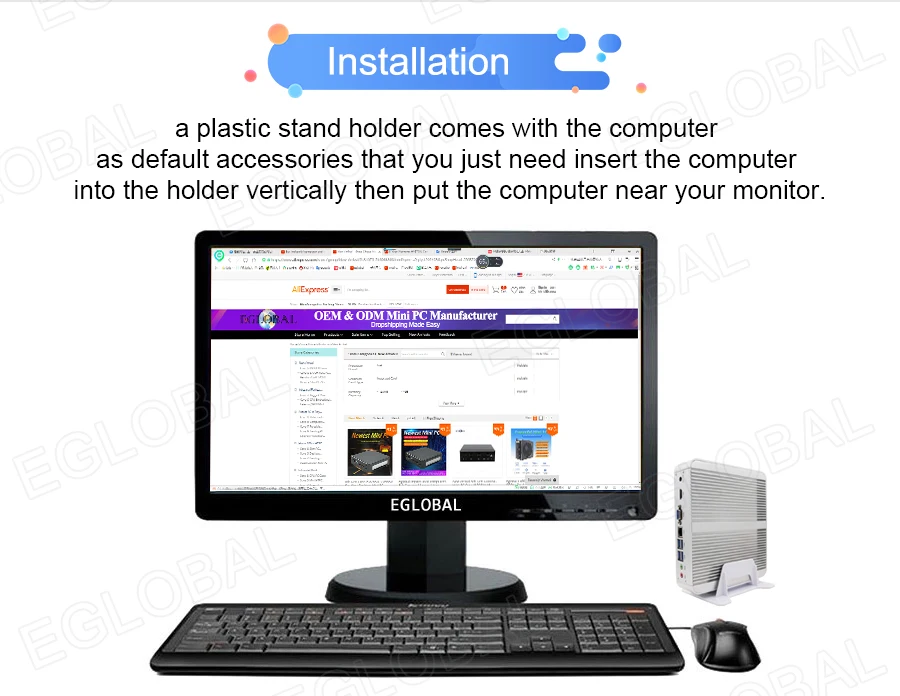

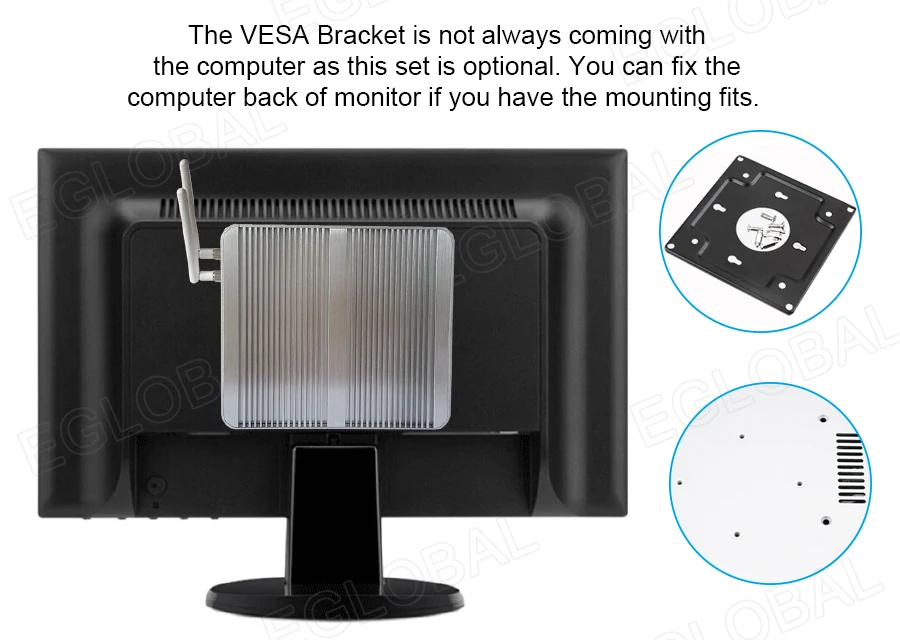

- Can stand up by free plastic stand holder or can be fixed back of monitor by VESA mount.

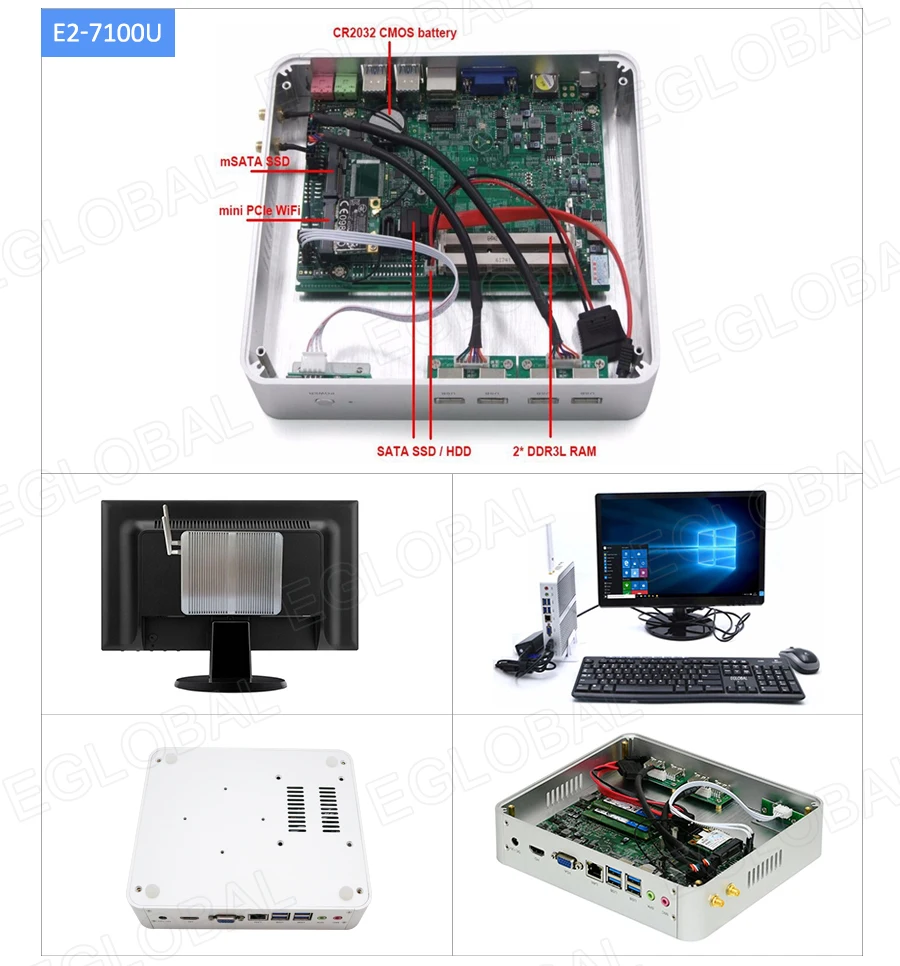

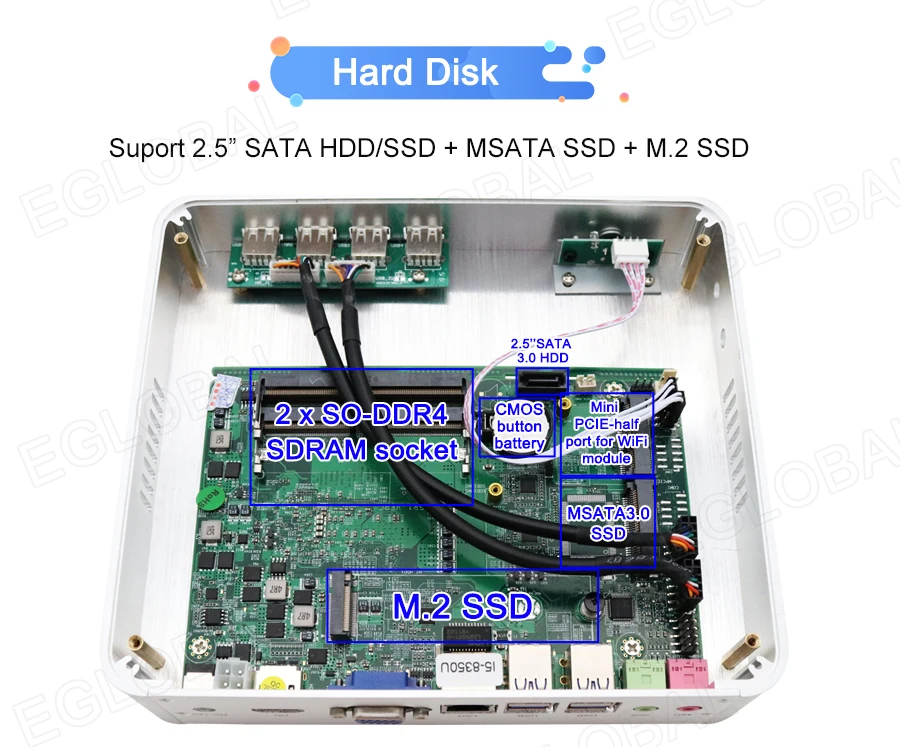

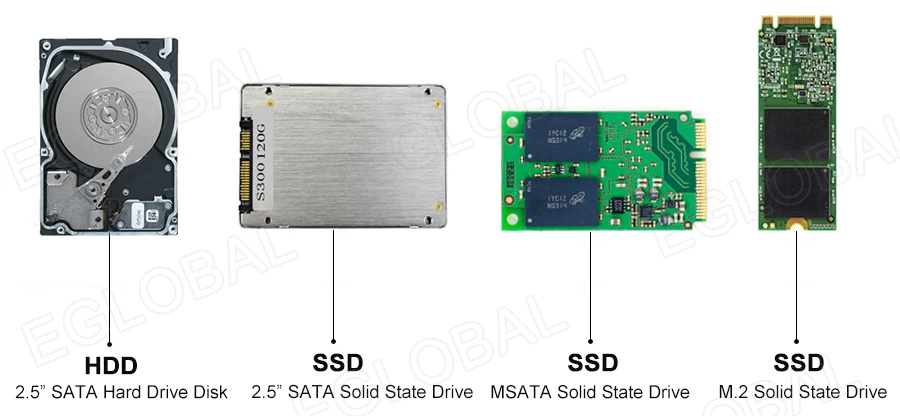

- Can install M.2+MSATA SSD+2.5” SATA HDD together.

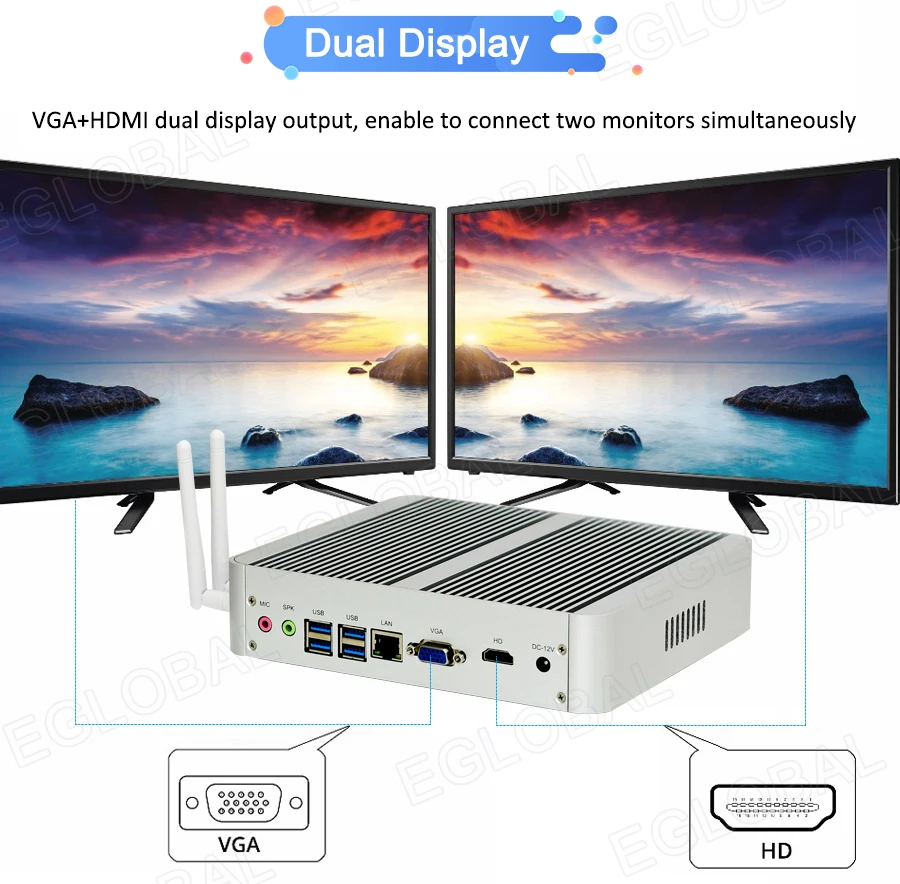

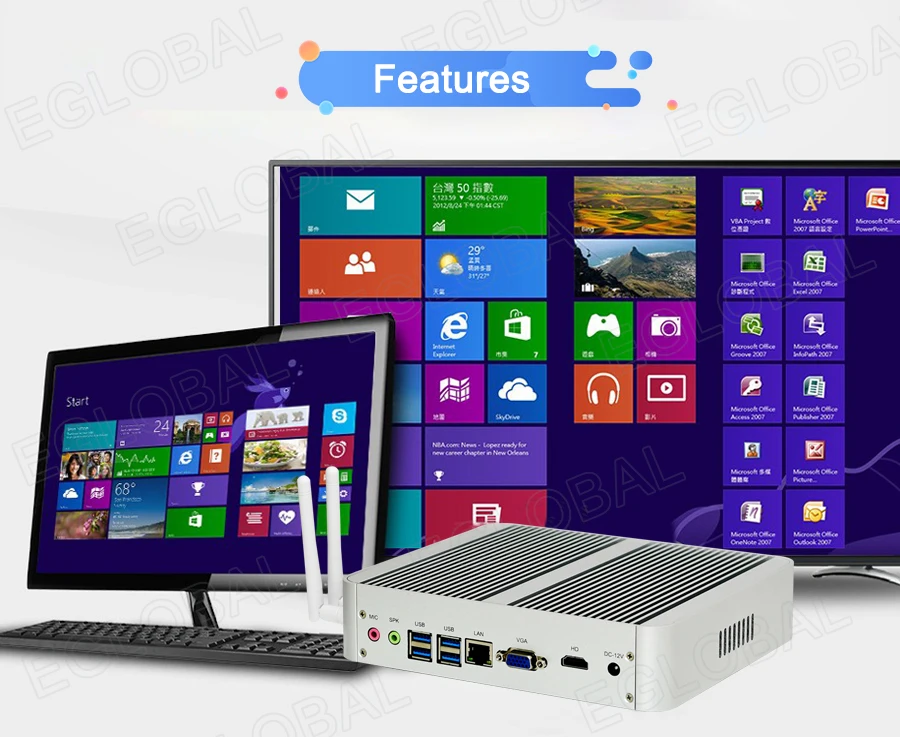

- Support VGA + HDMI dual display output synchronously.
Basic Information: | |
CPU | Intel Core i5-8250U / Intel Core i5-7200U/ Intel Core i3-8145U |
TDP | 15W |
BOIS | AMI BIOS, ACPI supported |
Chipset | Intel KABYLAKE |
Memory | 8250U 2* SO-DDR4 SDRAM Slot, Support 4GB/8GB/16GB/32GB Dual Channel, DDR4-2133, LPDDR3-1866, DDR3L-1600 7200U 2* SO-DIMM DDR3L Slot, Support 4GB/8GB/16GB Dual Channel, DDR4-2133, LPDDR3-1866, DDR3L-1600 |

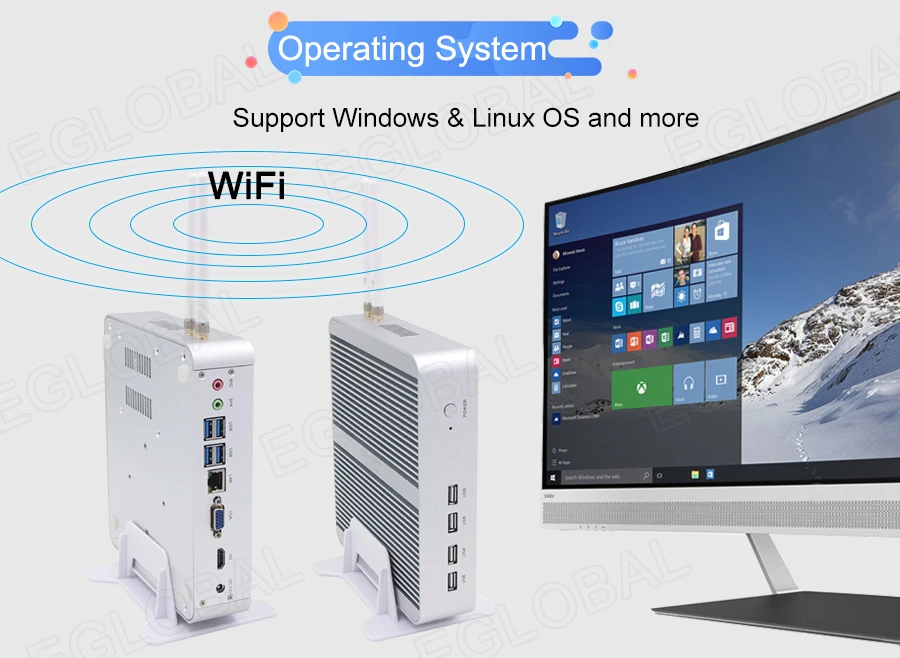

OS | Windows 7/Windows 8/Windows 10/Linux |

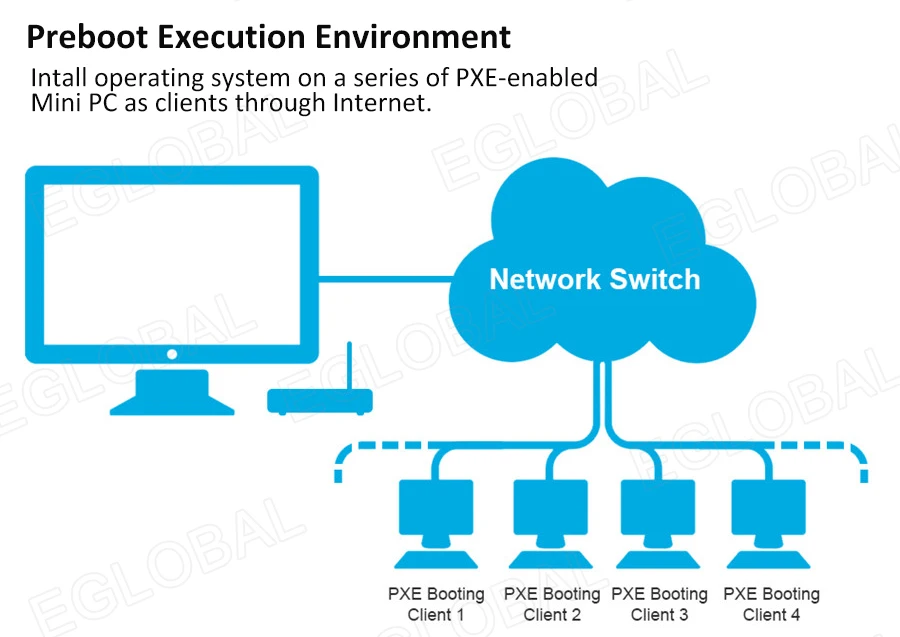

PXE | YES |
Audio | ALC897 chip, 7.1 channel sound Intel Lynx Point-LP HDA |

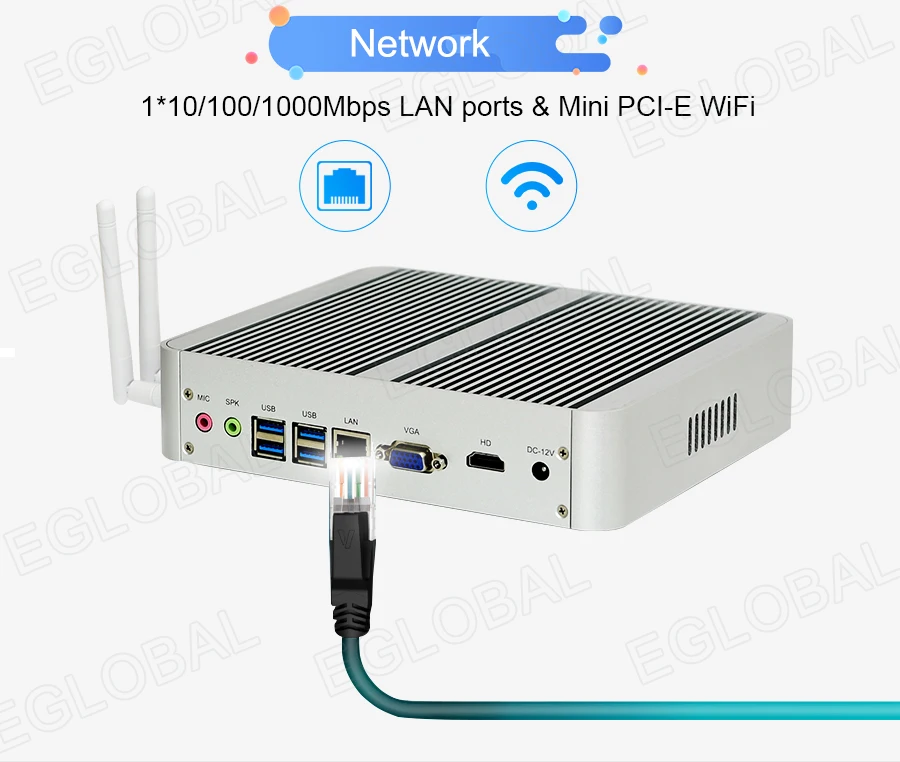

Network | Onboard Realtek RTL8168/8111/81112 PCI-E Gigabit Ethernet NIC Onboard 10/100Mbps/1000Mbps BaseT LAN |
Video | Intel UHD Graphics 620 |

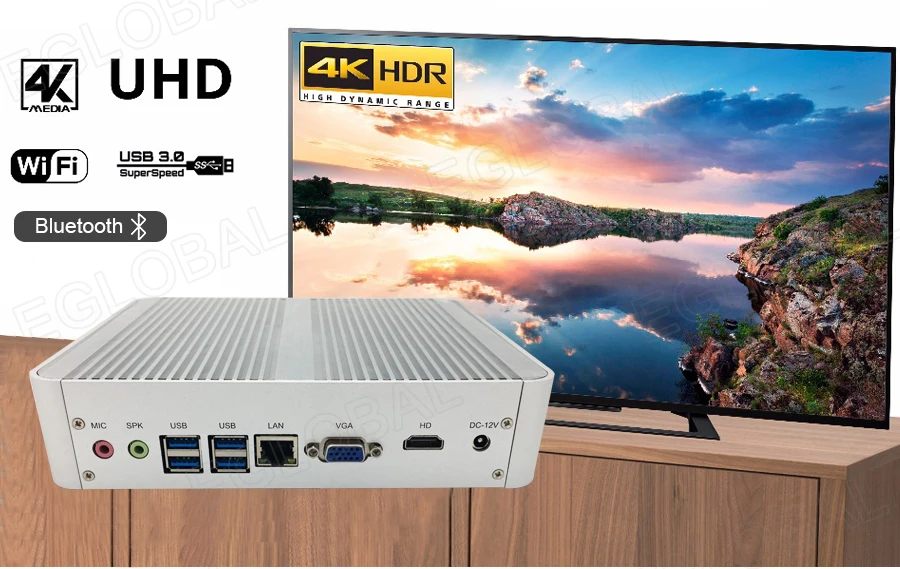

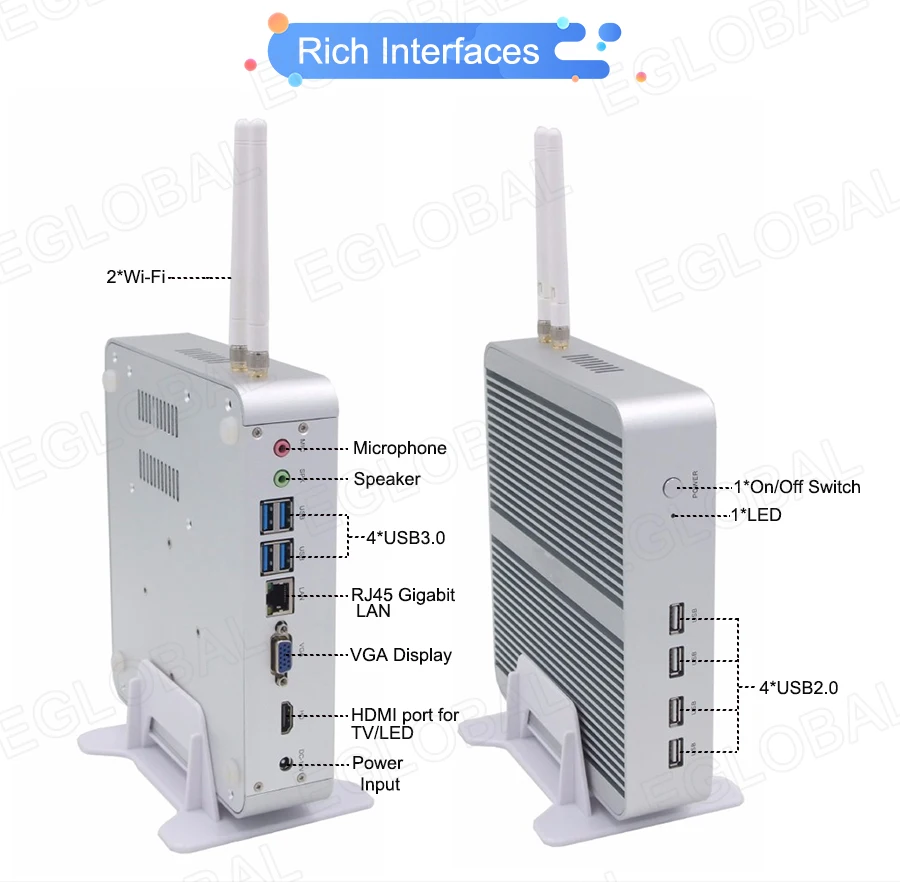

Input/output port | |
Switch | 1 x Power On/Off Switch |
Power | 1 x DC In |
LED | 1 x LED |
USB | 4 x USB2.0, 4 x USB3.0 |
Display | 1 x VGA, 1 x HDMI |
LAN | 1 x RJ45 Intel Giga LAN |
Audio | 1 x MIC, 1 x SPK |
Storage | |
MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1 x M.2 slot for M.2 SSD, support 6Gb/s |
SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
Wi-Fi | |

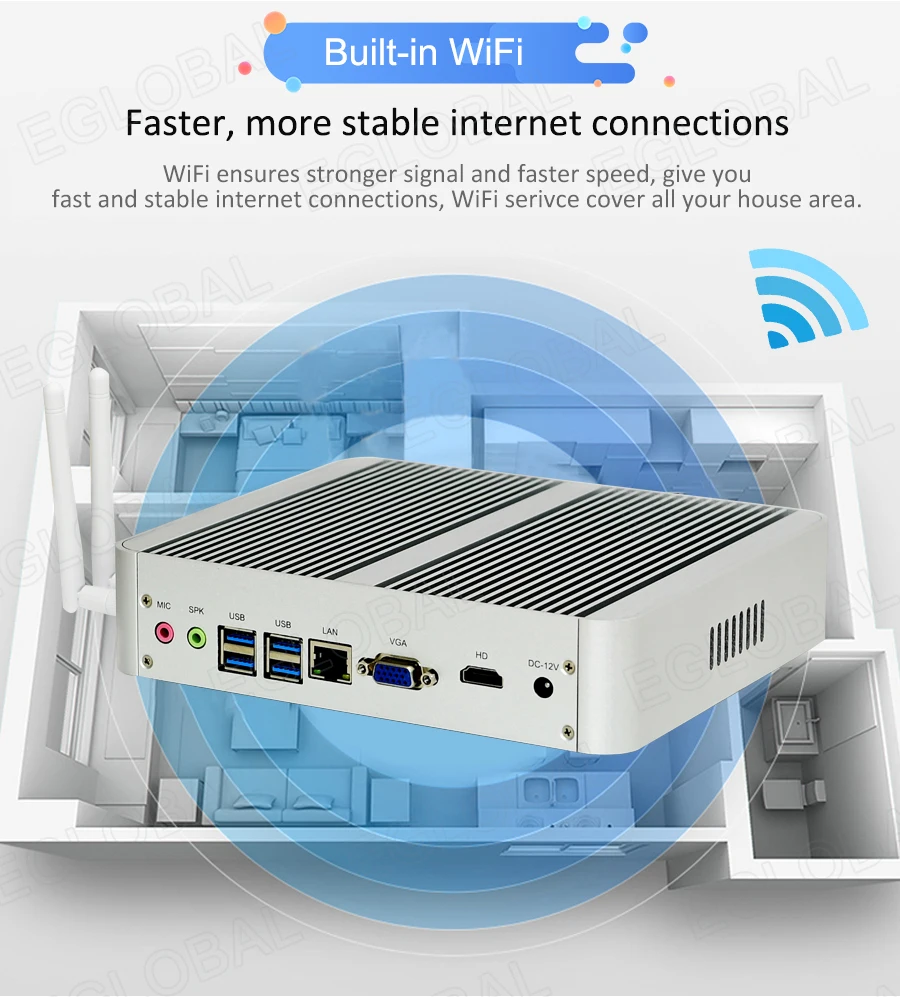

Module | 1 x mini PCIE-half port for Wi-Fi module |
Antenna | 2 x inner RF cables and 2 x external antennas, |
Power and Working Environment | |
Input | DC100-240V AC/50-60Hz |
Output | DC +12V~+19V, recommend 12V/5A |
Operating Temperature | 0/70 Centigrade(32F~140F) |
Storage Temperature | -20/+85 Centigrade |
Relative Humidity | 0%~90% (non-condensing) |
Product Dimension & Details | |

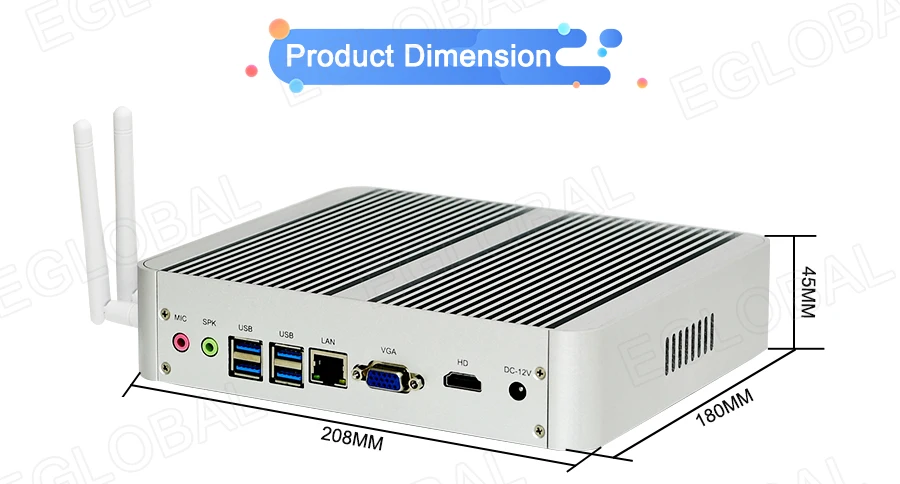

Size | 208*180*45mm |
Weight | Net 1.5kg, Gross 3.0kg |
Shell | Silver color aluminum alloy(any customized color for bulk order) |
Mounting | 4 Mounting holes on case |
Cooling Mode | Fanless |

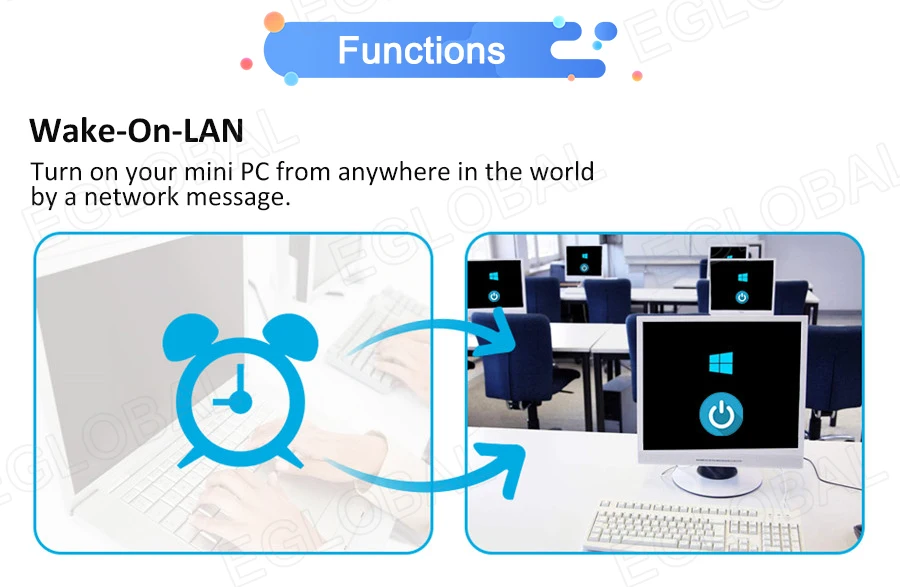

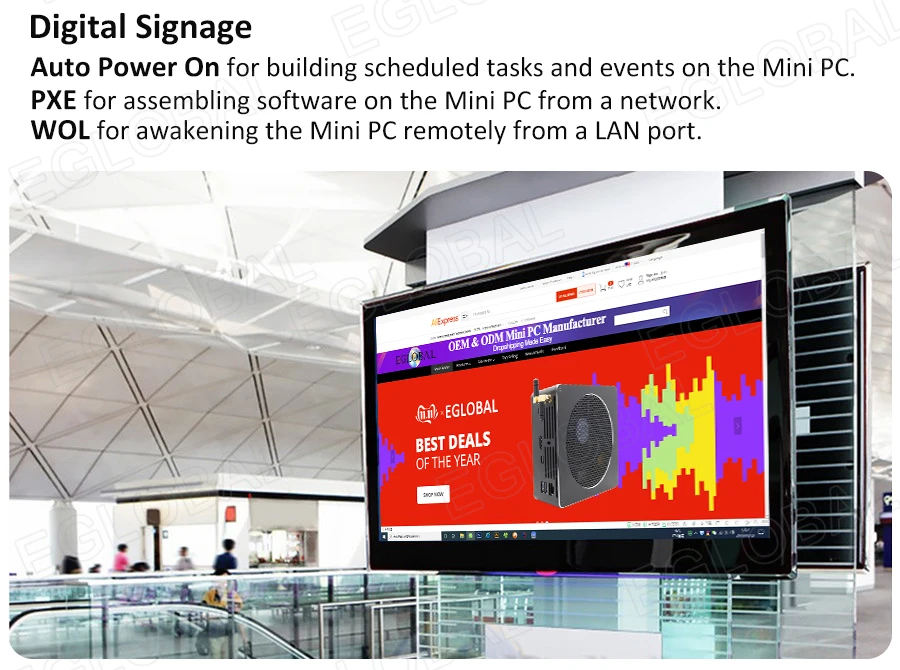

Functions | Calls on function automatically, Wake-On-LAN, RTC, AWAL |

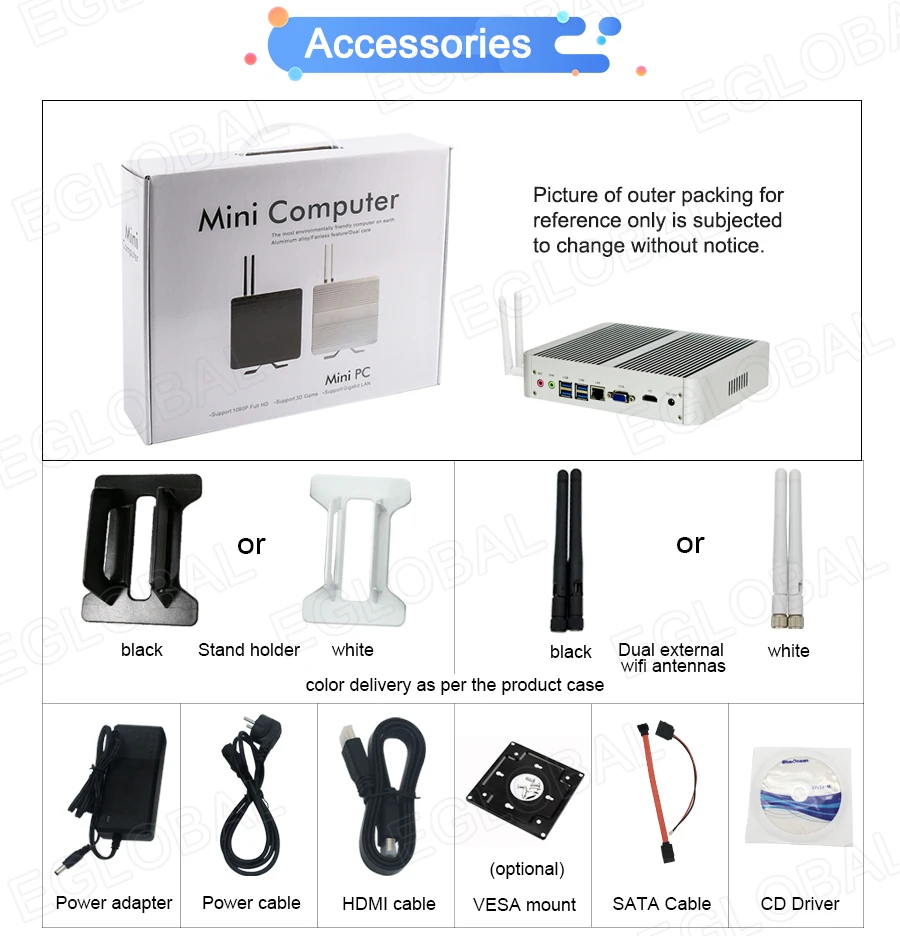

Package Content | |

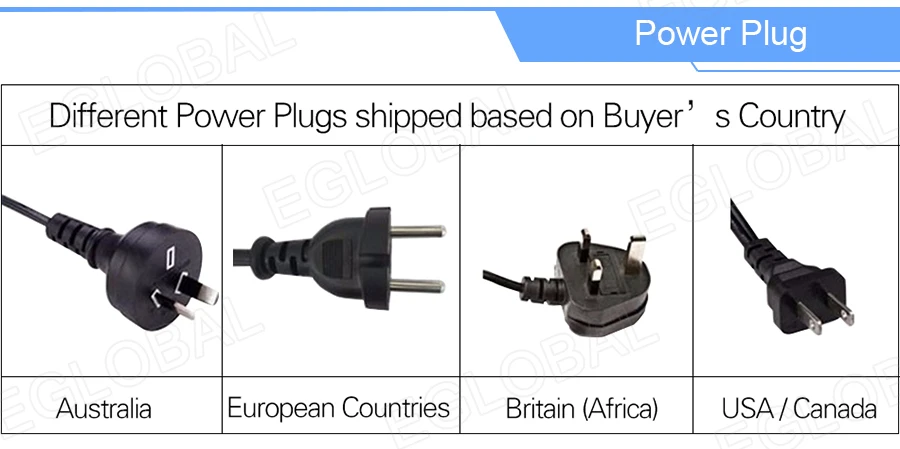

Standard | 1X Mini PC, 1X Power Adapter, , 1xPower Cord, 1xScrews Bag, 1xStand Holder |
Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xVESA mount |
What's in the package?
