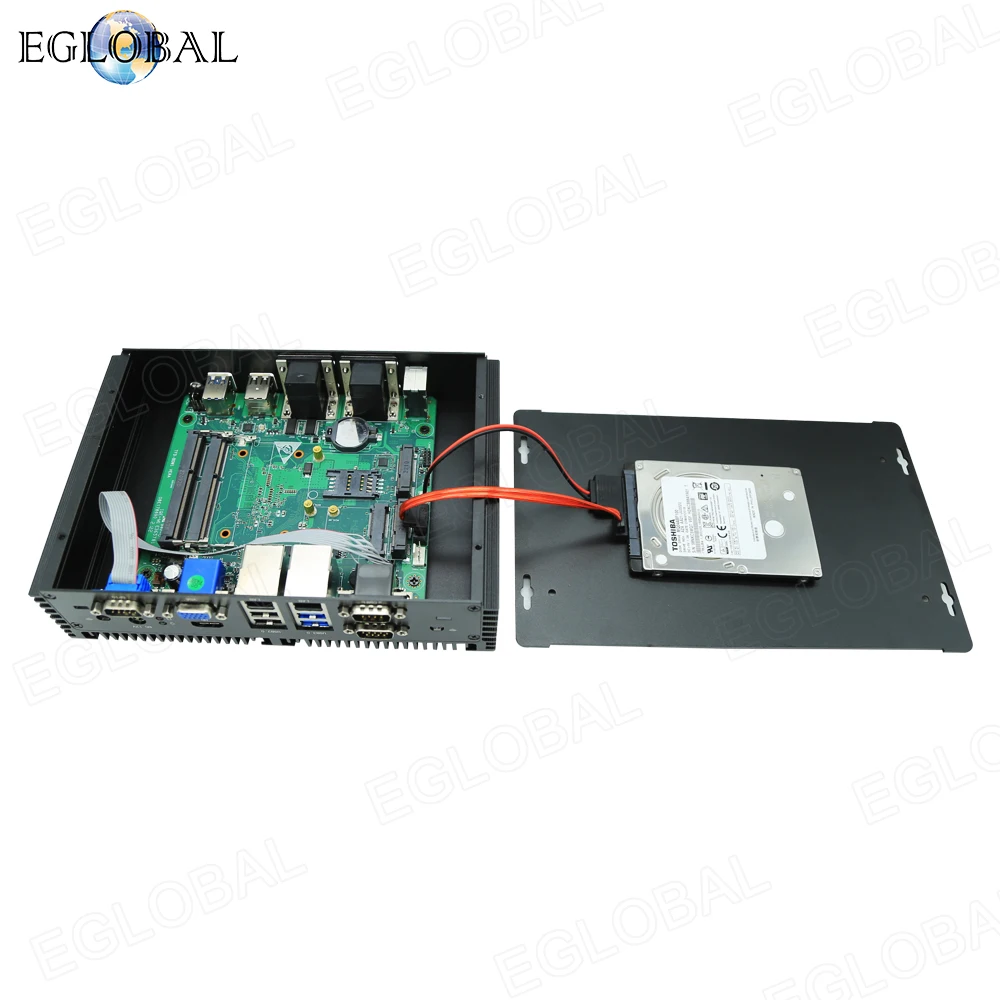

Eglobal GK1 Windows 10 Fanless Barebone Industrial Mini PC Intel Core I5 4278U / I7 4578U 2LAN 6Com 3 Years Warranty

(No reviews yet) Write a Review

SKU:
UPC:
MPN:

$484.48 - $633.92

Current Stock:

Quantity:

Description

Description

Model: GK1

CPU: Onboard Intel Haswell 22nm CPU Intel Core i7-4578U 3.0GHz Max 3.5GHz(Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 28W Intel Iris Graphics 5100.
CPU: Onboard Intel Haswell 22nm CPU Intel Core i5-4278U 2.6GHz Max 3.1GHz(Turbo boost Technology) Dual Cores Four Threads 3MB cache TDP 28W Intel Iris Graphics 5100.

- 2 Intel i211 Gigabit RJ45 LAN and 6 COM(2 COM can change to RS485/422 from BIOS).

- Support VGA + HDMI dual display output synchronously.

- One embedded SIM card slot onboard for 3G/4G Wi-Fi.

- Full Aluminum Alloy Silver color shell for heat dissipation, Exquisite production craft on outside design.

- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.

- Low consumption TDP only 28W and can be mounted on the wall.

- Support AWAL, Wake On LAN, RTC functions.

Basic Information:
CPU	refer to the above Processor
TDP	28W
Motherboard	14.5 x 14.7 cm
BIOS	American Megatrends Inc. 5.6.5
Chipset	Intel Sunrise Point-LP, Intel Skylake-U
Memory	2 x SO-DIMM DDR3L Slot, Support 4GB/8GB/16GB DDR3L 1333/1600, LPDDR3 1333/1600
OS	Windows 7/Windows 8/Windows 10/Linux
PXE	YES
Audio	Realtek ALC662 @ Intel Sunrise Point-LP PCH - High Definition Audio Controller
Network	2 x Onboard Intel i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN
Video	Intel(R) Iris(R) Graphics 5100
Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 12V DC In
LED	2 x LED
USB	4 x USB2.0, 4 x USB3.0
Display	1 x VGA, 1 x HDMI
LAN	2 x RJ45 Intel Giga LAN
COM	6 x COM RS232(3 line) ports, COM1 COM2 can change to RS485/422 from BIOS
SIM	1 x embedded SIM card slot onboard
GPIO	1 x GPIO
Audio	1 x MIC, 1 x SPK
Storage
MSATA	1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA	1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module	1 x mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-full port for 3G/4G module
Antenna	2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC +12V~+19V, recommend 12V/5A
Operating Temperature	-20/+75 Centigrade
Storage Temperature	-40/+80 Centigrade
Relative Humidity	0%~90% (non-condensing)
Product Dimension & Details
Size	212.5(base: 234.2)149.552mm
Weight	Net 1.6kg, Gross 2.5kg
Shell	Black color aluminum alloy (any customized color for bulk order)
Mounting	4 Mounting holes on case
Cooling Mode	Fanless
Functions	AWAL, Wake On LAN, RTC
Package Content
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xHDMI cable(as a gift) 1xScrews Bag
Optional	Wi-Fi antennas, 1xUser Manual, 1xLong Screws Bag
