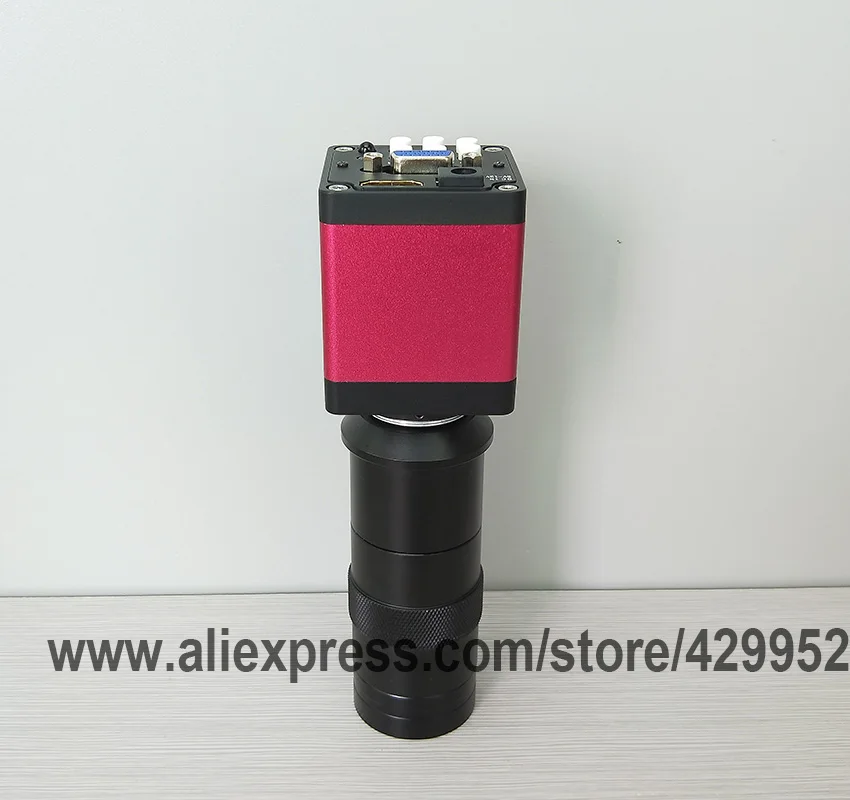

efix HDMI VGA CMOS Industry microscope Video Camera Accessories Parts + Adjustable Magnification Lens

Zoom C-MOUNT Lens:

Working distance(not install Light): 45mm-145mm
Magnification: 8X~130X
Size: 115mm(L) x 40mm(DIA)

Notice:

This package don't include any LCD Monitor, PCB Board which showed on the video and pictures.

14MP Camera Specification:

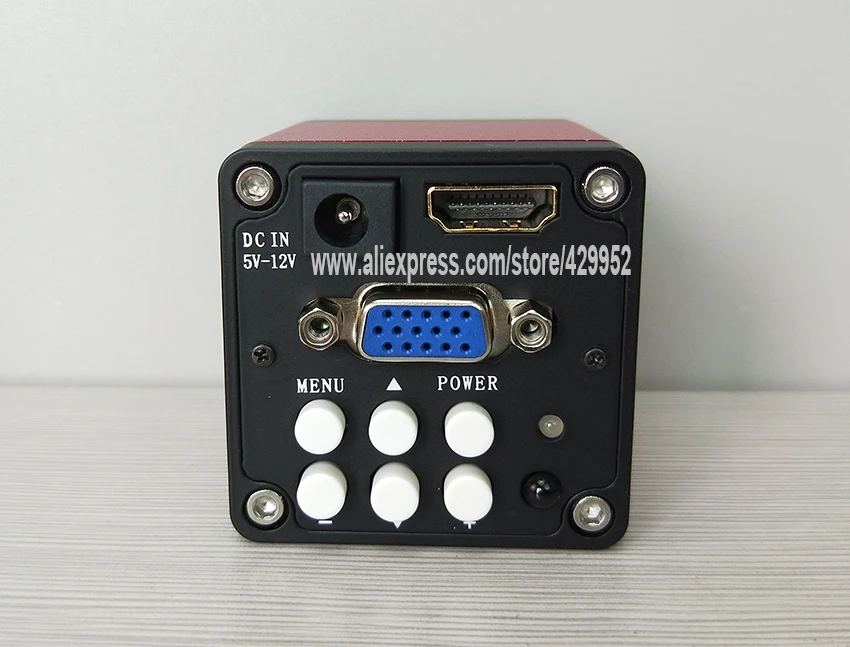

Video Interface: HDMI, VGA
Display Resolution: 1280*720 / 1024*768@60F/S
Lens Interface: C/CS
Working Voltage: DC 5-12V
Optical Format: 1/4 Inch
Pixel Size: 3.0*3.0 um
Valid Pixel: 1288*728
TV Lines: 1000
Max FPS: 60
Scanning Mode: Progressive
OSD Language: English/ Chinese
AWB Mode: AWB Correction Once/Manual/Auto
HDR: Support
Cross Line: 8 horizontal lines, 8 vertical lines, different color and width
B/W: Support
Negative: Support
Mirror: Left/Right, Up/Down
Freeze: Support
Compare: Support
Image Parameter: Can set bright, contrast, sharp, saturation

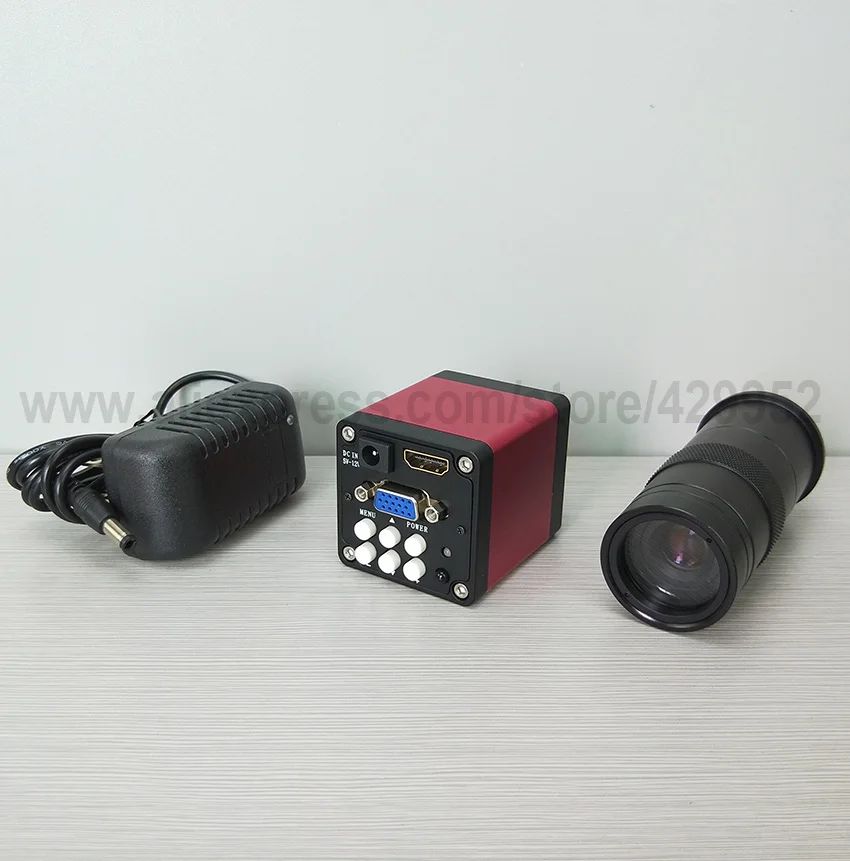

Package including:(14MP With 130X)

1 x Microscope 14MP Camera
1 X 130X C-MOUNT Lens
1 x Power Adapter (AU/EU)
1 x IR Remoter
1 x Paper Manual

38MP Camera Features:

pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:38MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V
Power consumption:MAX 0.15W 12V,0.12A
Lens interface:C/CS
Questions Solutions:
LCD no video or flicker
1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.
2.Check lens cover. Increase the lighting.
LCD have black bar Image warp
1.change resolution of LCD
2.change resolution of camera
Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

Package incluede:(38MP With 130X)

1 x Microscope Camera
1 X 100X C-MOUNT Lens
1 x Power Adapter (AU/EU)
1 x HDMI Cable
1 x IR Remoter
1 x Paper Manual
